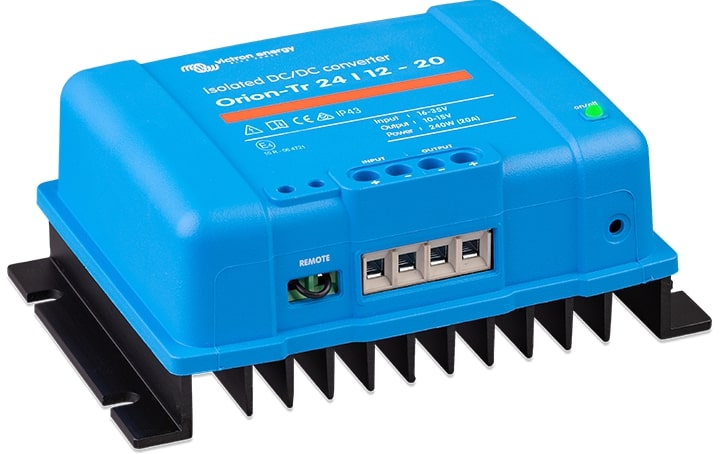

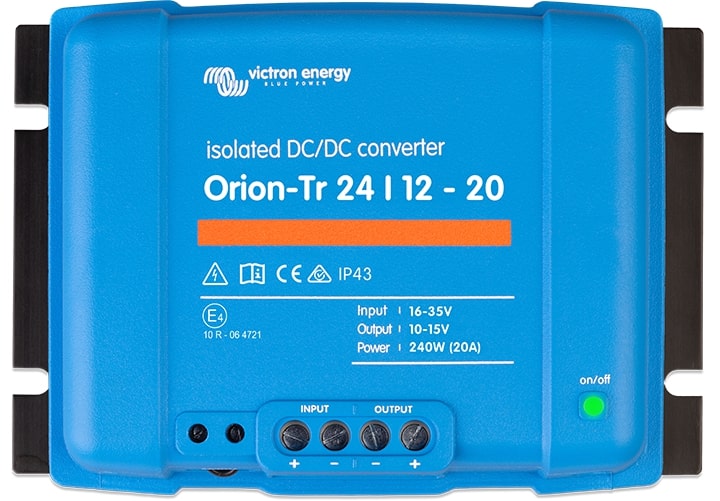

Victron Orion-Tr DC-DC Converters Isolated

Victron Orion-Tr DC-DC Converters Isolated Side

Victron Orion-Tr DC-DC Converters Isolated Features

Victron

Victron Orion-Tr DC-DC Converters Isolated

Sale
Regular price $109

Model

Quantity

Secure payments

100% Guarantee

Client satisfaction

This Victron Energy Orion-Tr Isolated DC-DC converter is a compact voltage converter for stabilising the voltage output from a 12-48V battery supply.

Have a question?

Talk with a technical expert.

✆ Call Us

Victron Orion-Tr DC-DC Converters Isolated Description:

This Victron Energy Orion-Tr Isolated DC-DC converter is a compact voltage converter for stabilising the voltage output from a 12-48V battery supply. This is useful if you have equipment that requires a specific, fixed supply voltage and cannot tolerate fluctuations in voltage as the battery discharges or is being charged.

It features full galvanic isolation of the inputs and outputs and has a remote on/off facility, so you can activate or deactivate it manually using a low current switch, or automatically using a battery +ve signal (e.g. switched ignition feed).

Remote on/off
The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch (see manual).

All models are short circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.

IP43 protection

When installed with the screw terminals oriented downwards.

Screw terminals
No special tools needed for installation.

Input fuse
On 12V and 24V input models only.
