By Victron

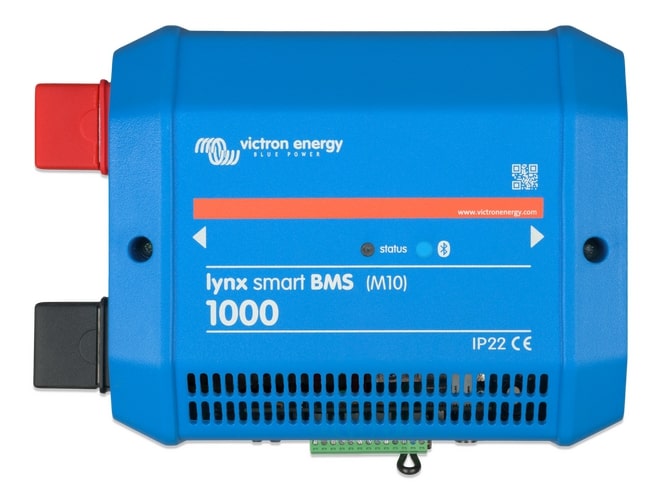

Victron Lynx Smart BMS 1000 A

$2,132.00 CAD
$2,132.00 CAD
Shipping calculated at checkout.
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Secure payments
100% Guarantee
Client satisfaction

Short Description

The Lynx Smart BMS NG is an advanced Battery Management System specifically designed forVictron Energy Lithium NGbatteries (not to be confused with theLynx Smart BMS, which is forVictron Lithium Battery Smartbatteries).
Support expert

Have a question?

Talk with a technical expert.

✆ Call Us
VictronVictron Lynx Class-T Power In
Victron Lynx Class-T Power In
Victron Lynx Smart BMS 500 A
VictronVictron Lynx Smart BMS 500 A
Victron Lynx Smart BMS 1000 A
$2,132.00 CAD
$2,132.00 CAD

Victron Lynx Smart BMS 1000 A Description:

The Lynx Smart BMS is a dedicated Battery Management System for Victron Lithium Smart Batteries. There are multiple BMS-es available for our Smart Lithium series of batteries, and the Lynx Smart is the most feature rich and complete option. It is available in two versions: 500A and 1000A (both with M10 busbar connections).



Victron Lynx Smart BMS 500 A 1000 A
Maximum input voltage 75 VDC
Battery voltage range 9 - 60 Vdc
Supported system voltages 12, 24 or 48V
Reverse polarity protection No
Main safety contactor continuous current rating 1000 A continuous
Main safety contactor peak current rating 1200 A for 5 minutes
Power consumption OFF mode 0.3 mA for all system voltages
Power consumption in Standby mode Approximately 0.6 W (50 mA at 12 V)
Power consumption in ON mode Approximately 4.2 W (350 mA at
12 V) depending on the state of
the relays
Minimum load resistance for pre-charging 10 Ω and above for 12 V systems
20 Ω and above for 24 V and 48 V systems
AUX output maximum current rating 1.1 A continuous, protected by resettable fuse
Allow-to-charge port
Maximum current rating		 0.5 A at 60 VDC, protected by resettable fuse
Allow-to-discharge port
Maximum current rating		 0.5 A at 60VDC, protected by resettable fuse
Alarm relay (SPDT)
Maximum current rating		 2 A at 60 VDC
  • Built-in 500A or 1000A contactor used as a fallback safety mechanism and also suitable as a remote controllable main system switch.
  • Battery monitor, indicating state of charge percentage and more data.
  • Pre-alarm signal: provide a warning before the system shuts down due to -for example- a low cell.
  • Bluetooth for use with our VictronConnect app, for setup and monitoring, including Instant Readout - key data of the BMS at-a-glance.
  • Local and remote monitoring using a Victron GX device, for example the Cerbo GX or Ekrano GX.

The Lynx Smart BMS is part of the modular Lynx Distribution system.

Specifications

Brand

Victron

Product type

Outboard accessories
