Victron Smart BMS CL 12/100

$258.00 CAD
$258.00 CAD
Shipping calculated at checkout.
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Secure payments
100% Guarantee
Client satisfaction

Short Description

The Smart BMS CL 12/100 is a Battery Management system for Victron lithium-iron-phosphate (LiFePO4) Smart Batteries. It has been specifically designed for 12V systems with a 12V alternator.
Support expert

Have a question?

Talk with a technical expert.

✆ Call Us
VictronVictron Smart BMS 12/200
Victron Smart BMS
Victron SmallBMS with Alarms
VictronVictron SmallBMS With Pre-Alarm
Victron Smart BMS CL
$258.00 CAD
$258.00 CAD

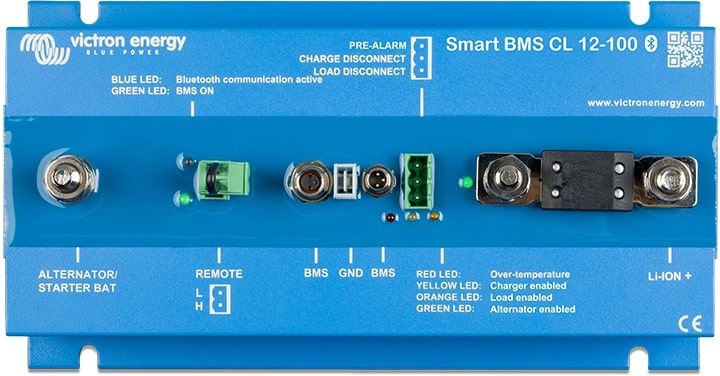

Victron Smart BMS CL 12/100 Description:

The Smart BMS CL 12/100 is a Battery Management system for Victron lithium-iron-phosphate (LiFePO4) Smart Batteries. It has been specifically designed for 12V systems with a 12V alternator.

The BMS CL 12/100 monitors and protects each individual battery cell within the battery (or battery bank) and will disconnect the alternator, charge sources or DC loads in case of low battery voltage, high battery voltage or over temperature.

The dedicated alternator input provides current limiting and one-way traffic from the alternator into the battery, this so any size alternator (and start battery) can be safely connected to the Smart Lithium battery or batteries.

The BMS is also equipped with a remote on/off connector, to turn the BMS (and the system) off via a remote switch, and a pre-alarm contact, to give a warning signal before the BMS will disconnect the batteries from the system.



Parameter Value
Alternator port - max charge current 100 A (with 125 A fuse)
Input voltage to start charging  > 13 V
Current consumption, remote on  16 mA (excluding Load output and Charge output current)
Current consumption, remote off 5mA (BMS functionality still active)
Load disconnect output Normally high (Vbat – 0.1 V)
Source current limit: 10 mA (short circuit protected)
Sink current: 0 A (output free floating)
Charge disconnect output Normally high (Vbat – 0.1 V)
Source current limit: 10 mA (short circuit protected)
Sink current: 0 A (output free floating)
Pre-alarm output Normally free floating
High (Vbat) in case of alarm, max. 1 A
(not short circuit proof)

Remote on/off

Remote L and Remote H

 Use modes of the system on/off:
1. ON when the L and H terminal are interconnected
2. ON when the L terminal is pulled to battery minus (V< 5 V)
3. ON when the H terminal is high (V>3 V)
4. OFF in all other conditions
Operating temperature range -40 °C to +60 °C
Humidity 100 % / 95 %
Protection grade IP65
DC power connection M8 (mounting torque: 10 Nm)
Weight 1,6 kg
Dimensions (h x w x d) 65 x 120 x 224 mm
  • Alternator/Starter Batt+ port alternator and battery protection: The input current on the Alternator/Starter Batt+ port is electronically limited to approximately 90 % of the fuse rating. A 100 A fuse, for example, will therefore limit the input current to approximately 90 A and protects the lithium battery against excessive charge current and the alternator against overload (most 12 V alternators will overheat and fail if running at maximum output during more than 5 minutes).

  • Remote on/off terminal: Use it to interrupt charging via the Alternator port while keeping the
    BMS functionality active, or as an on/off switch to turn off the system completely.

  • Charge disconnect output: Can be used to control the remote on/off port of a charger, such as the Smart Charger IP43, a Cyrix-Li-Charge relay, a Cyrix-Li-ct Battery Combiner or a BatteryProtect. The output is normally high and becomes free floating in case of imminent low cell voltage or high/low temperature. Note that the Charge disconnect output is not suitable to power an inductive load such as a relay coil.

  • Load and Charge disconnect output: The Smart BMS CL 12-100 monitors and protects each
    individual battery cell within the battery and will disconnect the alternator, charge sources or
    DC loads in case of low/high battery cell voltage or high temperature.

  • Pre-Alarm output: Can be used to drive a relay, LED or Buzzer to issue a warning signal before
    the BMS disconnects the batteries from the system.

Specifications

Brand

Victron

Product type

Outboard accessories
