By Victron

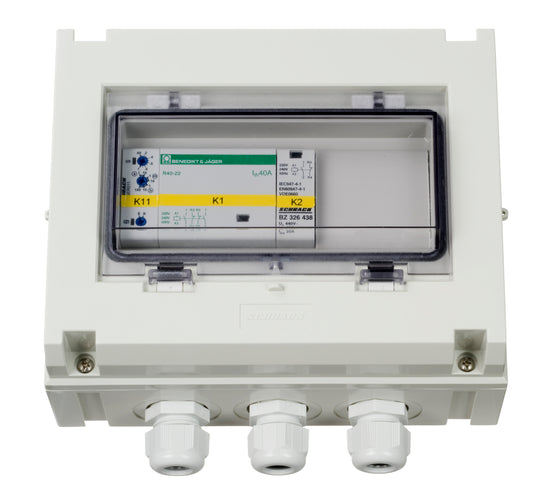

Victron VE Transfer Switch 5kVA 200-250Vac
Regular price
$528.00 CAD
Regular price
Sale price
$528.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Short Description
Short Description
Have a question?
Talk with a technical expert.
Regular price
$528.00 CAD
Regular price
Sale price
$528.00 CAD
Victron VE Transfer Switch In 5kVA Description:
The VE Transfer Switch automatically switches between different power sources: between a generator and shore power, between an inverter and a generator or between an inverter and shore power.

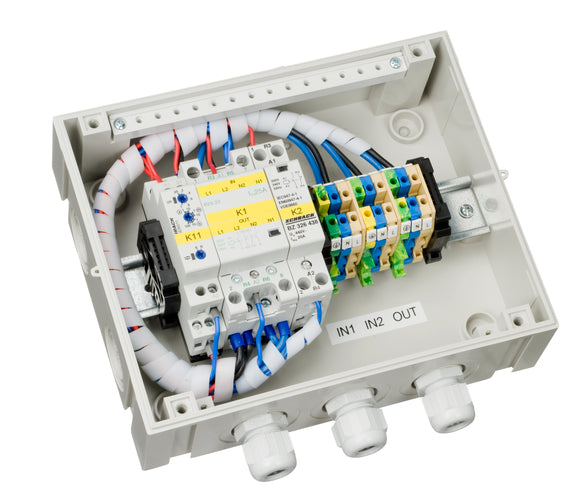

The VE Transfer Switch has two inputs and one output, it automatically transfers the available AC power to the output.
| Specification | 5kVA (COS 0) | 10kVA (COS 0) |
|---|---|---|
| Nominal voltage | 200 - 250Vac, single-phase | |
| Nominal frequency | 50 – 60Hz | |
| Nominal current input 1 | 20A | 40A |
| Nominal current input 2 | 20A | 40A |
| Nominal output current | 20A | 40A |
| Maximum electromotor (air-conditioner) power | 1.3kW | 8kW |
| Power consumption input 1 | 6VA | 6VA |
| Power consumption input 2 | 0VA | 0VA |
| Transfer time by closing contacts | 10 - 20ms | 10 - 20ms |
| Transfer time by opening contacts | 5 - 20ms | 5 - 20ms |
| Contacts delay input 1 | Approximately 10s (adjustable) | |
| Auxiliary contact | 200 - 240Vac, 20A, cos phi = 1 | |
| GENERAL | ||
| Operating temperature | -5°C to +60°C | |
| Maximum humidity (non-condensing) | 95% | |
| Miniature circuit breaker (MCB) | Not included - installation dependent | |
| Earth leakage breakers (RCD) | Not included - installation dependent | |

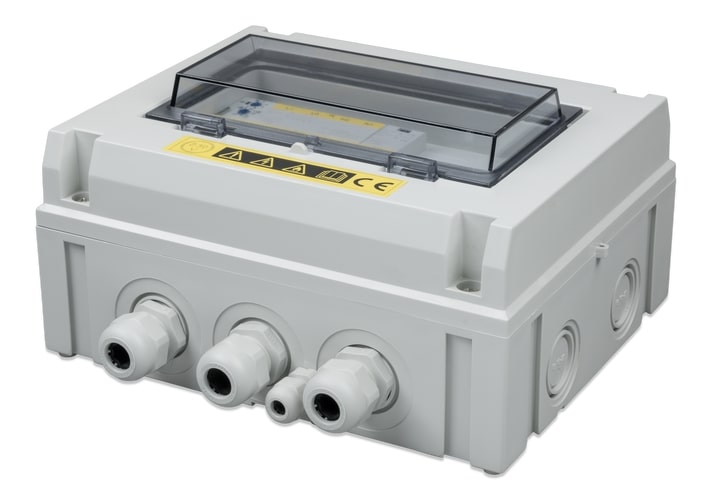

| ENCLOSURE | ||
| Protection category | IP 54 | |
| Colour | RAL 7035 | |
| Dimensions (mm) | 175 x 215 x 120 | 175 x 215 x 120 |
| Weight (kg) | 1.85 | 1.65 |
