Electric Outboard Motor Epropulsion Spirit 2
Couldn't load pickup availability
Short Description
Short Description
Have a question?
Talk with a technical expert.
Electric Outboard Motor Epropulsion Spirit 2 Description
Pre-Order Your Spirit 2 Today!

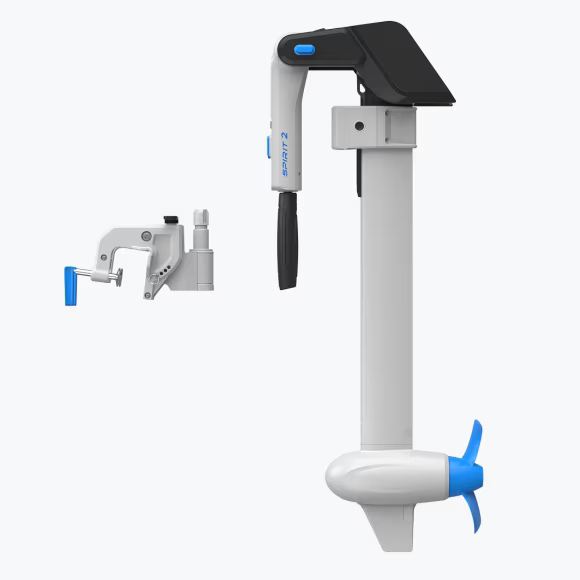

Outboard Spirit 2 2kW
A decade of evolution has led to its fourth generation, ePropulsion expands the Spirit range to 2kW with the introduction of the new Spirit 2, a powerful battery-integrated electric outboard. This upgraded model delivers enhanced power while maintaining a similar compact size.
Featuring a 1.5kWh battery, it revolutionizes the experience for dinghies and day cruisers, providing silent, eco-friendly power at just 20.6 kg*. Its hydrogeneration function allows the battery to recharge while under sail, maximizing battery value and optimizing space for effortless adventures.

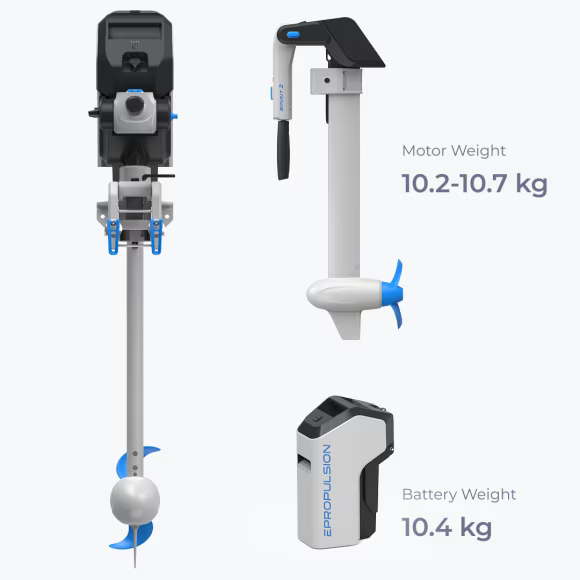

*Combined weight of motor and battery, excluding transom bracket.
Weight varies based on shaft length - Extra Short: 20.6kg, Short: 20.8kg, Long: 21kg.
Day Cruisers
Anglers
Tender Users
Powerful Performance
High Power
Expanded Battery Capacity
Top Speed and Efficiency
Portable Power Station
Hydrogeneration
Hydrogeneration operates effectively between 3 knots and 16 knots, generating approximately 380 W of power at 10 knots, up to 1.5kW at 16 knots.
Performance
| Power (W) | Speed (knots/mph/kph) | Runtime** (hh:mm) | Range (nm/mi/km) |
|---|---|---|---|
| 500 | 4.0 / 4.6 / 7.4 | 3:00 | 11.3 / 13 / 21 |
| 1000 | 5.2 / 6.0 / 9.6 | 1:48 | 8.3 / 9.6 / 15.4 |
| 2000 | 9.5 / 10.9 / 17.5 | 0:54 | 7 / 8.1 / 13 |
| 3000 Sport Mode *** | 11.3 / 13.0 / 21.0 |
Specifications
| Spirit 2 | |
|---|---|
| Nominal Power | 2 kW |
| Maximum Power (in Sport Mode) | 3 kW |
| Battery Capacity | 1539 Wh |
| Motor Weight* (excluding bracket) |
Extra Short: 10.2 kg Short: 10.4 kg Long: 10.7 kg |
| Motor Weight* (including bracket) |
Extra Short: 12.6 kg Short: 12.8 kg Long: 13.1 kg |
| Battery Weight | 10.4 kg |
| Battery Life | 1000 cycles at 80% DOD |
| Charging Time | Standard charger: 8 Hrs / Fast charger: 2 Hrs |
| External Battery | ePropulsion E Series Battery |
| Charging Temperature | -15°C - 60°C Charging below 0°C requires the use of fast charger (with battery communication function) |
| Operating Temperature | -10°C - 65°C |
| Storage Temperature | 5°C - 40°C |
| Rated RPM | 1700 to 2100 |

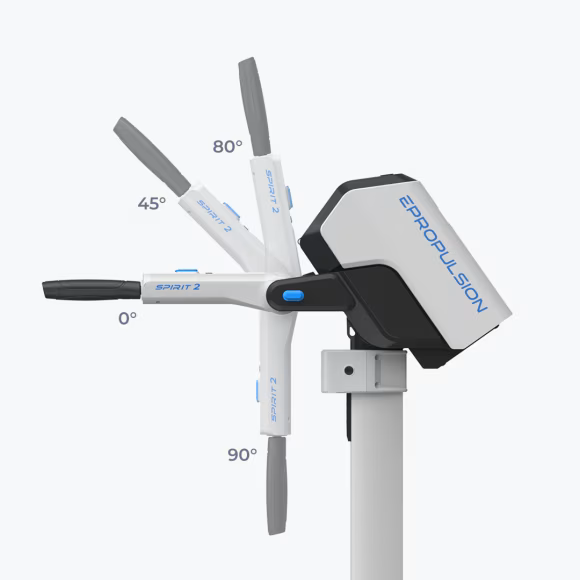

| Trim Angle Adjustment | 0°, 7°, 14°, 21° |
| Tilt Angle | 70°, 90° |
| Shallow Water Mode Tilt Angle | 35° |
| Steering Range | ±90° |
| Dimensions |
Extra Short: 410 x 190 x 915 mm Short: 410 x 190 x 1015 mm Long: 410 x 190 x 1140 mm |
| Propeller | 2-blade composite propeller, diameter 240mm, pitch 167mm |
