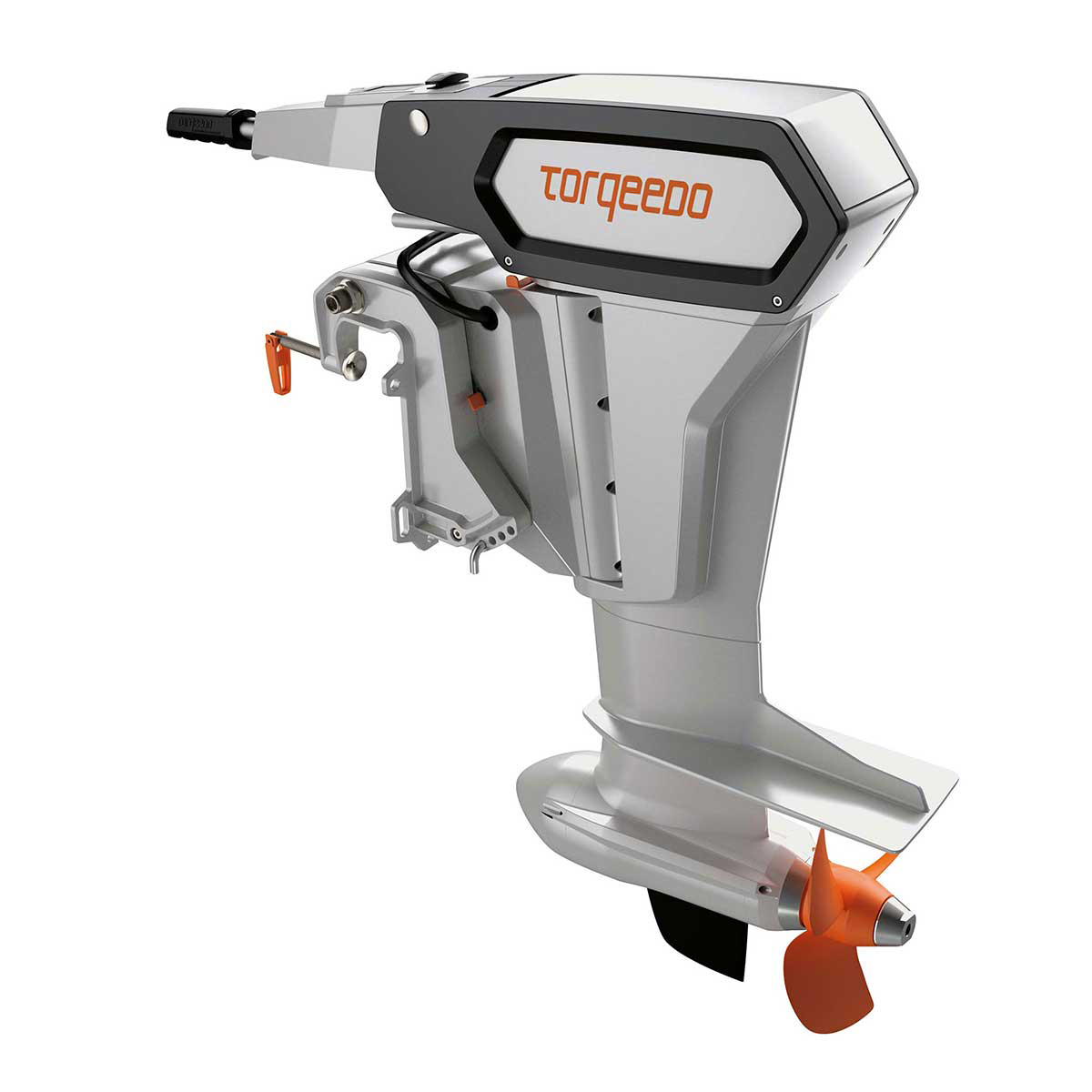

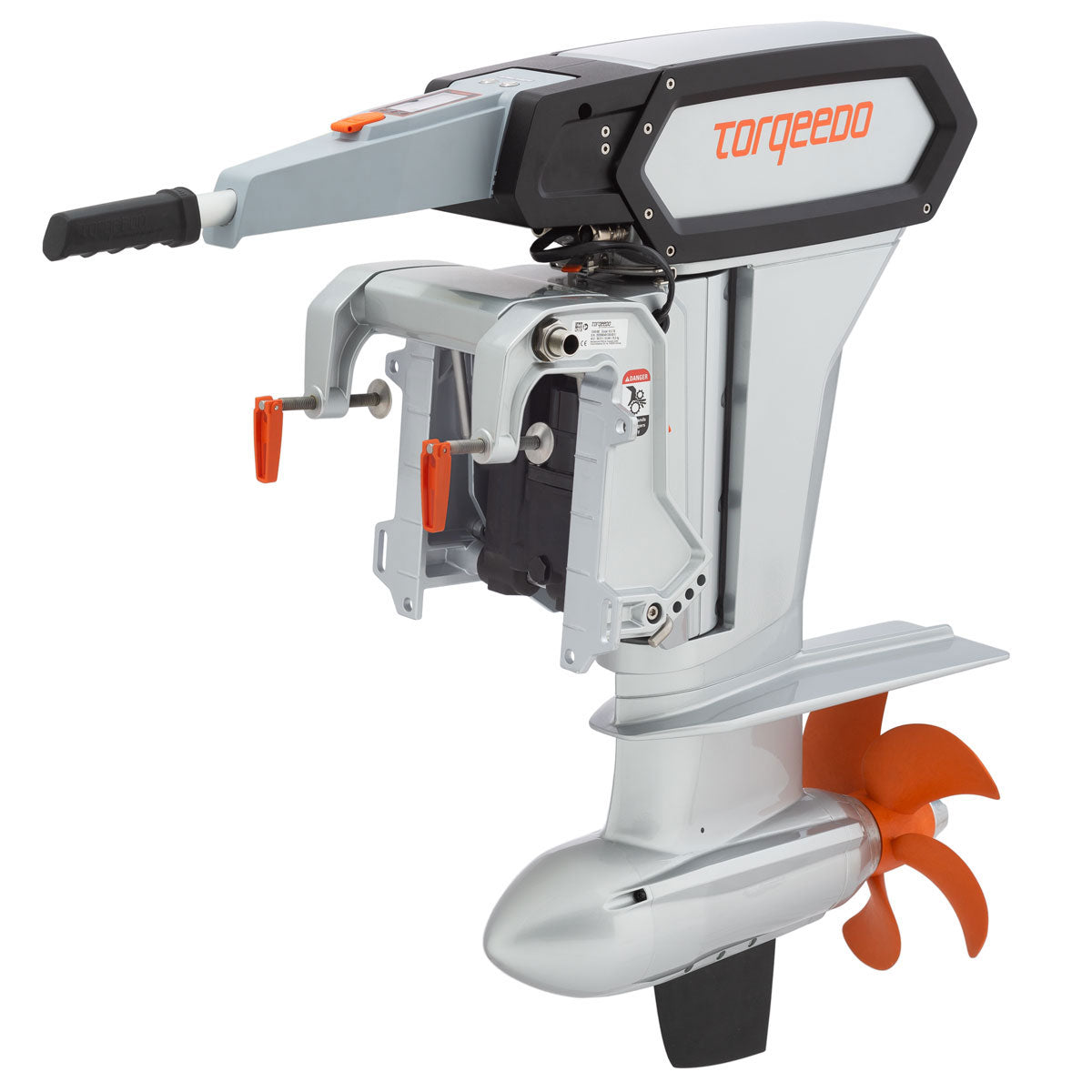

Torqeedo Cruise 10.0 T
The battery must be purchased separately.
The Torqeedo Cruise 10.0 T is the top end of the Torqeedo Cruise product line.
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 10.0 T is a tiller-equipped 48-Volt, 20 horsepower-equivalent outboard perfect for boats up to 10 tons.
Product description:
- Tiller-equipped version of the Cruise 10.0
- 12 kW peak output, 10 kW continuous output – powerful propulsion comparable to a 20 HP combustion engine
- Intelligent on-board computer and the full convenience of a Torqeedo electric drive system
- Electric tilting device for ease of operation
- Easy handling thanks to low-voltage level (48 Volt)
- Very robust design – corrosion-protected, sea water-capable and completely waterproof (IP67)
- Slimline construction - elegant and modern
- Versions: short shaft S: 38.5cm shaft length, long shaft L: 51.2cm shaft length, extra long shaft XL: 63.9cm shaft length
- Weight: 60.3 kg (S), 61.8 kg (L) , 63.0 kg (XL)
- To operate the Cruise 10.0 with more than two Power 48-5000 batteries, please contact us
-
Please note that the engine power is reduced to 6 kW when operating with only one Power 48-5000 battery
Cruise 10.0 T - Benefits:
- High-efficiency outboard with 10,000 W input power, equivalent to the thrust of a 20 HP petrol outboard
- Pair with two Power 48-5000 for maximum performance and accurate range/runtime functionality
- Also compatible with third-party batteries (48-Volt) but careful matching to motor power requirements is needed and addition of cable set part number 1979-00 is required: Power 48-5000 is strongly recommended for best motor performance
- T models are equipped with tiller control with display screen and magnetic kill switch (included in scope of delivery)
- Rugged pylon with integral fin – extra protection when running aground
- Highest-grade seawater-proof aluminum for long service life, even in the harshest conditions
- Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties - ships with anode set for fresh and saltwater.
Range
Cruise 10.0 T with 2 x Power 48-5000
|
|
Speed in knots (km/h)* |
Range in sm (km)* |
Running time in hours: |
| Slow |
4.2 (7.8) |
32,0 (60,0) |
06:00 |
| Full throttle |
14,0 (26.5) |
14,0 (26.5) |
01:00 |
* Depends on type of boat, load, propeller and conditions. Speed and range indications do not represent a legal guarantee.
Technical Data Cruise 10.0 T
|
|
Cruise 10.0 T |
| Input power in watts |
10,000 |
| Propulsive power in watts |
5,600 |
| Comparable petrol outboards (propulsive power) |
20 HP |
| Comparable petrol outboards (thrust) |
25 HP |
| Maximum overall efficiency in % |
56 |
| Static thrust in lbs* |
≤ 405 |
| Integrated battery |
- |
| Nominal voltage |
48 |
| Final charging voltage |
- |
| Total weight in kg |
60.3 (S) / 61.8 (L) / 63.0 (XL) |
| Motor weight without battery in kg |
- |
| Weight of integrated battery |
- |
| Shaft length in cm |
38.5 (S) / 51.2 (L) / 63.9 (XL) |
Standard propeller v = speed in km/h at p = power in watts |
v22/p10k |
| Alternative propeller options |
v32/p10k & v15/p10k |
| Propeller Guide |
| Maximum propeller speed in rpm |
1,400 |
| Control |
Remote throttle |
| Steering |
Provision to connect to standard remote steering |
| Tilting device |
Electrohydraulic tilt device with overload protection. |
| Tilt angle |
+-45° |
| Trim device |
Manual, 4-step |
| Integrated on-board computer |
Yes |
| Stepless forward/reverse drive |
Yes |
