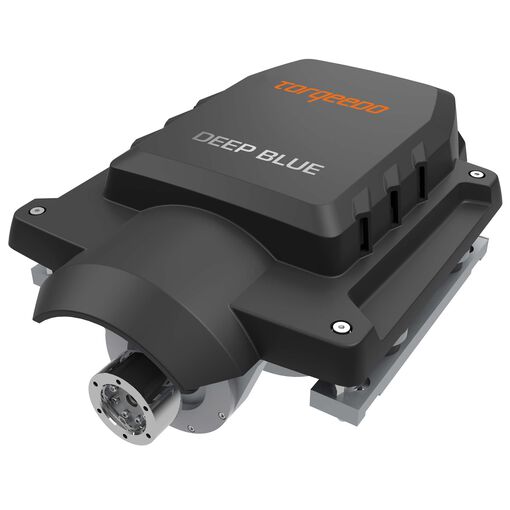

Electric Inboard Torqeedo Deep Blue 25i 2000

$0.00 CAD
$0.00 CAD
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Secure payments
100% Guarantee
Client satisfaction

Short Description

  • Inboard system with power electronics and 2000 rpm for planing
  • A synthesis of performance and a perfectly integrated overall system with a ground-breaking safety concept that sets Deep Blue apart from all other electric drive systems on the market
  • All the components of the system are perfectly engineered to match each other and are completely waterproof
  • We provide up to 9-year warranty on the Deep Blue's battery capacity with private use
  • Electric boat propulsion is not only powerful and safe, it is also a genuine commercial alternative for heavy users
  • Special group tariff from Pantaenius Yacht Insurance with improved insurance protection and lower premiums compared with the normal tariff for boats with other high-voltage drives
  • Transparent maintenance overhead - an electric drive system requires far less maintenance than comparable drive systems using fossil fuel
Support expert

Have a question?

Talk with a technical expert.

✆ Call Us
TorqeedoElectric Inboard Torqeedo Deep Blue 100i 900
Torqeedo Deep Blue 100i
Torqeedo Deep Blue
$0.00 CAD
$0.00 CAD

Torqeedo Deep Blue 25i 2000 Description:

  • Inboard system with power electronics and 2000 rpm for planing
  • A synthesis of performance and a perfectly integrated overall system with a ground-breaking safety concept that sets Deep Blue apart from all other electric drive systems on the market
  • All the components of the system are perfectly engineered to match each other and are completely waterproof
  • We provide up to 9-year warranty on the Deep Blue's battery capacity with private use
  • Electric boat propulsion is not only powerful and safe, it is also a genuine commercial alternative for heavy users
  • Special group tariff from Pantaenius Yacht Insurance with improved insurance protection and lower premiums compared with the normal tariff for boats with other high-voltage drives
  • Transparent maintenance overhead - an electric drive system requires far less maintenance than comparable drive systems using fossil fuel

It is not just power and performance that make Deep Blue the first of its kind. It is unparalleled performance combined with full system integration and groundbreaking safety levels that set Deep Blue apart from all other electric propulsion systems on the market.

All the components of the system are perfectly engineered to match each other and are completely waterproof. State-of-the art monitoring technology with pilot lines and insulation monitors safeguard the high-voltage system against the risk of short circuits. The same high-performance lithium batteries used to power cars also power Deep Blue – after we developed them further for use in boats. These and many more safety and performance features make Deep Blue a unique high-voltage propulsion system for electric boats.

And if that's not enough – we provide up to 9-year warranty on the Deep Blue's battery capacity with private use. Electric boat propulsion is not only powerful and safe, it is also a genuine commercial alternative for heavy users in particular. Switch to full electric power!

Deep Blue i 2000 rpm – Benefits:

  • Deep Blue: the first high-power propulsion system in serial production - fully integrated system in which all components are designed to match each other seamlessly and to work together perfectly on the water
  • An overall concept that is unique in terms of safety, performance and range
  • The Deep Blue i 2000 rpm is the "planer" at your side
  • Available as 25 kW (40 HP equivalent) or 50 kW (80 HP equivalent) depending on requirements
  • Traceability of battery life:
    Battery ageing is transparent and can be tracked by the user in the on-board computer at any time

Range

Deep Blue 50i with 1 x 40 kWh battery

 Speed in knots (km/h)* Range in nm (km)* Running time in hh:mm
Slow 4.0 (7.5) 31-102 (58-189) 07:45 - 25:30
Full throttle 19-29 (36-54) 16-24 (29-43) 00:50

* Depends on type of boat, load, propeller and conditions. Speed and range indications do not represent a legal guarantee.

Information on range and speed

For a displacement boat making way through the water, the required propulsive power increases in proportion to the cube of the speed. This means that if you want to double your speed, you need eight times as much power.

And vice-versa, a small reduction in speed is enough to increase the achievable range substantially.

The Torqeedo Deep Blue's on-board computer calculates the remaining range constantly, by linking the motor's consumption data with the charging level of the batteries, and the speed over the ground from the GPS. This allows you to read the remaining range in real time from the motor display.

Specifications

Technical Data Deep Blue

Deep Blue system Deep Blue 25i 2000 / 1200 rpm Deep Blue 50i 2000 / 1200 rpm
40 HP 80 HP
Input power (peak) in kW 63.4 / 66.0
Input power (continuous) in kW 27.6 55.1
Propulsive power in kW > 16.2 > 32.4
Comparable petrol outboard (shaft power) 40 HP 80 HP
Maximum overall efficiency in % > 54 > 54
Motor weight without battery, including electronics in kg 80 80
Shaft length / shaft diameter options 30, 35, 40mm | 11/8,11/4'' 30, 35, 40mm | 11/8,11/4''
Maximum propeller speed in rpm 1’800 / 1’400 1’800 / 1’400
Integrated on-board computer with touchscreen display yes yes
Liquid Cooling Sea Water, 7 l/min, max. 32°C Sea Water, 7 l/min, max. 32°C

Deep Blue Battery 40 Deep Blue Battery 80
Nominal voltage 352 V 348 V
Max. continuous performance 55 kW 79 kW
Capacity (usable) 38 kWh 77.6 kWh
Weight 284 kg 562 kg
Dimensions 1666 x 993 x 173 mm 1800 x 853 x 236 mm

  • Equipment included: Inboard drive system (total scope depending on the project)
  • Warranty: 2 years on the system; up to 9-year warranty on the battery - with private use
