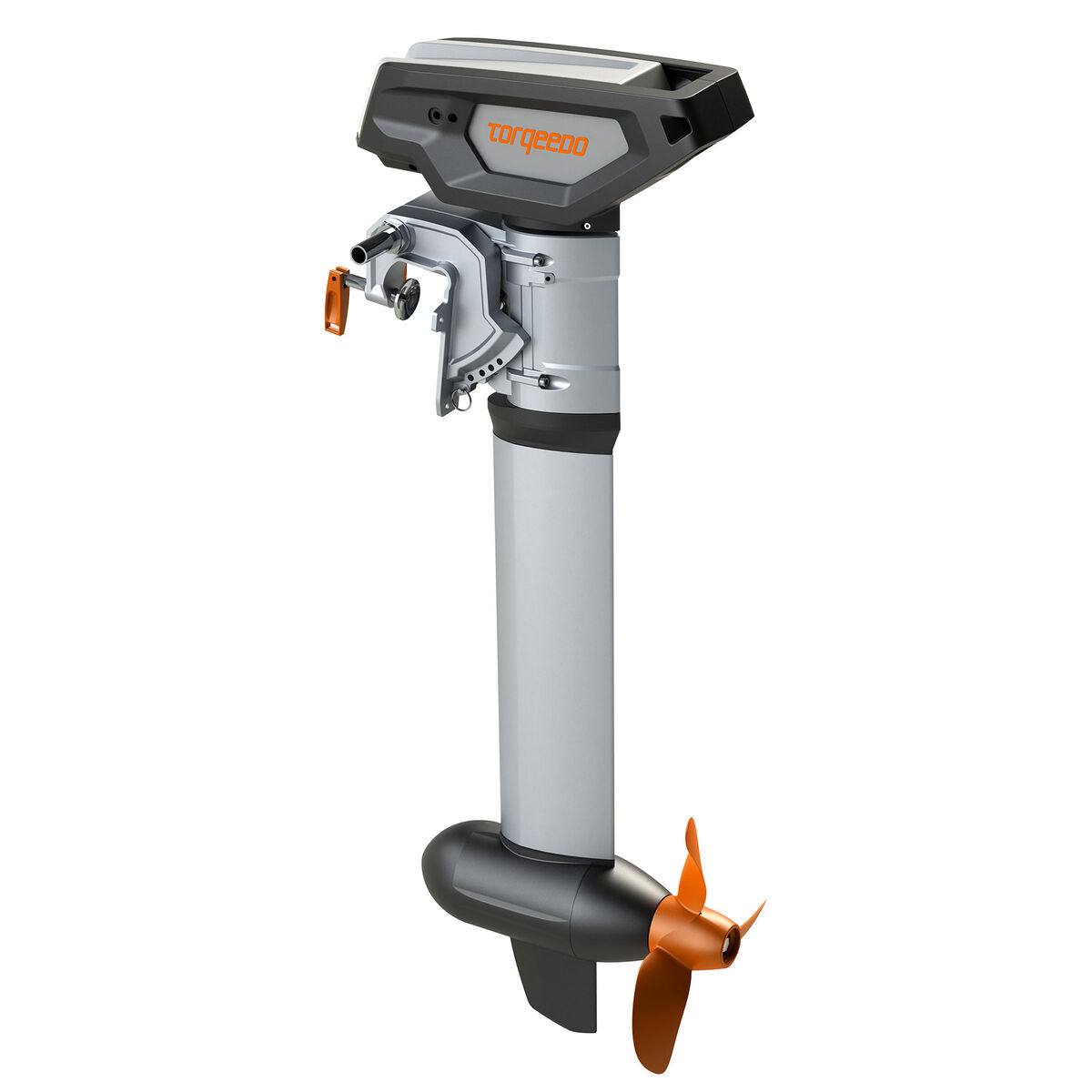

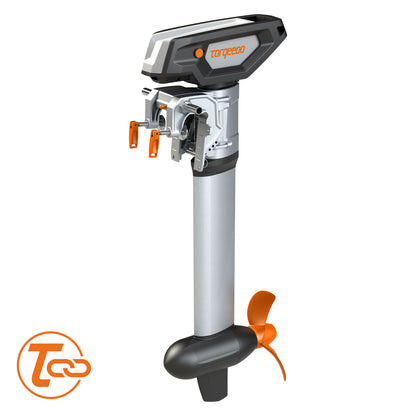

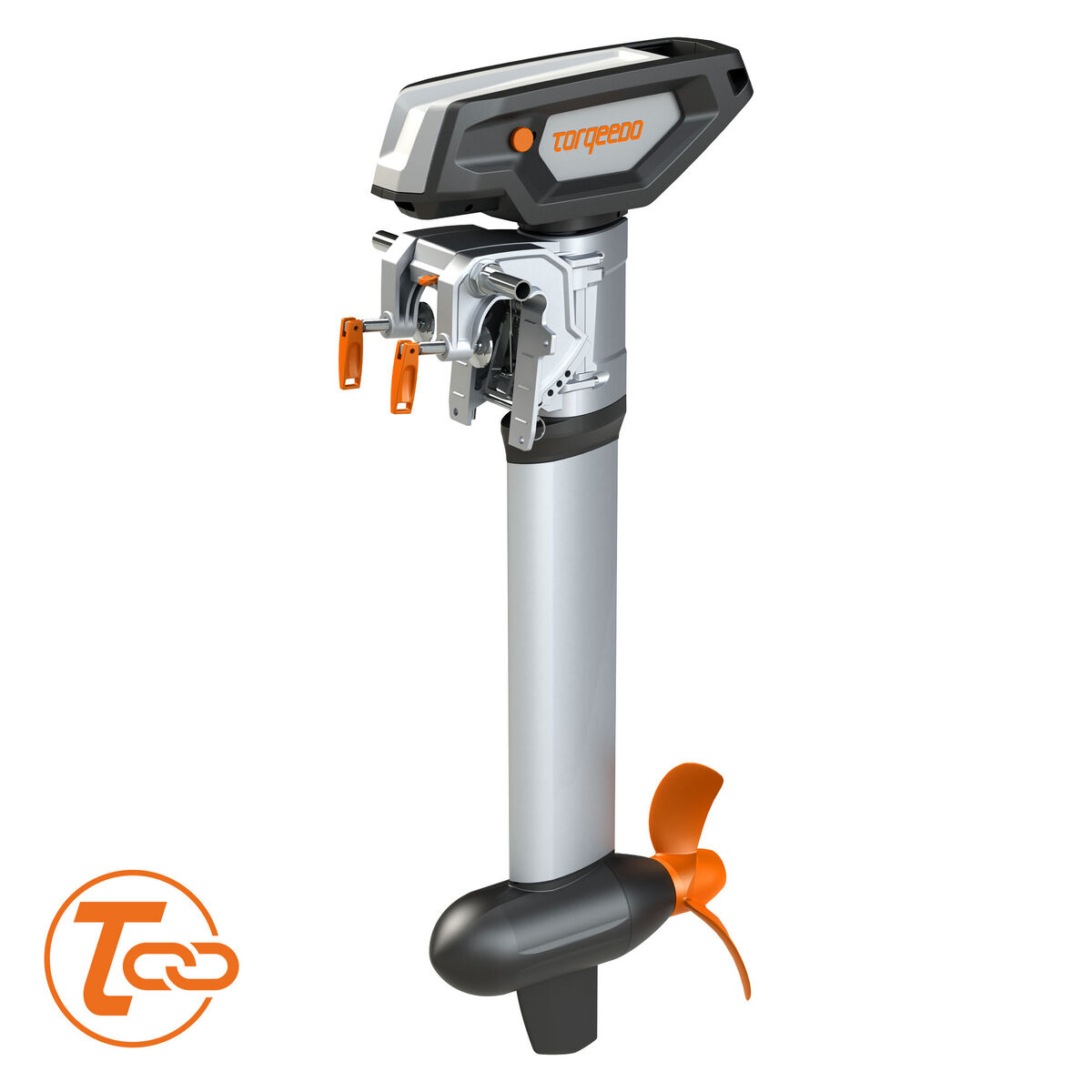

Torqeedo Cruise 6.0 R Description:
For dinghies and sailboats up to 6 tons
The battery must be purchased separately.
Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users.
All Cruise systems have a built-in GPS with on-board computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon with advanced helical gear design.
Cruise 6.0 is a 48-Volt, 9.9 horsepower-equivalent outboard perfect for boats up to 6 tons. The Cruise 6.0 R ships with Torqeedo’s advanced communication system, TorqLink, which allows faster and more accurate data sharing between system components like the Power 48-5000 battery and TorqLink throttles (sold separately).
Cruise 6.0 is also available in tiller-steered and fixed pod models.
Cruise 6.0 R – Benefits:
- High-efficiency outboard with 6,000 W input power, equivalent to a 9.9 HP petrol outboard
- Pair with Power 48-5000 for best performance and accurate range/runtime functionality
- R model includes remote steering link arm for use with industry standard steering systems
- Your choice of TorqLink throttles (we recommend part number 1976-00 TorqLink throttle with color display)
- Rugged aluminum pylon with integral fin – extra protection when running aground
- Highest-grade seawater-proof aluminum for long service life, even in the harshest conditions
- Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties - ships with anode set for fresh and saltwater
- Also compatible with third-party batteries (48-volt) but careful matching to motor power requirements is needed and additional cable set part number 1990-00 is required
Cruise 6.0 with 1 x Power 48-5000
As tested on Linder 400 Sportsman
|
|
Speed in km/h* |
Running time in hh:mm |
| Slow |
8.5 |
05:00 |
| Half throttle |
13.0 |
01:40 |
| Full throttle |
27.0 |
00:50 |
* Dependent on factors such as type of boat, load, propeller and ambient conditions. Figures for speed and range are indicative only and are not a guarantee of performance.
Technical Data Cruise
|
|
Cruise 6.0 R |
| Input power in watts |
6000 |
| Propulsive power in watts |
3504 |
| Comparable petrol outboards (propulsive power) |
9.9 HP |
| Comparable petrol outboards (thrust) |
15 HP |
| Maximum overall efficiency in % |
58 |
| Static thrust in lbs* |
230 |
| Integrated battery |
- |
| Nominal voltage |
48 |
| Final charging voltage |
- |
| Total weight in kg |
20.6 (S) / 21,0 (L) |
| Motor weight without battery in kg |
- |
| Weight of integrated battery |
- |
| Shaft length in cm |
62.5 (S) / 75.5 (L) |
Standard propeller
v = speed in km/h at p = power in watts |
Propeller B 12,5 x 17 HSP |
| Alternative propeller options |
Propeller B 12 x 13 THR |
| Propeller Guide |
| Maximum propeller speed in rpm |
1130 |
| Control |
Remote throttle |
| TorqLink |
Yes |
| Steering |
Provision to connect to standard remote steering; lockable |
| Tilting device |
Manual with grounding protection |
| Tilt angle |
360° lockable |
| Trim device |
Manual, 4-step |
| Integrated on-board computer |
Yes |
| Stepless forward/reverse drive |
Yes |
* Torqeedo static thrust measurement is based on internationally accepted ISO standards. Static thrust figures for conventional trolling motors are typically measured differently, which results in higher values. To compare Torqeedo static thrust data with conventional trolling motors, add approximately 50% to the Torqeedo static thrust values.
