  11. Electric Outboard Torqeedo Cruise 12.0 R
By Torqeedo

Electric Outboard Torqeedo Cruise 12.0 R

$14,499.00 CAD
$14,499.00 CAD
Title: Short Shaft (TS)
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Secure payments
100% Guarantee
Client satisfaction

Short Description

  • 12 kW continuous power - powerful propulsion like a 25 hp combustion engine
  • TorqLink data interface - enables fast data exchange between TorqLink components without gateway
  • Electric tilting device for comfortable operation
  • Easy handling thanks to low-voltage design (48 volts)
  • Very robust construction - corrosion-protected, seawater-proof and waterproof all around (IP67)
  • Battery connection cable with water-protected battery pole terminals (IP 66) for connecting up to two Power 48-5000
  • Variants: Short shaft S: 38.5cm shaft length, long shaft L 51.2cm shaft length, extra long shaft XL 63.9cm shaft length
  • Weight (without cable & main switch): 59.8 kg (S), 61.3 kg (L), 62.5 kg (XL)
  • To operate the Cruise 12.0 with more than two Power 48-5000 batteries, please contact your Torqeedo dealer
  • Please note that the engine power is reduced to 6 kW when operating with only one Power 48-5000 battery
Support expert

Have a question?

Talk with a technical expert.

✆ Call Us
TorqeedoElectric Outboard Torqeedo Deep Blue 50 R System

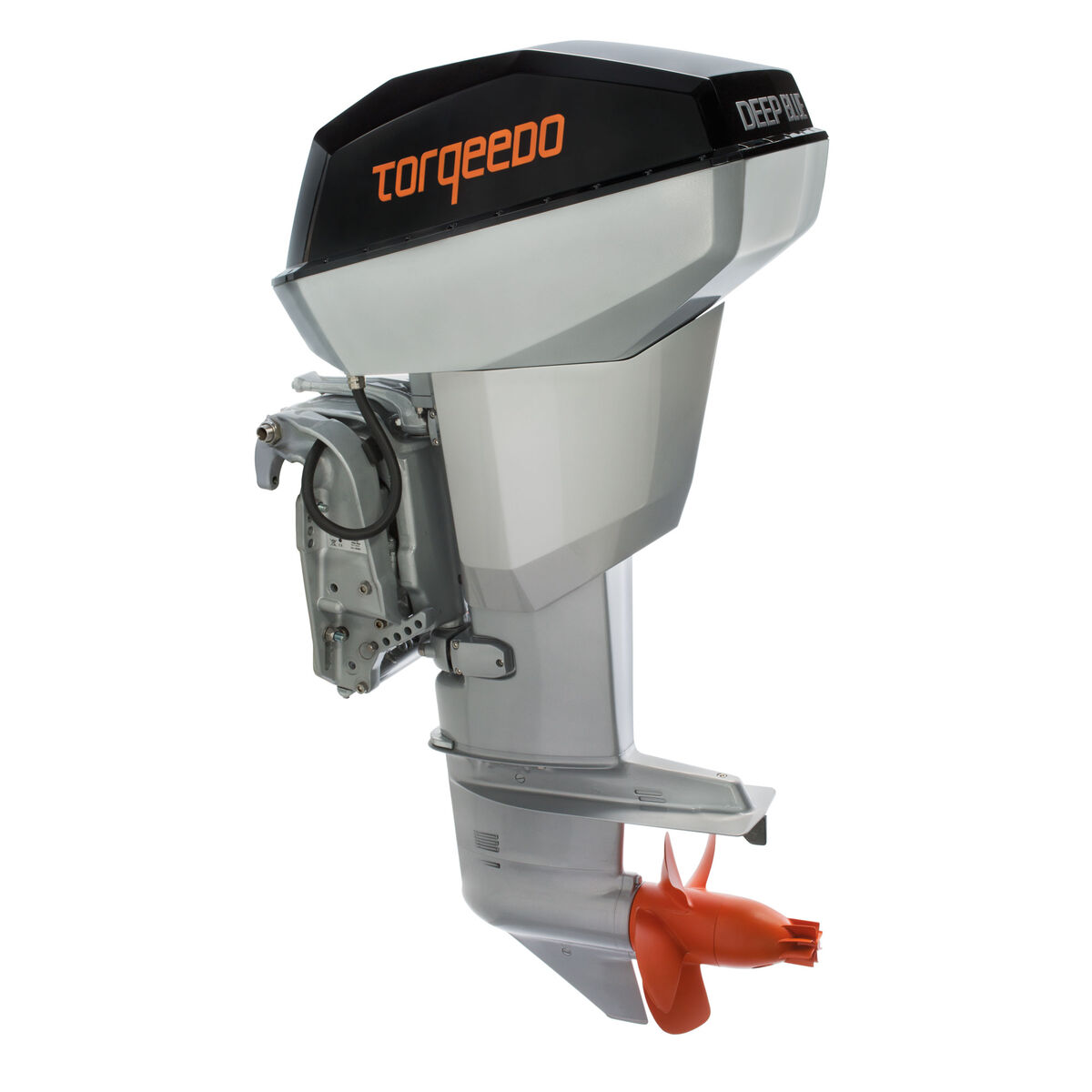

Torqeedo Deep Blue 50 R
Torqeedo Cruise 6.0 R
TorqeedoElectric Outboard Torqeedo Cruise 6.0 R
Torqeedo Cruise 12.0 R
$14,499.00 CAD
$14,499.00 CAD

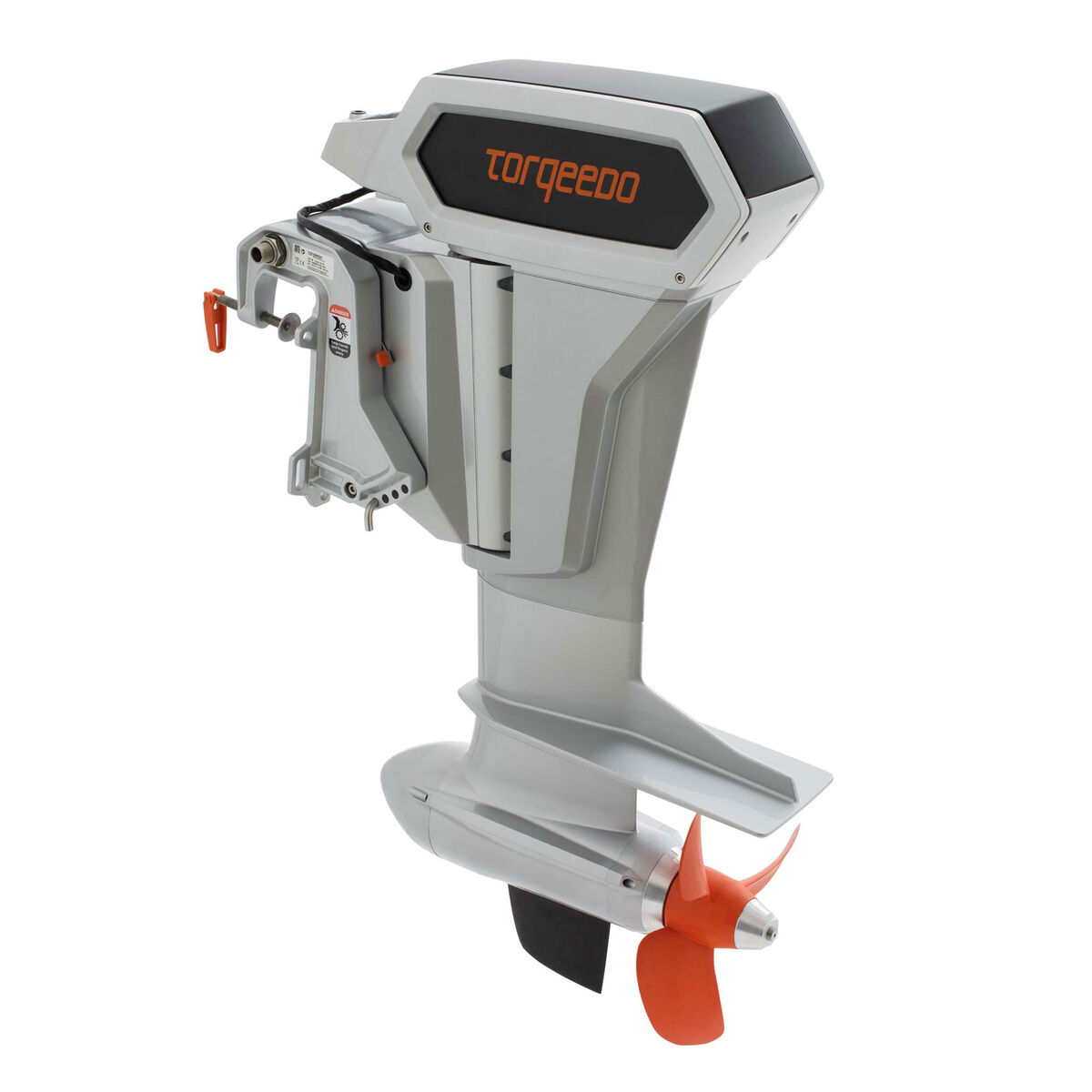

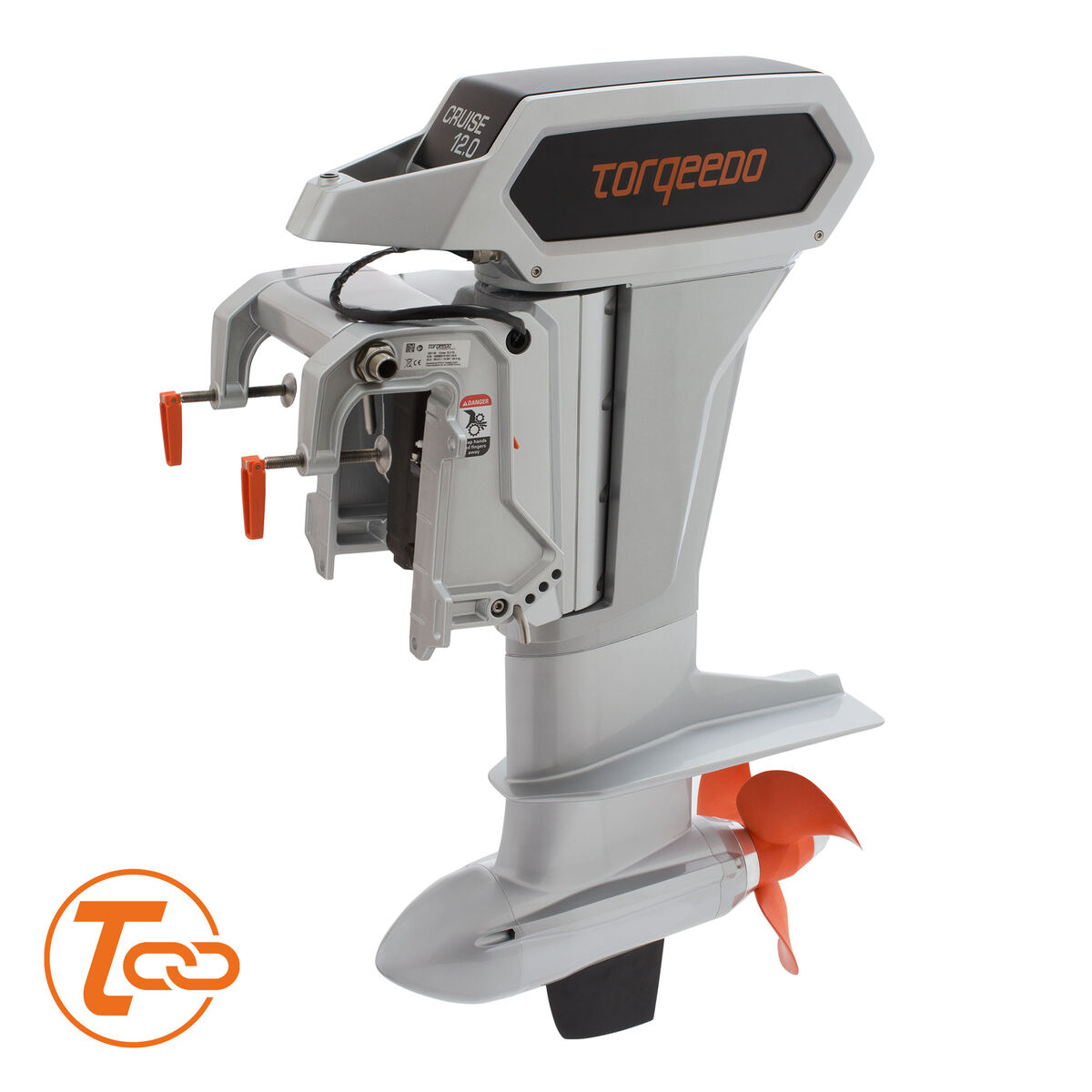

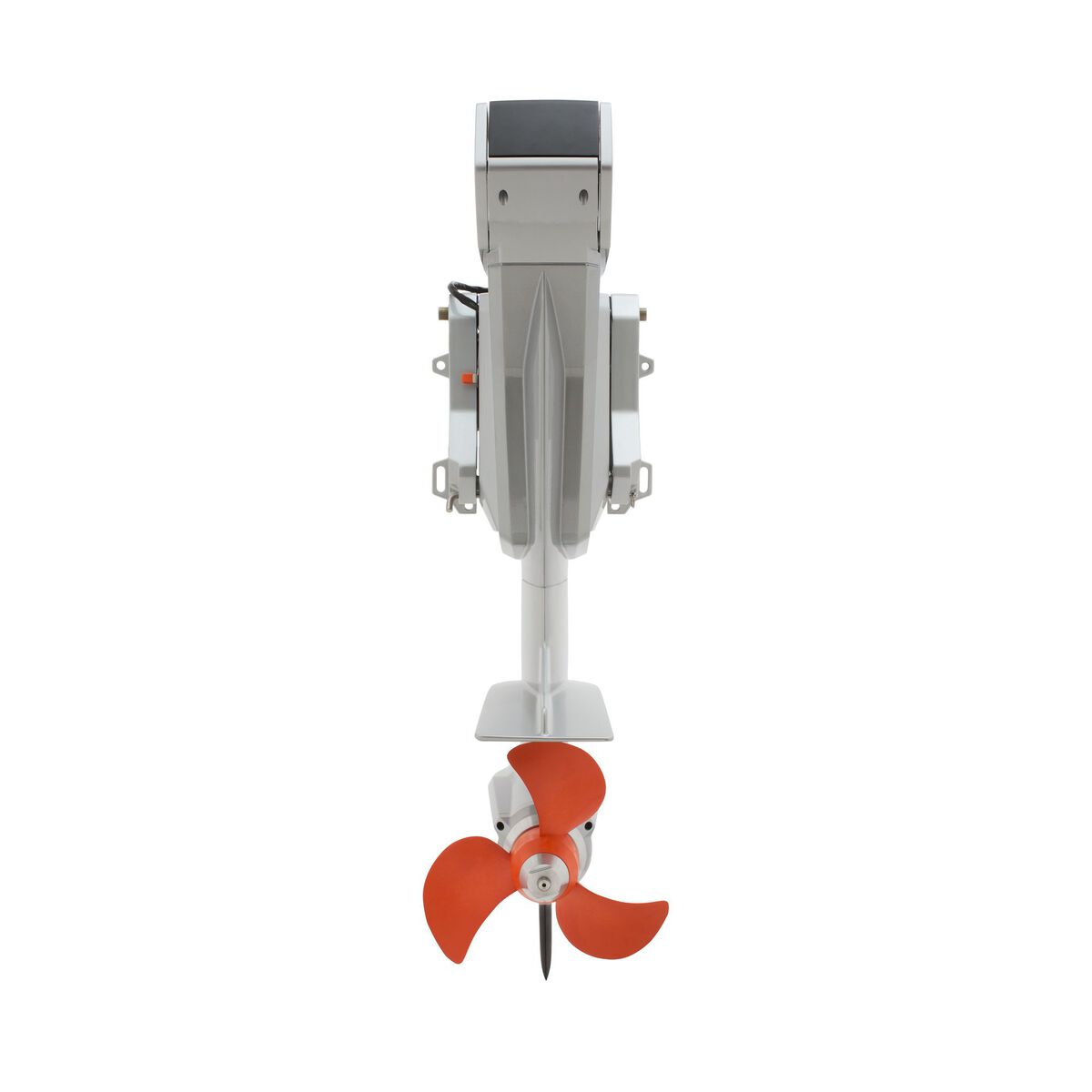

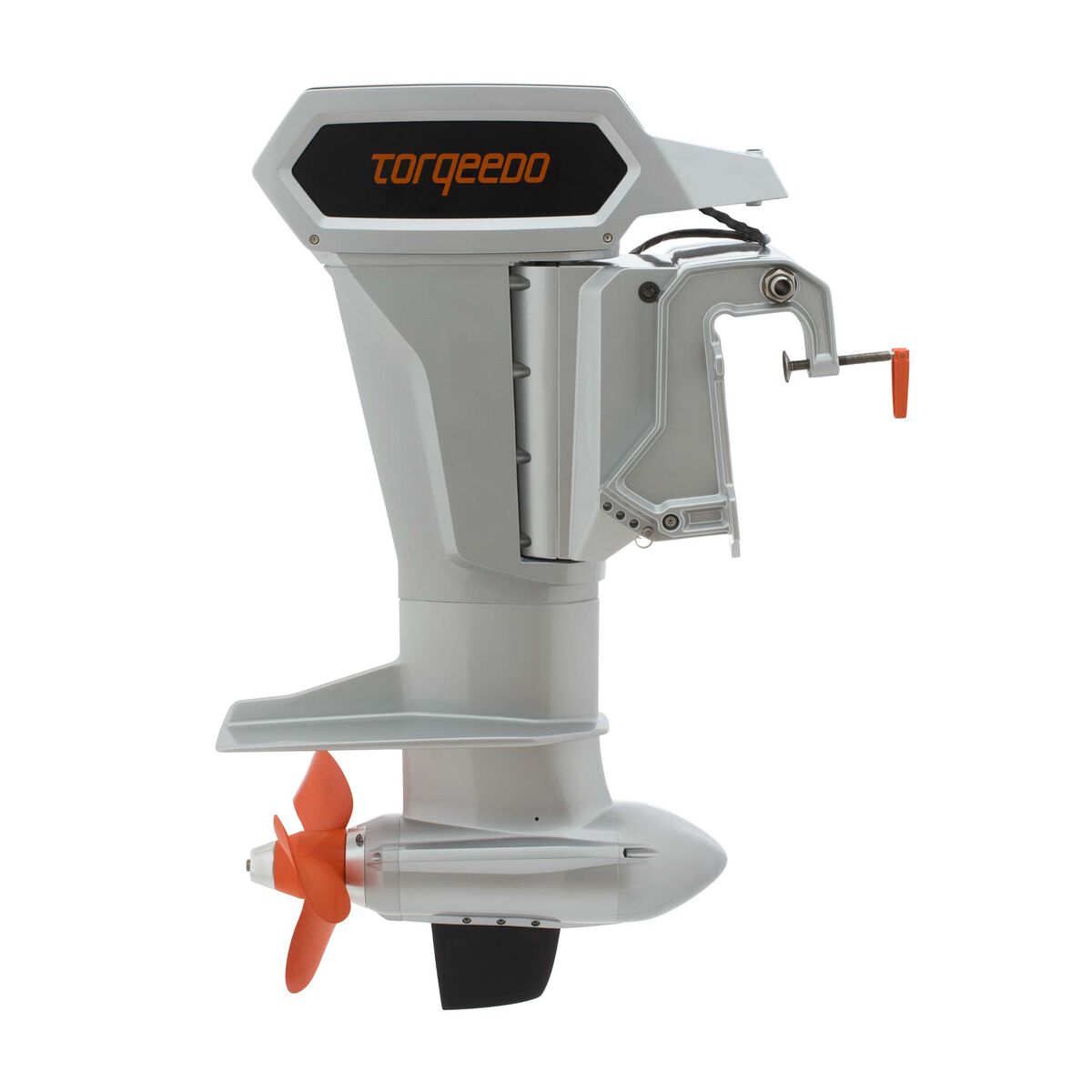

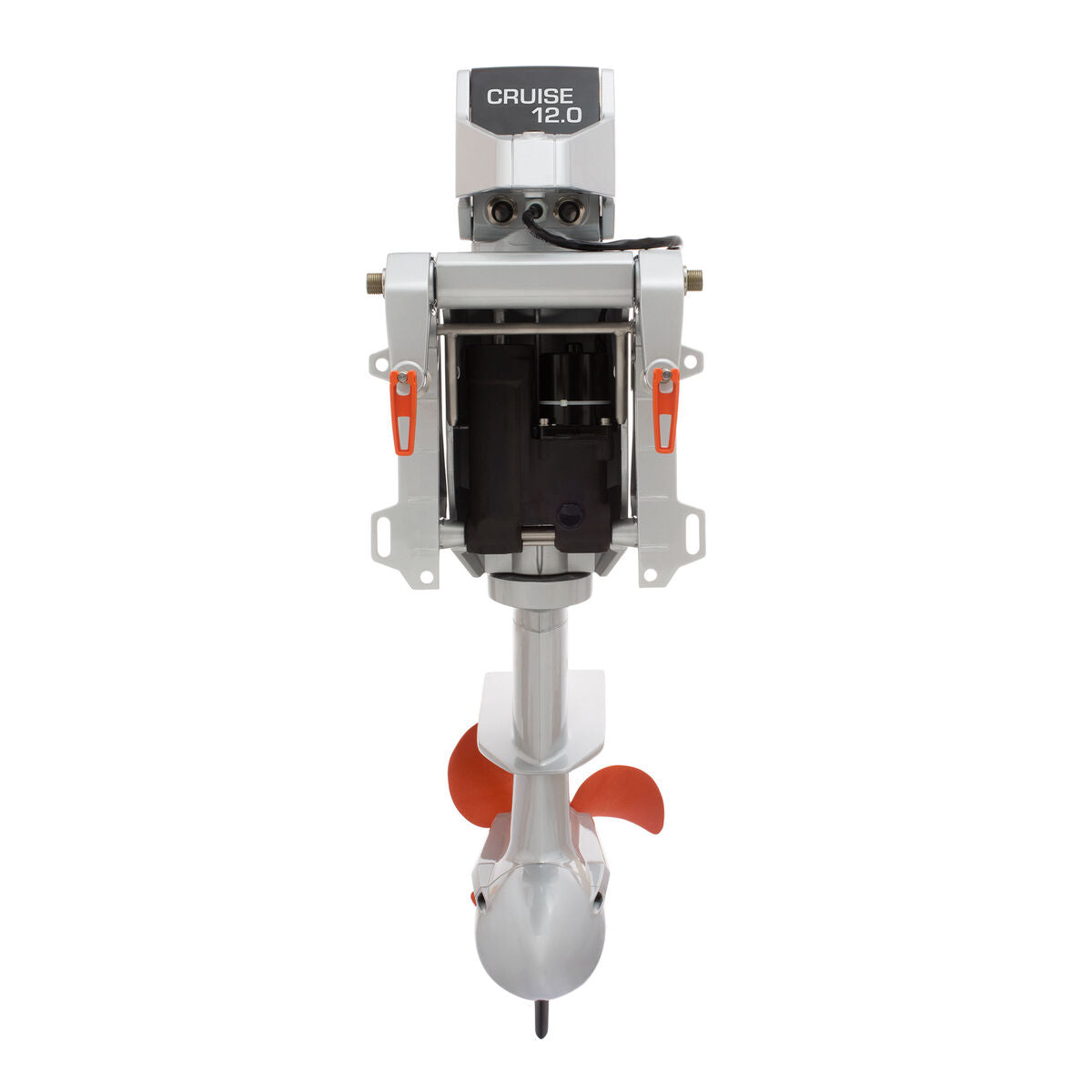

Torqeedo Cruise 12.0 R Description:

Electric outboard for motorboats and sailboats up to 12 tons

The battery must be purchased separately.

Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 12.0 is a 48-Volt, 25 horsepower-equivalent outboard perfect for boats up to 10 tons. The Cruise 12.0 R ships with Torqeedo’s advanced communication system, TorqLink (see below for further information), which allows faster and more accurate data sharing between system components.


Cruise 12.0 R TorqLink - Benefits:

  • High-efficiency outboard with 12,000 W input power, equivalent to a 25 HP petrol outboard
  • Pair with two or more Power 48-5000 for best performance and accurate range/runtime functionality
  • This model ships with remote steering link arm
  • Your choice of TorqLink throttles (we recommend part number 1976-00 TorqLink throttle with colour display)
  • Rugged aluminium pylon with integral fin – extra protection when running aground
  • Highest-grade seawater-proof aluminium for long service life, even in the harshest conditions
  • Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties - ships with anode set for fresh and saltwater

Range

Cruise 12.0 with 2 x Power 48-5000

As tested on My-RIB 420



 Speed in km/h* Running time in hh:mm
Slow 5.9 10:00
Half throttle 12.7 01:25
Full throttle 28.0 00:50

* Dependent on factors such as type of boat, load, propeller and ambient conditions. Figures for speed and range are indicative only and are not a guarantee of performance.

Specifications

Technical Data Cruise 12.0 R TorqLink



 Cruise 12.0 R TorqLink
Input power in watts 12,000
Propulsive power in watts 6720
Comparable petrol outboards (propulsive power) 25 CV
Comparable petrol outboards (thrust) 25 CV
Maximum overall efficiency in % 56
Static thrust in lbs* ≤ 405
Integrated battery -
Nominal voltage 48
Final charging voltage -
Weight in kg (w/o cables & main switch) 59.8 (S), 61.3 (L), 62.5 (XL)
Motor weight without battery in kg -
Weight of integrated battery -
Shaft length in cm 38.5 (S) / 51.2 (L) / 63.9 (XL)
Standard propeller
v = speed in km/h at p = power in watts		 v22/p10k
Alternative propeller options v32/p10k & v15/p10k
Maximum propeller speed in rpm 1,400
Control Remote throttle
TorqLink Yes
Steering Provision to connect to standard remote steering
Tilting device Electrohydraulic tilt device with overload protection.
Tilt angle +-45°
Trim device Manual, 4-step
Integrated on-board computer Yes
Stepless forward/reverse drive Yes
* Torqeedo static thrust measurement is based on internationally accepted ISO standards. Static thrust figures for conventional trolling motors are typically measured differently, which results in higher values. To compare Torqeedo static thrust data with conventional trolling motors, add approximately 50% to the Torqeedo static thrust values.
  • Throttle not included - best to use with TorqLink throttle with colour display
  • Equipment included: Outboard with TorqLink data communication, connection to remote steering, cable set (4.5 m, 95 mm2) including main switch and v22/p10k propeller, TorqLink data cable 3 m, tilt switch
  • Take a look at our Cruise Info Tool for helpful information
  • Warranty: 2 years for non-commercial use
