By Torqeedo

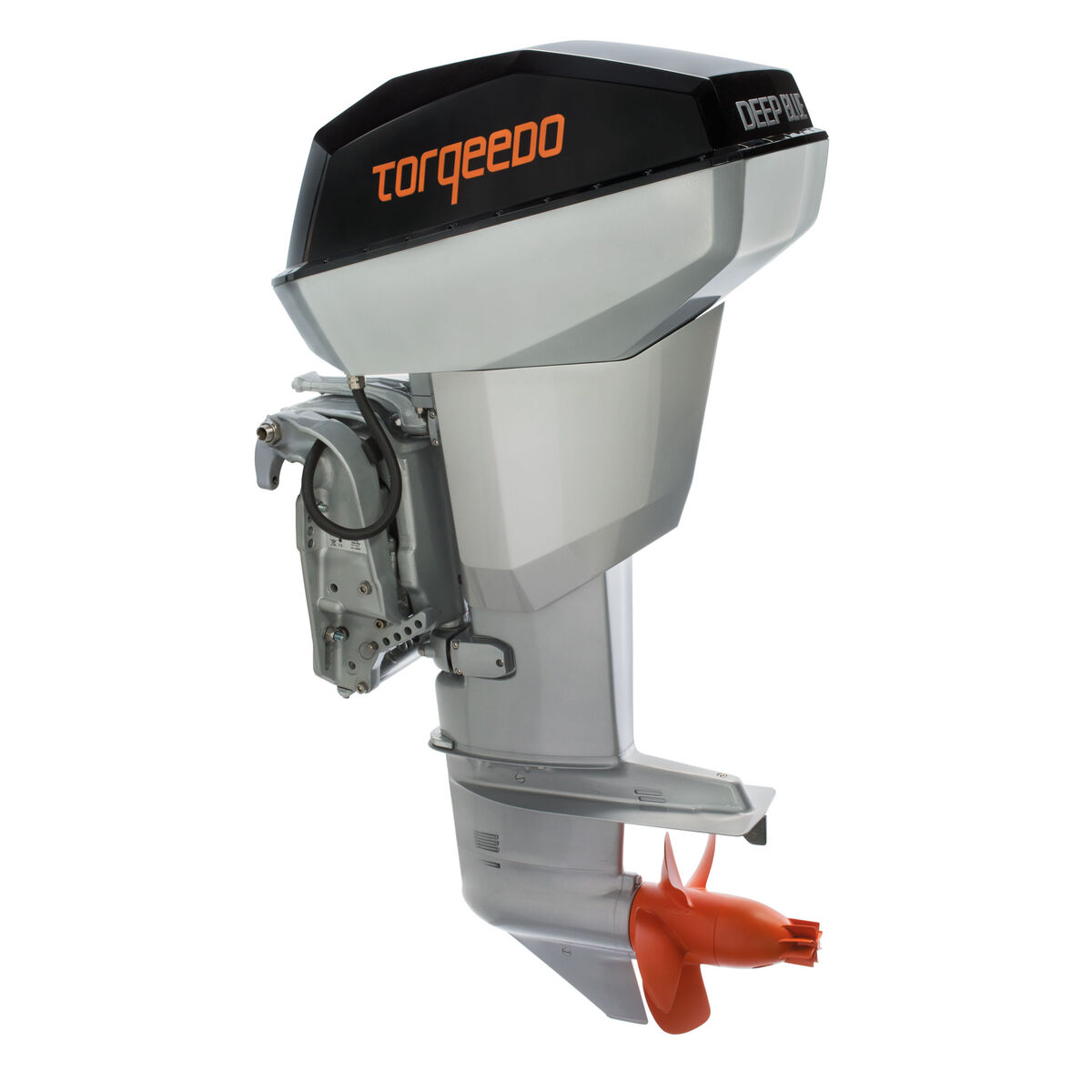

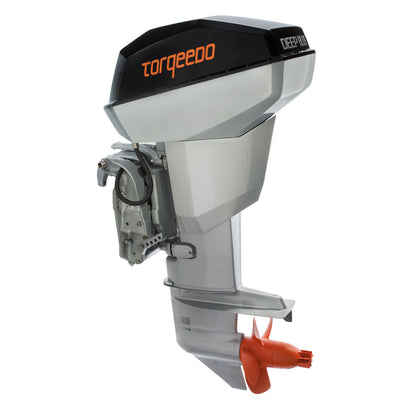

Electric Outboard Torqeedo Deep Blue 50 R System

$0.00 CAD
$0.00 CAD
Title: Long Shaft (TL)
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Secure payments
100% Guarantee
Client satisfaction

Short Description

  • Electric outboard - part of a complete system with modular design for leisure boats and commercial use
  • 50 kW - 80 hp equivalent
  • A synthesis of performance and a perfectly integrated overall system with a ground-breaking safety concept that sets Deep Blue apart from all other electric drive systems on the market
  • All the components of the system are perfectly engineered to match each other and are completely watertight
  • We provide up to 9-year warranty on the Deep Blue's battery capacity with private use
  • Electric boat propulsion is not only powerful and safe, it is also a genuine commercial alternative for heavy users
  • Special tariff from Pantaenius Yacht Insurance with improved insurance protection and lower premiums compared with the normal tariff for boats with other high-voltage drives
  • Transparent maintenance overhead - an electric drive system requires far less maintenance than comparable drive systems using fossil fuel
  • Shaft length: 51 cm (short shaft) / 63.5 cm (long shaft)
Support expert

Have a question?

Talk with a technical expert.

✆ Call Us
TorqeedoElectric Outboard Torqeedo Deep Blue 25 R System
Torqeedo Deep Blue 50 R
Torqeedo Cruise 12.0 R
TorqeedoElectric Outboard Torqeedo Cruise 12.0 R
Torqeedo Deep Blue 50 R
$0.00 CAD
$0.00 CAD

Torqeedo Deep Blue 50 R System Description:

The battery must be purchased separately.

It is not just power and performance that make Deep Blue the first of its kind. It is unparalleled performance combined with full system integration and groundbreaking safety levels that set Deep Blue apart from all other electric propulsion systems on the market.

All the components of the system are perfectly engineered to match each other and are completely waterproof. State-of-the art monitoring technology with pilot lines and insulation monitors safeguard the high-voltage system against the risk of short circuits. The same high-performance lithium batteries used to power cars also power Deep Blue – after we developed them further for use in boats. These and many more safety and performance features make Deep Blue a unique high-voltage propulsion system for electric boats.

We provide up to 9-year warranty on Deep Blue's battery capacity with private use.


Deep Blue 50 R - Benefits:

  • Deep Blue: the first high-power propulsion system in serial production - a fully integrated system in which all components are designed to match each other seamlessly and to work together perfectly on the water
  • An overall concept that is unique in terms of safety, performance and range
  • Traceability of battery life: Battery ageing is transparent and can be tracked by the user in the on-board computer at any time

Range

Deep Blue 50 R with a 40 kWh Battery



 Speed in knots (km/h)* Range in nm (km)* Running time in h*
Slow (2 kW – 6 kW) 5.0 (9.3) 33 - 100 (61 - 185) 6.7 - 20
Full throttle (50 kW) 20 - 25 (37 - 46) 16 - 20 (30 - 37) 0.8

* Depends on type of boat, load, propeller and conditions. Speed and range indications do not represent a legal guarantee.

Information on range and speed

For a displacement boat making way through the water, the required propulsive power increases in proportion to the cube of the speed. This means that if you want to double your speed, you need eight times as much power.

And vice-versa, a small reduction in speed is enough to increase the achievable range substantially.

The Torqeedo Deep Blue's on-board computer calculates the remaining range constantly, by linking the motor's consumption data with the charging level of the batteries, and the speed over the ground from the GPS. This allows you to read the remaining range in real time from the motor display.

Specifications

Technical Data Deep Blue

Deep Blue System Deep Blue 50 RL / RXL
Input power continuous (peak) 54.5 kW (61.8 kW)
Mech. Output power at shaft continuous (peak) 48.5 kW (55 kW)
Nominal voltage 350 V
Min. voltage for full performance 330 V
Contiuous torque / max. torque 190 Nm / 215 Nm
Max. shaft rpm 2440 1/min
Maximum efficiency el. input to mech. output 89%
Comparable petrol outboards (shaft power) 80 CV
Maximum overall efficiency 54 %
Motor weight including electronics and cabling L: 139 kg
XL: 146 kg
Dimension L/W/H 868 x 394 x 1,535 mm
Shaft length L: 20” / 51 cm
XL: 25“ / 63.5 cm
Standard propeller Standard high speed propeller:
Diameter 12,5” /Pitch 15,8” / 5 Blade
Propeller Mounting Gearcase: 4 ¼ “
Shaft: 13 teeth
Max. allowed ambient temperature 45°C
Max. drive temperature controller / motor 90°C / 130°C
Cooling Direct water cooling
Max. inlet temperature 35°C
Protection Category IP 67
Conformity IEC 60034-1
IEC 60349-2
IEC 60146-1-1
Tilting and trim device Electric tilt and trim
Scope of supply Outboard motor
Cabling
Standard high speed propeller
Electric tilt and trim
Deep Blue Batterie 40 Deep Blue Batterie 80
Nominal voltage 352 V 348 V
Max. continuous performance 55 kW 79 kW
Capacity (usable) 38 kWh 77.6 kWh
Weight 284 kg 562 kg
Dimensions 1666 x 993 x 173 mm 1800 x 853 x 236 mm

* preliminary data

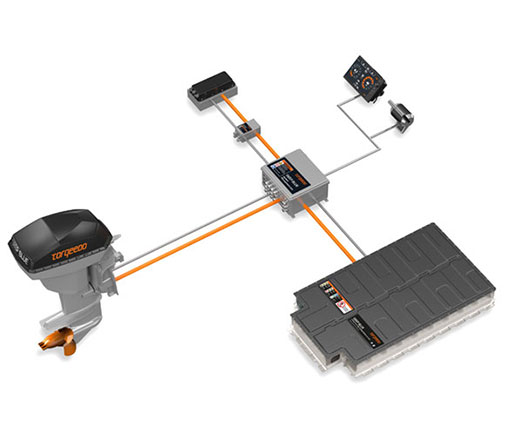

  • Equipment included: Outboard drive system (61.8 kW peak output, 80-hp equivalent) consisting of a complete outboard, connection box, charger, remote throttle, on-board computer with display, cables, long-shaft or short-shaft version (high-voltage battery not included)
  • Warranty: 2 years on the system; up to 9-year warranty on the battery bank - with private use
