ePropulsion Battery E163 48V (LiFePO4) Description:
AVAILABLE FOR PRE-ORDER (2-4 weeks estimated delivery time), Contact us for placing pre-order on ePropulsion Battery.
High-performance and durable lithium battery for electric boating
 High PerformanceE163 (single battery) can support Navy 6.0 Evo (9.9HP) full power output. |
 High ReliabilityAll-metal housing is more reliable, weather resistant, impact resistant and drop proof. |
Why Choose The E-Series LiFePO4 Battery?
 Maximum SafetyThe intelligent battery management system (BMS) is applied to provide maximum safety for the users. |
 High Energy Density3 times higher energy density and 70% less weight than lead-acid batteries.*
|
|
Long Life Cycle3,000 cycles at 80% DOD, the E-Series lifepo4 batteries power your motors much longer than lead-acid batteries.* |
 Easy to InstallThe connectors of E160/E163 can be installed with only ONE hand. No additional tool is required. |

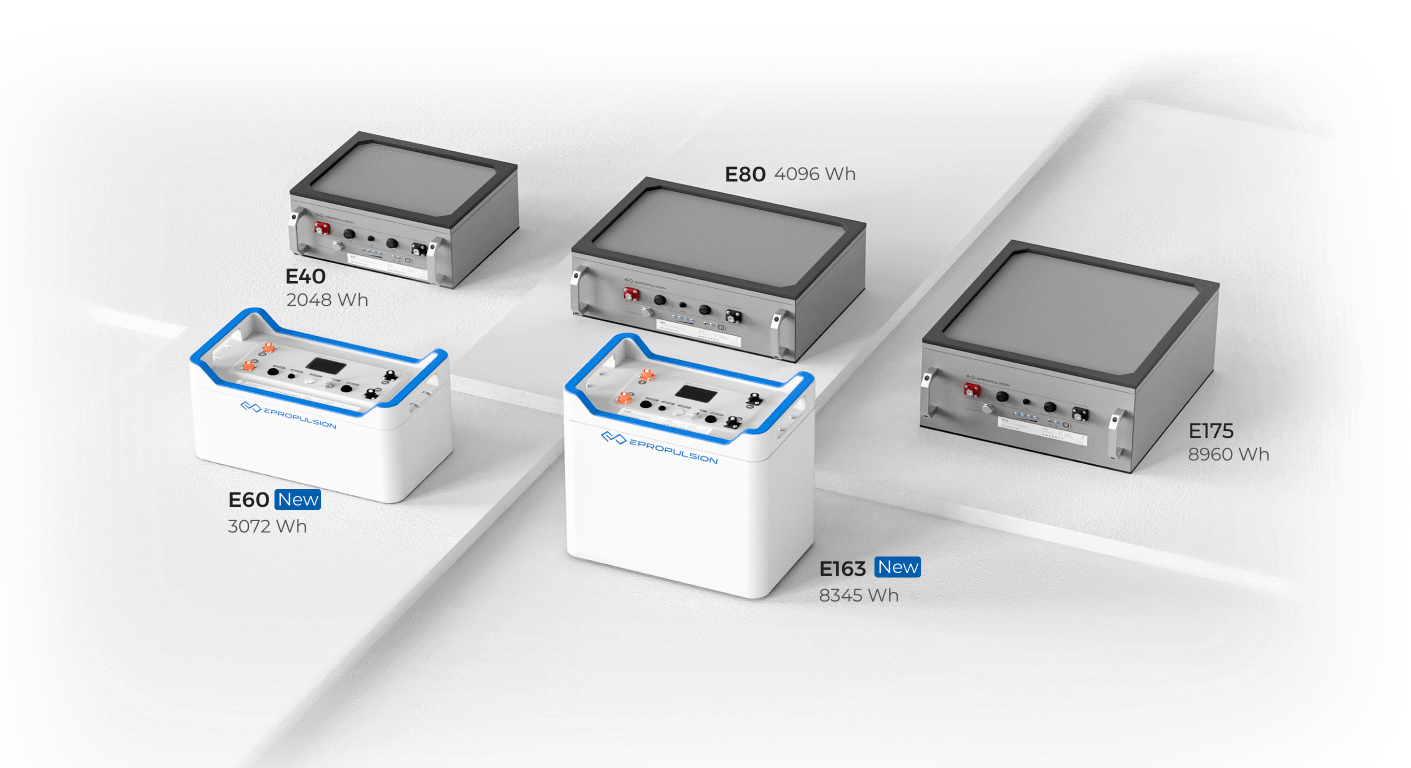

 Competitive pricingUnit price of E40/E80/E175 is as low as $0.5 per watt-hour. |
 Fully Compatible with ePropulsion MotorsData synced with ePropulsion motors to apply smart operation strategy. |
|
E60
|
E163 | |
|
Capacity
|
3072 Wh / 60 Ah
|
8345 Wh / 163 Ah
|
|
Rated Voltage
|
51.2 V
|
51.2 V
|
|
Battery Life
|
3,000 cycles at 80% DOD
|
3,000 cycles at 80% DOD
|
|
Weight
|
33 kg
|
76 kg
|
|

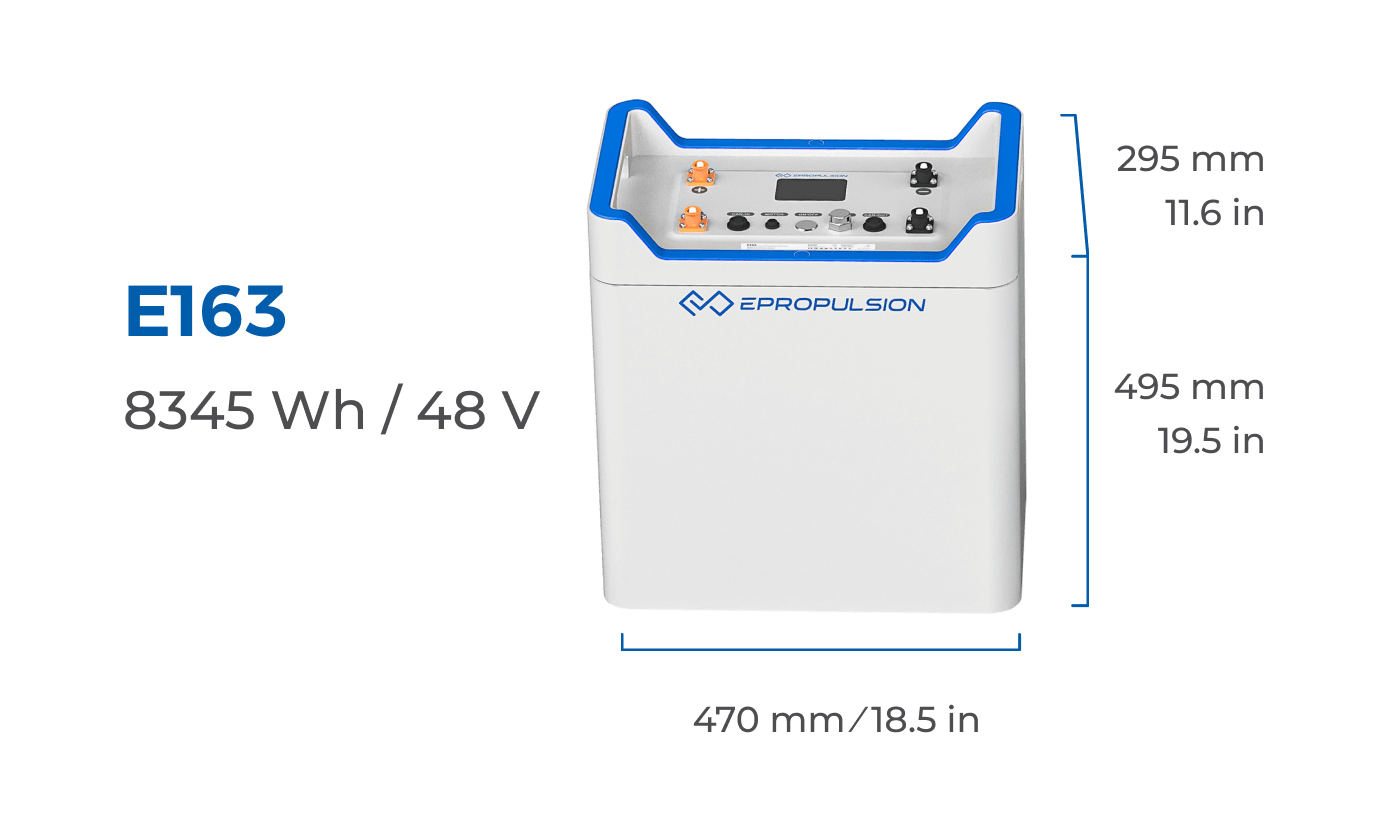

Dimensions
|
512 x 290 x 300 mm
(20.2 x 11.4 x 11.8 in)
|
470 x 295 x 495 mm
(18.5 x 11.6 x 19.5 in)
|
|
Cut-off Voltage
|
41.6 V
|
41.6 V
|
|
Final Charging Voltage
|
57.6 V
|
57.6 V
|
|
Max Continuous Discharging Current
|
70 A
|
150 A
|
|
Serial Connection
|
N/A
|
N/A
|
|
Parallel Connection
|
Up to 16
|
Up to 16
|
|
Cell Configuration
|
16S4P
|
16S1P
|
| Charger | E-Series battery charger | E-Series battery charger |
| Charging Time (220V) | One charger: 2.7 Hrs Two chargers in parallel: 1.3 Hrs |
One charger: 7.2 Hrs Two chargers in parallel: 3.6 Hrs |
| Charging Time (110V) | One charger: 4 Hrs Two chargers in parallel: 2 Hrs |
One charger: 11 Hrs Two chargers in parallel: 5.4 Hrs |
| Charging Temperature | 0 to 55℃ (32 to 131˚F) | 0 to 55℃ (32 to 131˚F) |
| Discharging Temperature | -10 to 60℃ (14 to 140˚F) | -10 to 60℃ (14 to 140˚F) |

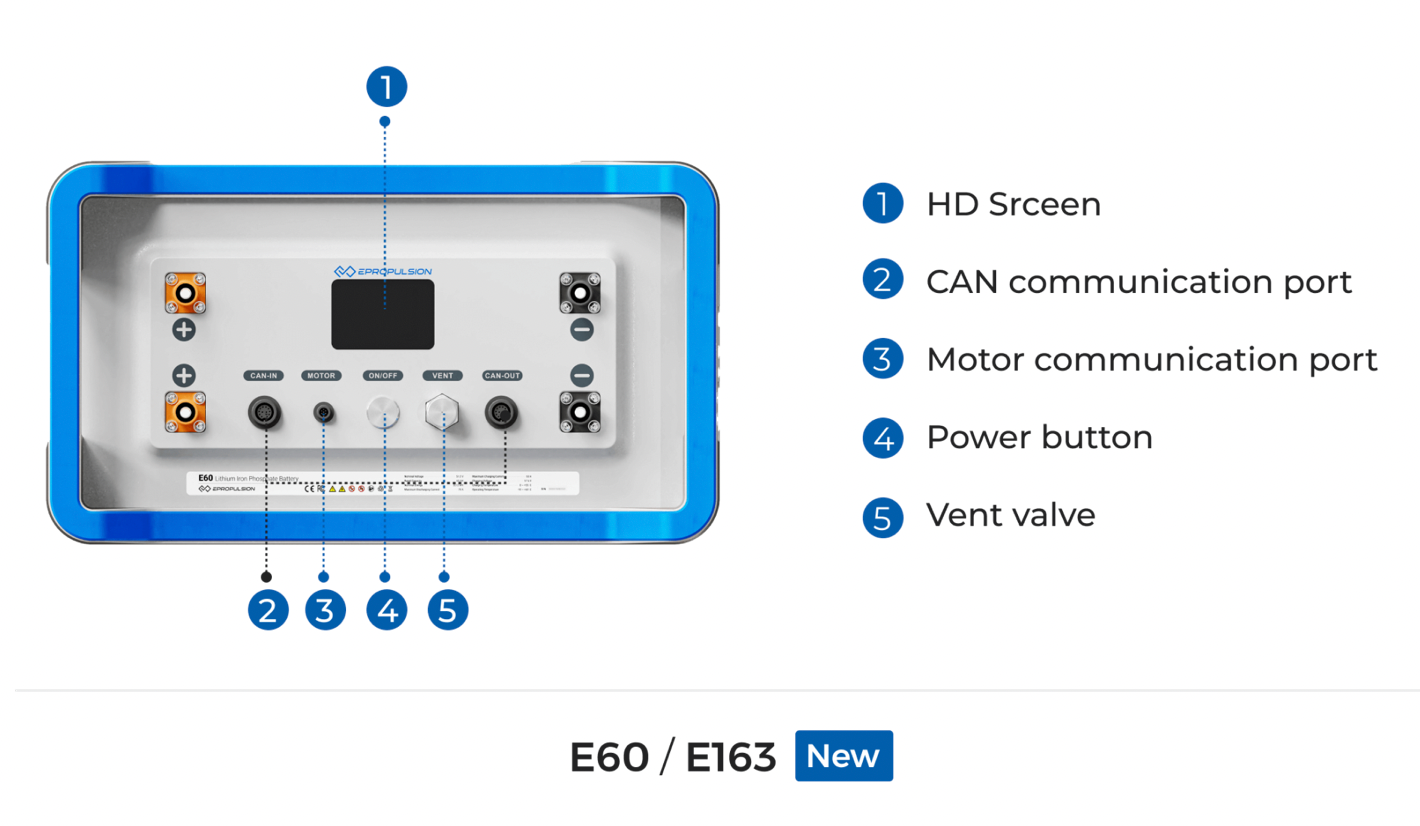

| Communication | Available: CAN-Bus for Parallel RS485 for ePropulsion motors |
Available: CAN-Bus for Parallel RS485 for ePropulsion motors |
| Shipping Classification | UN3480, Class 9, UN38.3 Certified | UN3480, Class 9, UN38.3 Certified |
| Approvals | CE, UKCA, FCC | CE, UKCA, FCC |
| Warranty (Non-Commercial Use) | 2 years | 2 years |
ePropulsion Battery E163 48V (LiFePO4)
