By Victron

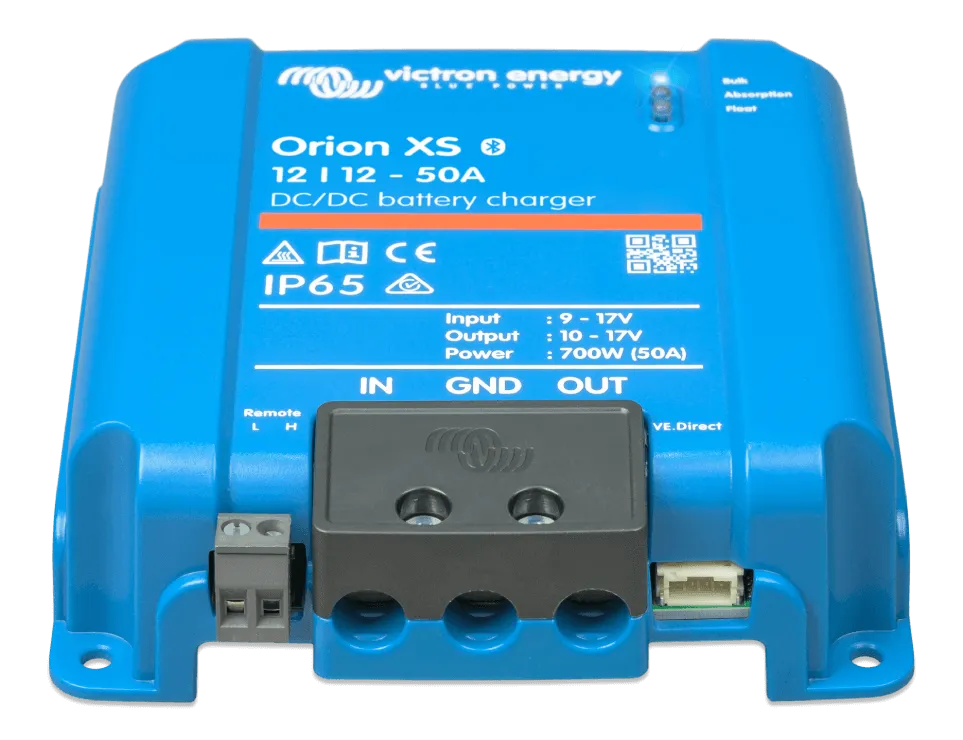

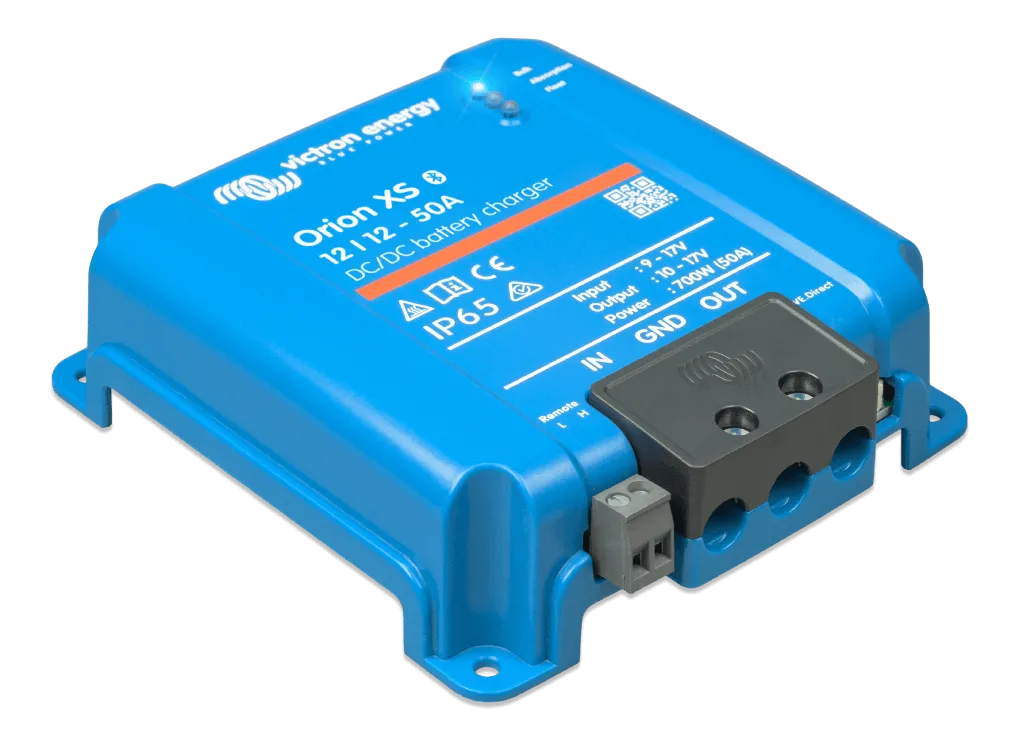

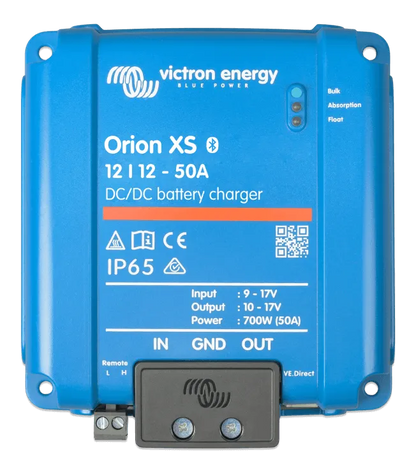

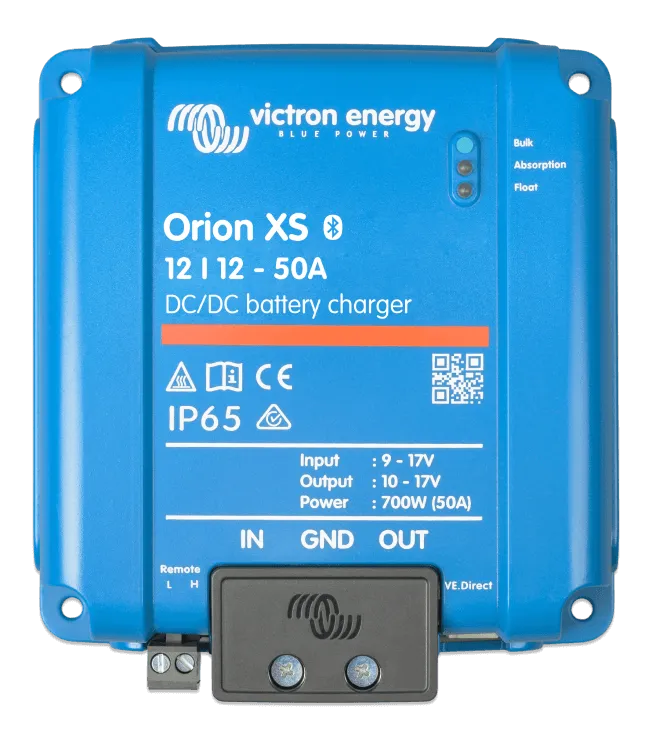

Victron Orion XS DC-DC Charger

$560.00 CAD
$560.00 CAD
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Secure payments
100% Guarantee
Client satisfaction

Short Description

The Orion XS, engineered from the ground up, redefines DC-DC battery-to-battery charging. Ideal for dual battery systems charged by an intelligent alternator.
Support expert

Have a question?

Talk with a technical expert.

✆ Call Us

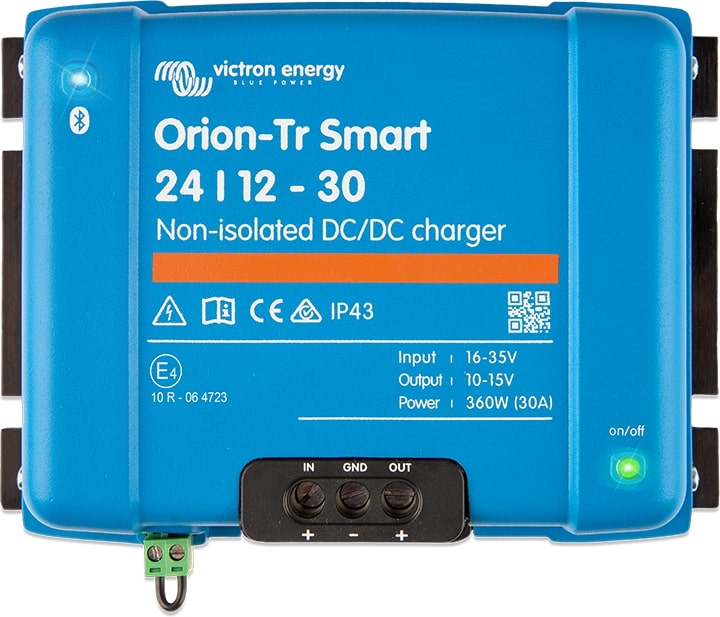

VictronVictron Orion-Tr Smart DC-DC Charger Non-Isolated
Orion-Tr Smart DC-DC Charger Non-Isolated

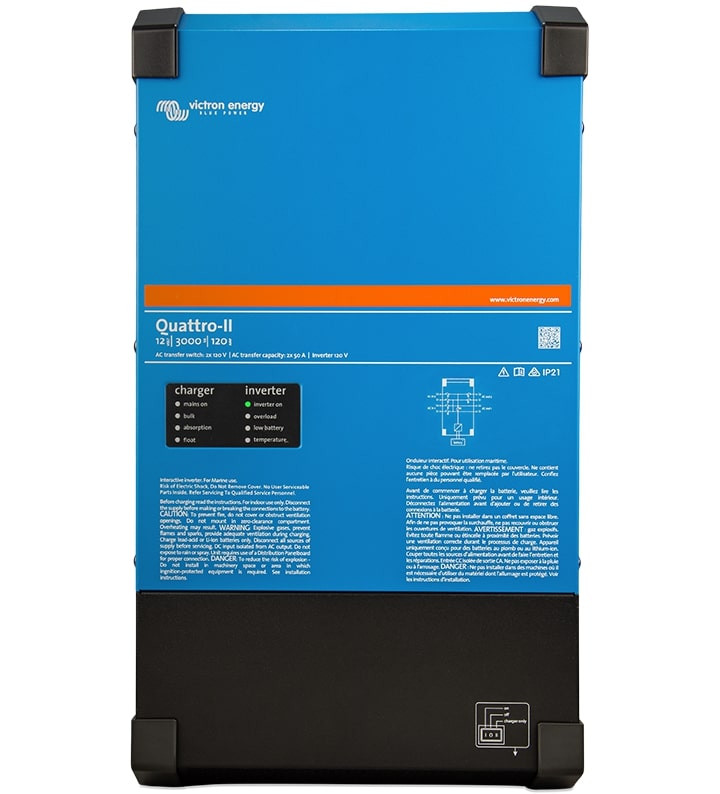

Victron Quattro-II 2x120V
VictronVictron Quattro-II 2x120V Inverter Charger
Victron Orion XS
$560.00 CAD
$560.00 CAD
Parameter Orion XS DC-DC Battery Charger 12/12-50A
Input voltage range 9-17 V
Output voltage adjust range 10-17 V
Output voltage tolerance +/- 0.25% (max)
Output voltage noise 10 mV rms
Input and output current setting range 1 – 50 A
Maximum constant short-circuit current 50 A
Continuous output power up to 40 °C 700 W
Maximum efficiency 98.5 %
No-load current consumption < 100 mA
Standby current consumption < 1.5 mA
Can be used as power supply Yes, output voltage can be set with VictronConnect App
Communication
VictronConnect App / Bluetooth Smart Yes
VE.Smart Networking Yes
VE.Direct Yes (including DVCC)
Other
Operating temperature range -20 to +60 °C (derating 1.5 % per °C above 40 °C)
Humidity 95 %, non-condensing
Maximum altitude 2000 m
Pollution degree PD2
Overvoltage category OVC 1
DC connection Screw terminals
Maximum cable cross-section 4AWG (21.2mm²)
Weight 0.330 kg (0.73 lb)
Dimensions (hxwxd) 137.3 x 123.1 x 40 mm (5.4 x 4.85 x 1.6 inch)
Protection category IP65

Parallel to increase output current

An unlimited number of Orion XS devices can be connected in parallel, for easy output current scaling to meet system requirements.

Smart alternator compatibility

With its built-in engine running detection, the Orion XS guarantees the charger only draws power when the engine is running. It also helps retrieving a proper charge current from intelligent alternators as found in Euro 5 & Euro 6 engines.

Adaptive charge algorithm

The Orion XS features customizable and preset charging algorithms for lithium and lead-acid batteries, ensuring optimal recharging, for both shallow and deep discharges.

Complete electronic protection

The Orion XS comes equiped with comprehensive electronic protection against overload, short circuit and excessive temperatures. It will automatically reduce the output power when maximum product temperature is reached.

Low temperature shutdown & undervoltage protection

To prevent damage of lithium batteries, the charger will turn off automatically at low temperatures and when the input voltage drops below a user-configurable lockout value, protecting the starter battery from deep discharge.

Dust & waterproof

The Orion XS is designed to withstand dust and water pollution and has an IP65 classification.
