By ePropulsion

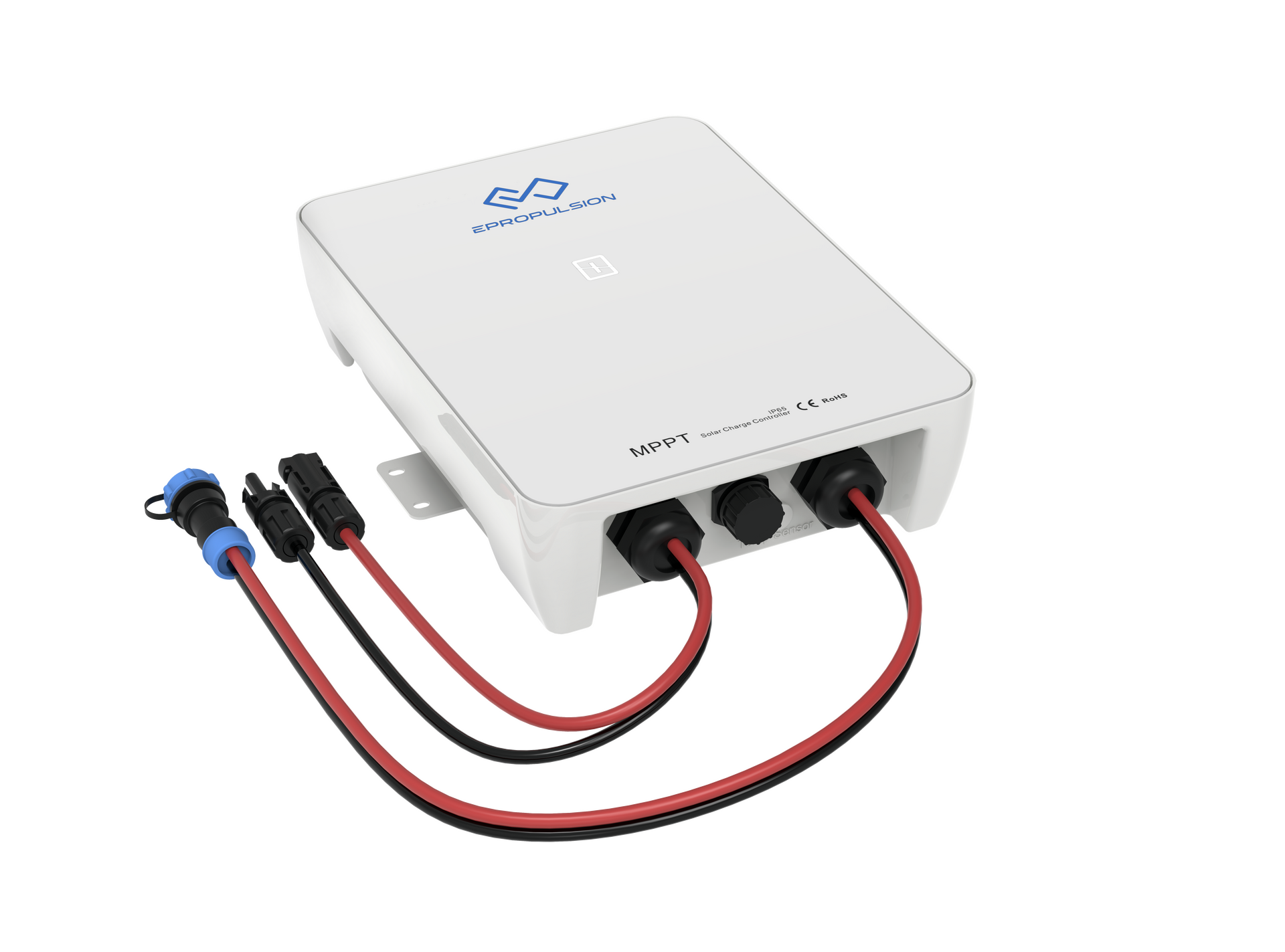

ePropulsion G Battery MPPT Solar Charger Controller 2kW
Regular price
$828.50 CAD
Regular price
Sale price
$828.50 CAD
Unit price
per
Couldn't load pickup availability
Downloads
Downloads
Have a question?
Talk with a technical expert.
Regular price
$828.50 CAD
Regular price
Sale price
$828.50 CAD
ePropulsion G Battery MPPT Solar Charger Controller 2kW Description:
Physical Dimensions
Length: 290.00 mm
Width: 220.00 mm
Height: 90.00 mm
Net Weight: 4.30 kg
| Model | MPPT096020G |
|---|---|
| Electrical Parameters | |
| Voltage Platform | 96Vdc |
| Output Voltage Range | 72Vdc - 120Vdc |
| Voltage Deviation | < +/- 0.2 V |
| Maximum Charging Current | 20 A |
| Photovoltaic voltage input range | 140Vdc - 250Vdc |
| Rated Input Power** | 2080 W |
| Standby Power Consumption | < 1.8 W |
| Conversion Efficiency (Peak) | 98% |
| Structural Parameters | |
| Product Size | 290×220×90mm |
| Package Size | 391×331×205mm |
| Net Weight (kg) | ≈4.3 |
| Environment | |
| Operating Temperature | -20°C - 55°C |
| Storage Temperature | -40°C - 70°C |
| Humidity | 10%rh - 95%rh |
| IP Protection Level | IP65 |
