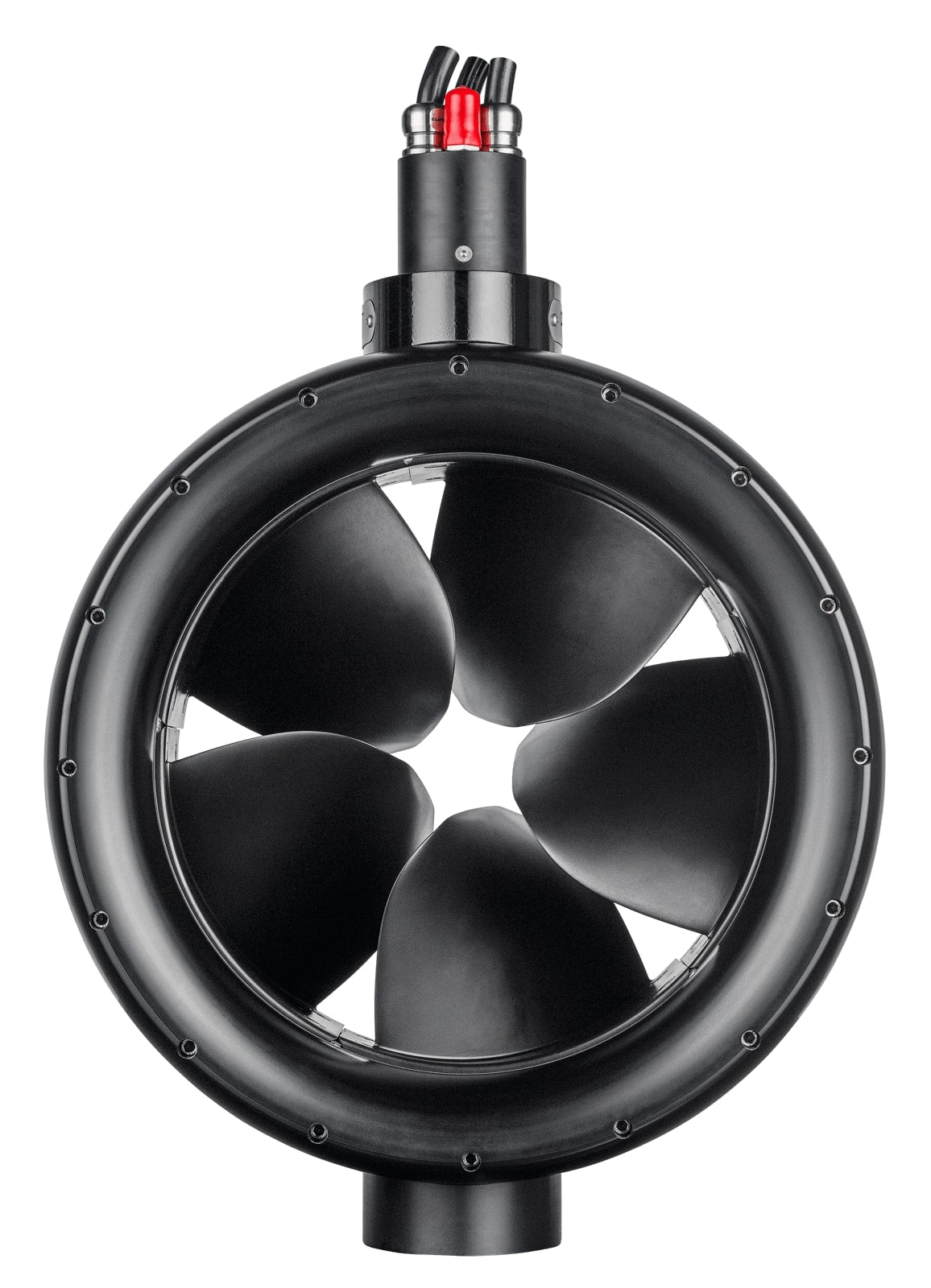

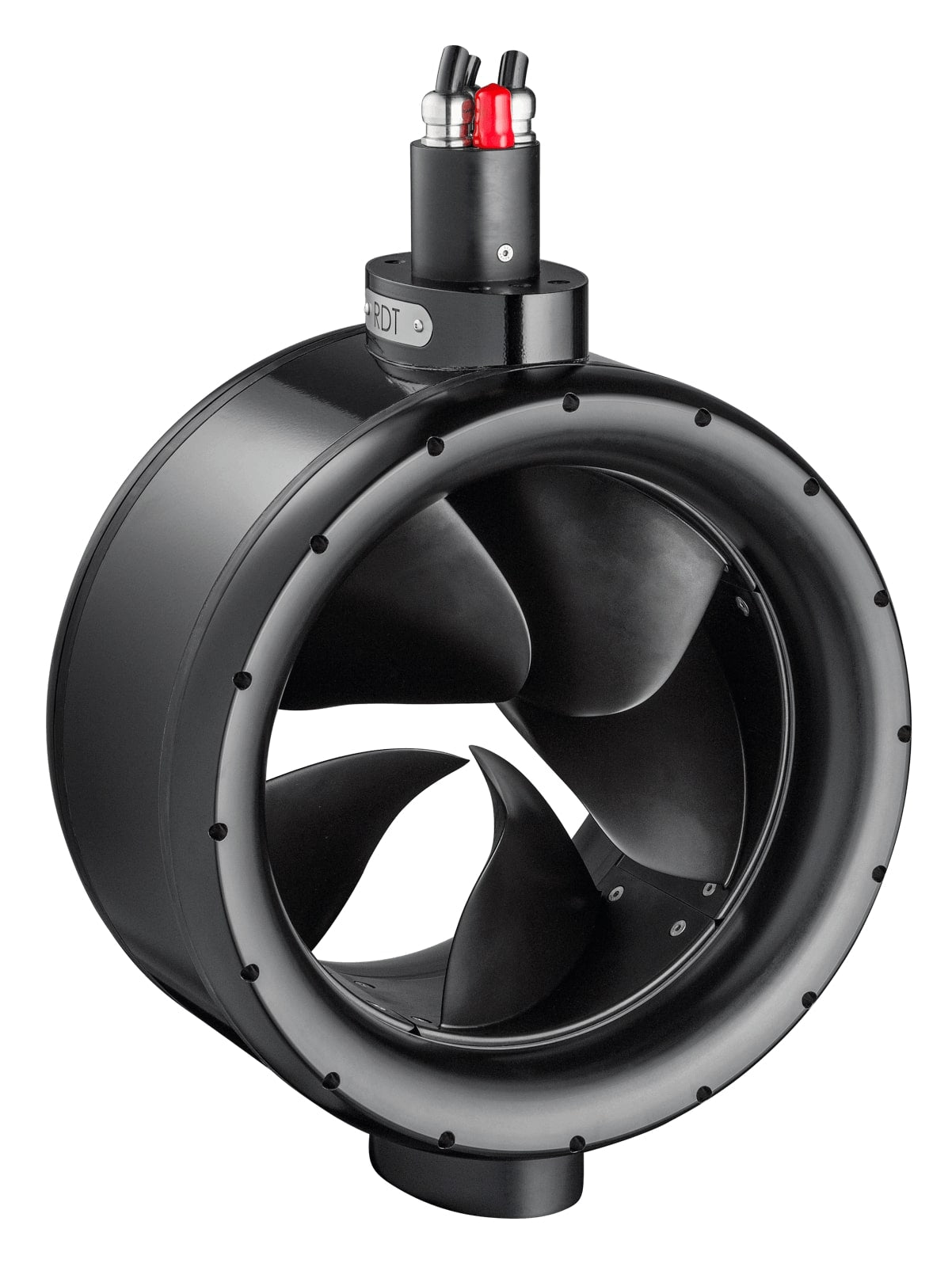

Electric Outboard RIM Drive POD 22.0 (48V)

Unleash power with a maximum input of 22.0kW and a 48V nominal voltage, achieving over 90% efficiency. Immediate acceleration sets it apart, while a compact and lightweight design makes this product truly ideal for the most space-conscious installations. With only one rotating part, maintenance is minimized. Enjoy versatility with clockwise, counterclockwise, and symmetric directions for every motor. Plus, all motors are completely waterproof with an IP68 rating, achieved by completely casting the motor not by using sealings. The design also minimizes risk of damage to the propeller, perfect performance in any environment.

Specifications

• Nominal current: 535A
• Nominal voltage: 48V
• Weight: 50kg
• Propeller diameter: 290mm
• Outside diameter: 378mm
• Motor length: 241mm
• IP Class: IP68
• Static thrust: 300kgf
• Salt water resistant: Yes
• Motor controller included: Yes


POD

Warranty terms: two years for non-commercial use and one year for commercial use
