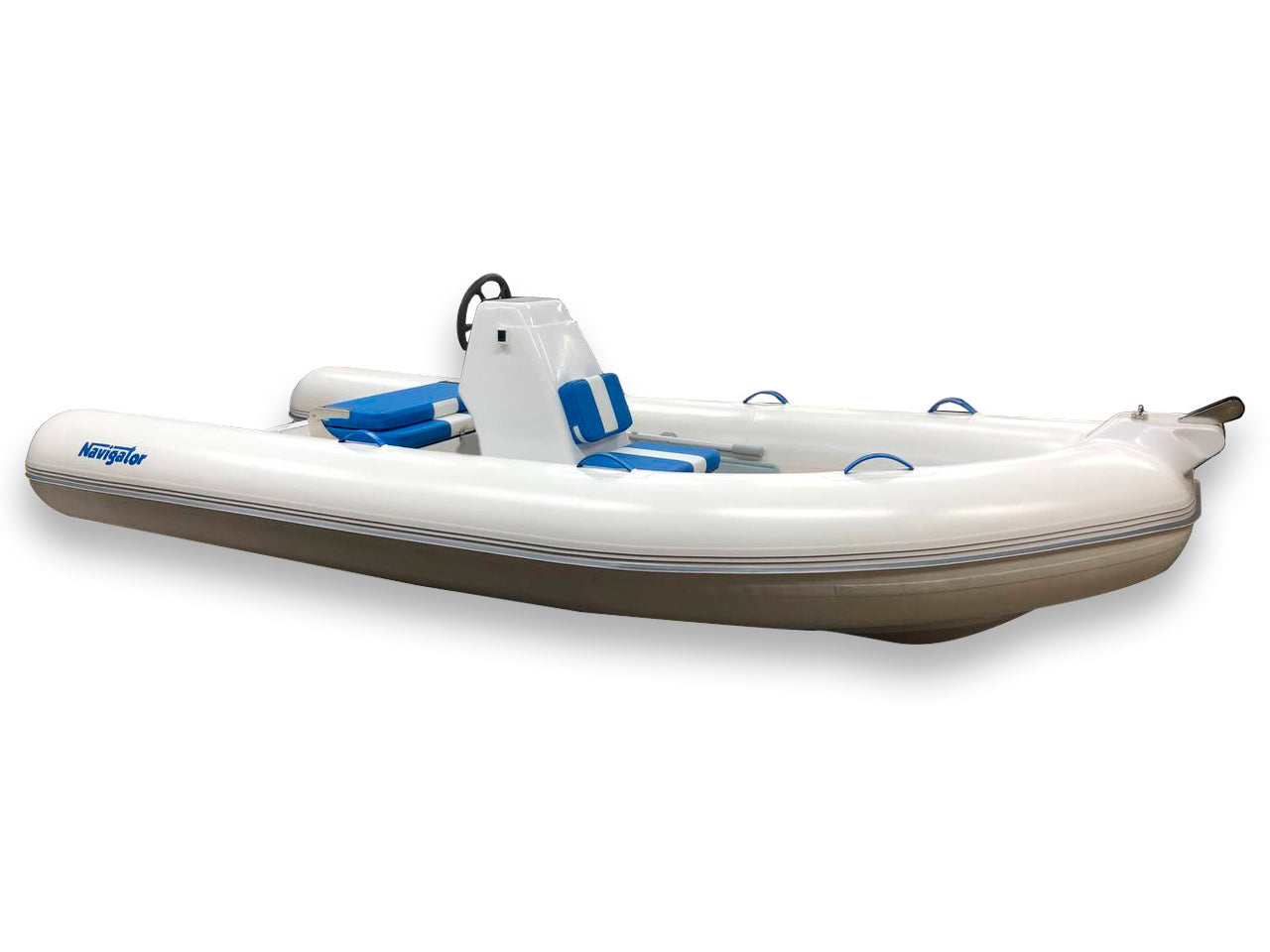

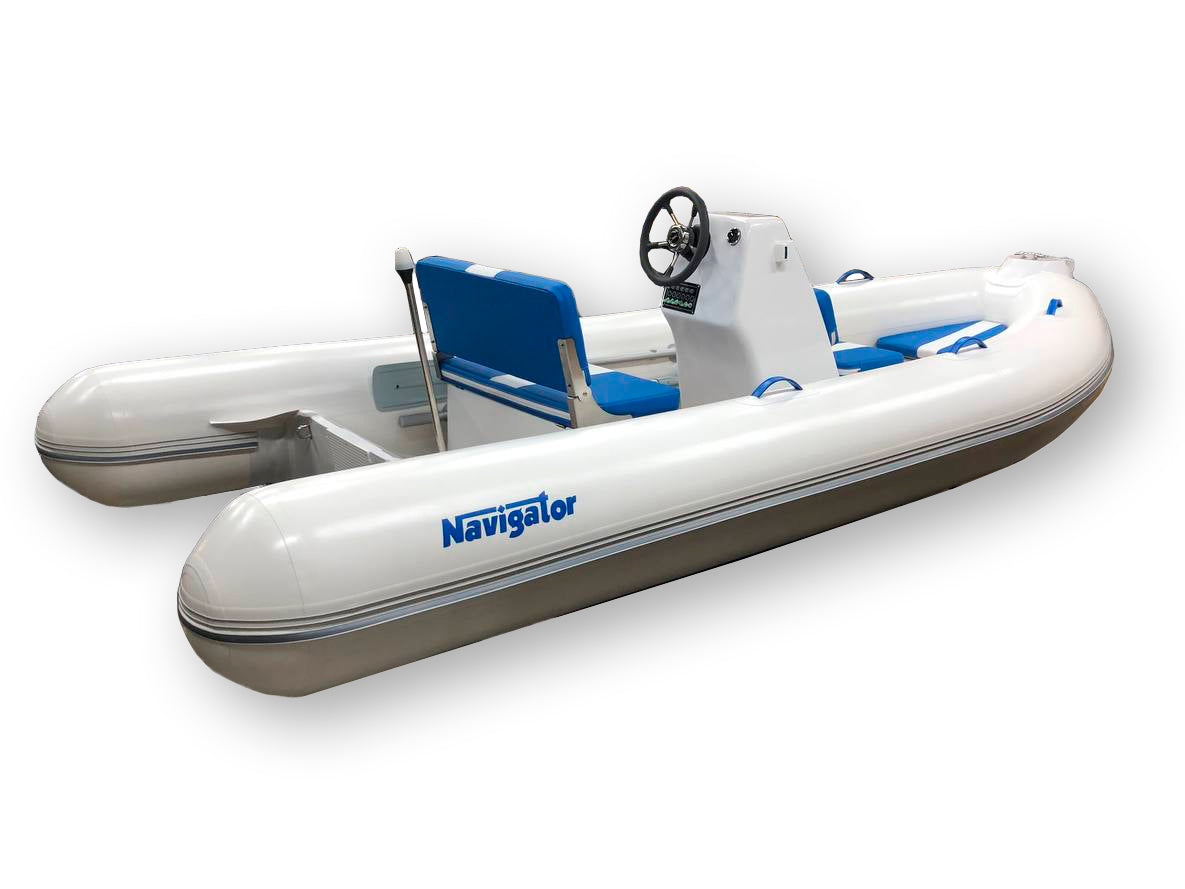

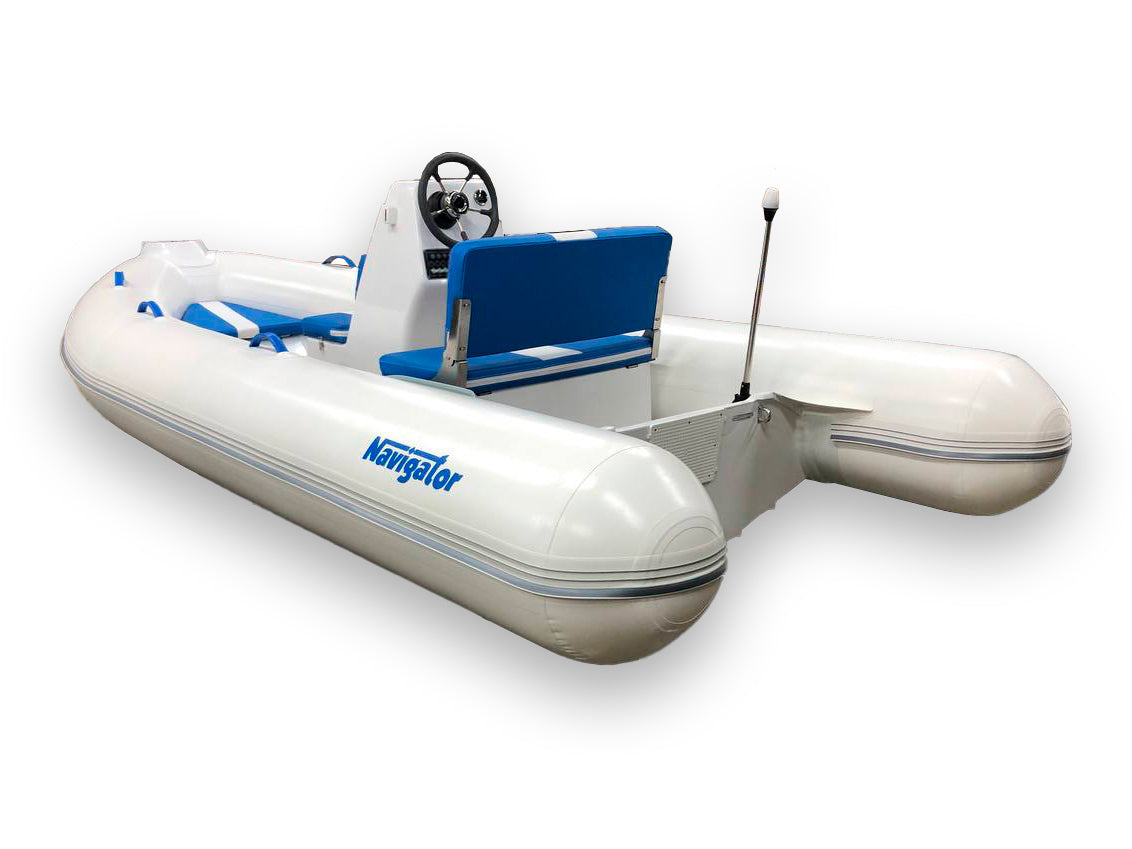

Rigid Inflatable Boat (RIB) Navigator 430
Built for speed, reliability, and comfort, the Navigator RIB 430 Inflatable Boat is perfect for those who demand top-notch performance on the water.
The hull of the Navigator RIB 430 has rather complex trimaran-type contours in the bow, turning into keeled shapes with a cheekbone fold (“gull-wing” type) in the stern. Due to the peculiarities of the hull contours, this inflatable boat is fast, extremely maneuverable, easy to control, does not create a strong wave either at low or high speeds. Two pairs of longitudinal steps and developed sponsons, in addition to improving the hydrodynamic properties of the hull, add additional rigidity to the bottom. Significant deadlift of the boat in the bow allows it to gently “cut” the wave.
The Navigator Advantage – Navigator Inflatable Boats offers:
- The newest joining technology – thermal welding method.
- The original design of the cylinder – shape narrows down to the nose, thus boosting marine performance.
- The minimum number of joining seams.
- Increased tightness and reliability of the cylinders.
- The Longitudinal and circumferential seams are heat-welded.
- Improved ride quality thanks to hydrodynamic contours.
- The course stabilizers (keel) installed in the stern provide better directional stability.
- High-quality hull material – Boats are made of high-quality boat German PVC Valmex or Plastel produced by Mehler Texnologies with a density of 750 – 1200 g / m2, ensuring their long-term operation without additional processing of seams.
- The use of a slated-type floor dramatically speeds up the process of assembling and disassembling the boat.
- Team of professionals. 100% quality control at every technological stage.
- 5-year warranty
Standard Configuration:

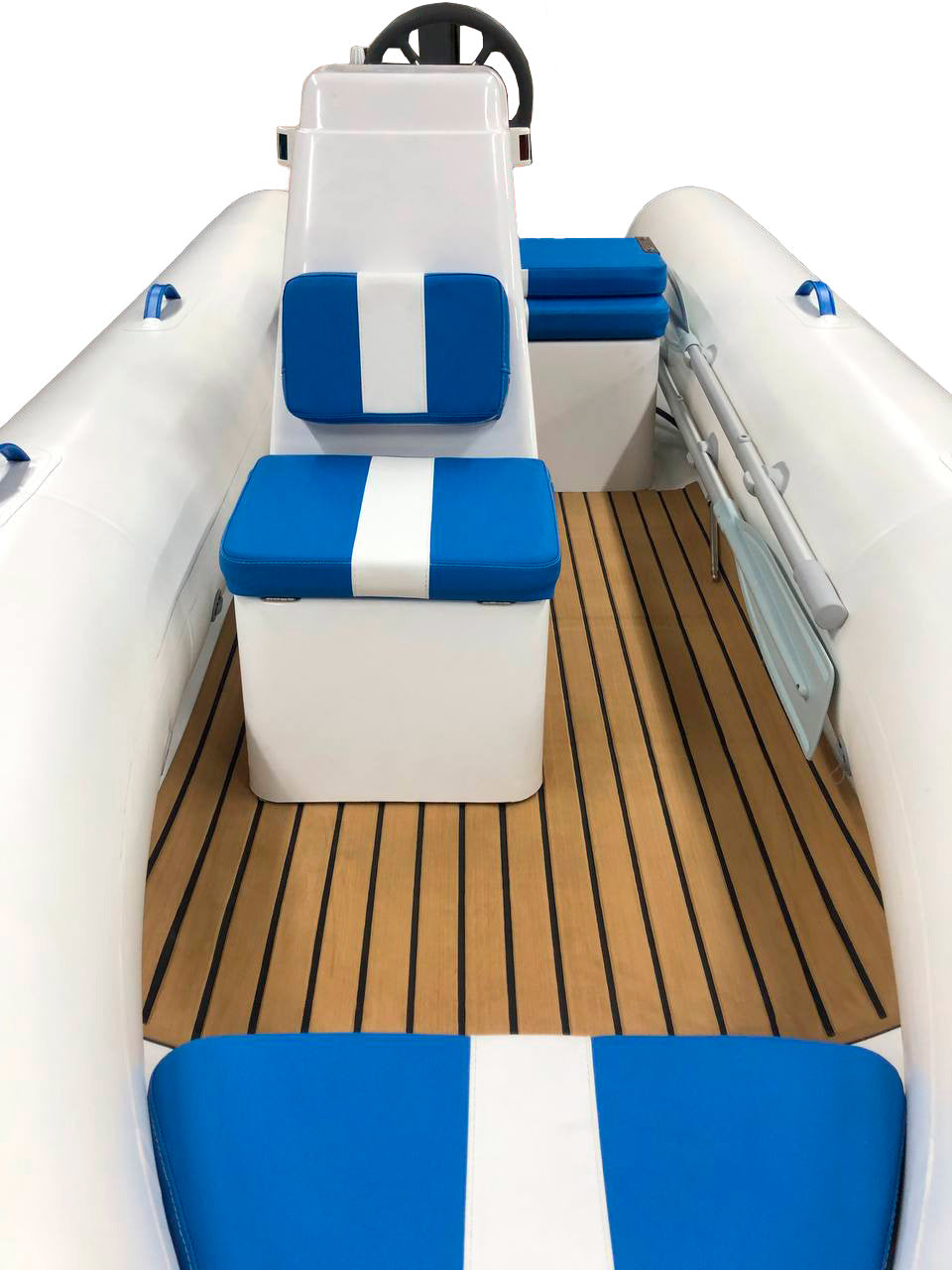

- Stern storage made of fiberglass, equipped with a soft two-seater seat with a folding backrest.

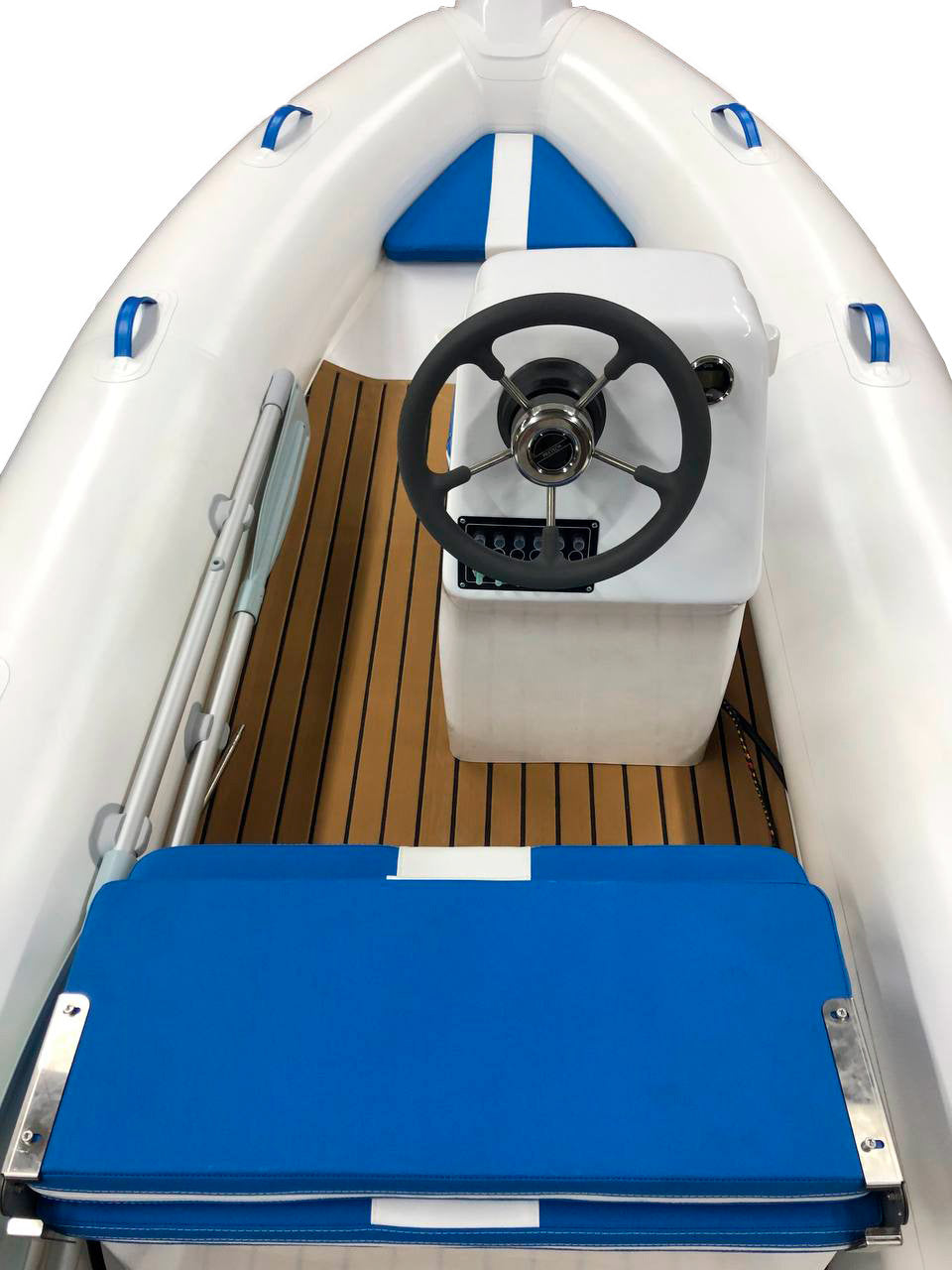

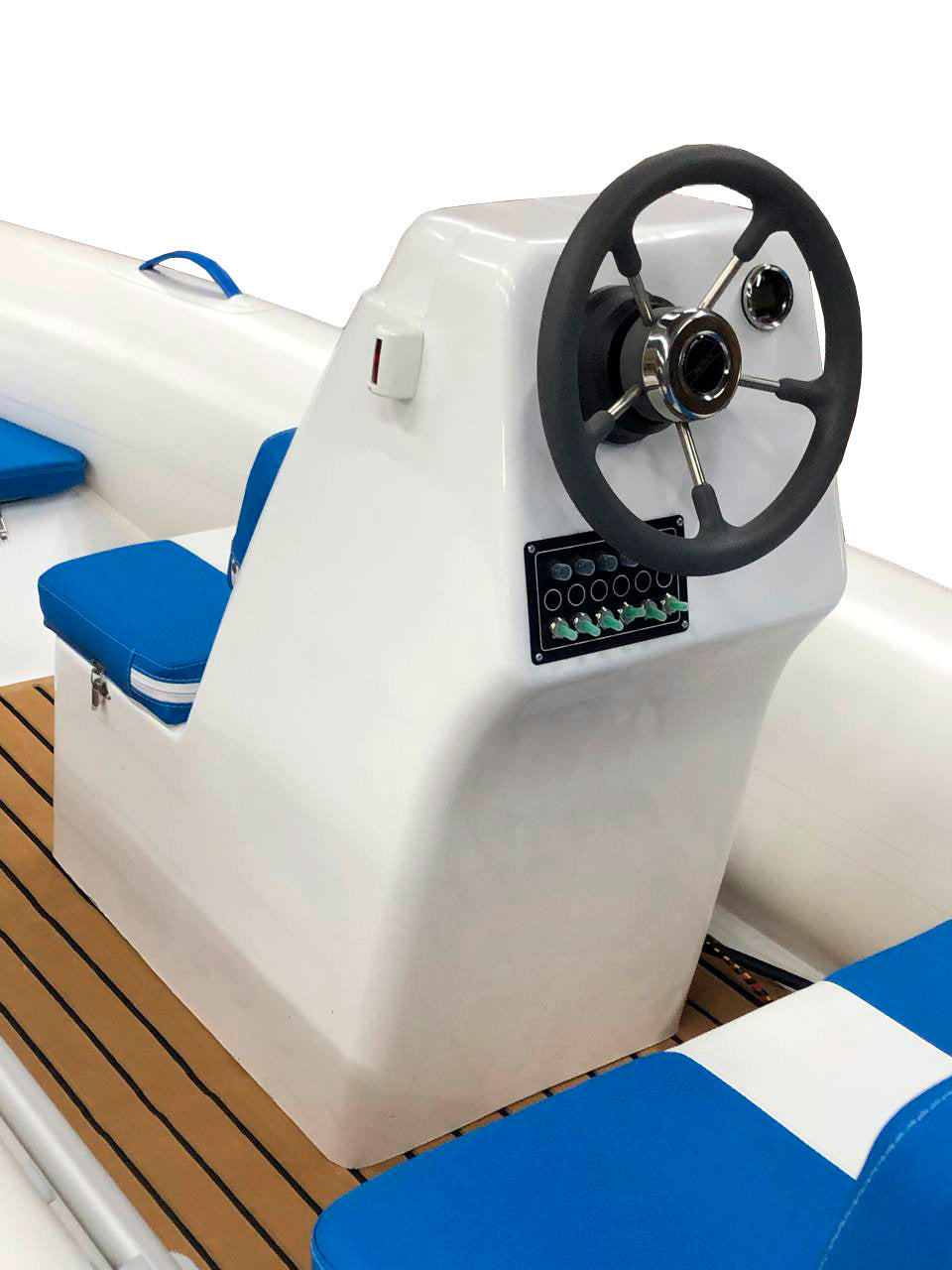

- Stationary steering console equipped with a front single soft seat with a soft backrest.

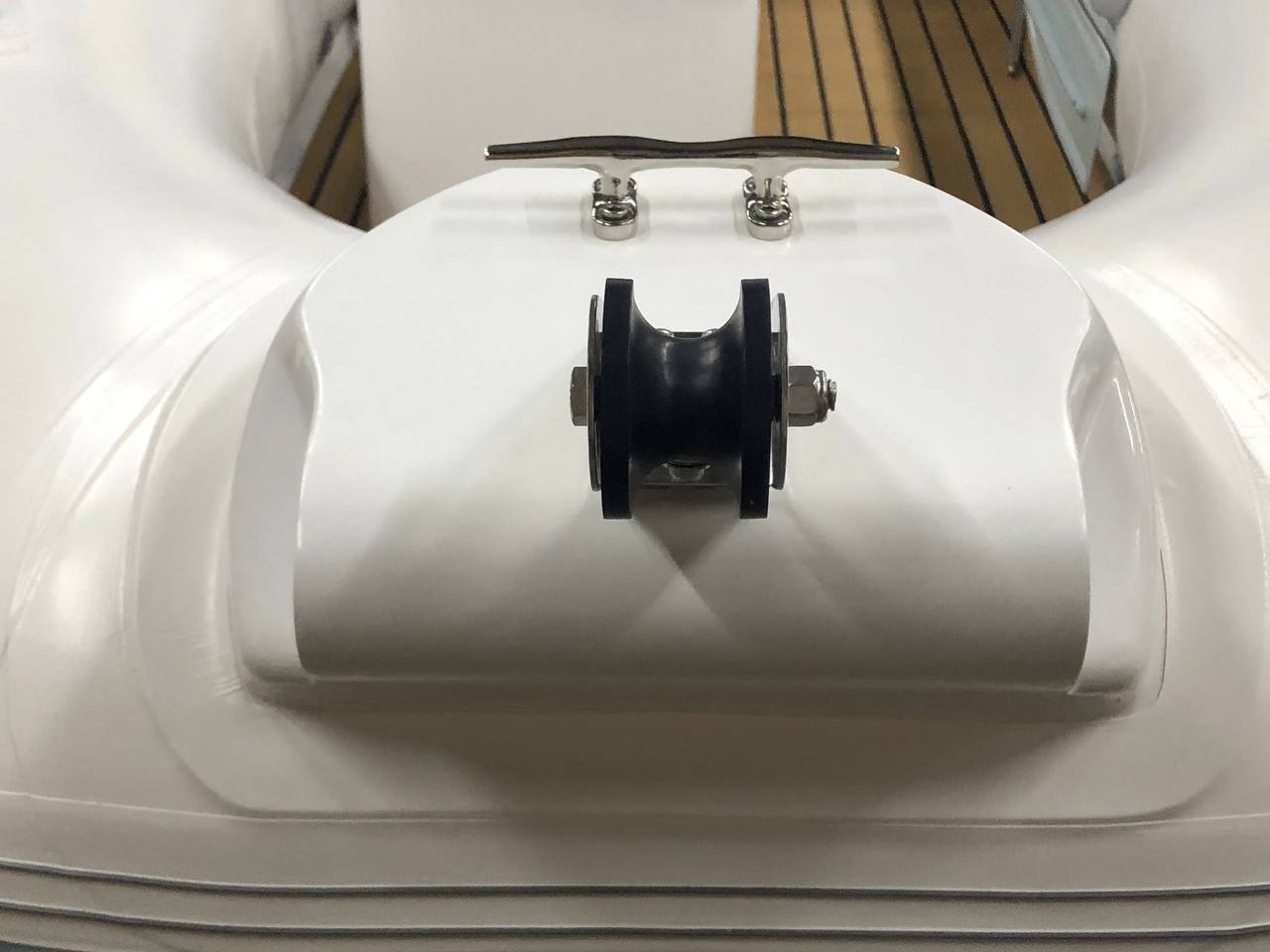

- Bow anchor cover with roller and cleat.

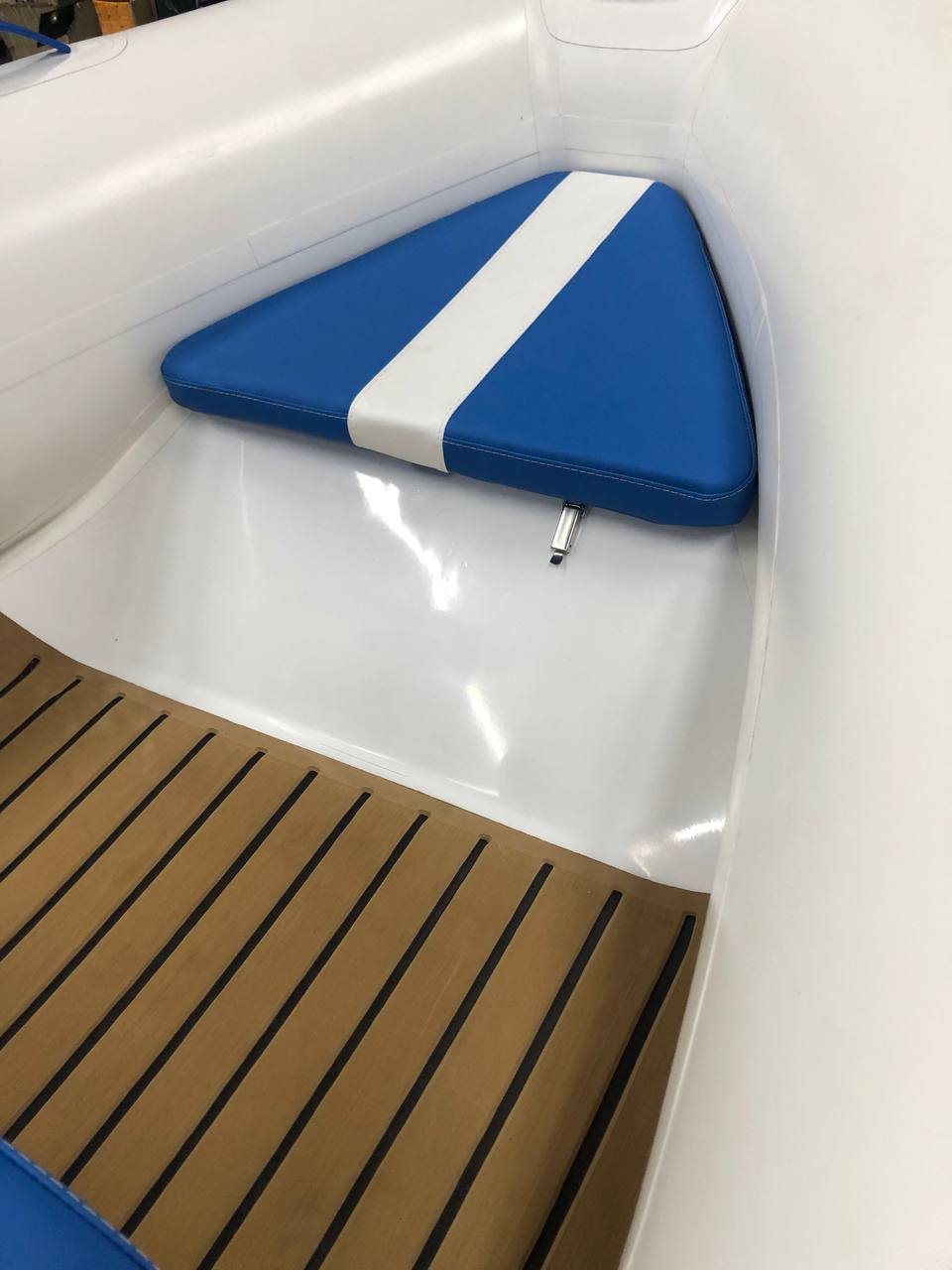

- Bow storage with a soft seat.
- Deck covering – synthetic PVC TIC with imitation of natural wood.
SPECIFICATIONS:
| Product Type | Boat |
| Brand | Navigator |
| Boat Type | RIB |
| Passenger Capacity (persons) | 6 |
| Overall Length (cm) | 430 cm (14.11 ft) |
| Overall Width (cm) | 180 cm (5.91 ft) |
| Tube Diameter (cm) | 45 cm (1.48 ft) |
| Number of Air Chambers | 4 |
| Load Capacity (kg) | 700 kg (1543 lbs) |
| Tube Material | PVC |
| Tube Material Density (g/sq.m) | 1200 g/m2 (35.3 oz/sq.ft), VALMEX (Germany) |
| Hull Shape | V-shaped |
| Maximum Engine Power (hp) | 40 hp |
| Deck Covering | Synthetic PVC TIC with imitation of natural wood |
| Hull Bottom Type | Fiberglass |
| Seat Type | Stationary |
| Transom Presence | Yes |
| Transom Height (mm) | 508 mm (1.67 ft) |
| Transom Type | Stationary Plastic |
| Oar Type | Standard Oar |
| Bow Bumper with Splash Guard | Yes |
| One-Way Drain Valve | Yes |
| Bow Anchor Cover with Roller and Cleat | Yes |
| Bow Storage with Soft Seat | Yes |
| Stationary Steering Console with Soft Seat | Yes |
| Stern Storage with Fiberglass Seat | Yes |
| Tube Color Options | White, Light Gray, Red, Green, Black, Dark Gray, Combined |
| Hull Color Options | White, Black, Dark Gray, Light Gray |
| CE Category | C |
| Kit Weight (kg) | 160 kg (352.7 lbs) |
| Interior Length (cm) | 318 cm (10.4 ft) |
| Interior Width (cm) | 90 cm (2.95 ft) |
| Recommended Motor Power (hp) | 20-25 hp |
| Maximum Motor Power (hp) | 30-40 hp |
| Soft Handles for Passengers, qty | 6 |
| Oar Length (cm) | 200 cm (6.5 ft) |
| Boat Weight in Kit (kg) | 160 kg (352.7 lbs) |
| Weld Seam Warranty (months) | 60 |
| PVC Material Warranty (months) | 36 |
