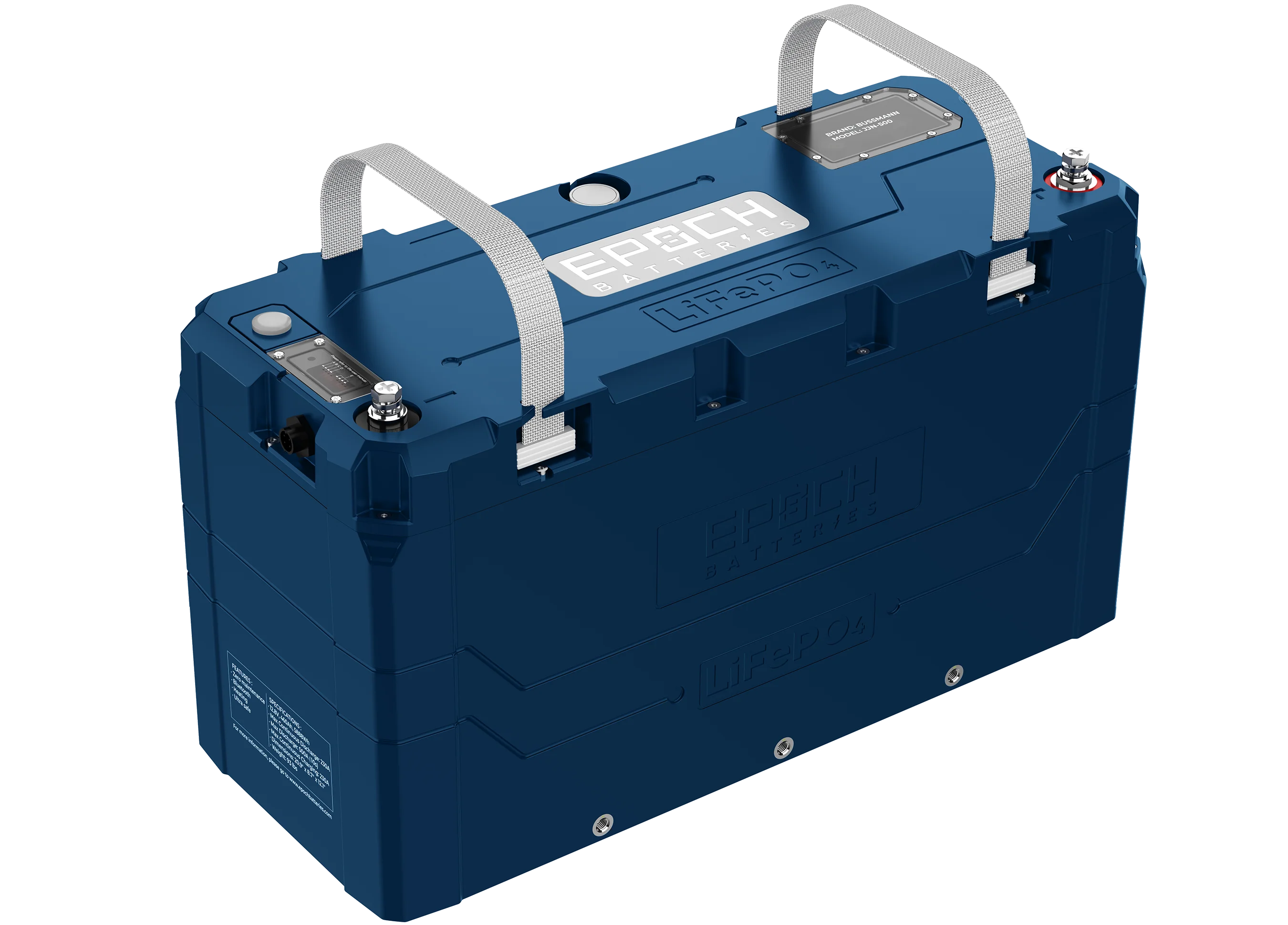

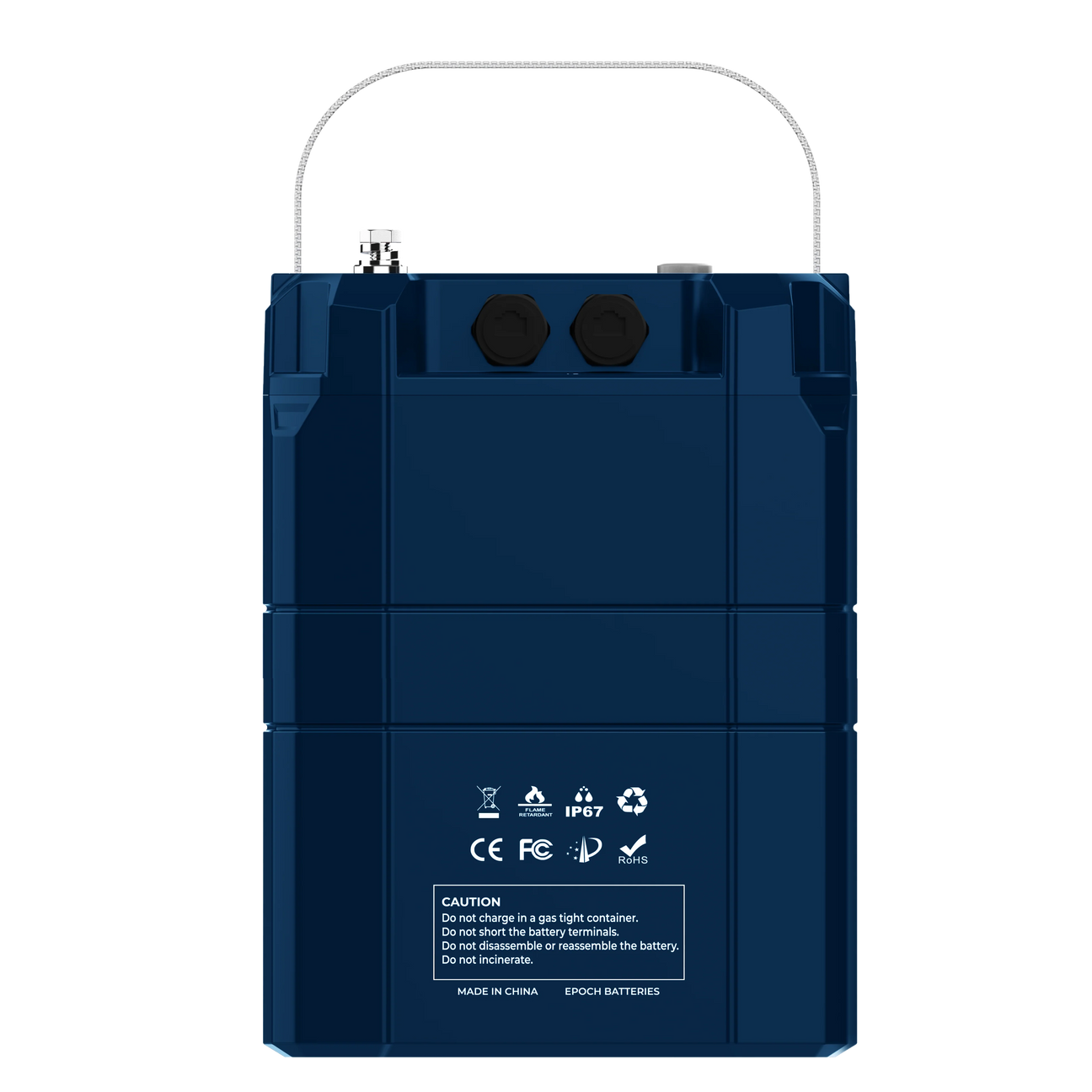

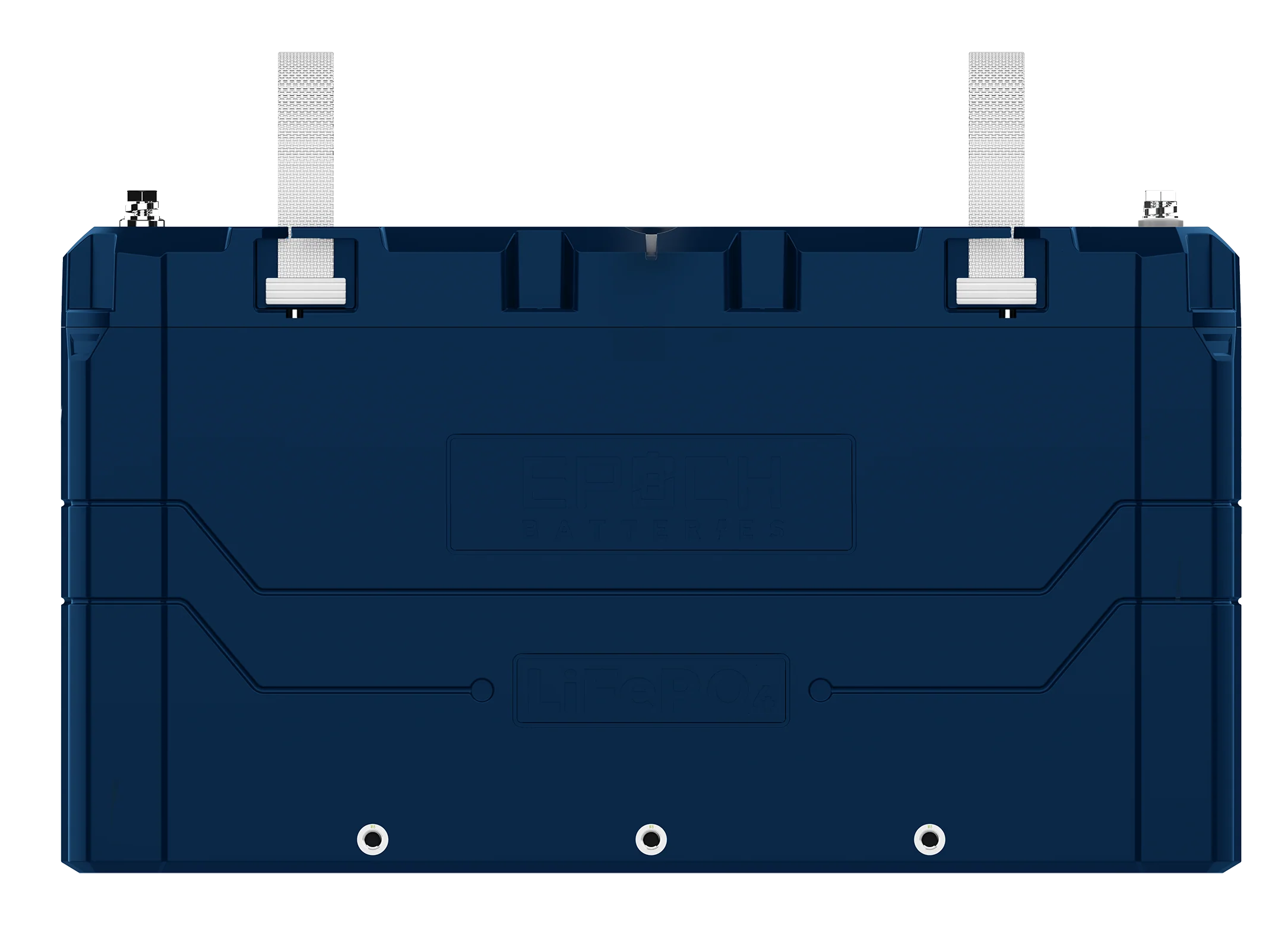

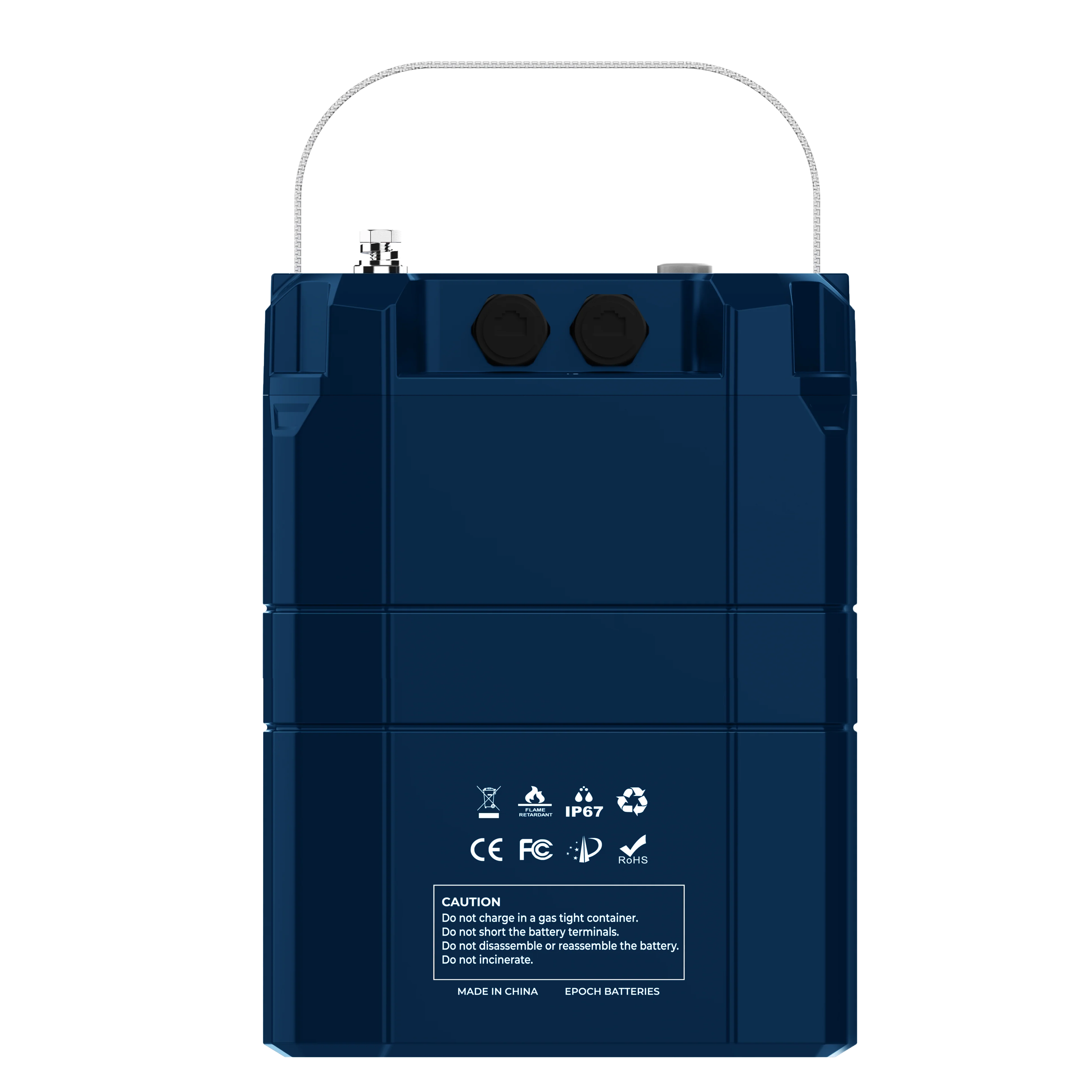

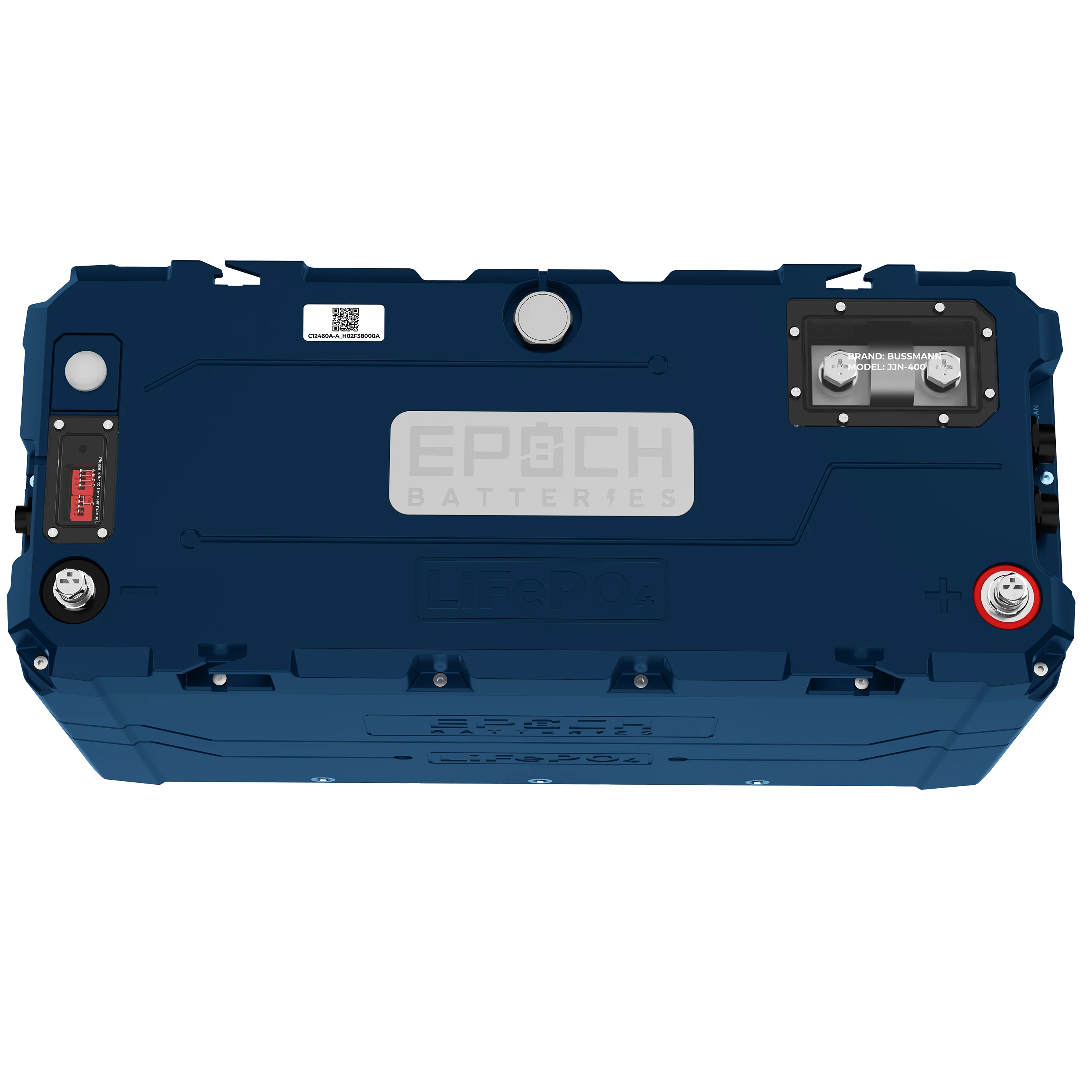

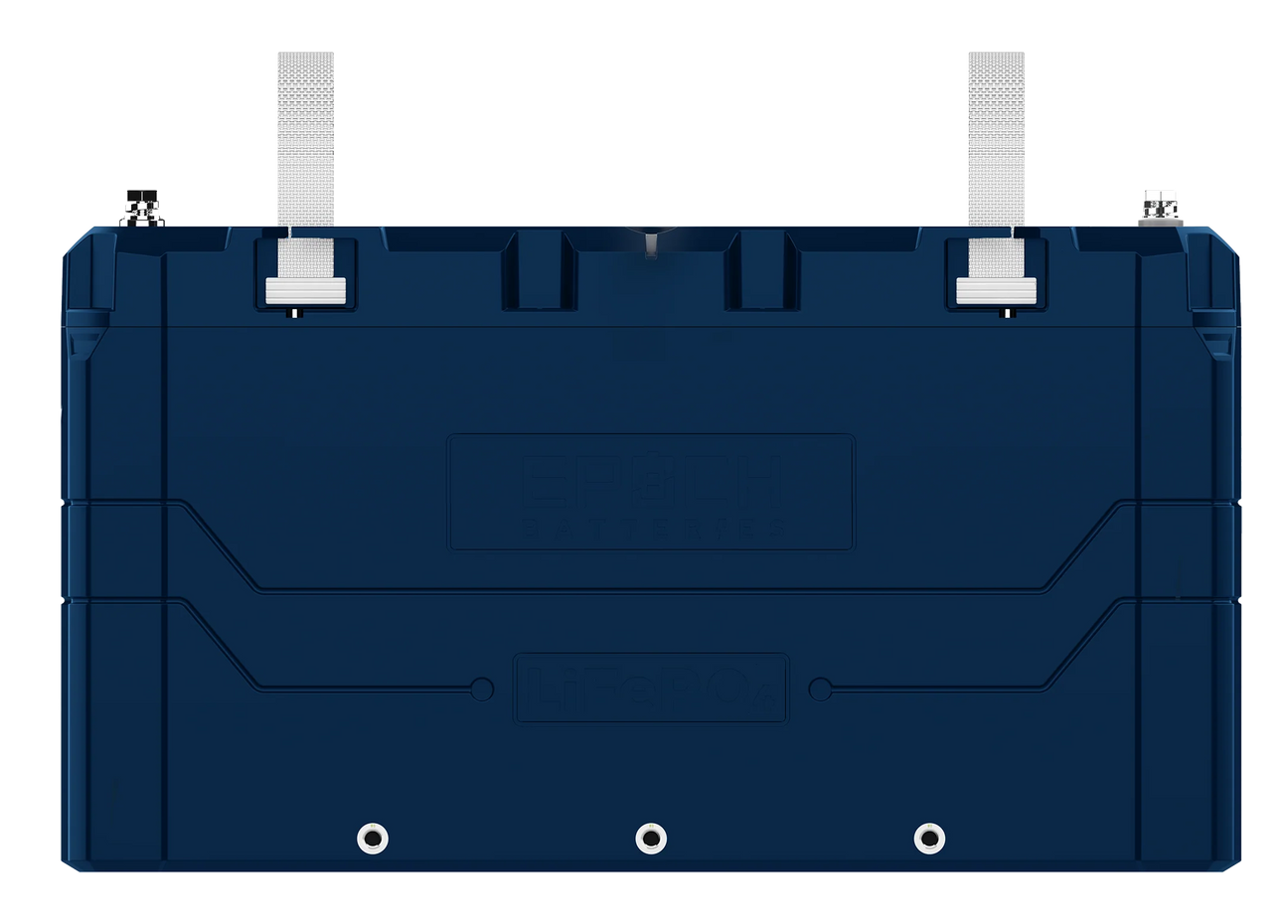

12V 460Ah Epoch V2-T Elite Series Battery - 5.9kWh Heated & Bluetooth & Victron Comms LiFePO4

12V 460Ah Epoch V2-T Elite Series Battery - 5.9kWh Heated & Bluetooth & Victron Comms LiFePO4

• Features

  • Integrated 400A EATON Class T Fuse enhances safety, reduces wiring complexity, and ensures compliance with ABYC standards
  • Premium LiFePO4 Chemistry
  • 460Ah Capacity
  • Built-in Smart Battery Management System (BMS)
  • VICTRON communications with distributed charge control via DVCC (plug-and-play setup)
  • IP67 Rated – dustproof and waterproof
  • Internal self-heating for charging below 0°C
  • Bluetooth monitoring via iOS & Android apps
  • Parallel support for up to 16 batteries

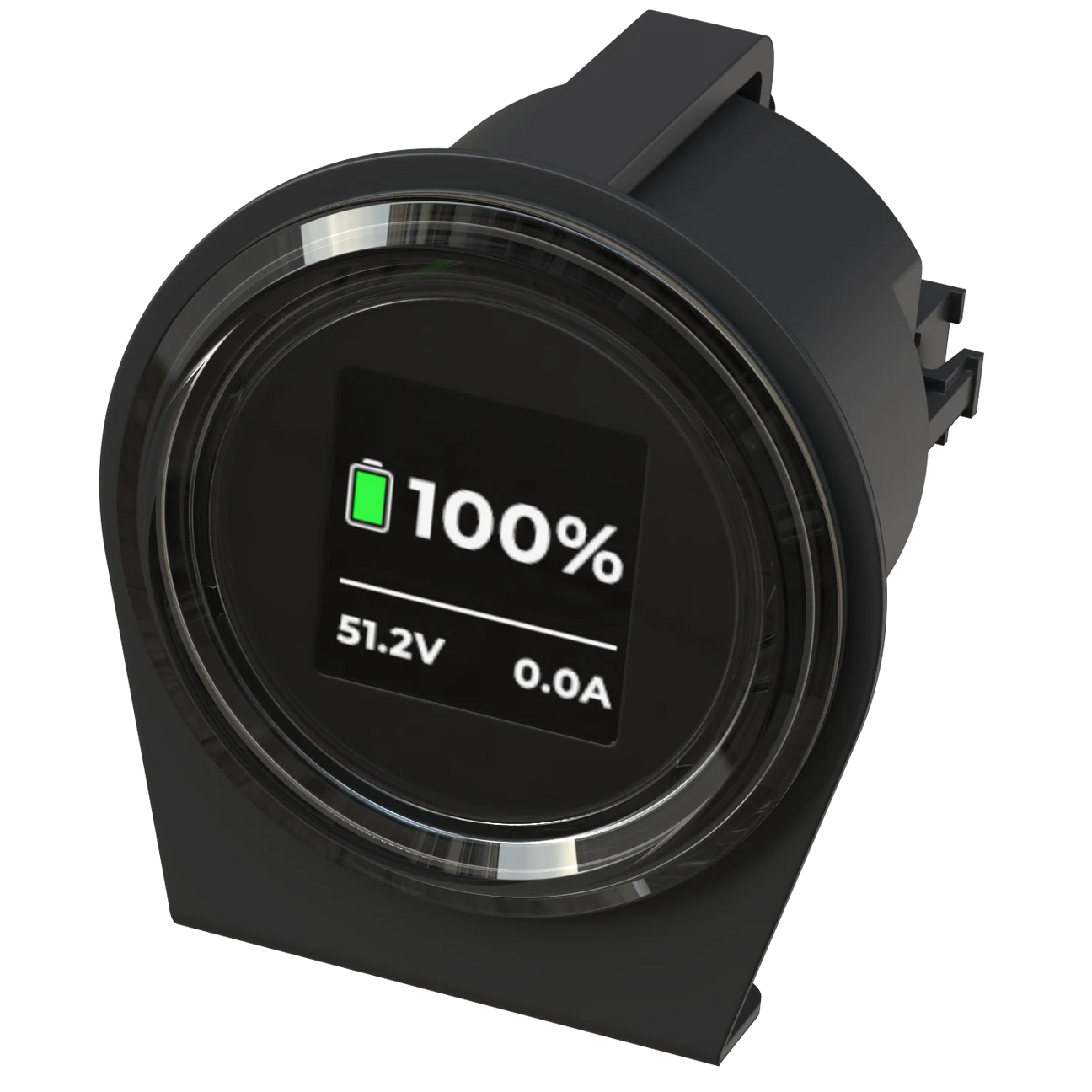

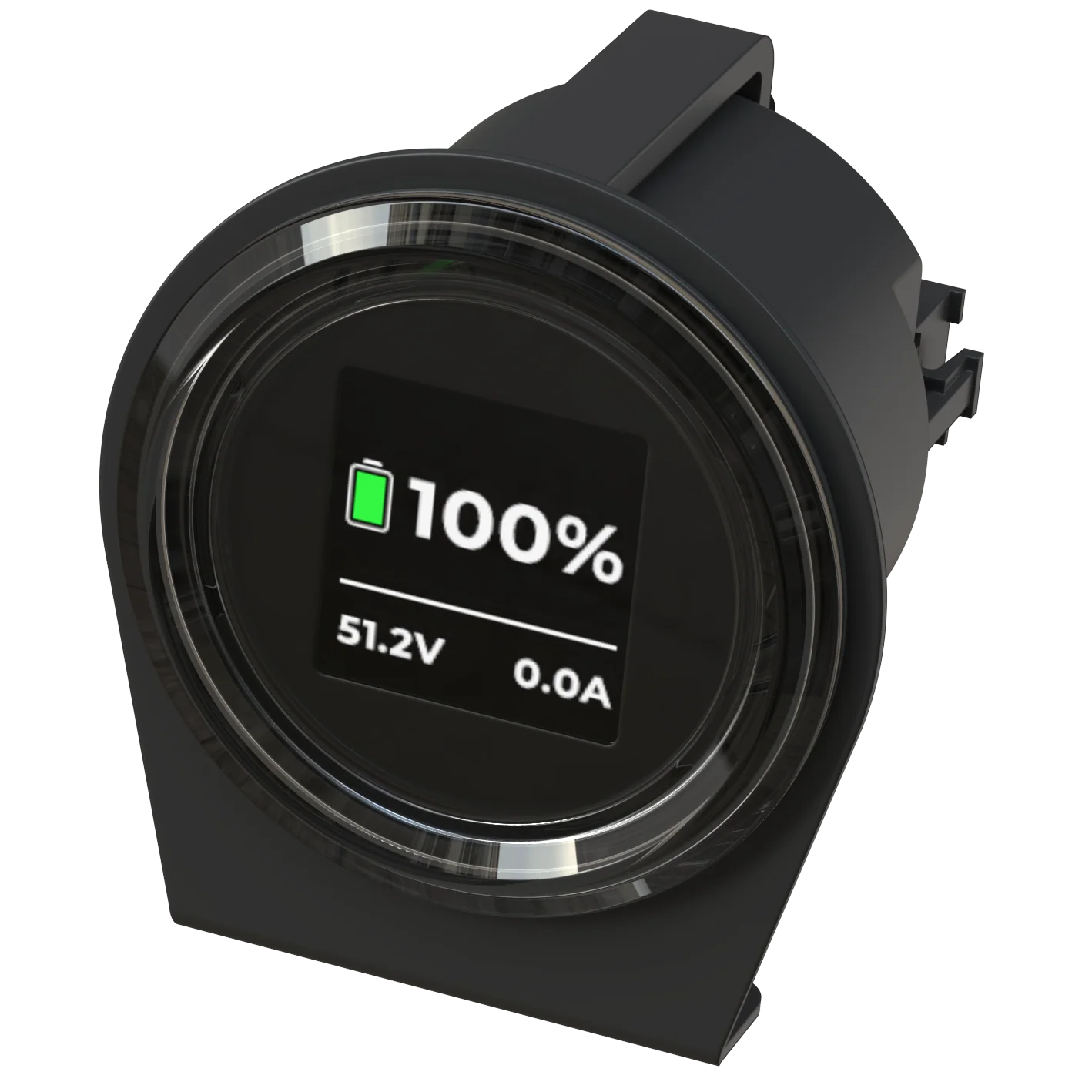

  • External power button & battery gauge included
  • Overcharge & over-discharge protection
  • Over-current & short-circuit protection
  • High & low temperature disconnects
  • UL60691 Certified Internal Fuse
  • UL1642, UL9540A, IEC 62619:2022 Certified Cells
  • UL1973 Certified Pack
  • 4000+ cycle life
  • Maintenance-free operation
  • 11-Year Manufacturer Warranty

  Configuration

  • Cell Configuration: 4S2P
  • Chemistry: LiFePO4

  Current Specifications

  • Capacity: 460Ah
  • Max Continuous Discharge: 230A @ 25°C
  • Max Continuous Charge: 210A @ 25°C
  • Peak Discharge Current: 500A (30 Seconds), 1300A (1 Second)
  • Series / Parallel Configuration:
    • Max (4) in Series
    • Max (16) in Parallel
    • 4S1P or 1S16P

  Voltage Specifications

  • Nominal Voltage: 12.8V
  • Max Charge Voltage: 14.6V
  • Operating Voltage Range: 10.0V – 14.6V

  Temperature Specifications

  • Charge Temperature Range: -30°C to 55°C (with self-heating)
  • Discharge Temperature Range: -20°C to 55°C
  • Storage Temperature: 0°C to 35°C

  Physical Specifications

  • Weight: 97 lbs
  • Length: 20.75"
  • Width: 8.5"
  • Height: 12"

  Certifications

  • UL1973
  • RoHS
  • CE

  Recommended Charging Settings (Non-Victron Systems)

  • Absorption Voltage: 14.2V
  • Absorption Time: 15 minutes per battery
  • Float Voltage: 13.5V
  • Equalization: OFF
  • Temperature Compensation: Disabled

  Victron System Setup

  • Supports Victron DVCC distributed charge control
  • Plug waterproof bung into master blue port
  • Connect RJ45 cable from master black port to slave battery blue port
  • Daisy chain additional batteries up to 16 in parallel
  • Set DIP switches according to manual
  • Connect grey RJ45 plug into Cerbo / Ekrano GX BMS CAN port
  • For Cerbo MK2 systems use VE-CAN1 or VE-CAN2 set to 500 KBPS LV
  • Enable DVCC and set controlling BMS & battery monitor to Epoch
  • Verify installed battery modules and Ah capacity on GX display
  • System will automatically manage charging profile:
    • 14.2V absorption
    • ~15 minutes absorption per battery
    • 13.5V float voltage

  Important Note

  It is recommended to manually program Multiplus, Quattro, and all additional charging sources with the same charging parameters in the event of CAN communication loss.
