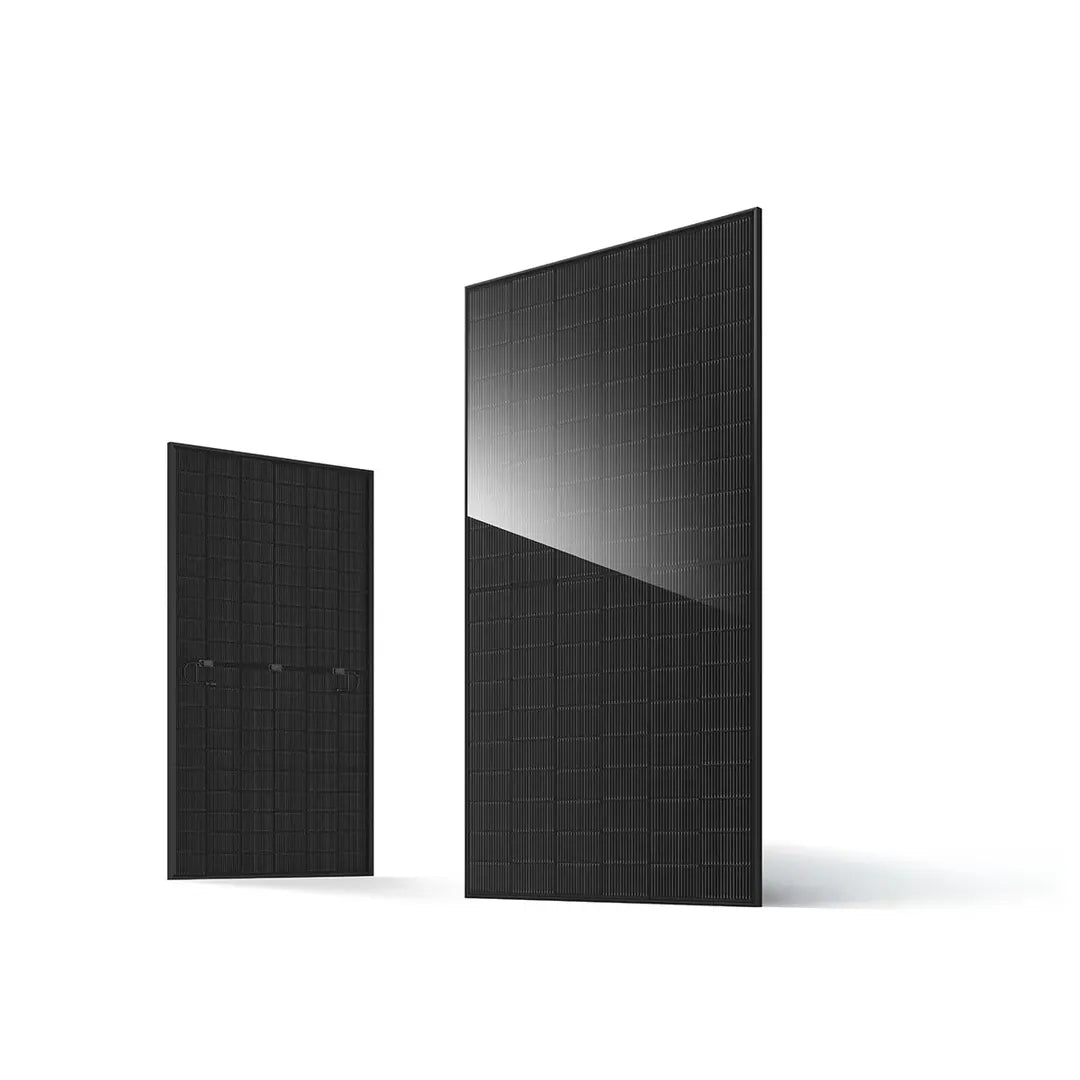

JA Solar 500W All-Black Solar Panel – JAM60D41 LB

JA Solar 500W All-Black Solar Panel – JAM60D41 LB

Enhance your solar power system with the sleek JA Solar JAM60D41/LB All-Black bifacial module, typically supplied in the 500W class. Built with high-efficiency PERC monocrystalline cells, this panel combines powerful performance with modern aesthetics — making it ideal for residential rooftops, commercial arrays, or large-scale projects where appearance and reliability matter.

• All-Black design for a clean, modern look
• Up to 22.0% module efficiency
• Bifacial technology for increased rear-side energy yield
• Reliable performance even under low-light conditions
• Low LID (light-induced degradation) and better temperature coefficient
• 12-year product warranty and 30-year linear power output warranty
• Durability tested: salt mist, ammonia, sand, and PID resistance

Product Specifications

Model: JAM60D41/LB
Power Output (Pmax): 500–510W (commonly 500W)
Efficiency: Up to 22.0%
Dimensions: 195.3 × 113.4 × 3 cm (76.9 × 44.6 × 1.18 in)
Weight: 27.3 kg (60 lbs)
Max System Voltage: 1500V DC
Max Series Fuse Rating: 30A
Connector Type: MC4 EVO2
Frame: Anodized aluminum alloy

Certifications

• IEC 61215, IEC 61730, UL 61215, UL 61730
• ISO 9001:2015 – Quality management systems
• ISO 14001:2015 – Environmental management systems
• ISO 45001:2018 – Occupational health and safety management systems
• IEC 62941:2019 – PV module manufacturing quality system
