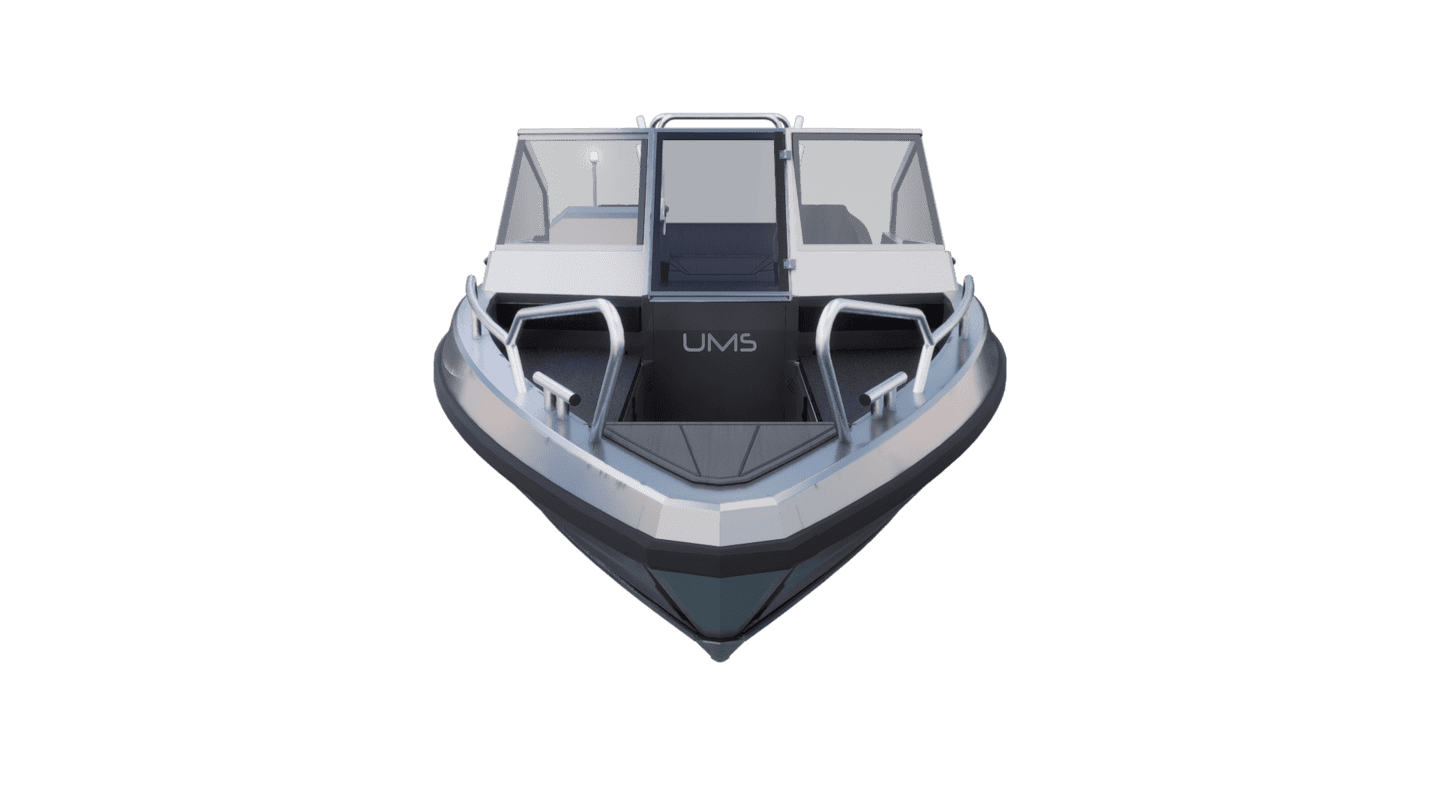

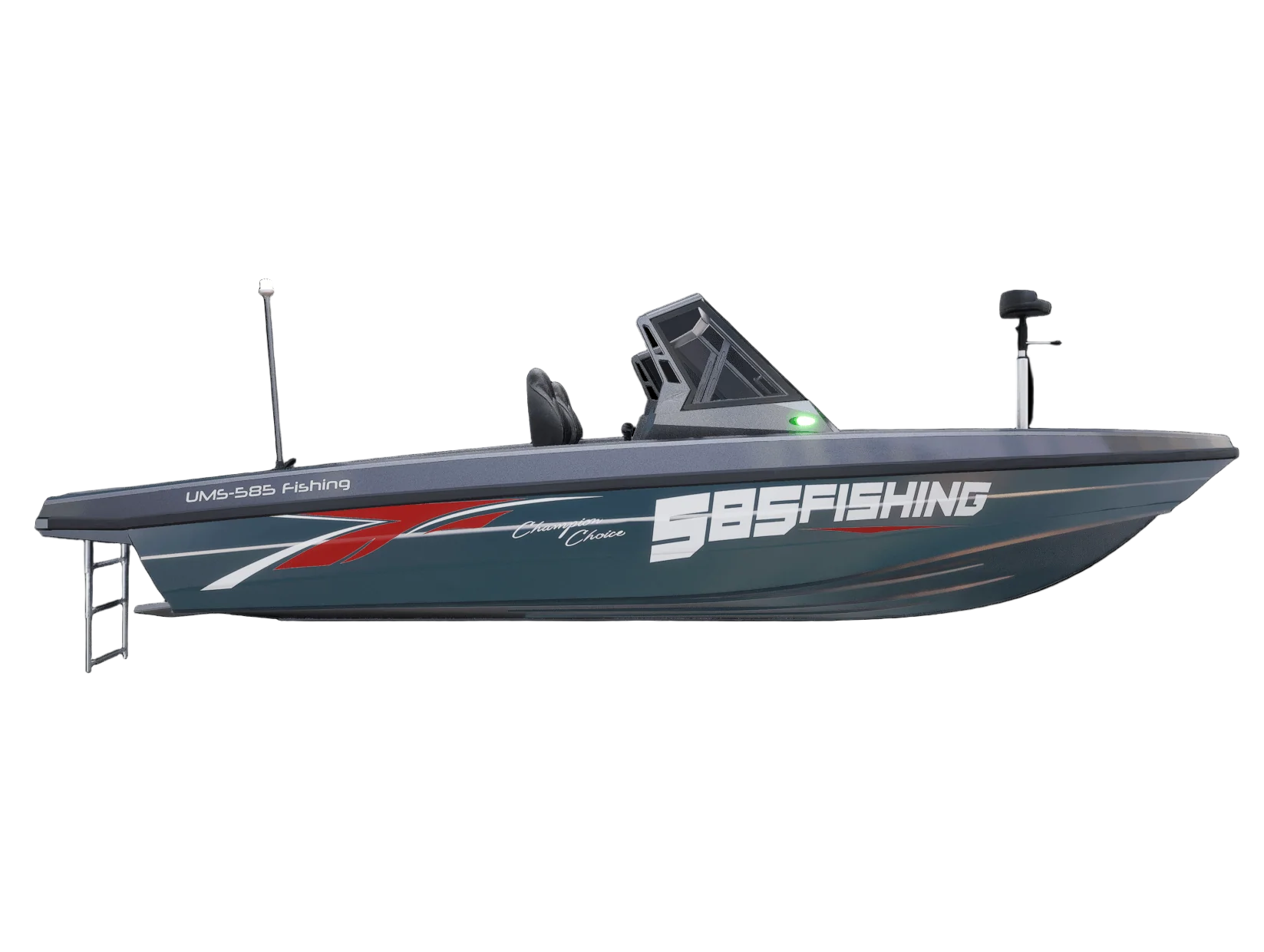

Aluminum Fishing Boat UMS 585 | 19.8ft

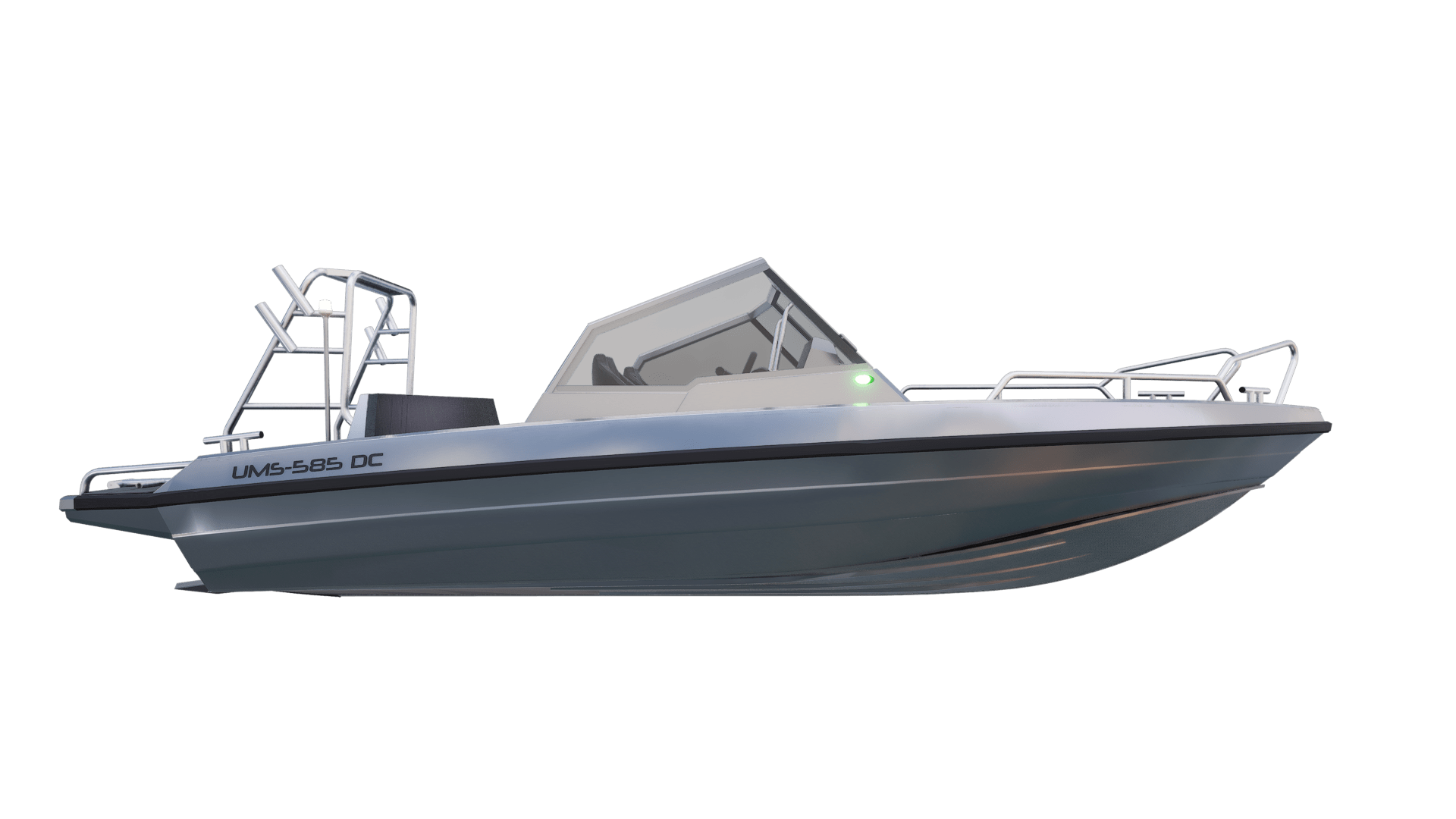

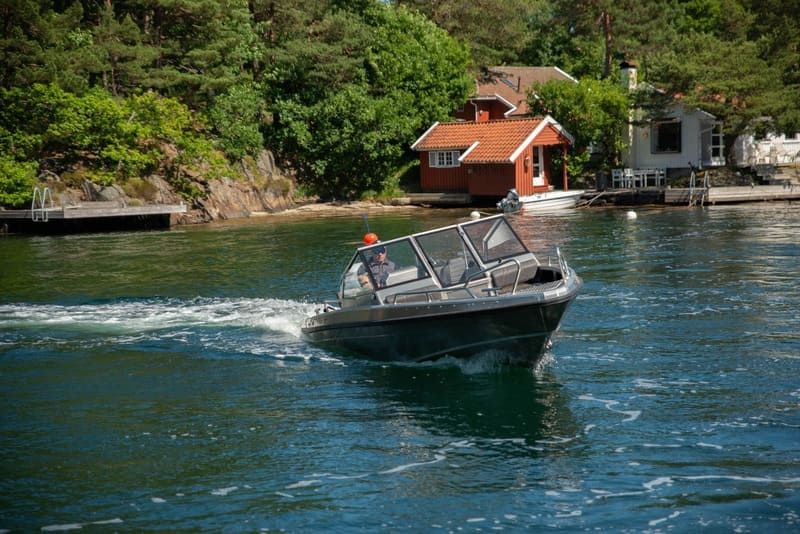

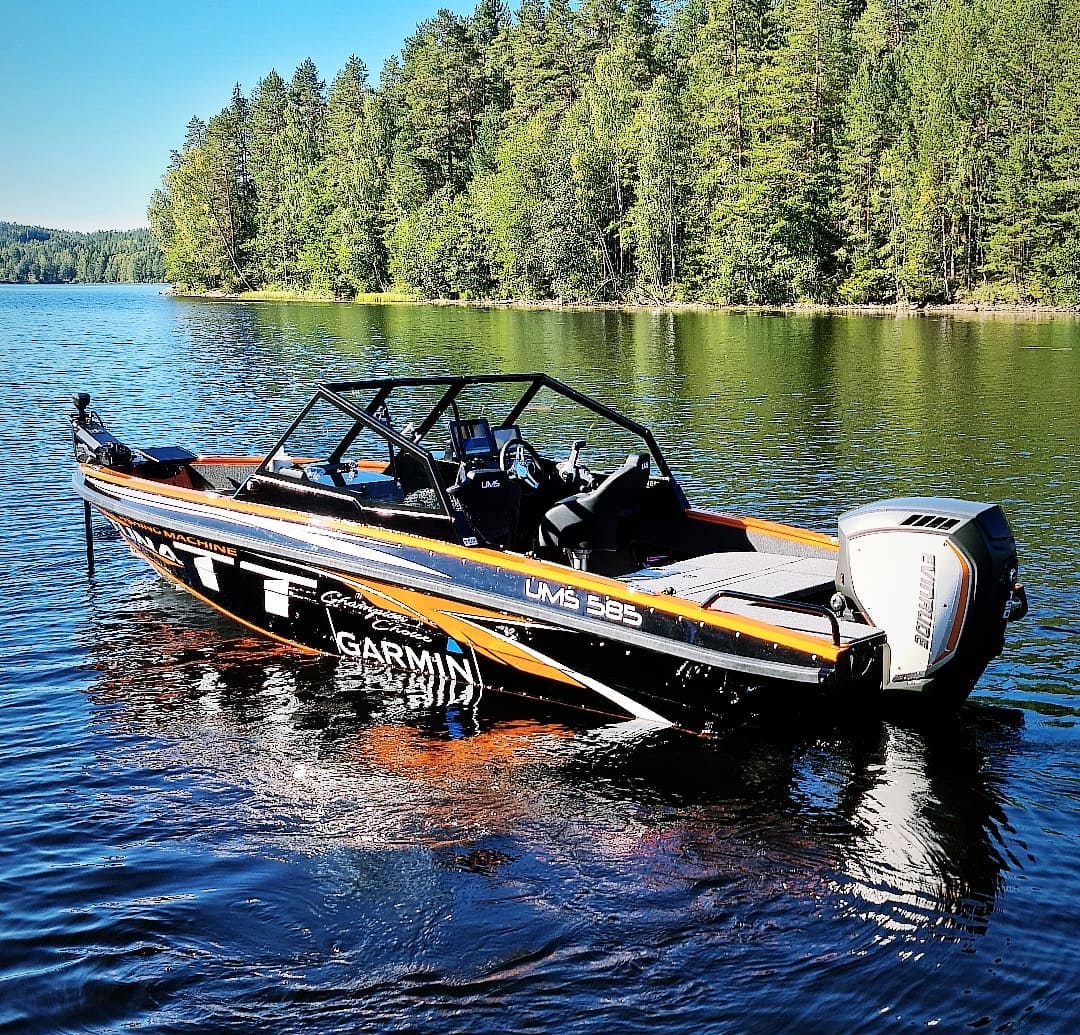

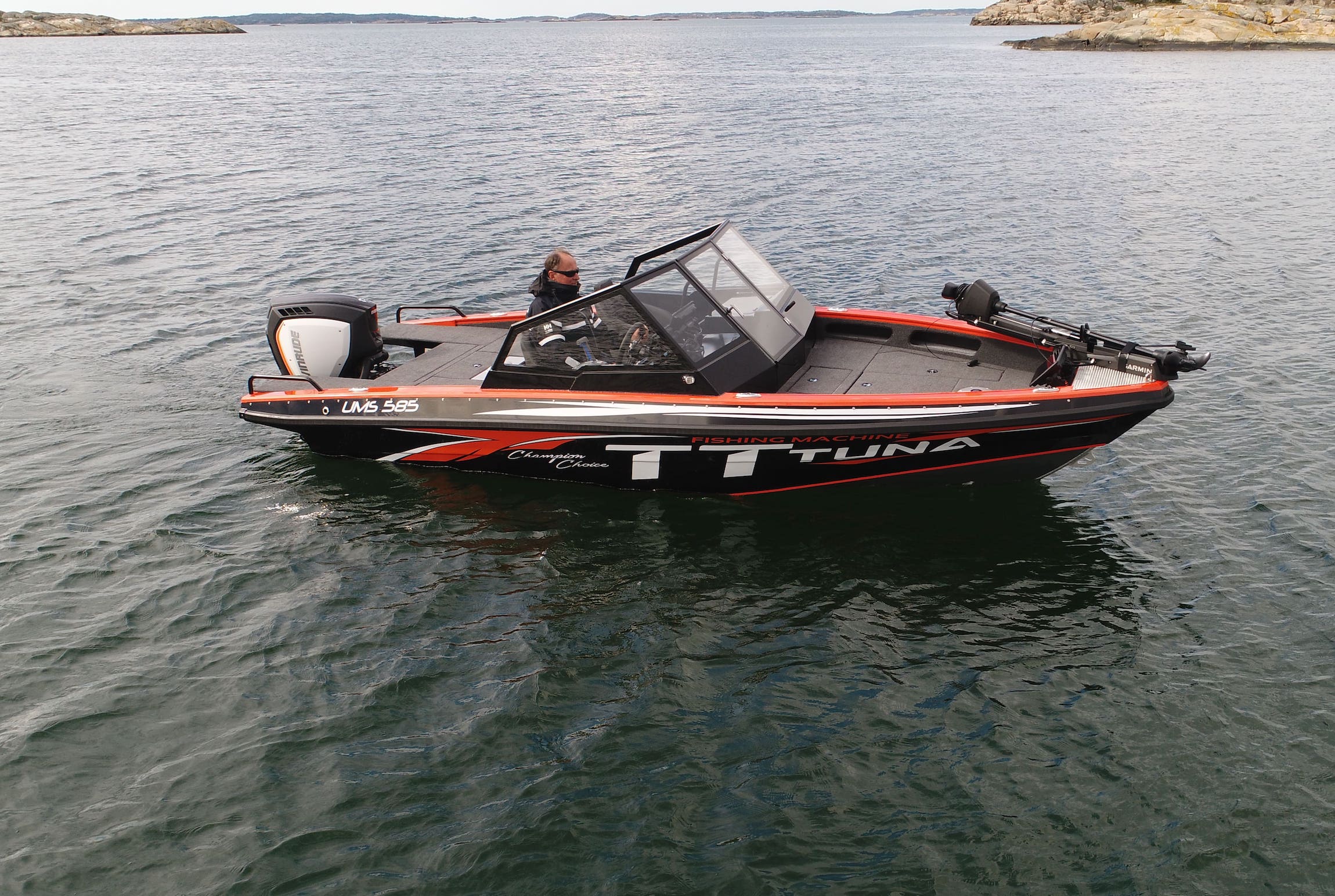

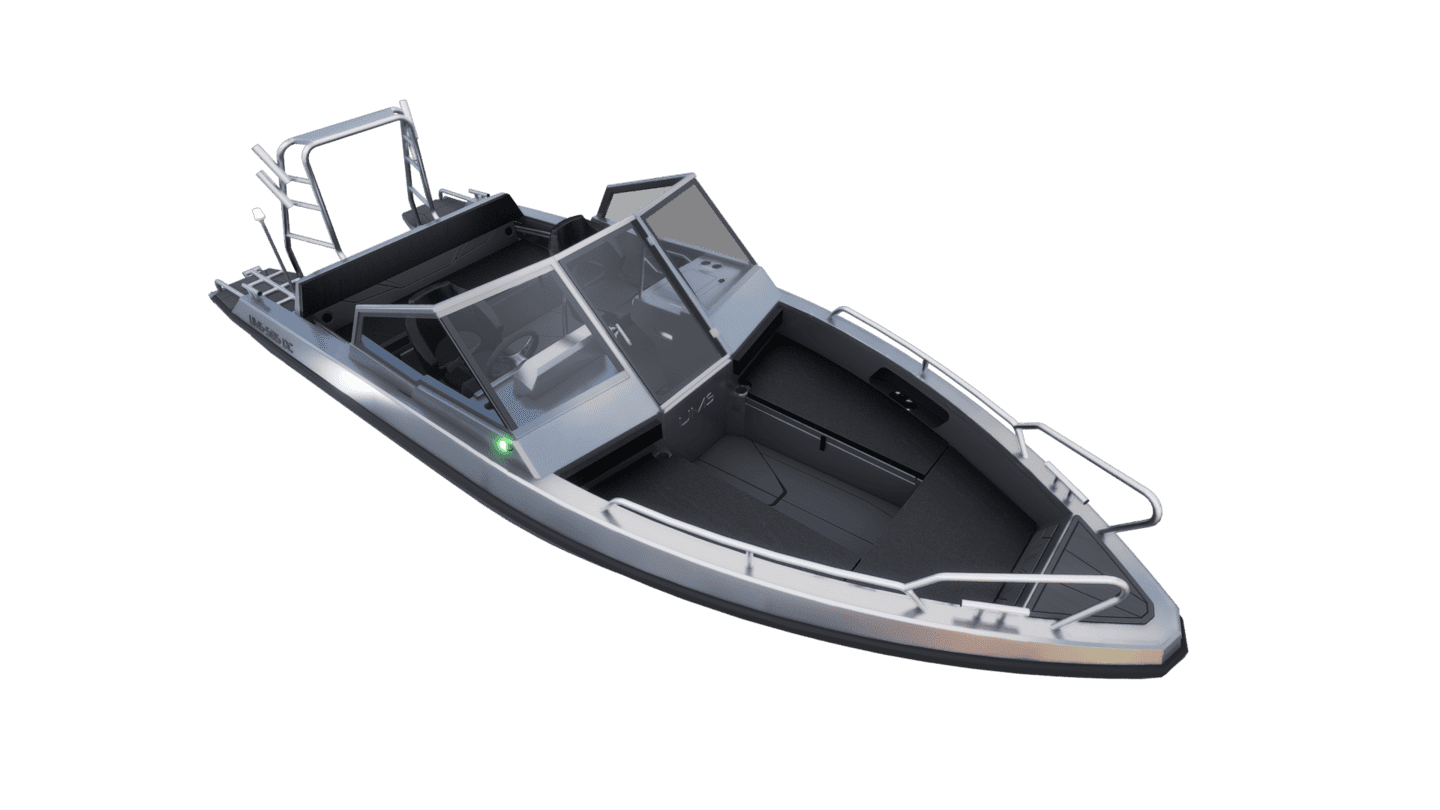

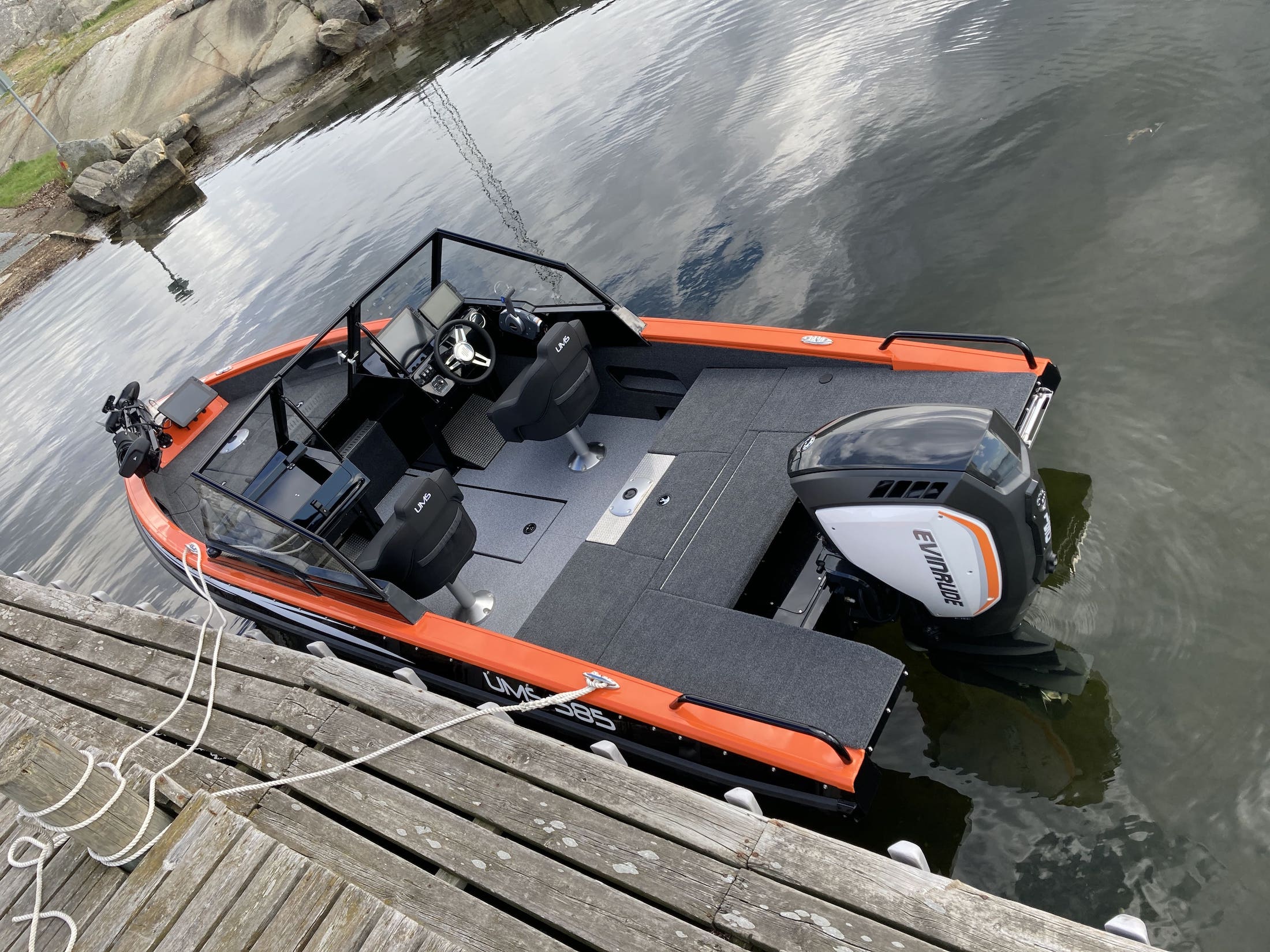

20ft Boat UMS 585 DC Designed for active fishing, it is a fast and dynamic boat with a maximum engine of up to 150 hp.hard operating conditions on open water, the uncompromisingly strong and reliable hull will be a convenient universal solution for active family recreation, fishing and solving professional tasks. High flip resistance allows you to confidently perform maneuvers at the highest speeds.

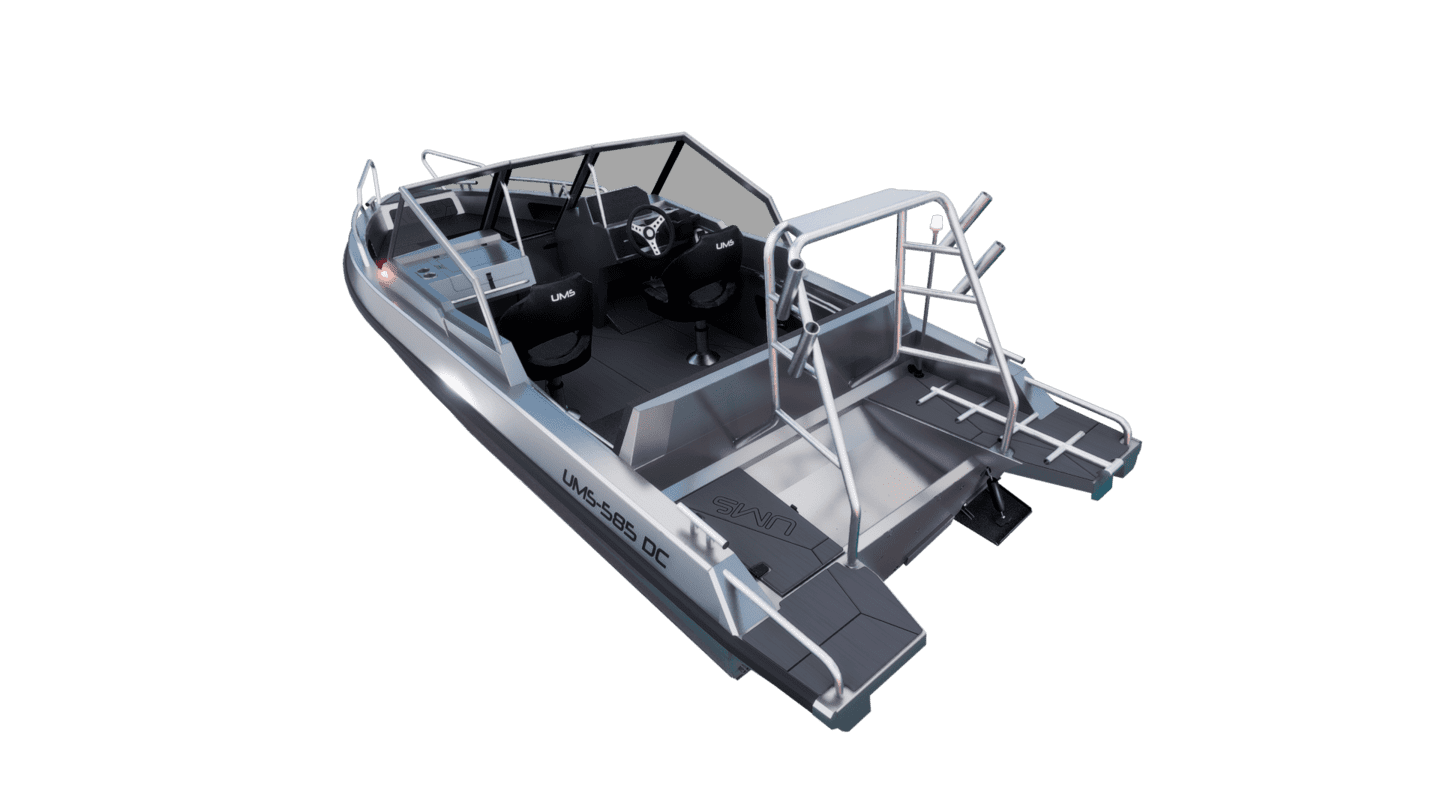

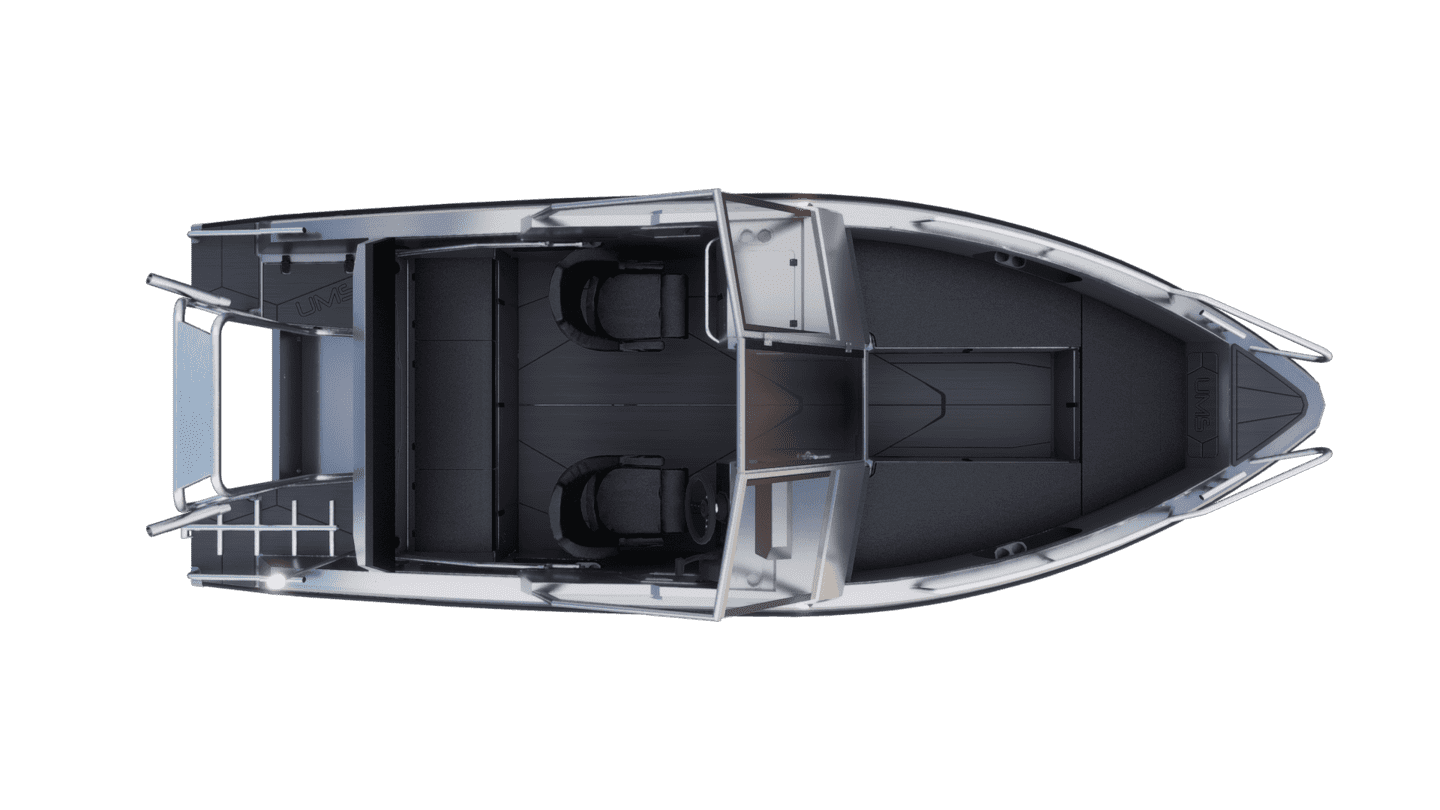

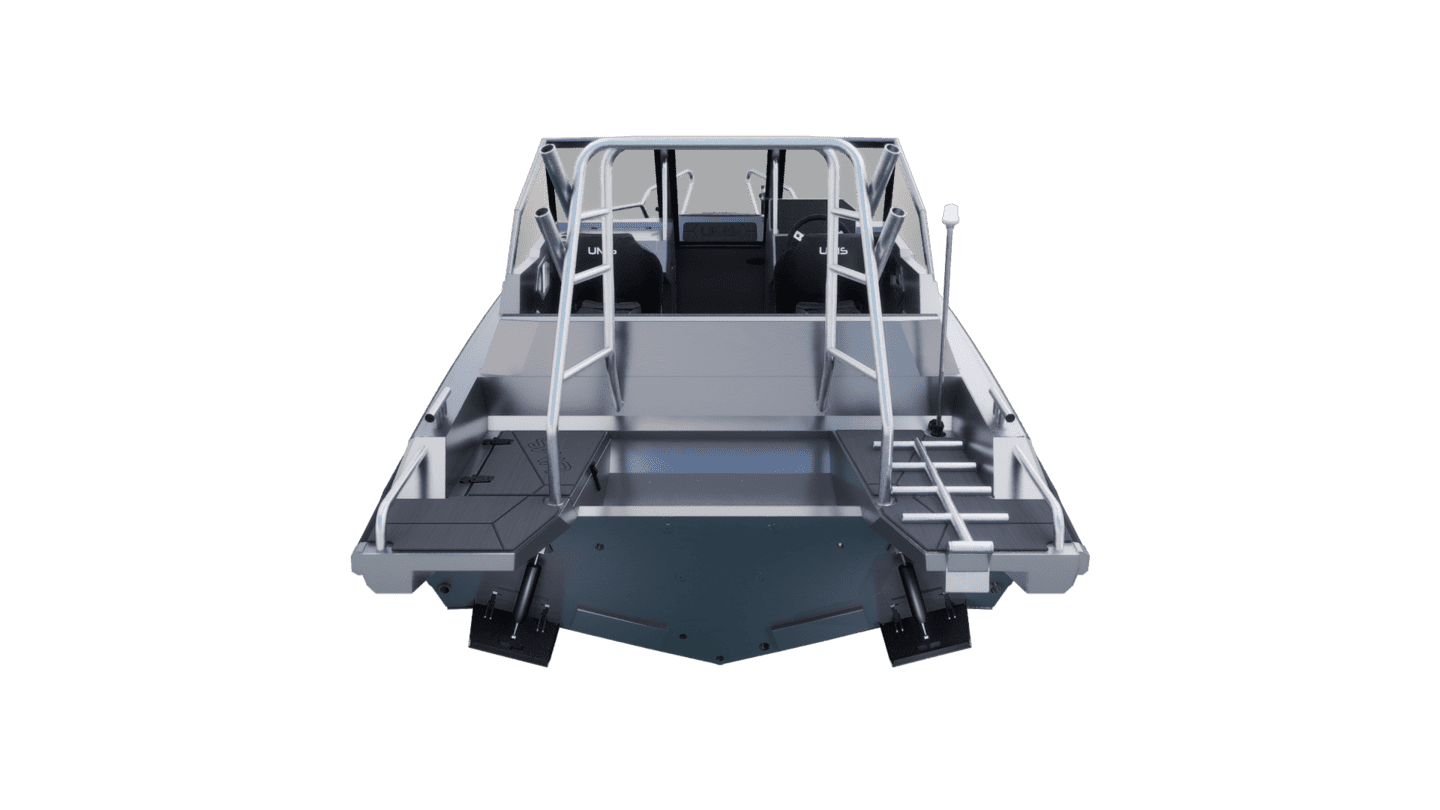

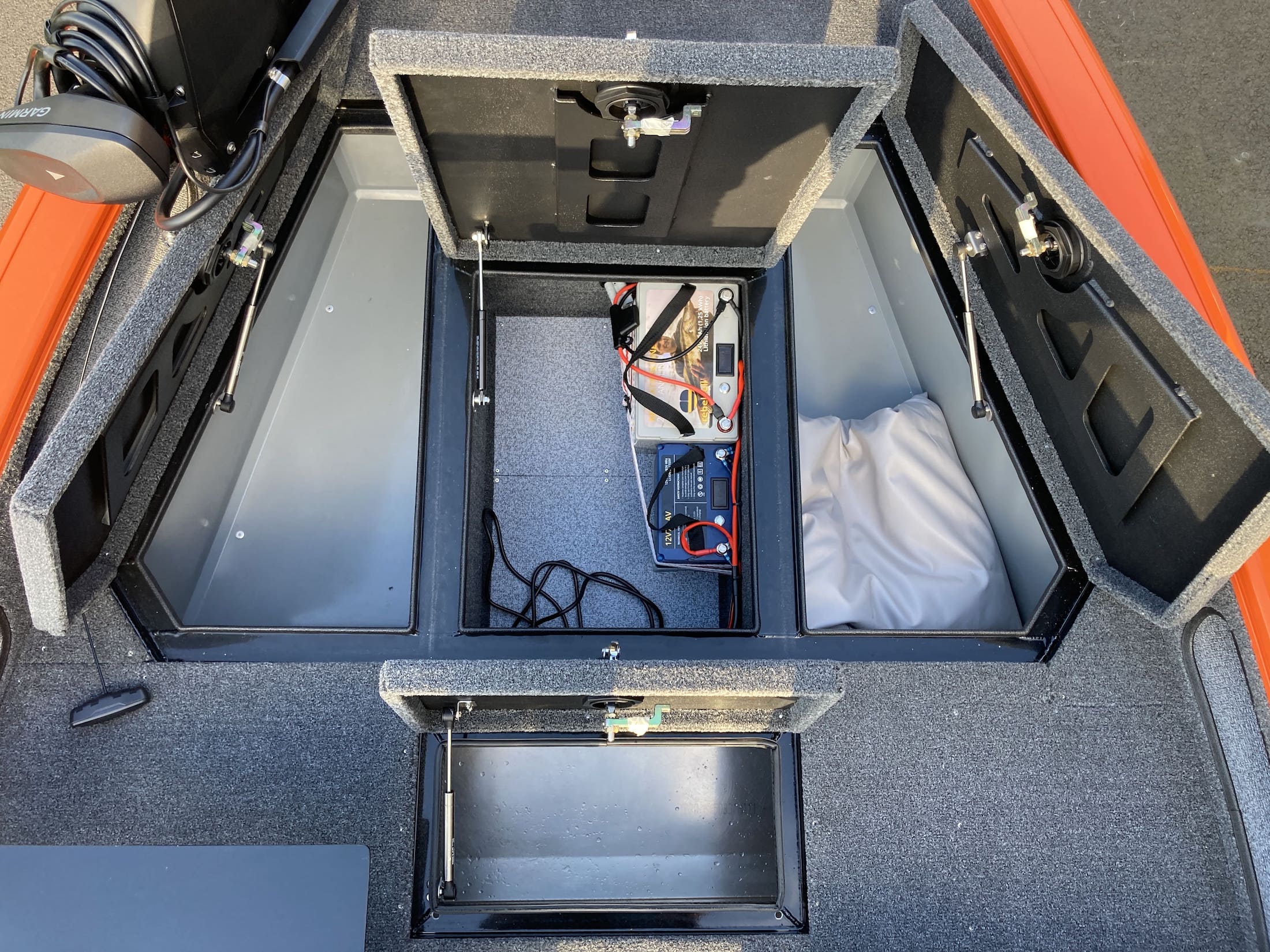

The UMS 585 DC Fishing boat is designed for The boat has all the elements of fishing boats: a locker for six fishing rods, an aerator with a volume of 170 liters in the bow fish platform, a comfortable aft fish platform with two integrated seats and the possibility of additionally install a fisherman’s seat and a pole for towing a skier or a wakeboarder.
One of the features of the boat is a convertible awning, which is stored in the aft fish platform locker, and can be used as a bimini for protection from the sun, or a full awning with side walls during rain.
A boat with complex shape and excellent seaworthiness. We removed rivets and fasteners in the hull construction – all parts are securely welded to the hull, which ensures long-term operation without the need for maintenance of your boat. Careful building of the hull allows to make boats without additional painting.
SPECIFICATIONS
|
Metric (Meters/ kg) |
Imperial (ft/inch/lb) |
|
|
Length of hull with platforms (Hull) |
6.05 |
19.82' |
|
Beam of hull |
2.23 |
7.32' |
|
Board height |
1.1 |
3.61' |
|
Light craft condition mass (equipped) |
942 |
2077 |
|
Deadrise, transome/middle, degree |
18/23 |
|
|
Hull thickness, bottom/board |
4/3 |
5/32" / 1/8" |
|
Passengers |
6 |
|
|
Maximum engine, hp |
200 |
|
|
Transom height |
0,635m |
25" |
|
Draft |
0,43 |
1.41' |
|
Fuel Tank |
120L |
31.7 gal |
|
Load Capacity |
575 KG |
1256 lbs |
|
Speed with 115HP motor |
37 knots |
|
|
Hull Material |
ALLOY 5083 |
Standard equipment
|
|
Quantity |
|
Aluminum 5083 hull |
1 |
|
Tempered glass |
3 |
|
Boat hull trim |
|
|
Forepeack - antiskid aluminum " grain " (1 and 3 on sсheme) |
1 |
|
Board above fender profile covered with film Oracal 970 |
2 |
|
Board below fender profile covered with film Oracal 970 |
2 |
|
Raptor paint (consoles, gunwales, reccess, transom, boards inside) |
black |
|

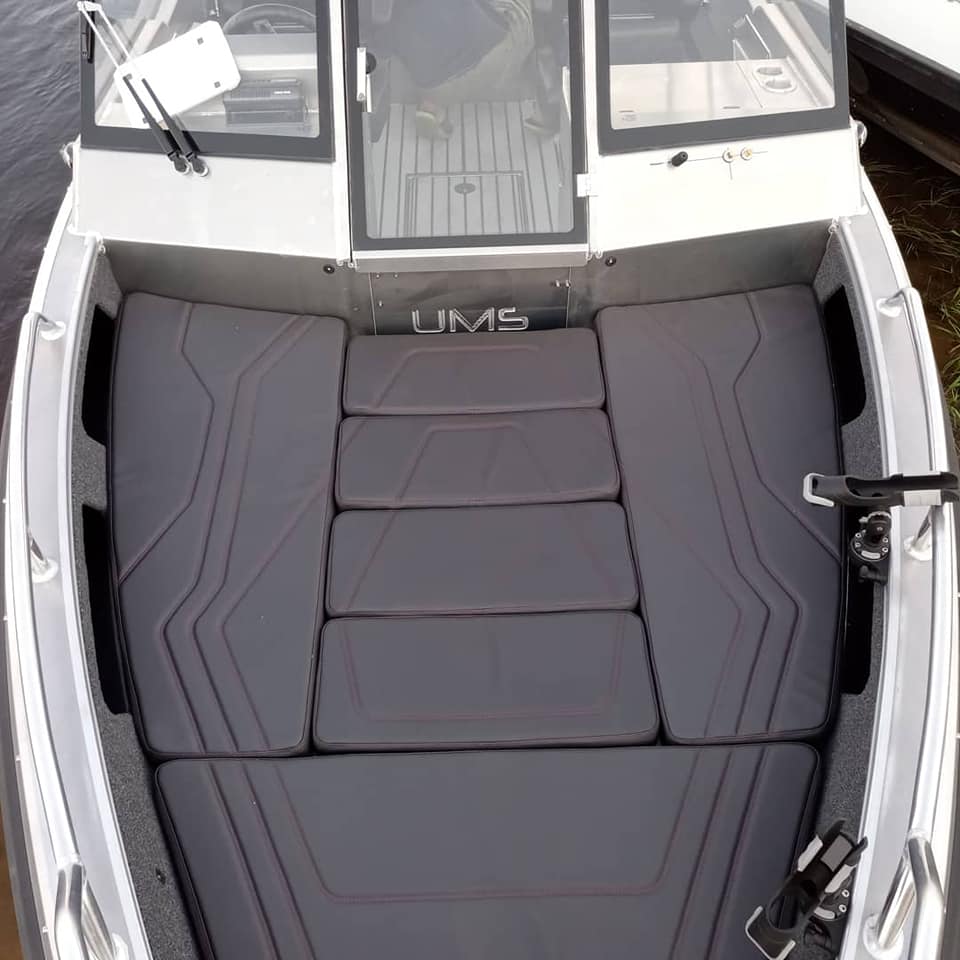

Vynil or carpeting (grey) bow |
Vynil |
|
Vynil or carpeting (grey) boat stern |
Vynil |
|
Vynil or carpeting (grey) cockpit |
Vynil |
|
Boards inside covered with grey carpet. |
1 |
|
Board stickers UMS 585 Fishing |
2 |
|
Cushions |
|
|

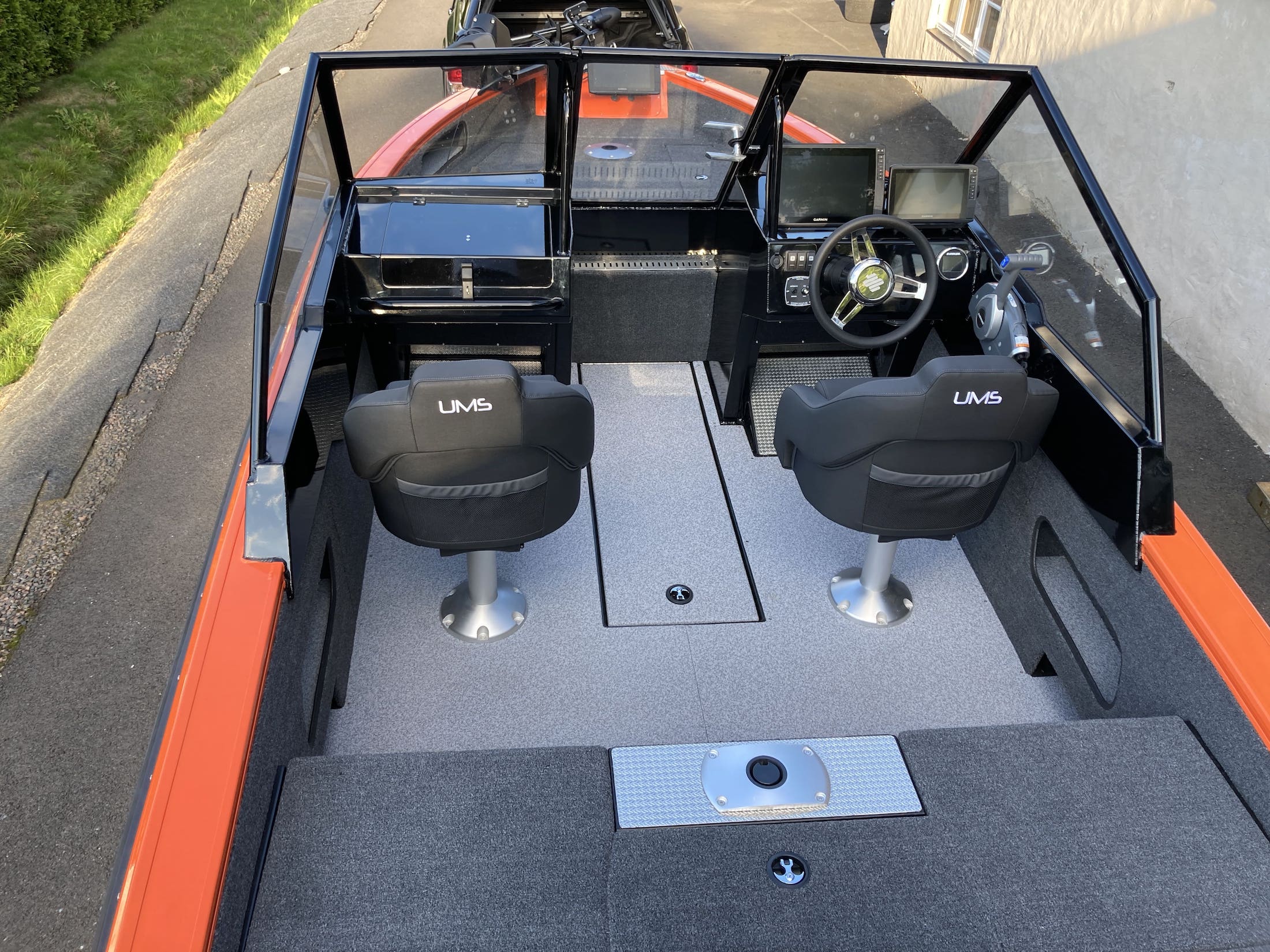

Transforming seats in the aft fishing-platform with black Spradling soft cushions |
2 |
|
Foldable soft seat on turnable pedestal with the slider |
2 |
|
Electrical components |
|
|
Steering system (steering wheel, steering cable, non-reversable steering gear T73NRFC) |
1 |
|
Horn |
1 |
|
Control panel for the electric equipment |
1 |
|
Electric socket 12V with USB |
4 |
|
Cockpit lights |
4 |
|
Automatic bilge pump |
1 |
|
LED-lighting of pockets and bow platform switched on drivers console |
6 |
|
Bi-polar main switch |
1 |
|
Other Equipment |
|
|
Aeration well for 100 liters with control on the driver console |
1 |
|
Fuel system for 120 l. Indicator and sender included |
1 |
|
Cup-holder "UMS" (1 - driver console, 2 - passanger console, 4 - rear part) |
7 |
|
Sinking cleats |
6 |
|
Stainless gas springs |
9 |
|
Echo sounder transducer mounting plate |
2 |
|
Anode hull protection with mounting bracket |
2 |
|
Polyurethane foam floating blocks |
1 |
|
Fishing chair on the bow |
1 |
|
Telescopic swim ladder |
1 |
|
Ventilation baffles of windshield |
2 |
|
Deck locker for spinning rods |
1 |
|
CNC-milled transom inspection hatch |
1 |
|
Handles for lockers T-H Marine ALC-1 |
9 |
|
TENTS |
|
|
Running tent (color black) |
1 |
|
Transportation tent fixed by buttons (color black) |
1 |
|
ACCESSORIES |
|
|
Base for fishing chair |
1 |
|
Towing bar for ski |
1 |
