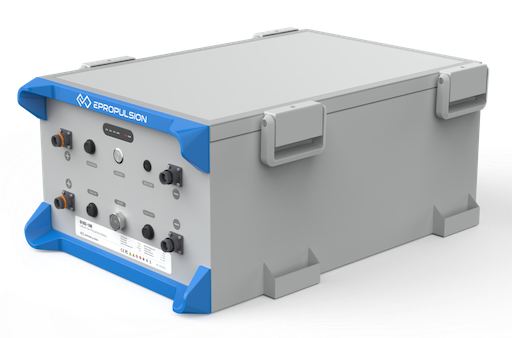

G102-100 Battery

Lithium Iron Phosphate Battery (LiFePO4)

High-performance and durable lithium iron-phosphate battery for electric boating

AVAILABLE FOR PRE-ORDER (2-4 weeks estimated delivery time), Contact us for placing pre-order on ePropulsion Battery.

10240 Wh / 96 V

Easy to Install

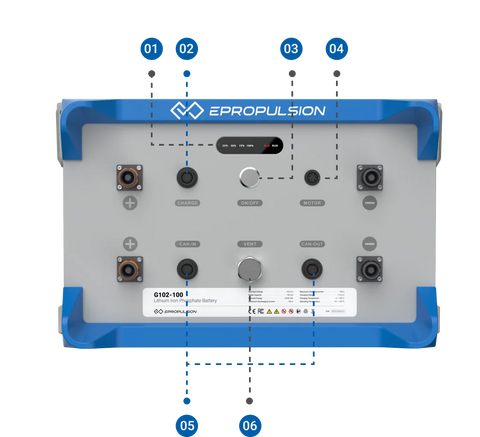

Connectors can be installed with only ONE hand, and the battery saves wiring harness connection compared to series-parallel connection of battery.

High Reliability

All-metal housing is more reliable, weather resistant, impact resistant and drop proof.

Long Life Cycle

3,000 cycles at 80% DOD, the G102-100 lifepo4 battery powers your motors much longer than lead-acid
batteries.**

High Energy Density

3 times higher energy density and 70% less weight
than lead-acid batteries.**

Fully Compatible with ePropulsion Motors

Power the 96V 10kW to 40kW ePropulsion motors including the I-Series inboards.

Maximum safety

Made with LFP, the built-in intelligent battery management system (BMS) is applied to provide maximum safety for the users.

* G102-100 can be connected in parallel to power different ePropulsion motors.
** Under equal capacity.

Chemistry	Lithium Iron Phosphate (LiFePO4)
Rated Voltage	102.4 V
Capacity	10240 Wh / 100 Ah
Battery Life	3,000 cycles at 80% DOD
Weight	100 kg
Dimensions	680 x 500 x 300 mm (26.8 x 19.7 x 11.8 in)

Cut-off Voltage	83.2 V
Final Charging Voltage	115.2 V
Max Continuous Discharging Current	100 A
Serial Connection	N/A
Parallel Connection	Up to 4 in 1 cluster. Multiple clusters are possible in the system
Cell Configuration	32S1P

Charging Temperature	0 to 55℃
Discharging Temperature	-10 to 60℃
Communication	One CAN for ePropulsion motors / One CAN (Two ports) for parallel batteries / One CAN for charger
Shipping Classification	UN3480, Class 9, UN38.3 Certified
Approvals	CE, UKCA, FCC
Warranty (Non-Commercial Use)	2 years
