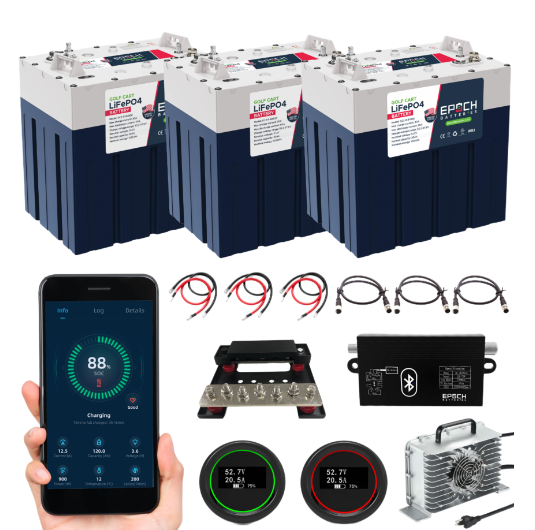

Epoch Lithium Battery LiFePO4 Golf Cart 48V 90Ah GC2
- LiFePO4 Chemistry
- 90Ah Capacity (30-40 miles runtime for standard golf cart)
- 180A Max Continuous Discharge (300A 10S Discharge) (600A 3S Peak Discharge)
- Bluetooth Module INCLUDED
- 0 to 100% Charge in 6 hours with included 48V 15A Charger
- IP67 Rated, Dust and WATERPROOF
- CAN Bus Communication allows battery modules to work in sync
- Built-in Smart Battery Management System (BMS)
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature disconnects
- 4000+ Cycle life & Maintenance-free
- 11 Year Manufacturer Warranty
WEIGHT and DIMENSIONS
Weight: 33 (LBS) (per module x3)
Length:10.25(inches)
Width:7(per module x3) (inches)
Height:11(inches)
CONFIGURATION
Cell Configuration:16S
Chemistry:LiFePO4
Current
-
Ah Capacity: 90Ah
-
Max Continuous Discharge Amps: 180A
-
Max Charge Current Amps: 30A
-
Max Discharge Peak Current Amps: 300A (10 Seconds) - 600A (3 Seconds)
-
Series | Parallel: Max (10) in Parallel = 300 Amp Hours
Voltage
-
Voltage: 48
-
Max Charge Voltage: 57.6V
-
Operating Voltage Range: 40.0 - 57.6V
Temperature
- Charge Temp Range: 0°C (32°F) / 55°C (131°F)
- Discharge Temp Range: -20°C (-4°F) / 55°C (131°F)
- Storage Temp: 0°C (32°F) / 30°C (86°F) (<6 Months)
CURRENT
| 30Ah - 1 Battery | Max Charge Current Amps:30A Max Discharge Peak Current Amps:100A (10 Seconds) - 200A (3 Seconds) Series | Parallel:Max (10) in Parallel = 300 Amp Hours |
| 60Ah - 2 Batteries |
Max Continuous Discharge Amps: 120A
Max Charge Current Amps: 30A
Max Discharge Peak Current Amps: 200A (10 Seconds) - 400A (3 Seconds)
Series | Parallel: Max (10) in Parallel = 300 Amp Hours
|
| 90Ah - 3 Batteries |
Max Continuous Discharge Amps: 180A
Max Charge Current Amps: 30A
Max Discharge Peak Current Amps: 300A (10 Seconds) - 600A (3 Seconds)
Series | Parallel: Max (10) in Parallel = 300 Amp Hours
|
| 120Ah - 4 Batteries |
Max Continuous Discharge Amps: 240A
Max Charge Current Amps: 30A
Max Discharge Peak Current Amps: 400A (10 Seconds) - 800A (3 Seconds)
Series | Parallel: Max (10) in Parallel = 300 Amp Hours
|
| 150Ah - 5 Batteries |
Max Continuous Discharge Amps: 300A
Max Charge Current Amps: 30A
Max Discharge Peak Current Amps: 500A (10 Seconds) - 1,000A (3 Seconds)
Series | Parallel: Max (10) in Parallel = 300 Amp Hours
|
| 180Ah - 6 Batteries |
Max Continuous Discharge Amps: 360A
Max Charge Current Amps: 30A
Max Discharge Peak Current Amps: 600A (10 Seconds) - 1,200A (3 Seconds)
Series | Parallel: Max (10) in Parallel = 300 Amp Hours
|
