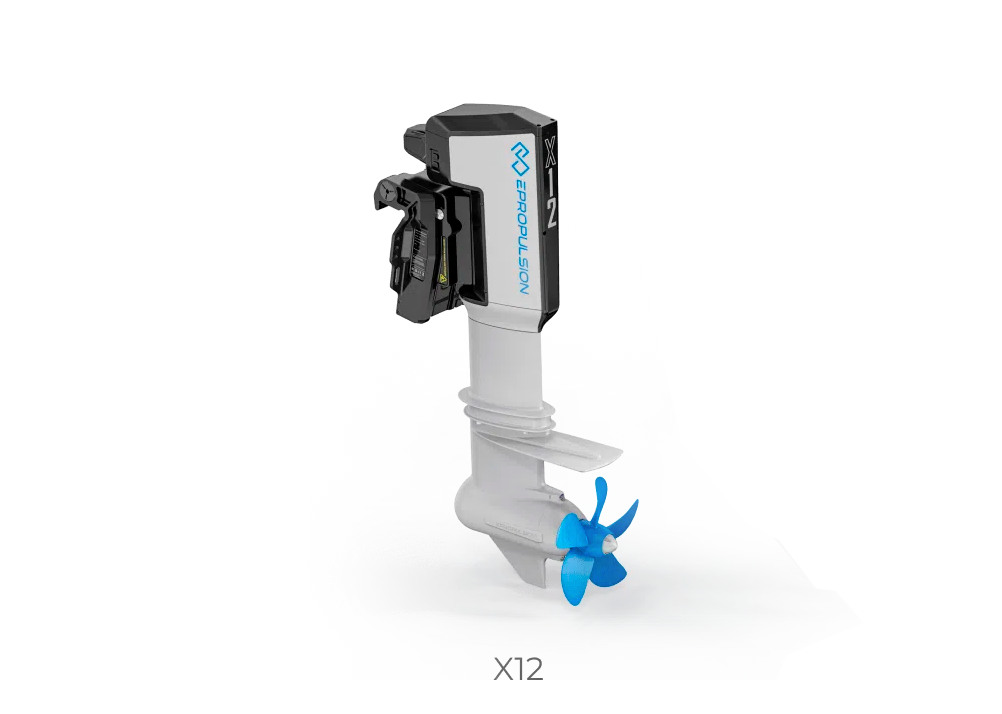

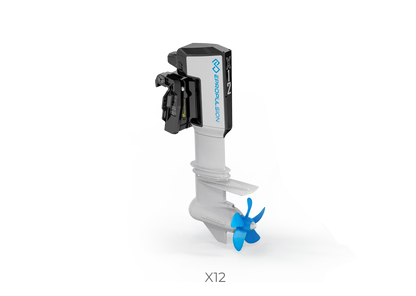

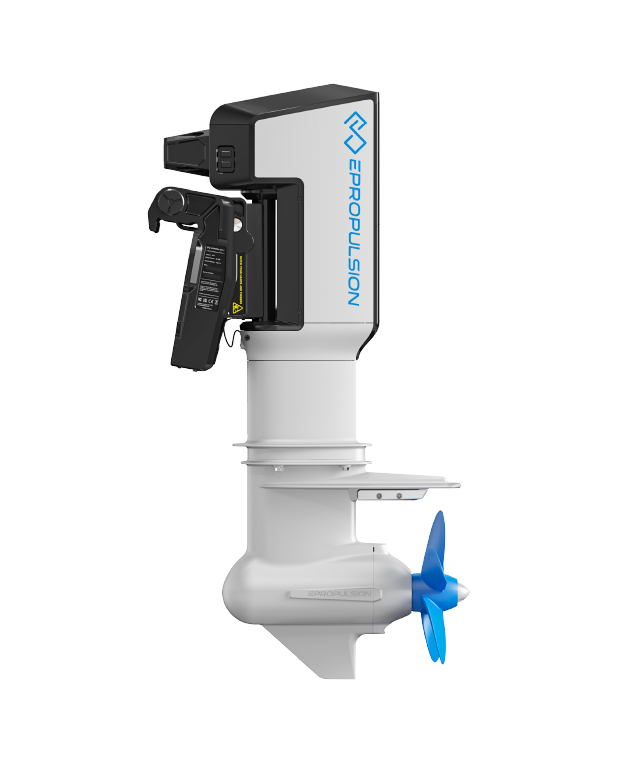

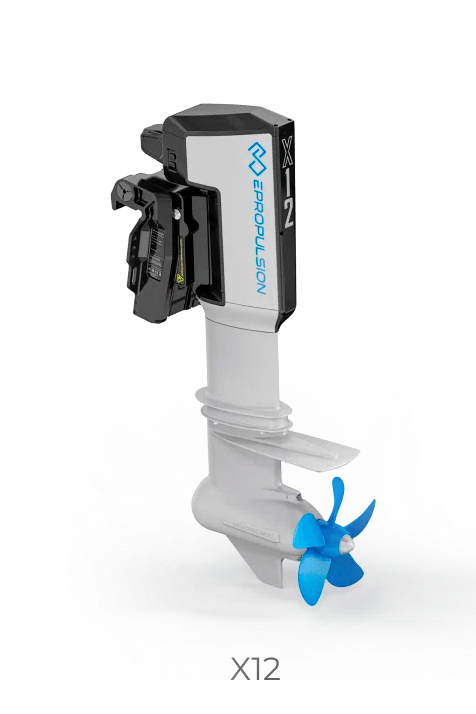

Electric Outboard Epropulsion X-Series 12kW
Couldn't load pickup availability
Have a question?
Talk with a technical expert.

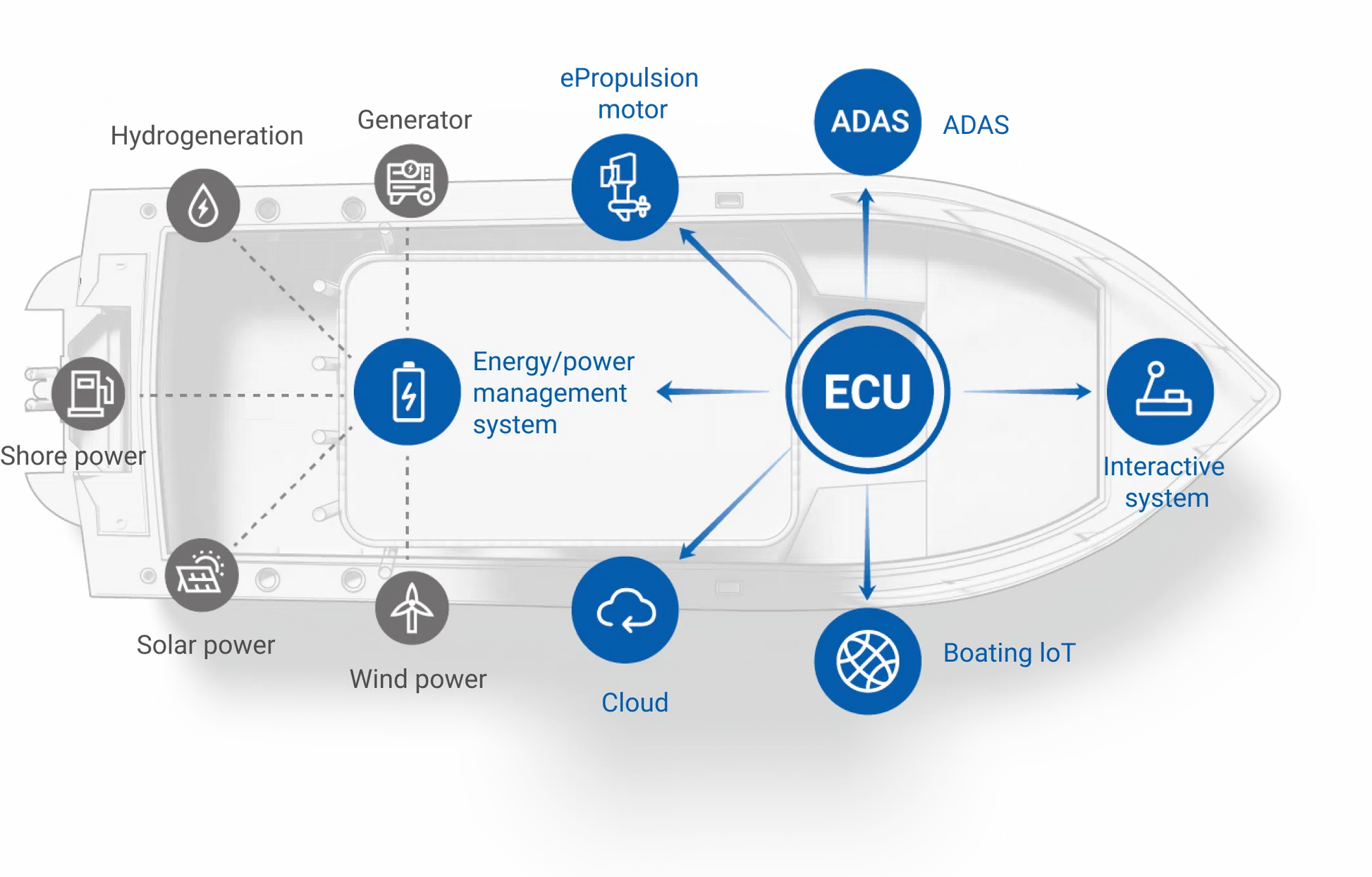

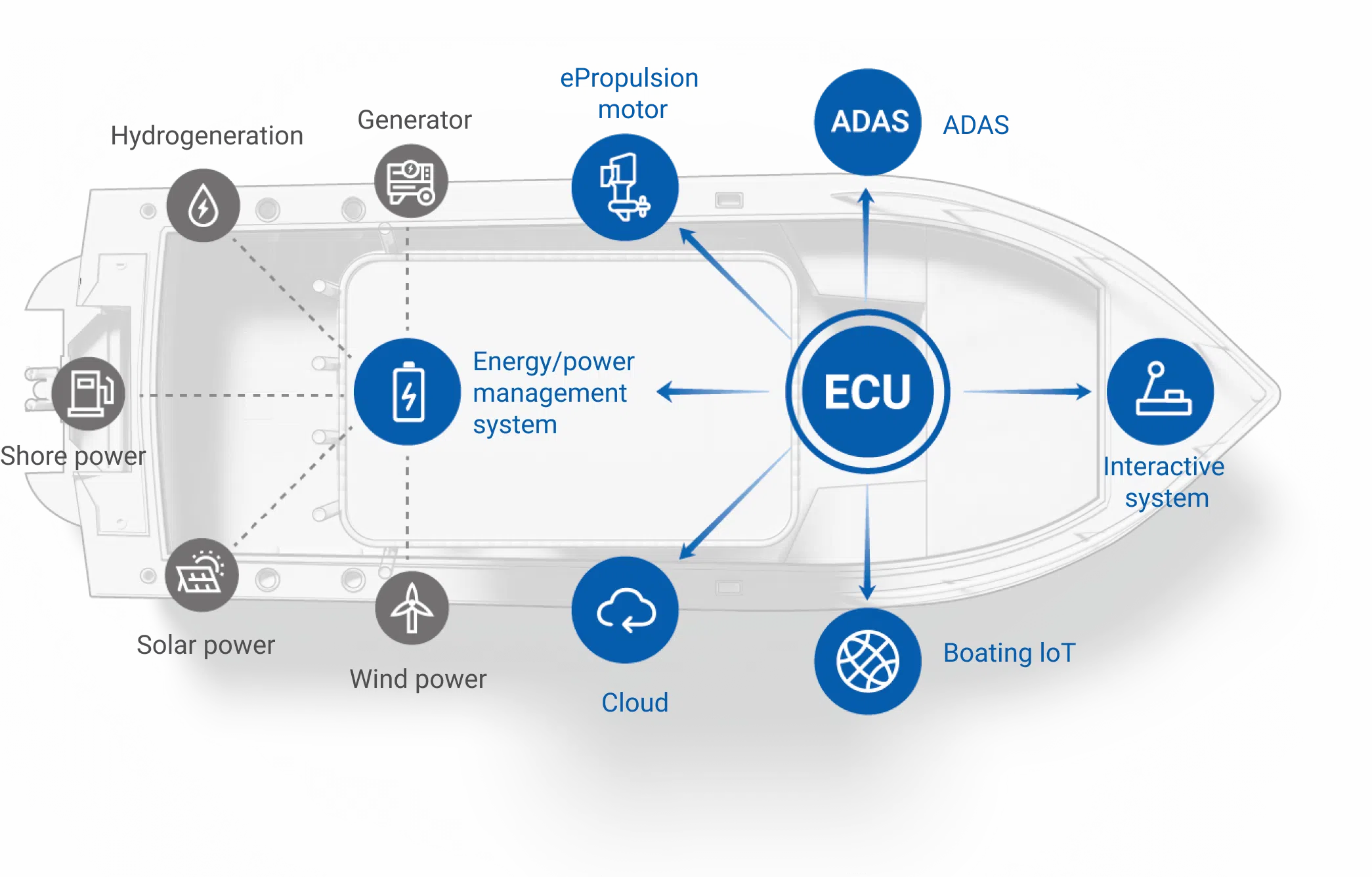

The X Series of ePropulsion outboards is a zero-emission electric propulsion system with an industry-leading powertrain efficiency of 88.2%. It features a compact, fully integrated design, an electric steering system, advanced driving assistance functions, and connectivity services. The modular architecture not only simplifies installation but also allows for seamless integration with renewable energy sources.
Compact & Fully Integrated Space-Saving Design
Narrow footprint, with no external steering gear, maximises valuable stern space…more room forboarding, swimming and socialising.
Performance and Range*

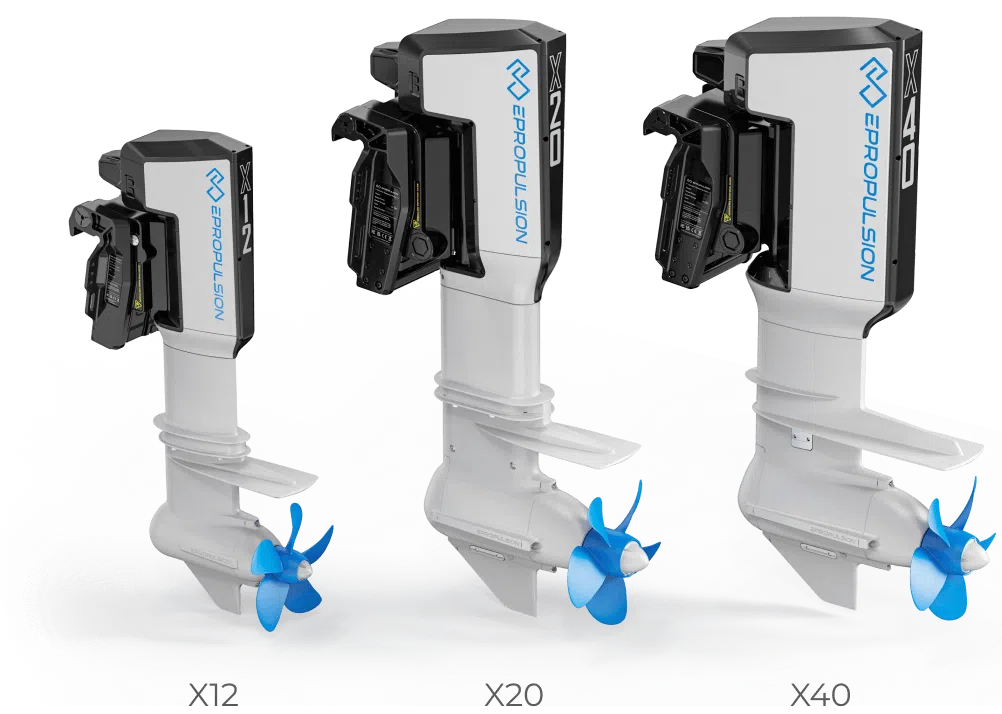

| X40 | X20 | X12 | |||||||
| Output (kW) | 10 | 20 | 40 | 5 | 10 | 20 | 3 | 6 | 12 |
| Speed (kph / mph) | 12.6 / 7.8 | 15.4 / 9.6 | 35.9 / 22.3 | 11 / 6.8 | 14 / 8.7 | 26 / 16.2 | 14.5 / 9 | 20.4 / 12.7 | 30.1 / 18.7 |
| Runtime (hh:mm) | 4:00 | 2:00 | 1:00 | 4:00 | 2:00 | 1:00 | 3:20 | 1:40 | 0:50 |
| Range (km/ mile) | 50.4 / 31.3 | 30.8 / 19.1 | 35.9 / 22.3 | 44 / 27.3 | 28 / 17.4 | 26 / 16.2 | 48.3 / 30 | 34 / 21.1 | 25.1 / 15.6 |
* The X40’s performance data is based on a 20-foot V hull aluminum boat with two persons (130kg), powered by one X40 with four G102-100 batteries (total boat weight 1030kg), in calm lake water.
The X20’s performance data is based on a 14-foot V hull aluminum boat with two persons, powered by one X20 with two G102-100 batteries (total boat weight 660kg), in calm lake water.
The X12’s performance data is based on a 11-foot aluminum hull inflatable boat with one person, powered by one X12 with one G102-100 battery (total boat weight 320kg), in calm lake water.

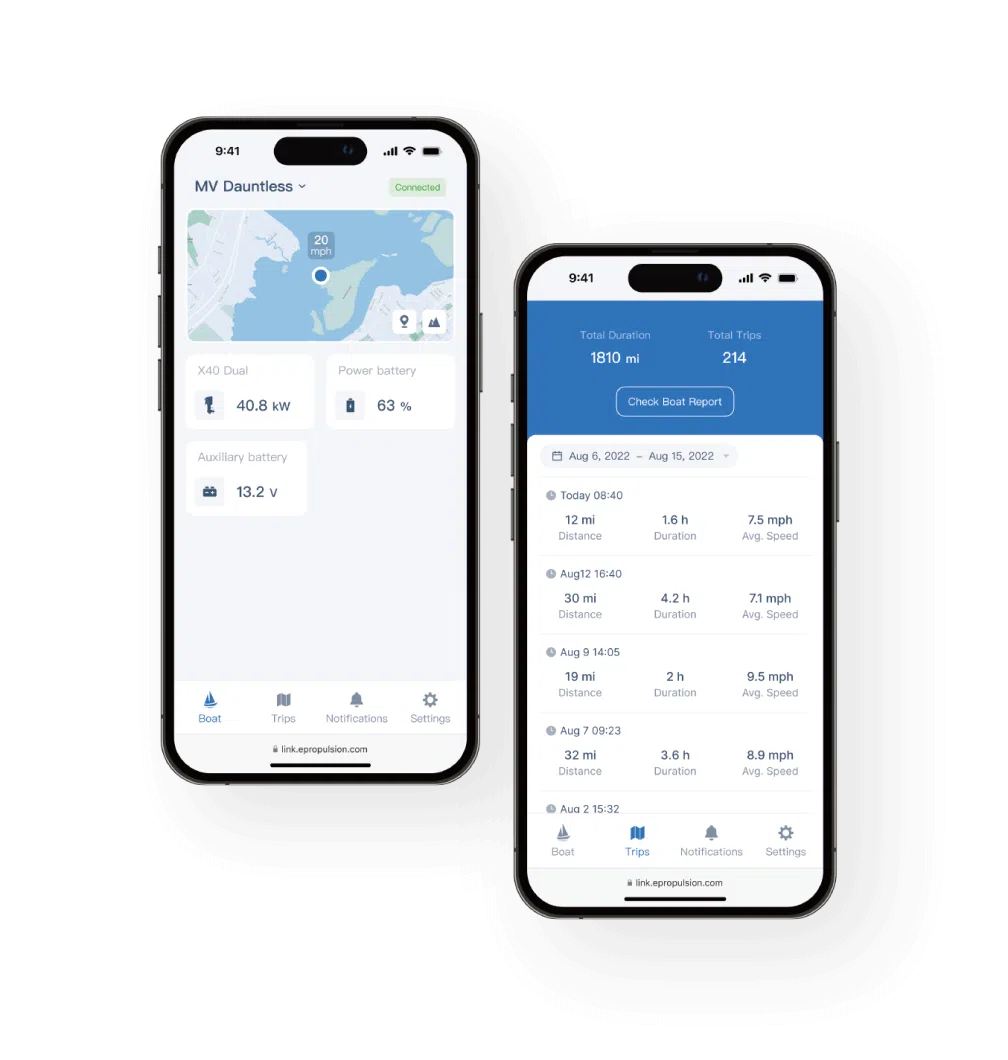

Connectivity
X Series motors have ePropulsion’s Connectivity Service built in. This keeps you in touch with your boat’s status in real time, including monitoring, reporting, and trip tracking functions.

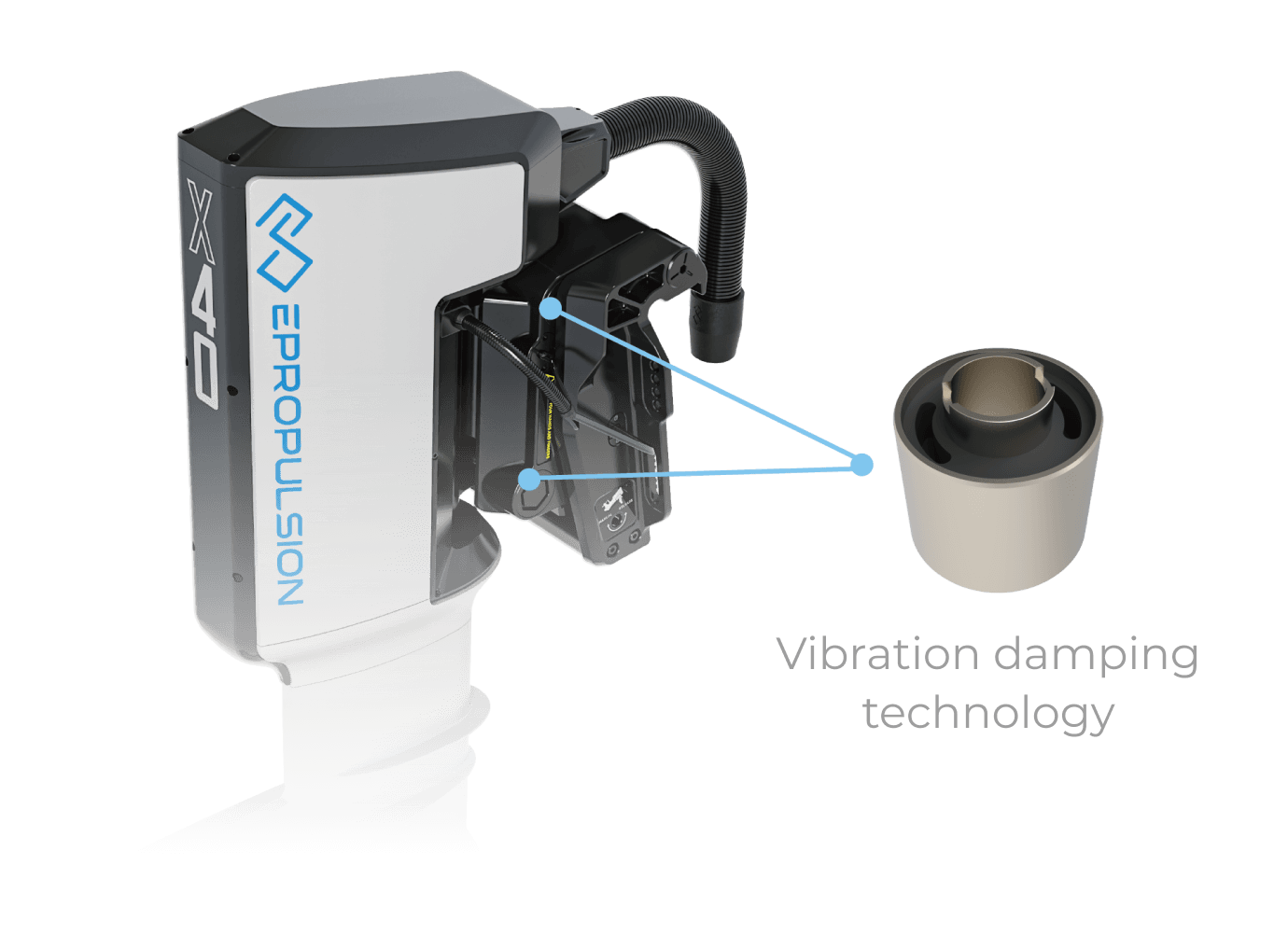

Ultra-Low Noise, Vibration, and Harshness (NVH)

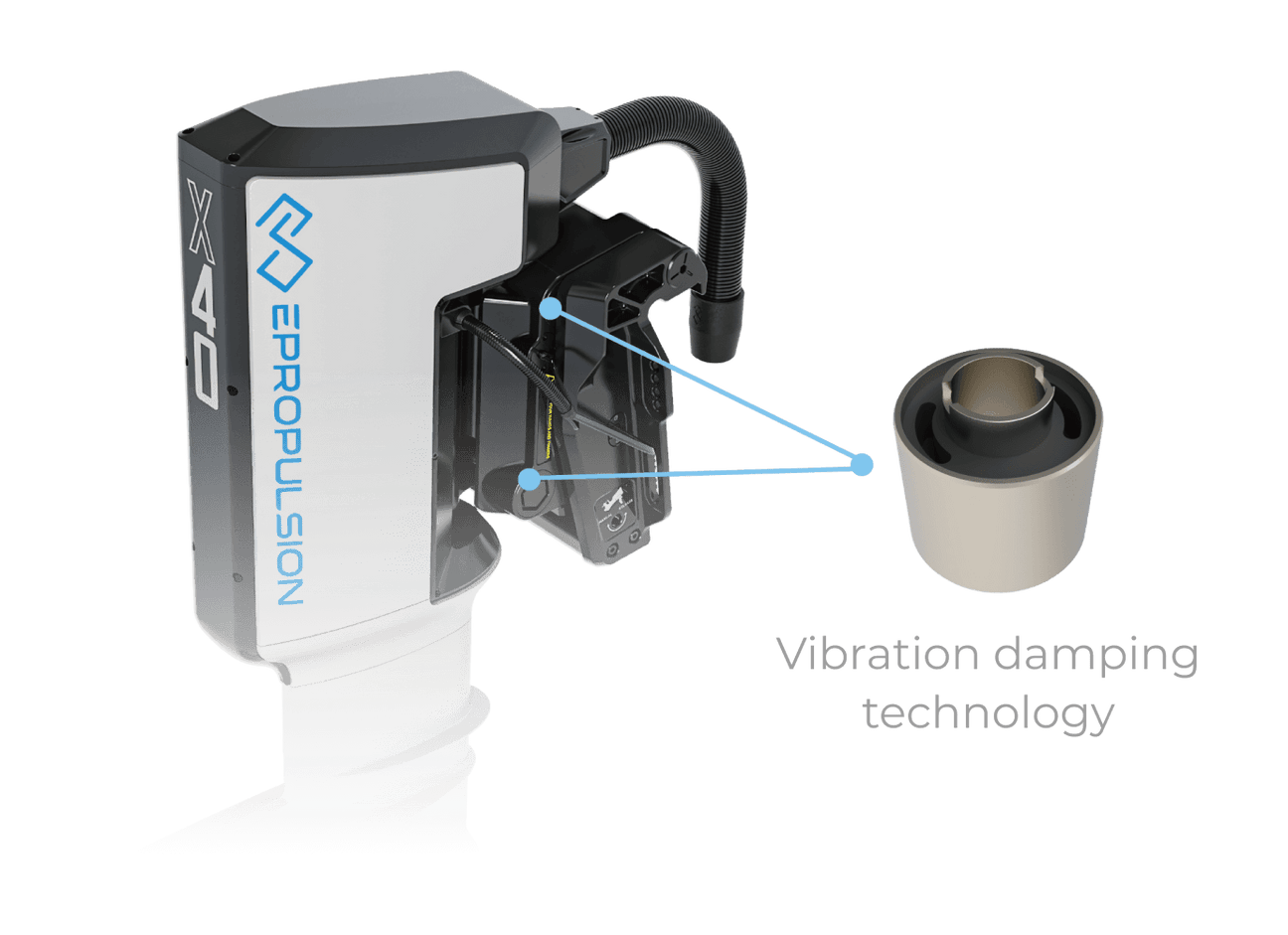

At their maximum noise level of 73 dBA, X Series outboards are quieter than most offices! Achieved through advanced damping technology and frequency resonance isolation, this means you can enjoy the water more, without shouting at each other or scaring away the wildlife.
Specs:
| S Shaft | L Shaft | |
| Motor Weight (excluding control) | 48 kg (105.8 lbs) | 50 kg (110.2 lbs) |
| Shaft Length | 381 mm (15”) | 508 mm (20”) |
| Dimensions (L x W x H) | 560 x 266 x 978 mm (22 x 10.5 x 38.5”) |
560 x 266 x 1105 mm (22 x 10.5 x 43.5”) |
| Input Power | 12kW | |
| Nominal Voltage | 96 VDC | |
| Cooling System | Natural cooling | |
| Rated RPM | 1100 to 2000 | |
| Trim and Tilt | Power trim & tilt | |
| Trim / Tilt Angle | -4° to 61° | |
| Steering | Integrated electric steering | |
| Steering Angle | ±45° | |
| Propeller | 11 13/16” x 10 5/8” propeller (available in L&R rotation) 11 7/16” x 14 3/16” propeller (available in R rotation) |
|
