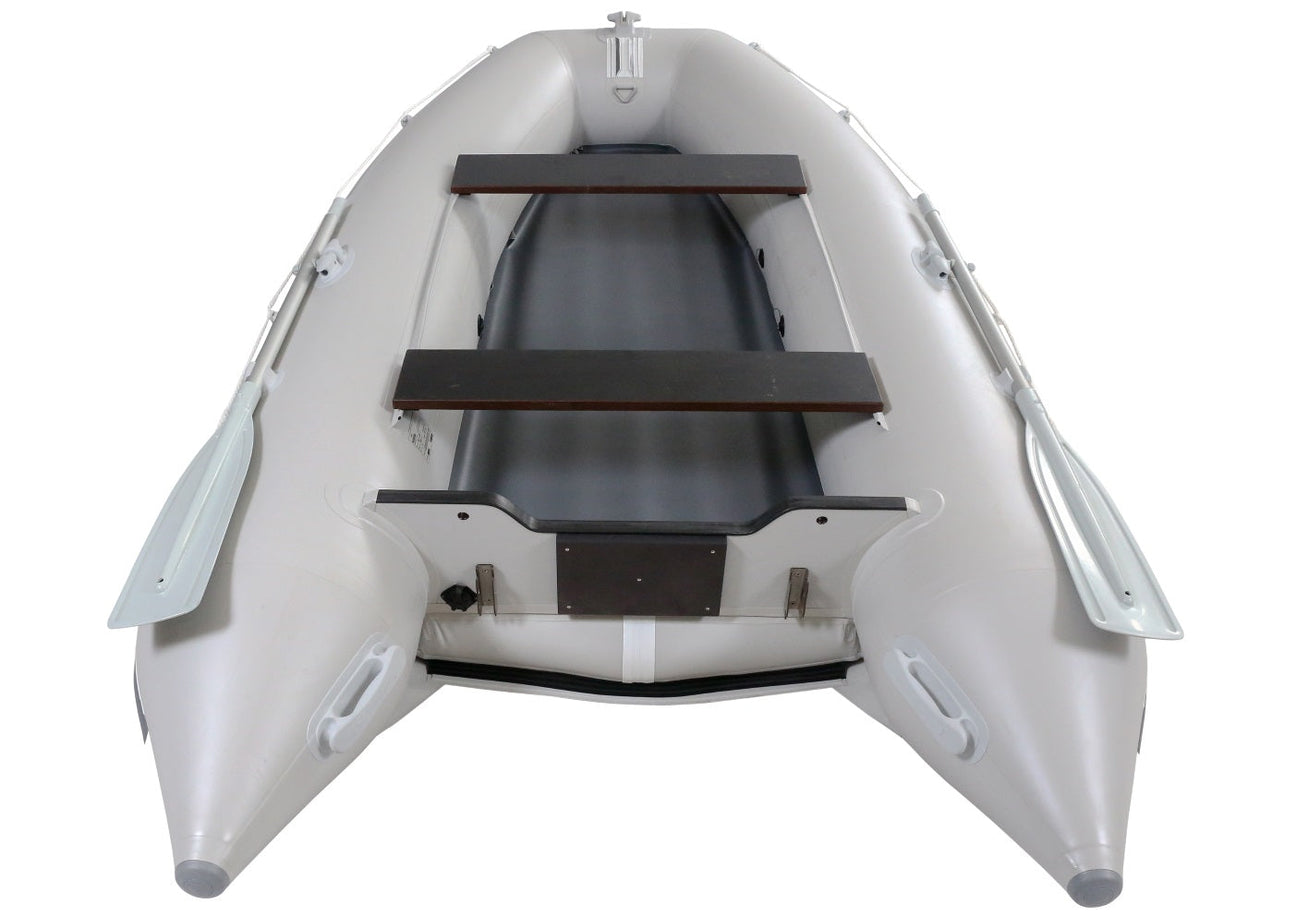

Inflatable Floor Boat Navigator Li360

Inflatable Boat Navigator LI 360 Description

Combining spacious design with robust construction, the Navigator LI 360 inflatable boat is built for both performance and comfort.

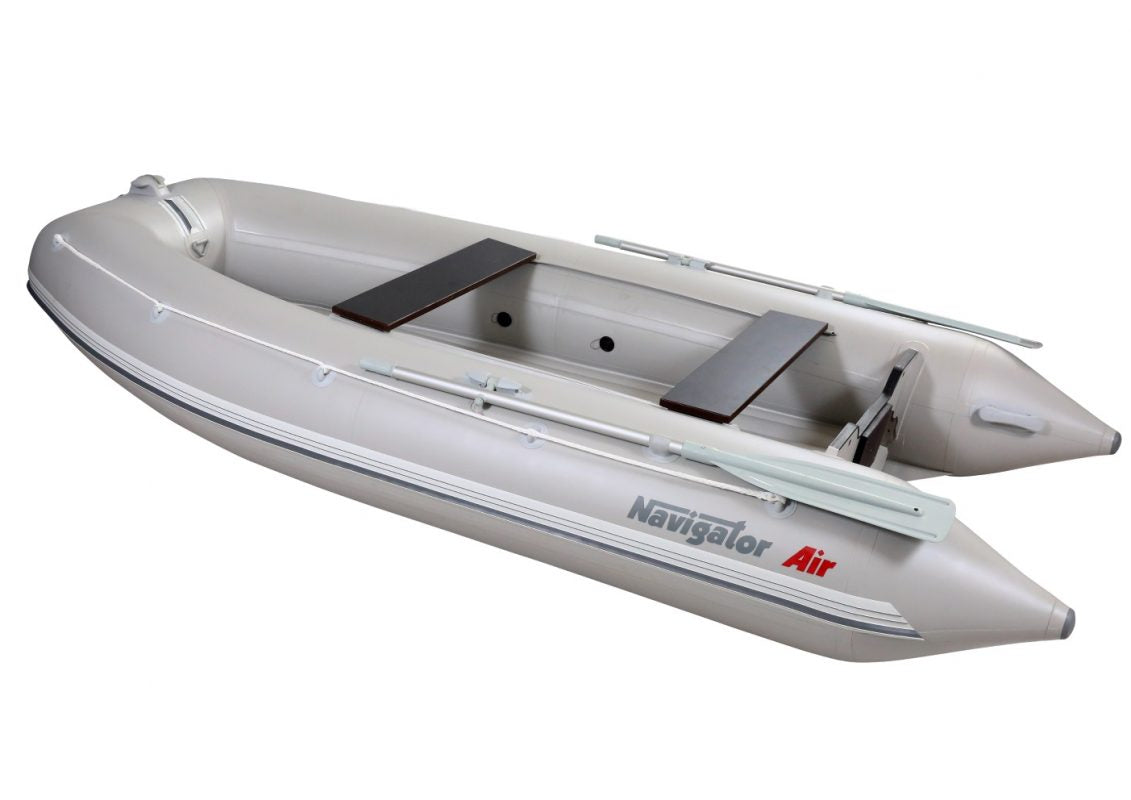

The inflatable boat Navigator LI 360 is a 4-person boat that features an original hull design with an increased interior space and a smooth running. It has an inflatable keel and an integrated inflatable floor that provides rigidity and stability. The boat is made of five-layer PVC fabric with a density of 1100 g/m2 that is resistant to abrasion, UV rays and salt water. The boat has four independent pressurized compartments for safety and a protective bar along the bottom to prevent external damage. The boat also has a fender along the perimeter, handrails for passenger security, and a transom spoiler for reduced water resistance.

The inflatable boat Navigator LI 360 has the following specifications:

Bottom type: inflatable bottom (keel)
External length, cm: 360 (11.8ft)
External width, cm: 184 (6.1ft)
Cylinder diameter, cm: 48 (18.9in)
Number of sealed compartments, cm: 3+1
Passenger capacity, people: 4
Maximum motor powe: 20hp / 14.9kw
Boat Cylinder material density, g/m2: 1100
Boat bottom material density, g/m2: 1100 Valmex 7318 Rough Surface
Transom height, mm: 410 (including the bottom)
Transom thickness, mm: 24

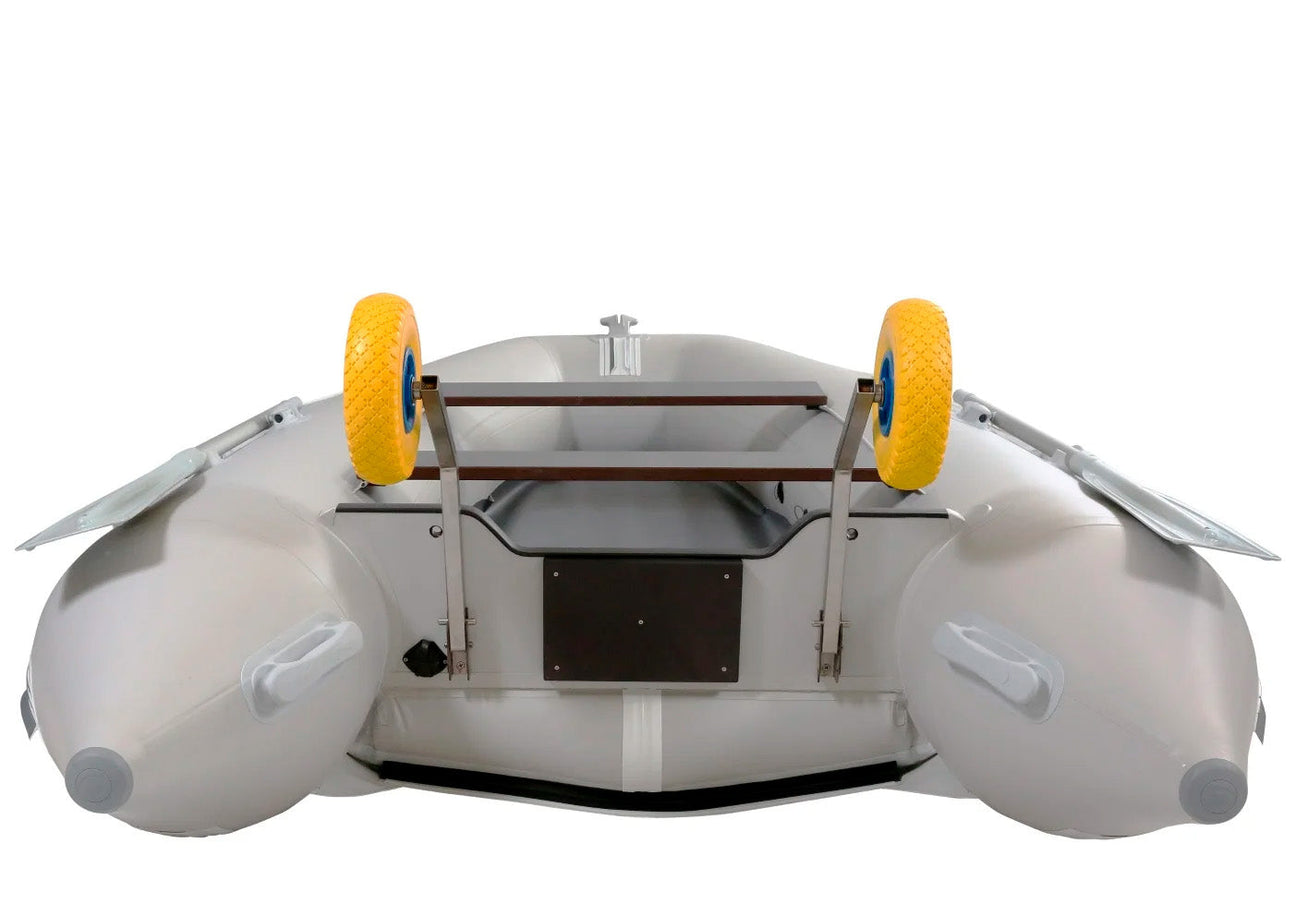

Handles for transportation, pcs: 2 on trailers
Length of oars, cm: 180
Type of oarlocks: rotary, pin type
The weight of the boat in the kit, kg: the weight of the boat is 41 kg, the weight of the components is 9 kg.
Warranty for welds, months: 60
PVC material warranty, months: 36
Country, manufacturer: Ukraine, Group NavigatorThe inflatable boat Navigator LI 360 comes with a standard equipment package that includes:

• A carrying bag
• A foot pump
• Two aluminum oars
• A repair kit
• A user manual

You can also choose from various accessories such as seats, cushions, covers, anchors, navigation lights, etc.

Features:

1) A speed of 41 km/h has been reached. with a Mercury 15M engine for two passengers with their location closer to the transom !!! With one passenger, the speed was 44-45 km / h.

2) The enlarged and spacious cockpit is implemented due to the improved contours of the boat.

3) The use of five-layer boat pvc with a density of 1100 g/m2 produced in South Korea.

4) Variable cylinder diameter provides excellent ship stability and good seaworthiness.

5) Boat hull has 4 circumferential and 2 longitudinal welds. Hot air welding technology is used. This technology ensures uniform heating of the fabric to be welded. Seams are made by the butt-to-butt joint method with welding of the inner and outer sides.

6) “Welding” of the intercylinder baffle into the body of the cylinder.

7) The increased diameter of the cylinders up to 48cm is one of the main indicators of the boat’s seaworthiness on large bodies of water. To protect the cylinders of the bottom from external damage, a protective bar is installed.

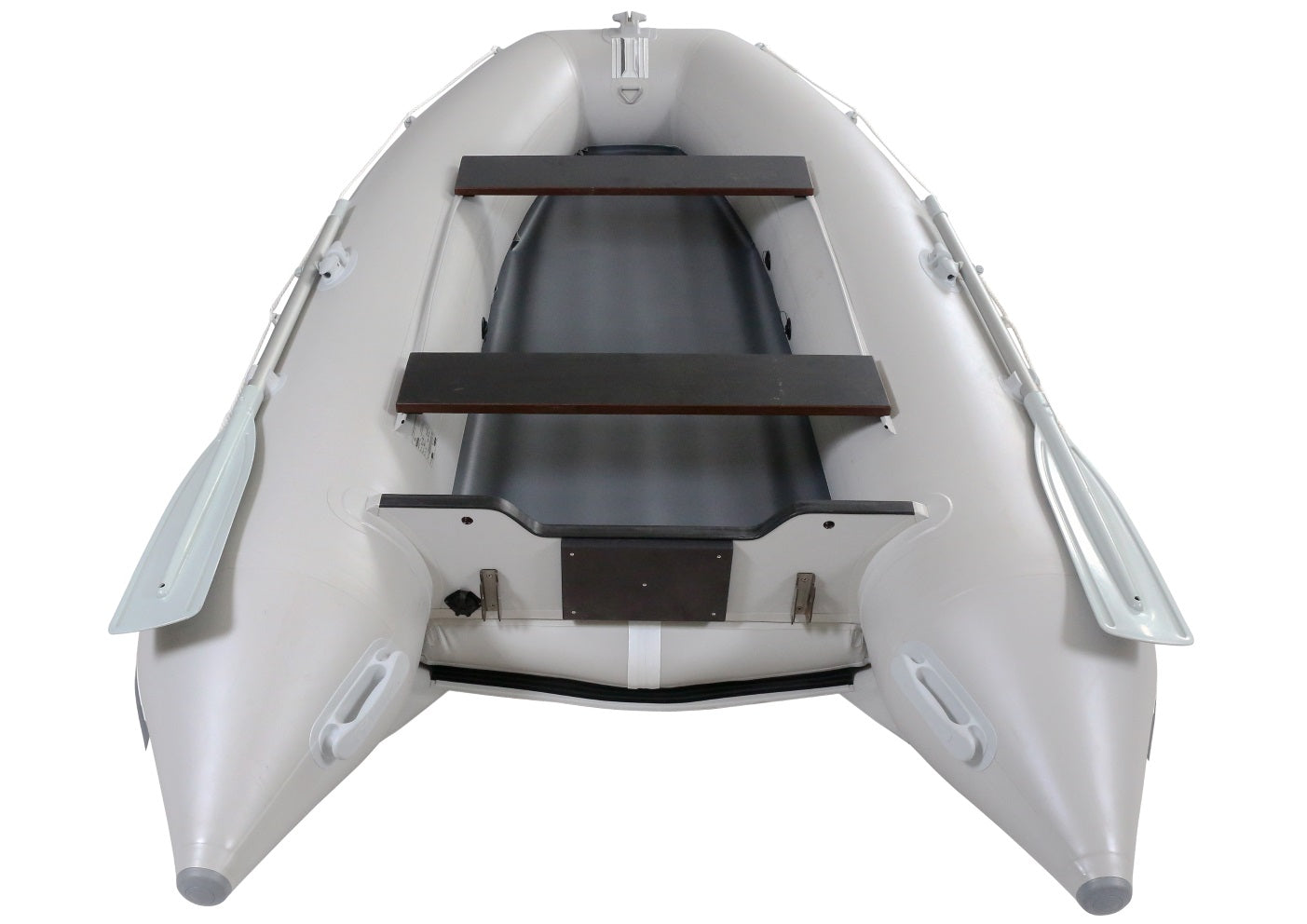

8) The low pressure inflatable bottom (0.3 atmospheres) is comparable to a hard solder floor.

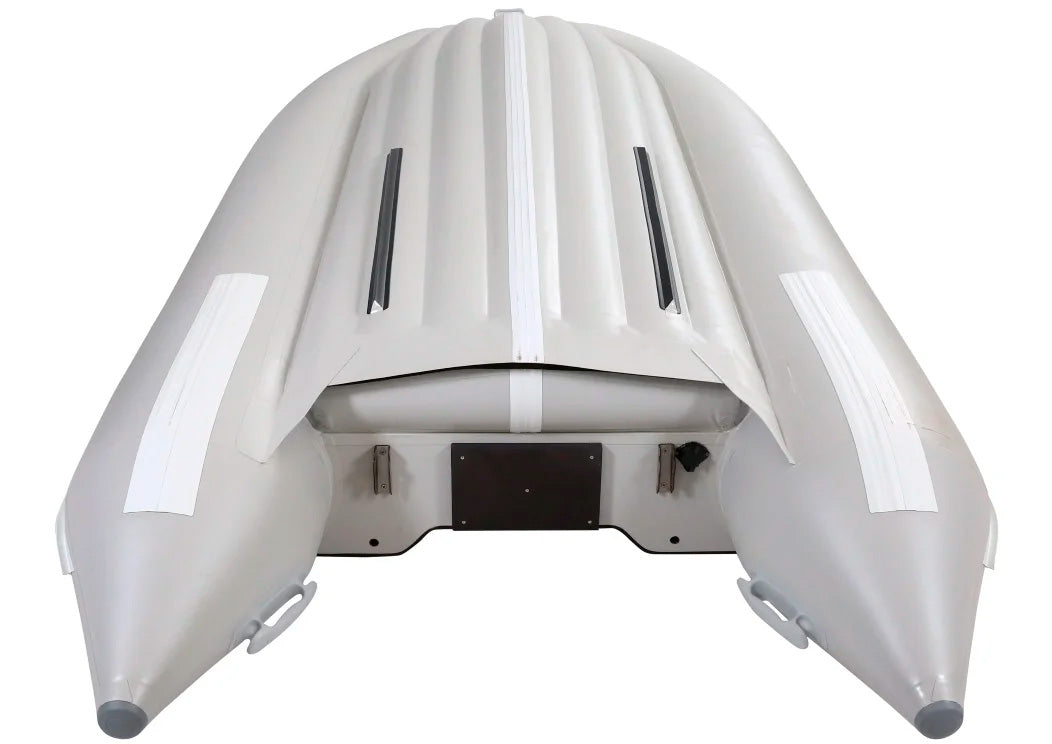

9) Longitudinal redans increase the stability of the boat, have the “effect” of cutting off the flow of water from the bottom, which leads to an increase in the speed of the boat.

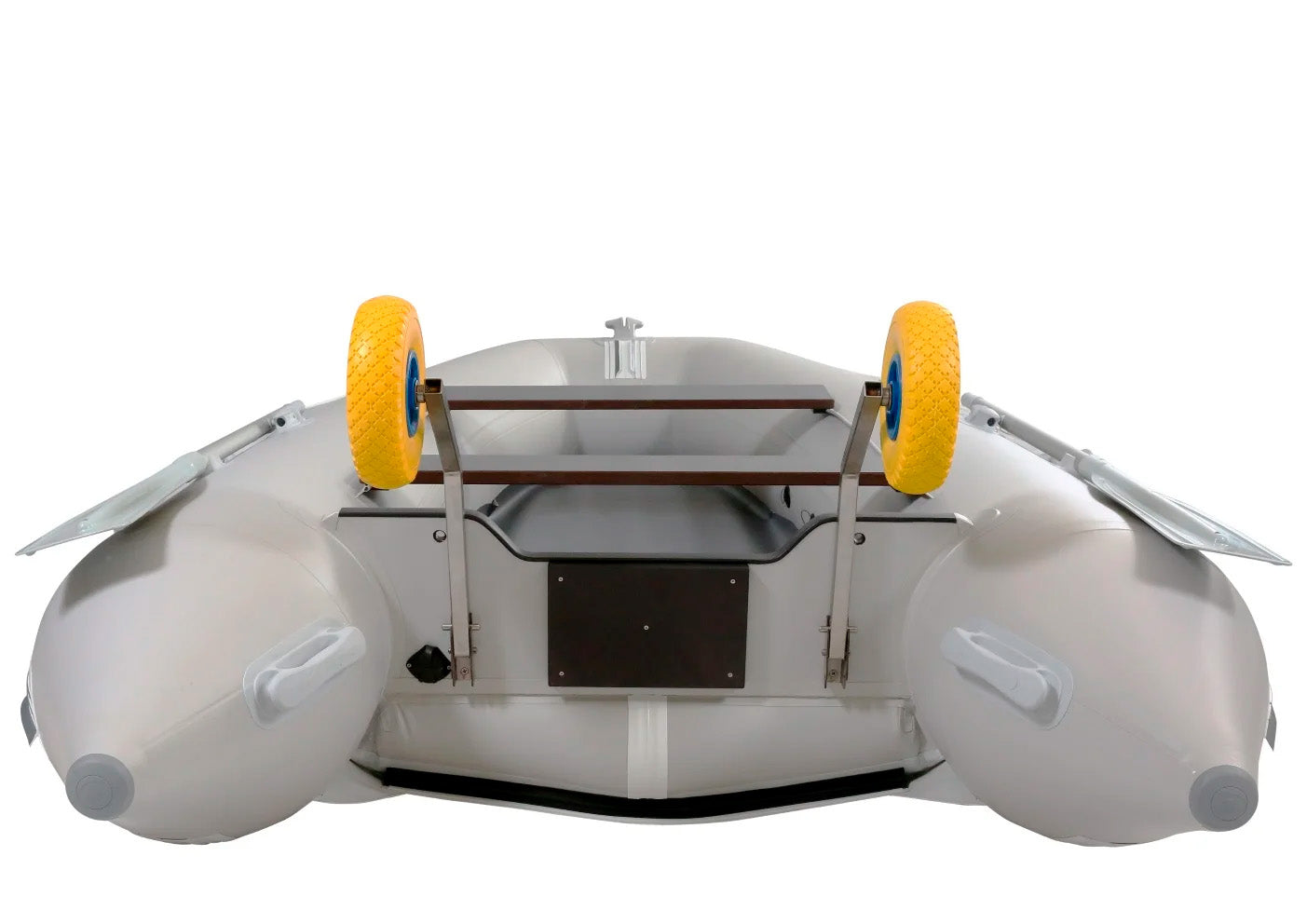

10) Installation of a transom spoiler allows you to get a strong connection between the transom and the bottom and allows you to reduce the overall water resistance relative to the movement of the vessel
