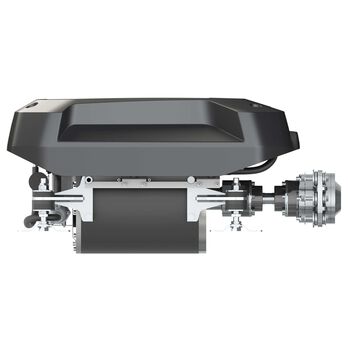

Inboard system with power electronics and 900 rpm for displacement sailing
This new addition to the Deep Blue family delivers 100 kW of continuous, emission-free power, ultimate torque, low maintenance
Suitable for yachts up to 120 feet long, this robust direct-drive motor delivers the low rotational speeds necessary to efficiently power large sailing yachts and other heavy displacement vessels
All the components of the system are perfectly engineered to match each other and are completely waterproof
Electric boat propulsion is not only powerful and safe, it is also a genuine commercial alternative for heavy users
We provide up to 9-year warranty on the Deep Blue's battery capacity with private use
Including on-board computer with 5.7" touchscreen display
Transparent maintenance overhead - an electric drive system requires far less maintenance than comparable drive systems using fossil fuel
Suitable for yachts up to 120 feet long, this robust direct-drive motor delivers the low rotational speeds necessary to efficiently power large sailing yachts and other heavy displacement vessels. This new addition to the Deep Blue family delivers 100 kW of continuous, emission-free power, ultimate torque, low maintenance and is powered by high-capacity batteries with technology by BMW i.
It is not just power and performance that make Deep Blue the first of its kind. It is unparalleled performance combined with full system integration and groundbreaking safety levels that set Deep Blue apart from all other electric propulsion systems on the market.
All the components of the system are perfectly engineered to match each other and are completely waterproof. State-of-the art monitoring technology with pilot lines and insulation monitors safeguard the high-voltage system against the risk of short circuits. The same high-performance lithium batteries used to power cars also power Deep Blue – after we developed them further for use in boats. These and many more safety and performance features make Deep Blue a unique high-voltage propulsion system for electric boats.
And if that's not enough – we provide up to 9-year warranty on the Deep Blue's battery capacity with private use. Electric boat propulsion is not only powerful and safe, it is also a genuine commercial alternative for heavy users in particular.
Deep Blue 100i 900 rpm – Benefits:
Deep Blue: the first high-power propulsion system in serial production - a fully integrated system in which all components are designed to match each other seamlessly and to work together perfectly on the water
An overall concept that is unique in terms of safety, performance and range
The Deep Blue 100i 900 rpm will take you powerfully and safely across the water
Available as 100 HP equivalent depending on requirementsBattery life traceability: Battery ageing is transparent and can be tracked by the user in the on-board computer at any time
Specifications
Technical Data Deep Blue
Deep Blue system
Deep Blue 100i 900 rpm
Deep Blue 100i 2500 rpm
Maximum propeller speed in rpm
900
2’500
Input power (peak) in kW
-
110
Input power (continuous) in kW
100
100
Torque
1060 Nm
430 Nm
Comparable petrol outboard (shaft power)
135 HP
135 HP
Motor weight without battery, including electronics in kg
465
200
Deep Blue Battery 40
Deep Blue Battery 80
Nominal voltage
352 V
348 V
Max. continuous performance
55 kW
79 kW
Capacity (usable)
38 kWh
77.6 kWh
Weight
284 kg
562 kg
Dimensions
1666 x 993 x 173 mm
1800 x 853 x 236 mm
* preliminary data
Warranty: 2 years on the system; up to 9-year warranty on the battery - with private use
