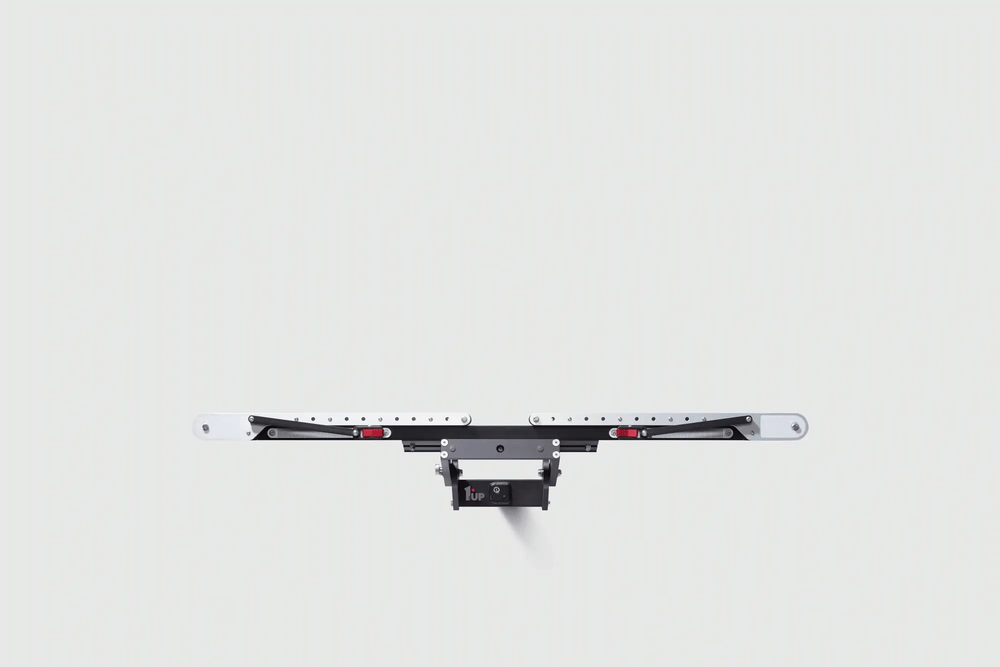

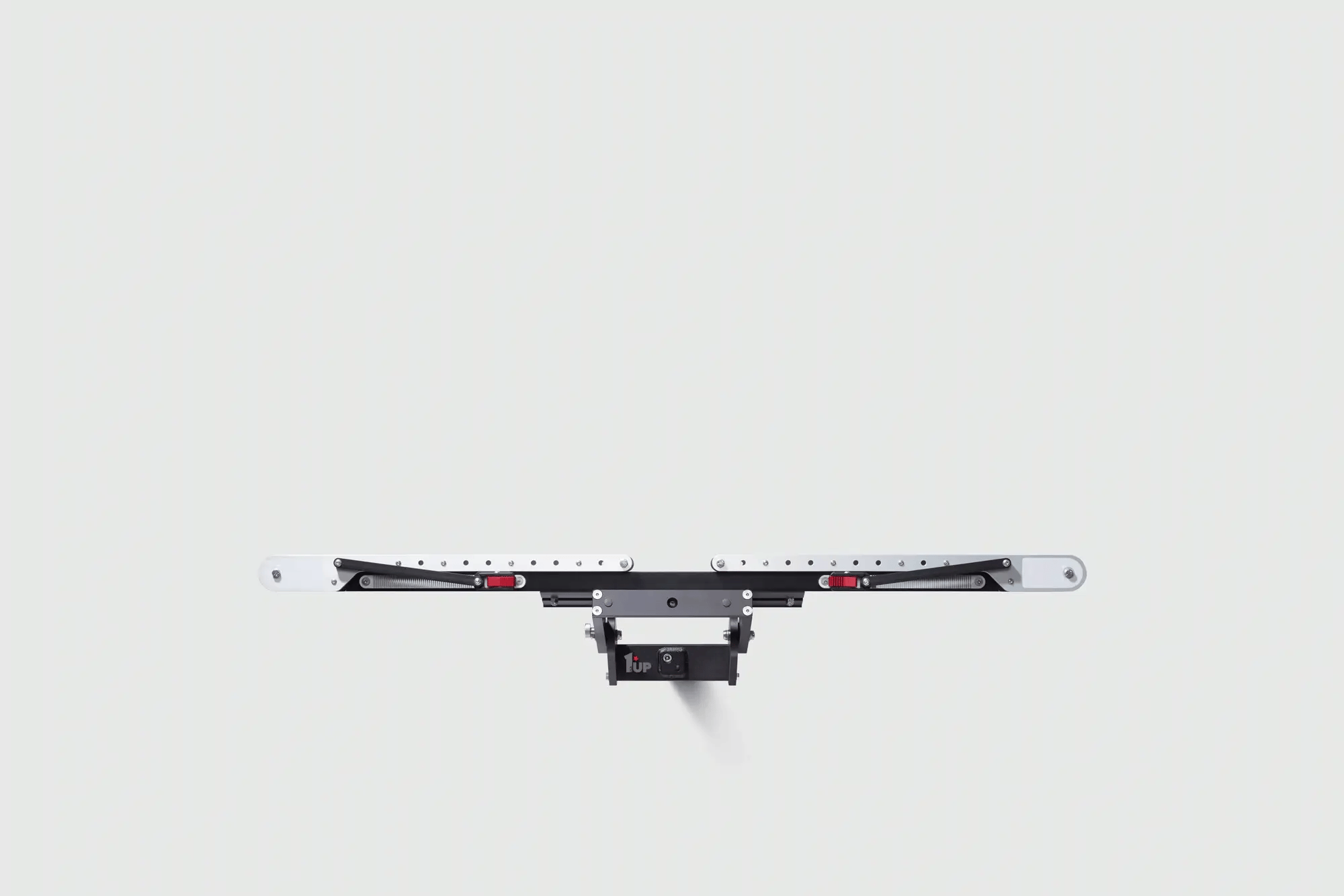

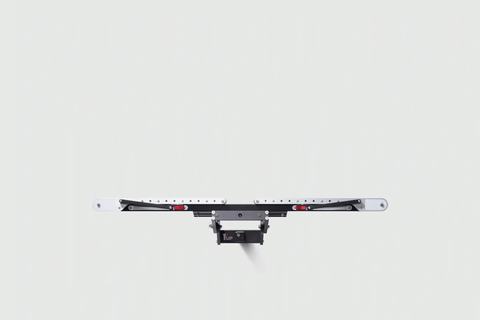

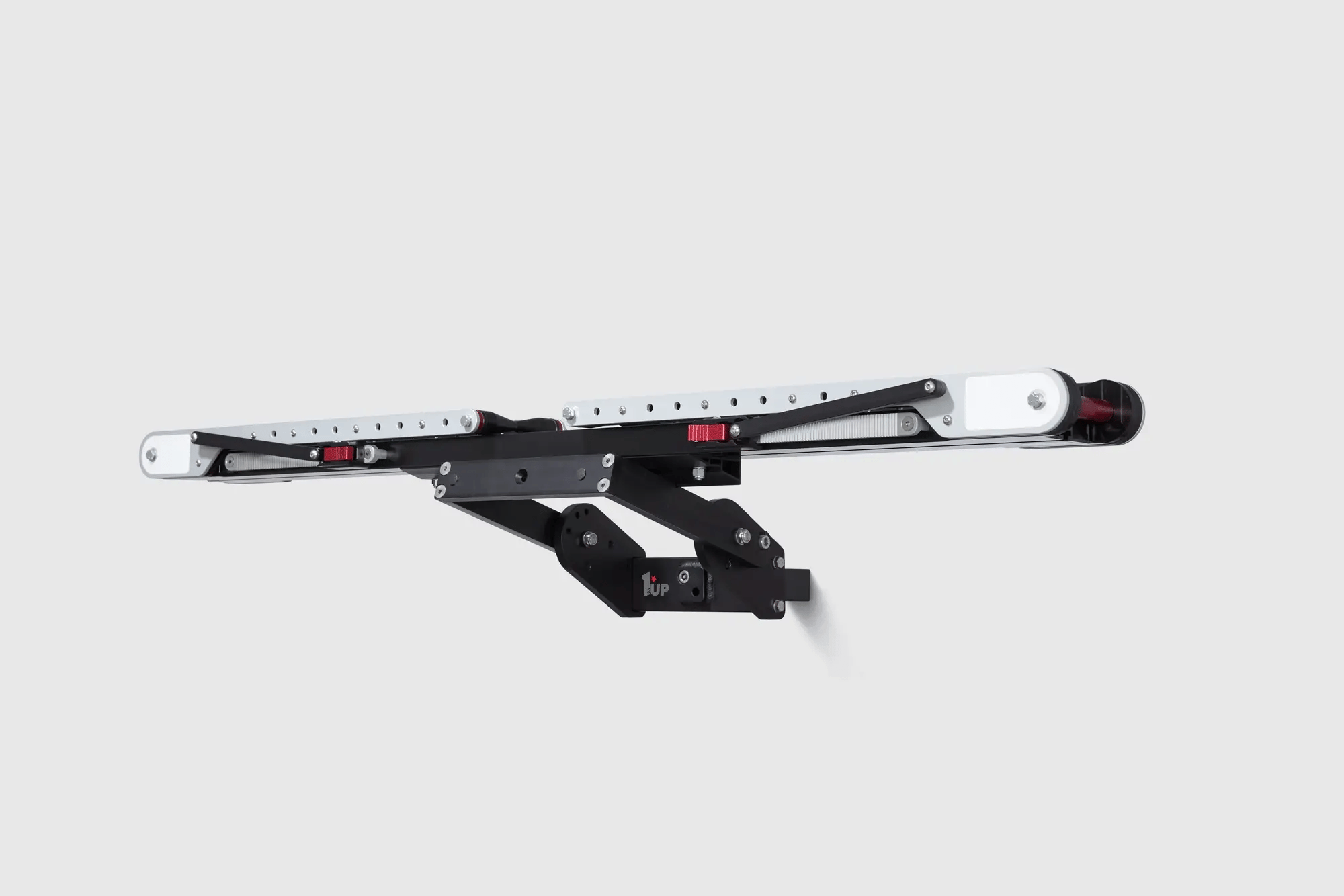

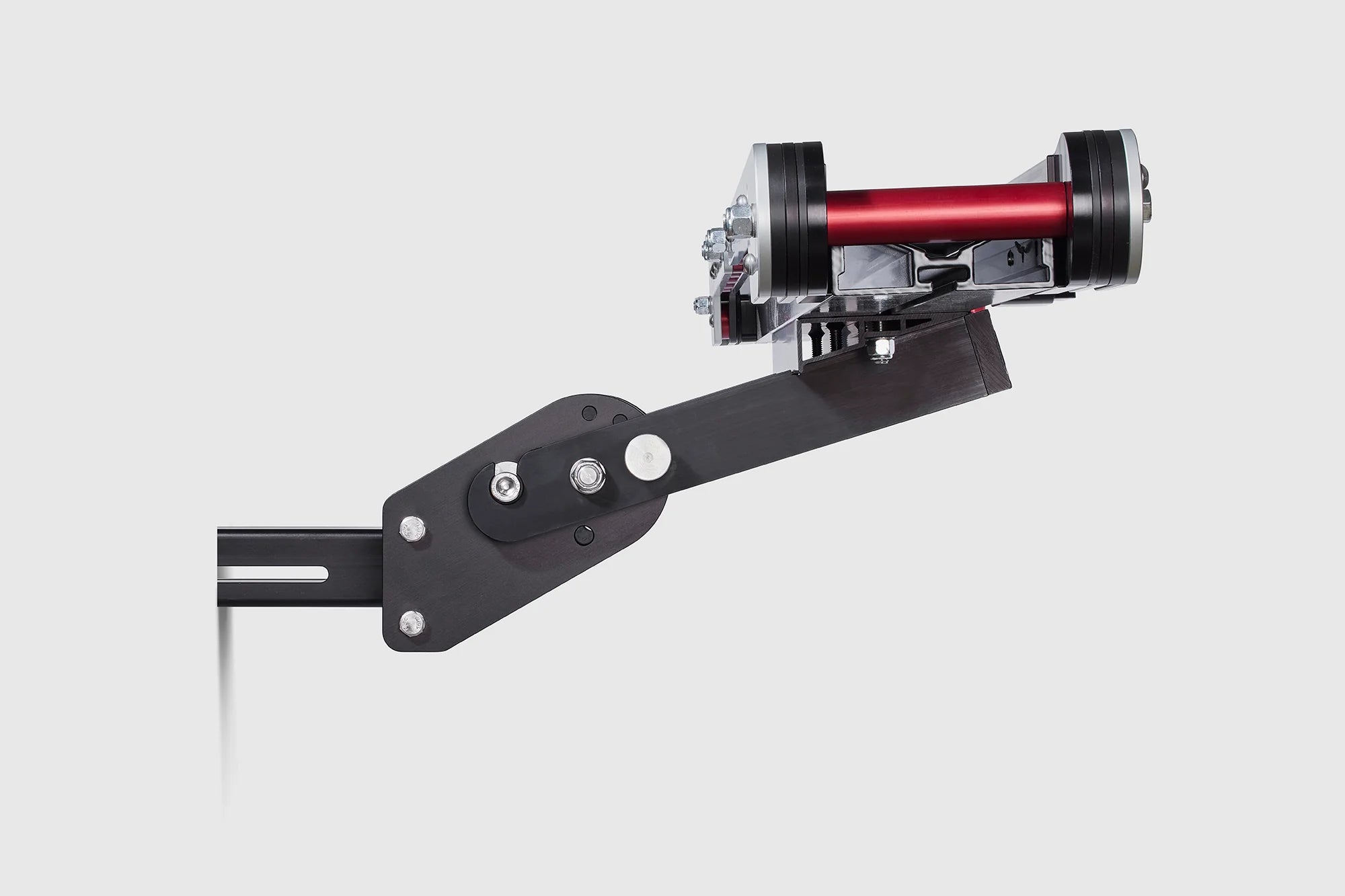

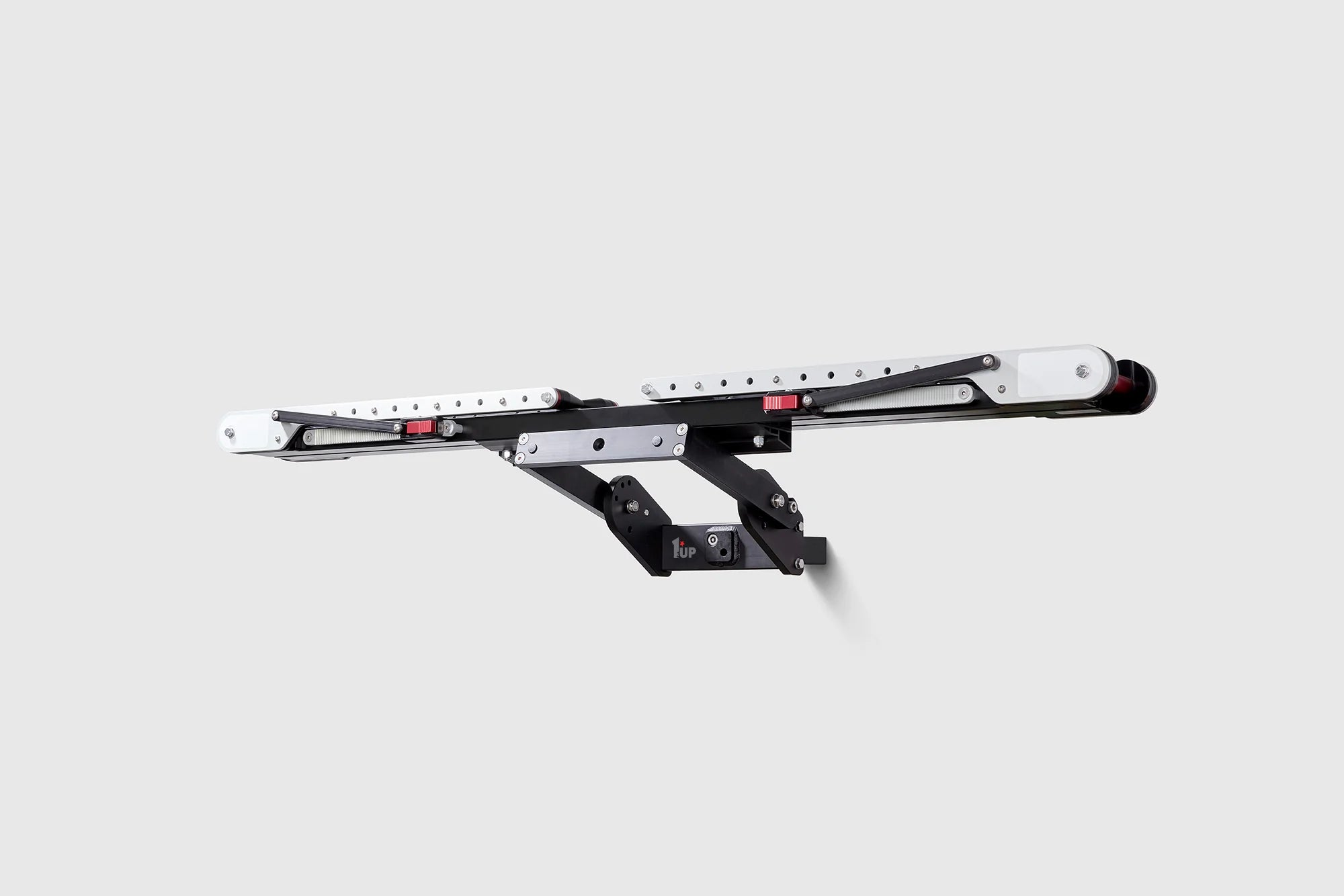

UBCO 1UP XTREME DUTY SINGLE

UBCO 1UP XTREME DUTY SINGLE

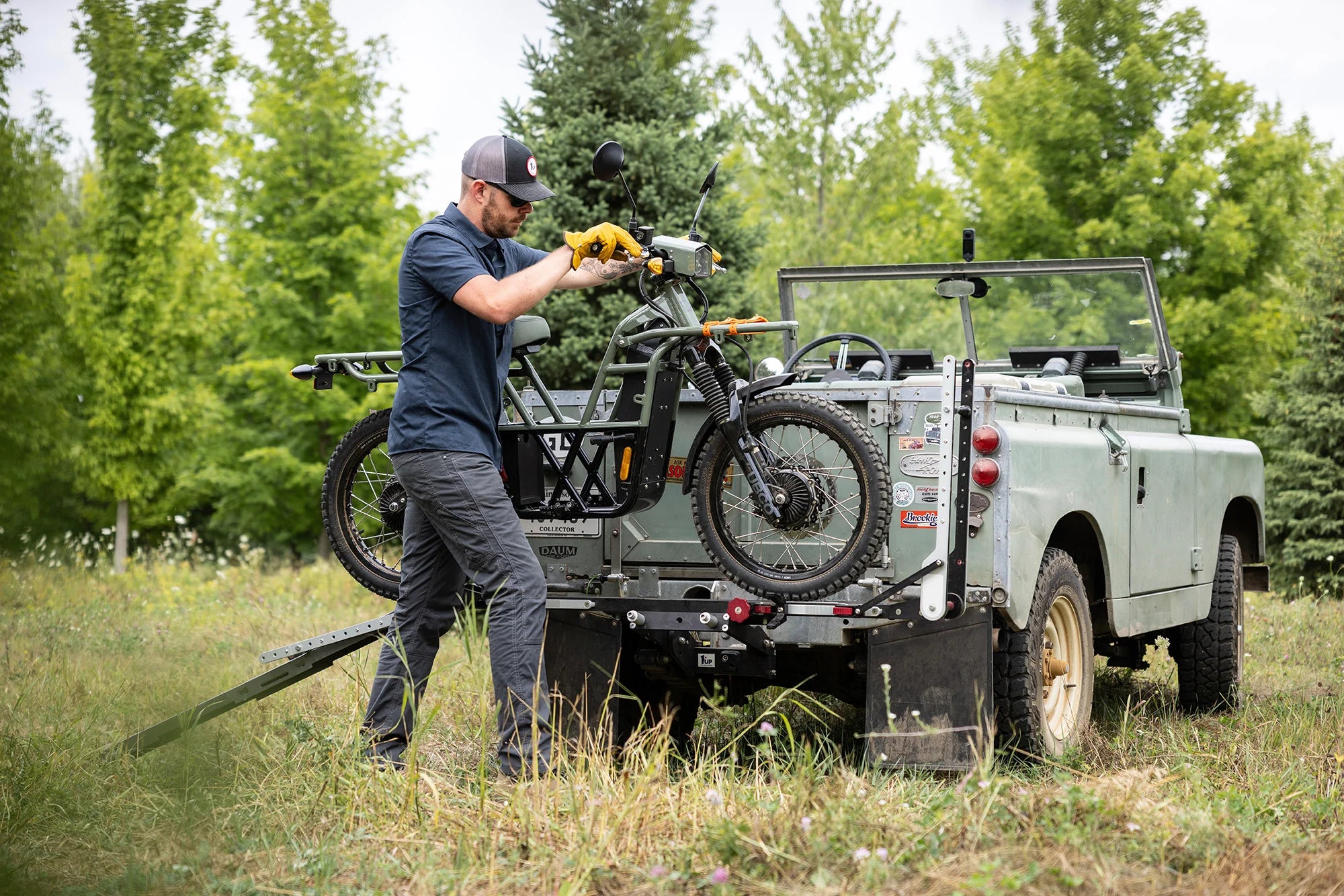

Capable of hauling up to 150 lbs per tray, The XD rack pushes the boundaries of what’s possible with an all aluminum rack, allowing you to carry virtually any bike, any where.

The XD rack features the same anti-wobble hitch bar that is used on all our aluminum racks to guarantee a solid connection to your vehicle. From there, we've beefed up virtually every part of the rack. Check out the list of features below!

Features

• Fits 2” receiver

• Compatible with XD Add-ons (sold separately) so you can use your existing Quik Rack Add-ons, from bike trays to cargo to lights and accessories
• Total carry capacity with XD Add-ons of up to 345 lbs (150 lbs first bike spot max)

• Road rating: Pavement, Gravel, and Off-road

• Vehicle rating: Passenger Vehicle and RV/Travel Trailer (2 Spots)

• Double Bent Arms add lateral stiffness

• Xtreme Duty Wheel Chock* (sold separately) reduces steer tube rotation minimizing bike movement

• Lock-in Pivot Beam reduces virtually all play in the pivot for extra rigidity

• Spring Pin allows easy raising and lowering of an unloaded rack for vehicle access

• New Glide Bar Ratcheting system provides a robust, positive engagement of the ratchet

• Add up to one XD Add-ons to carry an additional bike (up to 120 lbs)

• V Style Ramp (sold separately) is easier to use than ever; the XD bent arms fold all the way down to allow easy loading in seconds

• Slot for standard hitch pin holes

• Fits 16” - 29” wheels, up to 5.25” wide

• Accommodates up to 57” wheelbase

• Hitch bar has built-in anti-wobble mechanism

• Tilt and folding mechanism for smaller footprint

• Rack arms close to secure tires without touching the frame

• All rack parts anodized, except a powder coat finish on the tray

• Shipping Weight: Hitch Assembly Box: 19 lbs / Tray Assembly Box: 30 lbs


What's included

• 2″ Xtreme Duty Single

• Slotted Hitch Bar Lock

• Instructions
