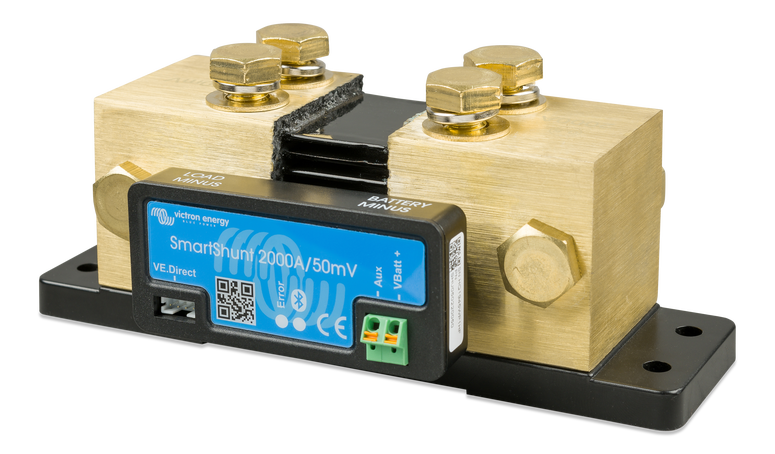

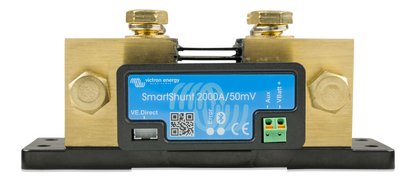

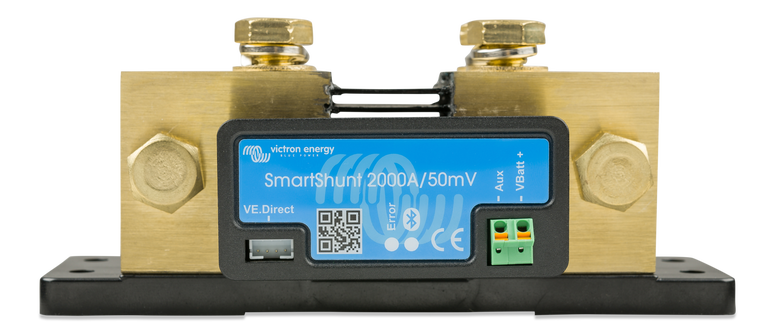

Victron Battery Monitor SmartShunt 2000A IP21
Pickup availability unavailable
Short Description:
Victron Bluetooth Battery Monitor SmartShunt 2000A IP21 Description:
The SmartShunt is an all-in-one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.
Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.
The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.
The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.
| SmartShunt IP65 | 300 A / 500 A / 1000 A / 2000 A |
| Supply voltage range | 6.5 - 70 VDC |
| Current draw | < 1 mA |
| Input voltage range, auxiliary battery | 6.5 - 70 VDC |
| Battery capacity (Ah) | 1 - 9999 Ah |
| Operating temperature range | -40 +50 °C (-40 – 120 °F) |
| Measures voltage of second battery, or temperature, or midpoint |
Yes |
| Temperature measurement range | -20 +50 °C |
| Current | ± 0.01 A |
| Voltage | ± 0.01 V |
| Amp hours | ± 0.1 Ah |
| State of charge (0 – 100 %) | ± 0.1 % |
| Dimensions (h x w x d) | 300 A: 44 x 120 x 44 mm 500 A: 46 x 120 x 54 mm 1000 A: 68 x 168 x 75 mm 2000 A: 68 x 168 x 100 mm |
| Shunt connection bolts | 300 A: M8 500 A, 1000 A, 2000 A: M10 (0.3937 inch) |
| Cables |
Two 1.5 m cables with 1 A fuse, for ‘+’ connection 1.5 m cable with a VE.Direct socket. Note that a (not |
