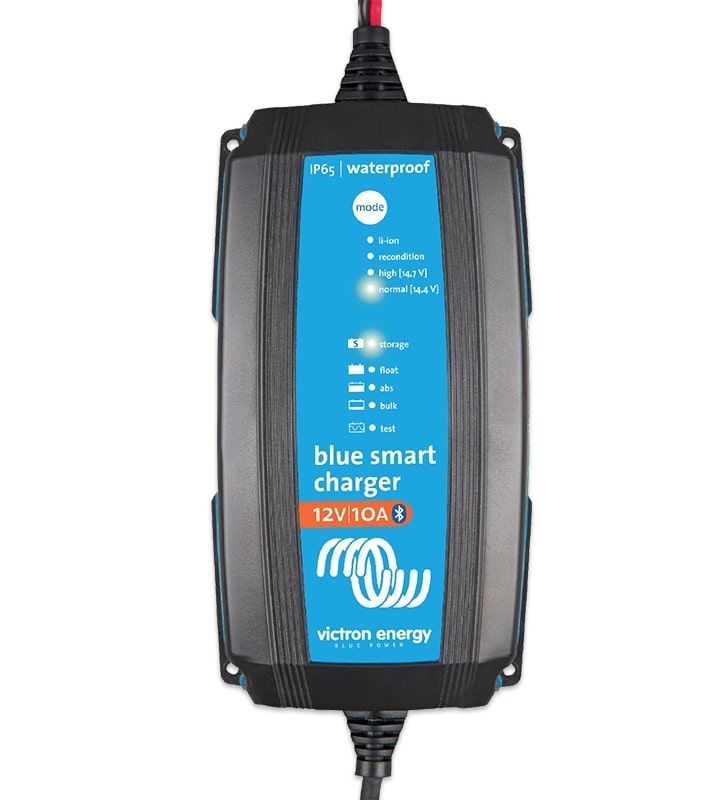

Victron Blue Smart IP67 Charger Description:
The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
New: IP65 6V/12V 1.1A
New: IP65 12/5 replaced by smaller equivalent model: IP65s 12/5
The battery is charged, smartly... to perfect condition
The seven-step charging algorithm gets the best out of your battery. The charger gives the battery the power it needs, maintains its health, ensures better performance... and a longer life.
Recovery of deeply-discharged 'dead' batteries
Unlike other brands, the Blue Smart IP65 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current. Normal charging will then be resumed as soon as there is sufficient voltage across the battery terminals.
Connect the battery with ease
The charger comes with both crocodile clips and M8 eyelets - making it easy to connect to the battery. If you wish, you can leave it permanently connected.
Check the status of your battery remotely
The Blue Smart IP65 is equipped with built-in Bluetooth, so the status of the charger and the battery can be checked on a smartphone, tablet or laptop. All settings of the charger can be configured with the VictronConnect app.
| IP65 Charger 120V | 12V 4/5/7/10/15A | 24V 5/8A |
|---|---|---|
| INPUT | ||
| Input voltage | 120 VAC | |
| Efficiency | 94% | 95% |
| Standby power consumption | 0.5W | |
| Minimum battery voltage | Starts charging from down to 0V | |
| CHARGER | ||
| Charge voltage 'absorption' | Normal: 14.4V High: 14.7V Li-ion: 14.2V |
Normal: 28.8V High: 29.4V Li-ion: 28.4V |
| Charge voltage 'float' | Normal: 13.8V High: 13.8V Li-ion: 13.5V |
Normal: 27.6V High: 27.6V Li-ion: 27.0V |
| Charge voltage 'storage' | Normal: 13.2V High: 13.2V Li-ion: 13.5V |
Normal: 26.4V High: 26.4V Li-ion: 27.0V |
| Charge current | 4 / 5 / 7 / 10 / 15A | 5 / 8A |
| Charge current in low current mode | 2 / 2 / 2 / 3 / 4A | 2 / 3A |
| Temperature compensation (lead-acid batteries only) | 16 mV/°C (9mV/°F) | 32 mV/°C (18mV/°F) |
| Can be used as power supply | Yes | |
| Back current drain | 0.7Ah/month (1mA) | |
| Protection | Reverse polarity, Output short circuit, Over temperature | |
| Operating temp. range | -40 to +60°C (full rated output up to 30°C) | |
| Humidity (non-condensing) | Max 95% | |
| ENCLOSURE | ||
| Battery connection | Black and red cable of 1.5 meter (4.9 feet) | |
| 120V AC connection | Cable of 1.8 meter (5.9 feet) with US NEMA 1-15 plug | |
| Protection category | IP65 (splash and dust proof, and ignition protected) | |
| Weight | 0.9 kg (2 lbs) | |
| Dimensions (h x w x d) | 12/7: 47x95x190 mm 1.8x3.7x7.5 inches Other: 60x105x190 mm |
24/8: 60x105x190 mm 2.3x4.1x7.5 inches |
| IP65 Charger 230V | 6V/12V - 1.1A | 12V 4/5/7/10/15/25A | 24V 5/8/13A |
|---|---|---|---|
| INPUT | |||
| Input voltage and frequency range | 100 - 250 VAC | 45 - 65 Hz | ||
| Efficiency | 82% | 94% | 95% |
| Standby power consumption | <0.5 W | 0.5 W | |
| Minimum battery voltage | Starts charging from down to 0V | ||
| CHARGER | |||
| Charge voltage 'absorption' | Normal: 7.2V | 14.4V High: 7.35V | 14.7V Li-ion: 7.1V | 14.2V |
Normal: 14.4V High: 14.7V Li-ion: 14.2V |
Normal: 28.8V High: 29.4V Li-ion: 28.4V |
| Charge voltage 'float' | Normal: 6.9V | 13.8V High: 6.9V | 13.8V Li-ion: Disabled |
Normal: 13.8V High: 13.8V Li-ion: 13.5V |
Normal: 27.6V High: 27.6V Li-ion: 27.0V |
| Charge voltage 'storage' | Normal: 6.6V | 13.2V High: 6.6V | 13.2V Li-ion: 6.75V | 13.5V |
Normal: 13.2V High: 13.2V Li-ion: 13.5V |
Normal: 26.4V High: 26.4V Li-ion: 27.0V |
| Charge current | 1.1A | 4 / 5 / 7 / 10 / 15 / 25A | 5 / 8 / 13A |
| Low current mode | 0.5A | 2 / 2 / 2 / 3 / 4 / 10A | 2 / 3 / 4A |
| Temperature compensation (lead-acid batteries only) | 8 mV/°C | 16 mV/°C | 16 mV/°C | 32 mV/°C |
| Power supply mode | Yes | ||
| Back current drain | 0.1 Ah/month (140uA) | 0.7 Ah/month (1mA) | |
| Protection | Reverse polarity, Output short circuit, Over temperature | ||
| Operating temp. range | -30 to +50°C (full rated output up to 30°C) | -40 to +60°C (full rated output up to 30°C) (cables retain flexibility at low temperature) | |
| Humidity (non-condensing) | Max 95% | ||
| Charge algorithm | 7-stage adaptive | ||
| Bluetooth | -4dBm, 2402 – 2480 MHz | ||
| ENCLOSURE | |||
| Battery connection | Black and red cable of 1.5 meter | ||
| 230V AC connection | 1.5m cable with CEE 7/16 or AS/NZS 3112 plug | 1.5m cable with CE 7/16, CE 7/17, BS 1363 plug (UK) or AS/NZS 3112 plug | |
| Protection category | IP65 (splash and dust proof) | ||
| Weight | 0.4 kg | IP65 12V 25A, 24V 13A: 1.9 kg Other: 0.9 kg |
0.9 kg |
| Dimensions (h x w x d) | 38 x 64 x 153 mm | IP65s 12V 4/5A: 45 x 81 x 182 mm IP65 12V 7A 24V 5A: 47 x 95 x 190 mm IP65 12V 10/15A 24V 8A: 60 x 105 x 190 mm |
IP65 12V 25A 24V 13A: 75 x 140 x 240 mm |
Victron Blue Smart IP65 Charger (120V and 230V)
