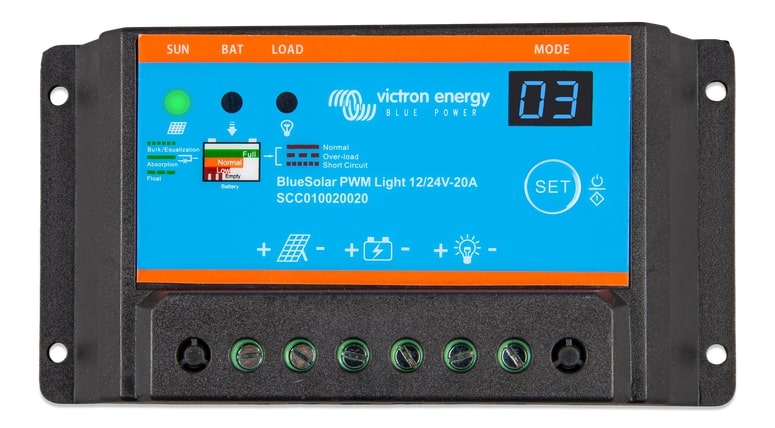

Victron BlueSolar PWM-Light 12/24V Charge Controller

Sale
Regular price $30

Model

Quantity

Secure payments

100% Guarantee

Client satisfaction

The Victron solar controller, BlueSolar PWM light, is a highly efficient, highly reliable and stable PWM charger.

Have a question?

Talk with a technical expert.

✆ Call Us

Victron BlueSolar PWM-Light 12/24V Description:

The Victron solar controller, BlueSolar PWM light, is a highly efficient, highly reliable and stable PWM charger. This type of regulator is used especially in applications that involve street or perimeter lighting with solar energy as a source, or in small independent photovoltaic applications (isolated homes, telecom stations, etc.). The battery is charged by means of a non-programmable algorithm, in three stages (main or bulk charge, final charge or absorption, equilibrium or float charge).

• Load output with low battery voltage disconnect function.
• Lighting control function, one timer only.
• Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting.
• Three stage battery charging (bulk, absorption, float), not programmable.
• Load output protected against over load and short circuit.
• Protected against reverse polarity connection of the solar array and/or battery.
• Day/night timing options: see manual for details

Model	12/24-5	12/24-10	12/24-20	12/24-30
Battery Voltage	12/24 V with automatic system voltage detection
Rated charge current	5A	10A	20A	30A
Automatic load disconnect	Yes
Maximum solar voltage	28V / 55V
Self-consumption	< 10 mA
Load output	Manual control + low voltage disconnect
Protection	Battery reverse polarity (fuse), Output short circuit, Over temperature
Overload protection	Shut down after 60 s in case of 130% load Shut down after 5 s in case of 160% load Short circuit: immediate shut down
Grounding	Common positive
Operating temp. range	-20 to +50°C (full load)
Humidity (non-condensing)	Max 95%
Battery
Charge voltage 'absorption'	14.2V / 28.4V
Charge voltage 'float'	13.8V / 27.6V
Low voltage load disconnect	11.2V / 22.4V
Low voltage load reconnect	12.6V / 25.2V (manual) 13.1V / 26.2V (automatic)
Enclosure
Protection class	IP20
Terminal size	5 mm² / AWG10
Weight	0.15kg	0.2kg	0.2kg	0.2kg
Dimensions (h x w x d)	70 x 133 x 33.5 mm (2.8 x 5.3 x 1.3 inch)
