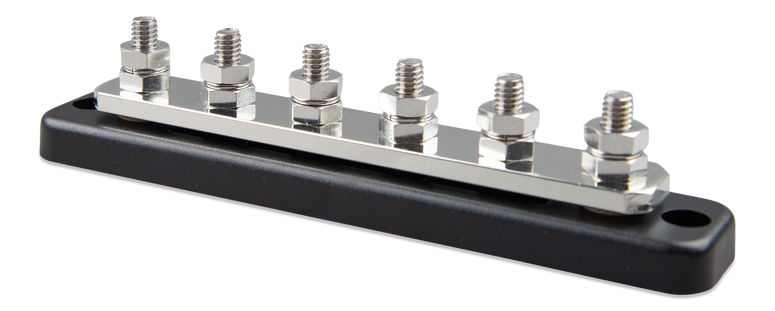

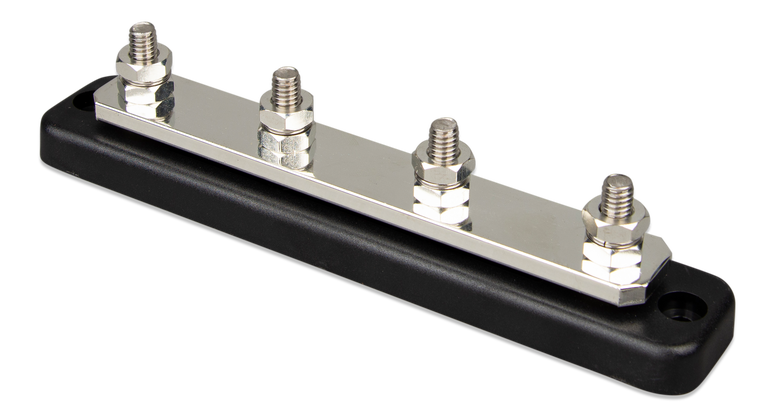

Victron Busbar 250A Description:
Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.
We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.
| Victron Busbar | 250A |
|---|---|
| Max. Current Rating | 250 A |
| Max. Voltage Rating | 70 VDC |
| Terminal Diameter | 5/16 inch / 8 mm |
| Terminal Height | 0.67 inch / 17 mm |
| Terminal Material | Stainless Steel |
| Hex Nut Material | Tin-plated Copper |
| Recommended Torque | 110 lbf·inch / 13 N·m |
| Busbar Strip Material | Tin-plated Copper (5 x 24 mm) |
| Base Material | ABS, black, UL 94 V-0 |
| Cover Material | ABS, black, UL 94 V-2 |
| Weight (4 terminals) | 0.5 lb / 0.24 kg |
| Dimensions (hxwxd) (with cover, 4 terminals) | 1.9 x 9.4 x 2.8 inch (48 x 237 x 70 mm) |
| Weight (6 terminals) | 1.0 lb / 0.43 kg |
| Dimensions (hxwxd) (with cover, 6 terminals) | 1.9 x 9.4 x 2.8 inch (48 x 237 x 70 mm) |
