Victron Busbar 250A 2P with 6/12 Screws
$60.00 CAD
Pickup availability unavailable
SECURE PAYMENTS
READY TO PICK UP IN 24H
SHIPS IN 1-3 DAYS
5 YEARS WARRANTY
Have a question?Talk with a technical expert.
Call Us

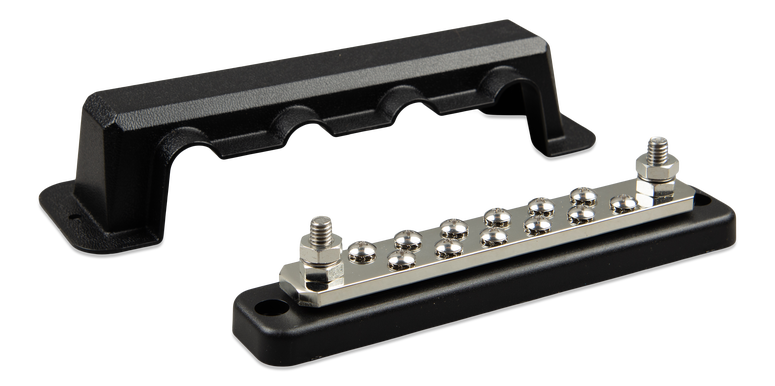

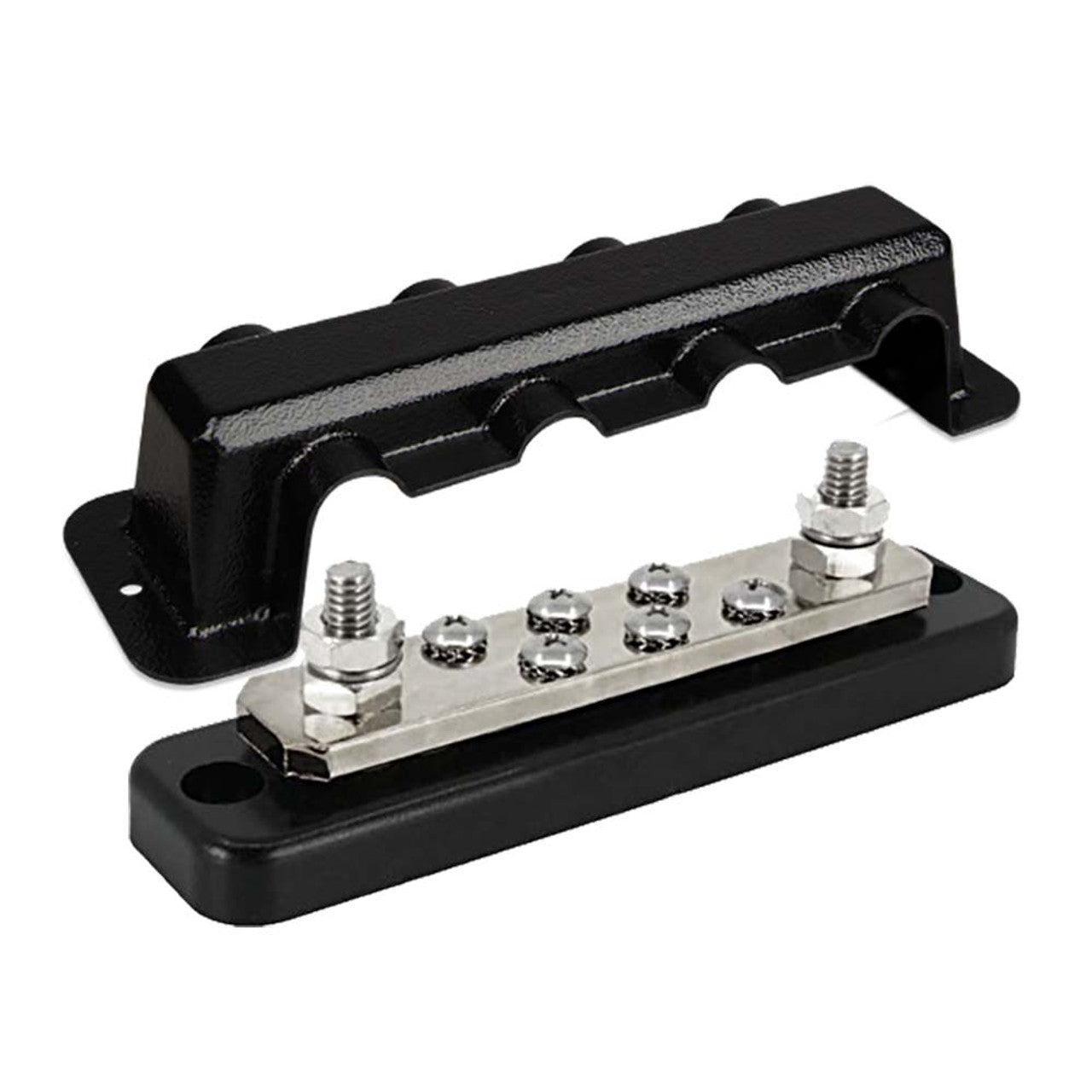

Victron Busbar 250A 2P with 6/12 Screws Description:
Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.
We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.
| Victron Busbar | 250A 2P with 6/12 Screws |
|---|---|
| Max. Current Rating | 250 A |
| Max. Voltage Rating | 70 VDC |
| Terminal Stud Diameter | 5/16 inch / 8 mm |
| Terminal Height | 0.67 inch / 17 mm |
| Terminal Material | Stainless Steel |
| Hex Nut Material | Tin-plated Copper |
| Recommended Torque | 110 lbf·inch / 13 N·m |
| Terminal Screws | 10-24 / 4.8 mm |
| Terminal Material | Stainless Steel |
| Busbar Strip Material | Tin-plated Copper (6.35 x 25 mm) |
| Base Material | ABS, black, UL 94 V-0 |
| Cover Material | ABS, black, UL 94 V-2 |
| Weight (6 screws) | 0.55 lb / 0.25 kg |
| Weight (12 screws) | 0.77 lb / 0.35 kg |
| Dimensions (hxwxd) (without cover, 6 screws) | 1.6 x 6 x 1.5 inch (42 x 153 x 38 mm) |
| Dimensions (hxwxd) (without cover, 12 screws) | 1.6 x 7.9 x 1.5 inch (41 x 201 x 38 mm) |
| Dimensions (hxwxd) (with cover, 6 screws) | 1.9 x 9.4 x 2.8 inch (65 x 216 x 86 mm) |
| Dimensions (hxwxd) (with cover, 12 screws) | 1.9 x 9.4 x 2.8 inch (48 x 237 x 70 mm) |
