By Victron

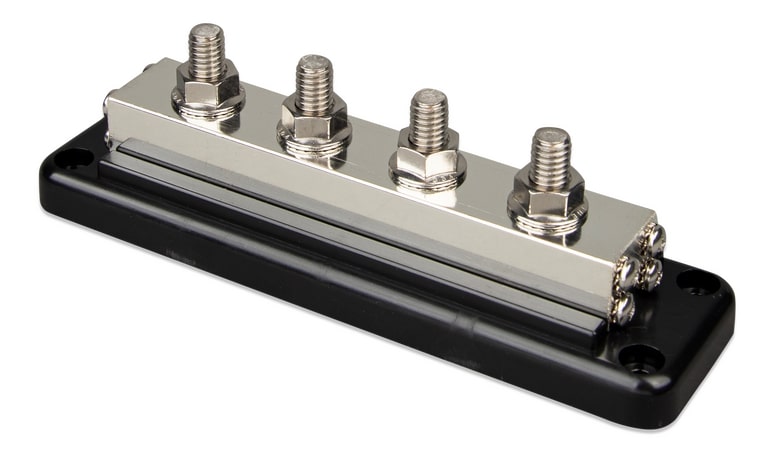

Victron Busbar 600A
$223.00 CAD - $345.00 CAD
Shipping calculated at checkout.
Regular price
$223.00 CAD
Regular price
Sale price
$223.00 CAD
Unit price
per
Couldn't load pickup availability
Have a question?
Talk with a technical expert.
Regular price
$223.00 CAD
Regular price
Sale price
$223.00 CAD
Victron Busbar 600A Description:
Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.
We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.
| Victron Busbar | 600A |
|---|---|
| Max. Current | 600 A |
| Max. Voltage | 70 VDC |
| Terminal Diameter | 3/8 inch / 9.53 mm |
| Terminal Height | 0.76 inch / 19 mm |
| Terminal Material | Stainless Steel |
| Flange Nut Material | Stainless Steel |
| Recommended Torque | 180 lbf·inch / 20 N·m |
| Screw Terminals Diameter | #8 (0.164 inch) / 4.2 mm |
| Screw Material | Stainless Steel |
| Recommended Torque (Screw Terminals) | 17 lbf-inch / 2 N·m |
| Busbar Material | Tin-plated Copper (19 x 24 mm) |
| Base Material | ABS, black, UL 94 V-0 |
| Cover Material | ABS, black, UL 94 V-2 |
| Weight, 4 Terminals | 1.7 lb / 0.75 kg |
| Dimensions (hxwxd) (with cover, 4 terminals) | 2.6 x 8.5 x 3.4 inch (65 x 216 x 86 mm) |

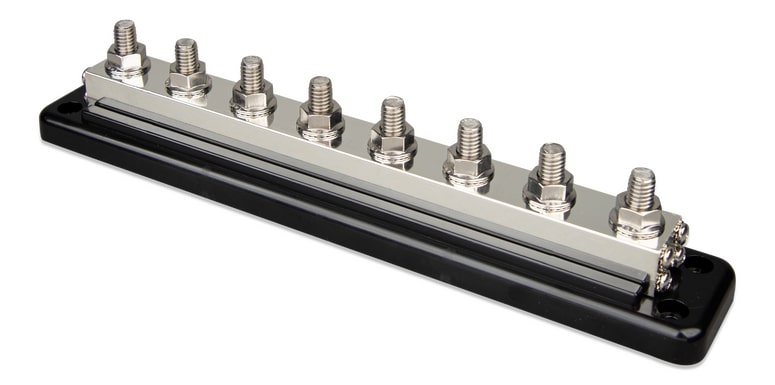

| Weight, 8 Terminals | 2.9 lb / 1.3 kg |
| Dimensions (hxwxd) (with cover, 8 terminals) | 2.6 x 12.9 x 3.4 inch (65 x 327 x 86 mm) |
