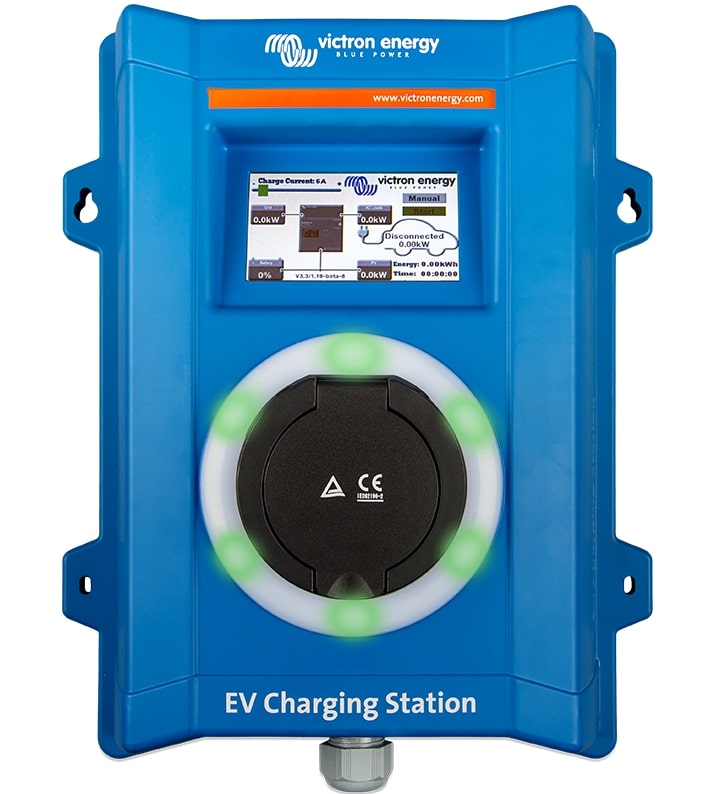

Victron EV Charging Station Description:
The EV Charging Station has three-phase and single-phase capabilities. It delivers a maximum of 22kW AC in three-phase or 7.3kW in single-phase mode.
It has a built-in LCD touch screen for monitoring and control directly from the charging station. Initial setup, configuration and monitoring is done from VictronConnect via Bluetooth and/or the integrated web interface via a WiFi Access Point or a WiFi LAN.
The EV Charging Station can be fully integrated with and remotely controlled via a Victron Energy GX Device and VRM.
Not only does this EV Charging Station fully integrate with a Victron Energy GX device and VRM, if you have solar (within the Victron ecosystem), it can also be set up to allow excess energy from the sun to directly charge your vehicle. Manual and scheduled modes offer even more flexibility to respond to the needs of the EV depending on the system.
It has a fully programmable RGB light ring around the charging port that displays different light effects depending on the current status (disconnected, charging, charged, etc.) to quickly determine the device status.
| Parameter | EV Charging Station EVC300400300 |
|---|---|
| INPUT | |
| Input voltage range (V AC) | 170 – 265 VAC |
| Rated charge current | 32 A / phase |
| Nominal power | 22 kW |
| Current output range | 6 – 32 A |
| WiFi standards | 802.11 b/g/n (2.4 GHz only) |
| Self-consumption | 15 mA @ 230 V |
| Configurable Max. Current | 10-32 A |
| Connector type | IEC 62196 Type 2 |
| GENERAL | |
| Means to Disconnect | External circuit breaker (40 A recommended) |
| Configurable price/kWh calculator (€) | Default setting: 0.13 (adjustable) |
| Control type | Touch Screen, Web page, GX Device over Modbus TCP, VictronConnect via Bluetooth |
| Light Ring | 55 configurable light effects available |
| Protection | External RCD is required |
| Operating temperature | -25 °C to +50 °C |
| Storage temperature | -40 °C to +80 °C |
| Humidity | 95 %, non-condensing |
| Data communication | Modbus TCP over WiFi, Bluetooth |
| ENCLOSURE | |
| Enclosure colour | Blue (RAL 5012) |
| Power terminals | 6-10 mm² / AWG 10-8 |
| Protection category | IP44 |
| Ventilation | Not required |
| Weight | 3 kg |
| Dimensions (h x w x d) | 377 x 307 x 148 mm |
