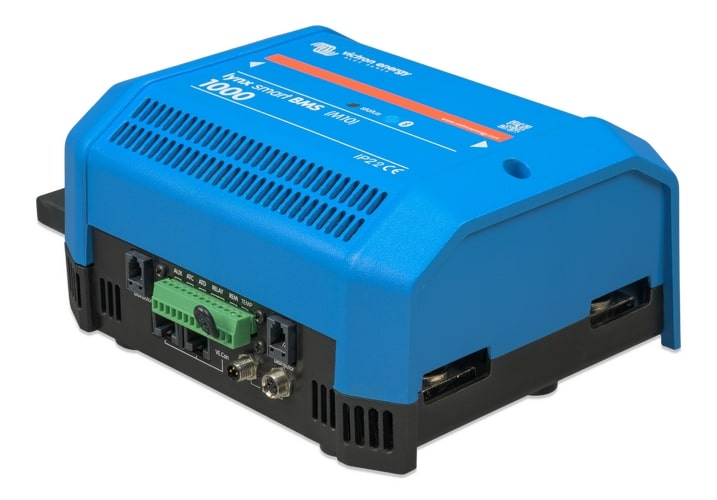

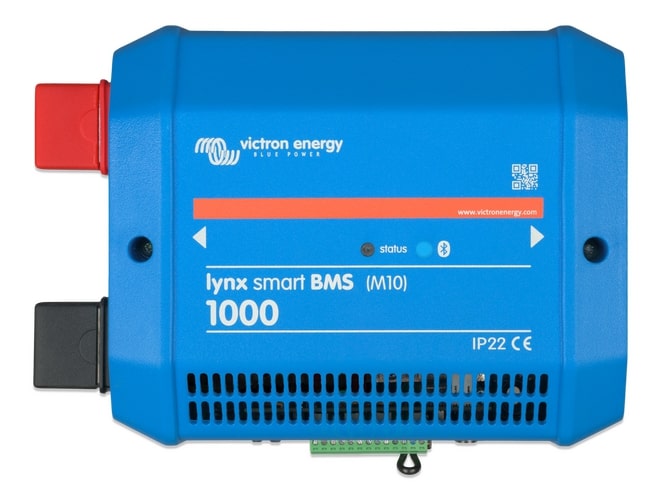

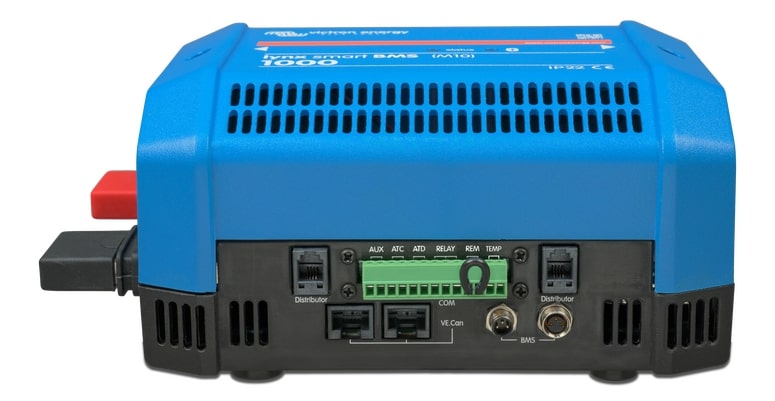

Victron Lynx Smart BMS 1000 A Description:
The Lynx Smart BMS is a dedicated Battery Management System for Victron Lithium Smart Batteries. There are multiple BMS-es available for our Smart Lithium series of batteries, and the Lynx Smart is the most feature rich and complete option. It is available in two versions: 500A and 1000A (both with M10 busbar connections).
| Victron Lynx Smart BMS 500 A | 1000 A |
| Maximum input voltage | 75 VDC |
| Battery voltage range | 9 - 60 Vdc |
| Supported system voltages | 12, 24 or 48V |
| Reverse polarity protection | No |
| Main safety contactor continuous current rating | 1000 A continuous |
| Main safety contactor peak current rating | 1200 A for 5 minutes |
| Power consumption OFF mode | 0.3 mA for all system voltages |
| Power consumption in Standby mode | Approximately 0.6 W (50 mA at 12 V) |
| Power consumption in ON mode | Approximately 4.2 W (350 mA at 12 V) depending on the state of the relays |
| Minimum load resistance for pre-charging | 10 Ω and above for 12 V systems 20 Ω and above for 24 V and 48 V systems |
| AUX output maximum current rating | 1.1 A continuous, protected by resettable fuse |
| Allow-to-charge port Maximum current rating |
0.5 A at 60 VDC, protected by resettable fuse |
| Allow-to-discharge port Maximum current rating |
0.5 A at 60VDC, protected by resettable fuse |
| Alarm relay (SPDT) Maximum current rating |
2 A at 60 VDC |
