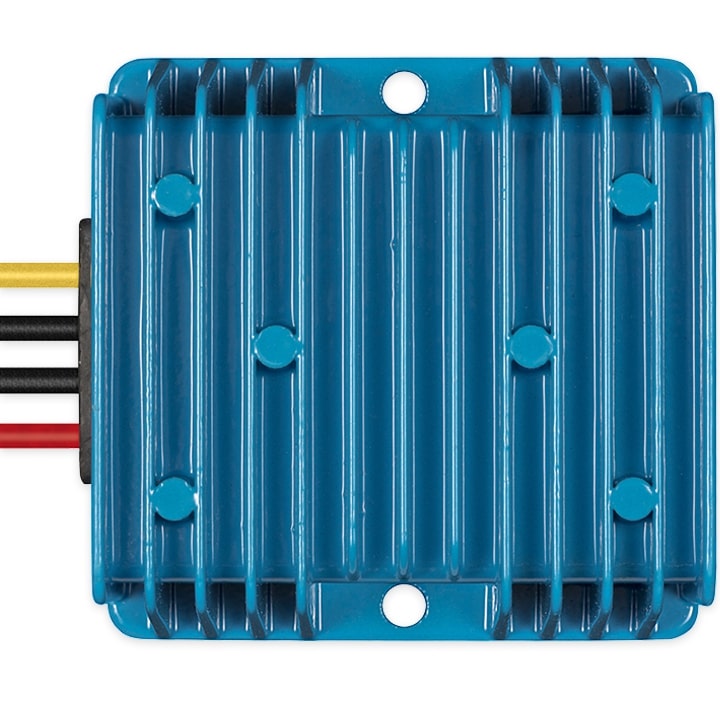

Victron Orion IP67 24/12 and 12/24 DC-DC Converters Description:
Completely encapsulated: waterproof, shockproof and ignition protected
Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin.

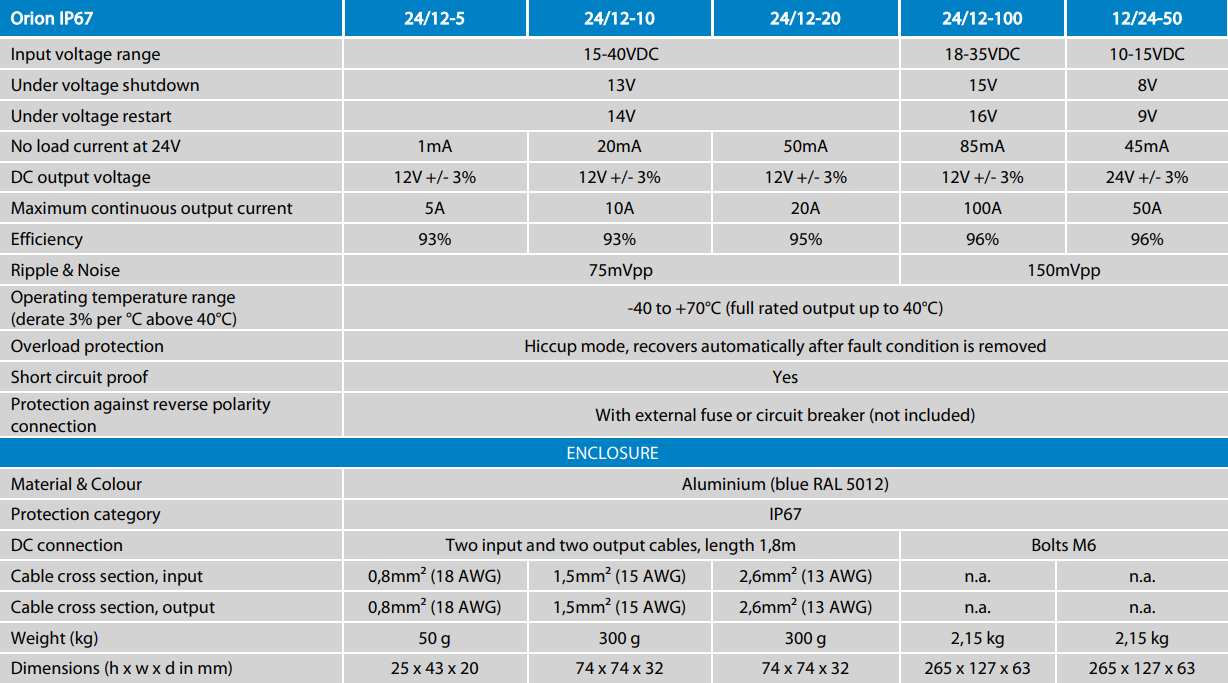

| Parameter | Isolated Converters Orion 110 Volt |
|---|---|
| Power rating (W) | 360 |
| Galvanic isolation | Yes |
| Temperature increase after 30 minutes at full load (°C) | 30 |
| Fan assisted cooling (temp. controlled) | Yes |
| Weight kg (lbs) | 1.4 (3.1) |
| Dimensions (hxwxd) mm | 82 x 132 x 190 |
| Dimensions (hxwxd) inches | 3.2 x 5.2 x 7.5 |
| Input voltage | 110V (60 – 140V) |
| Output voltage | 12.5V or 24V |
Victron Orion IP67 24/12 and 12/24 DC-DC Converters
