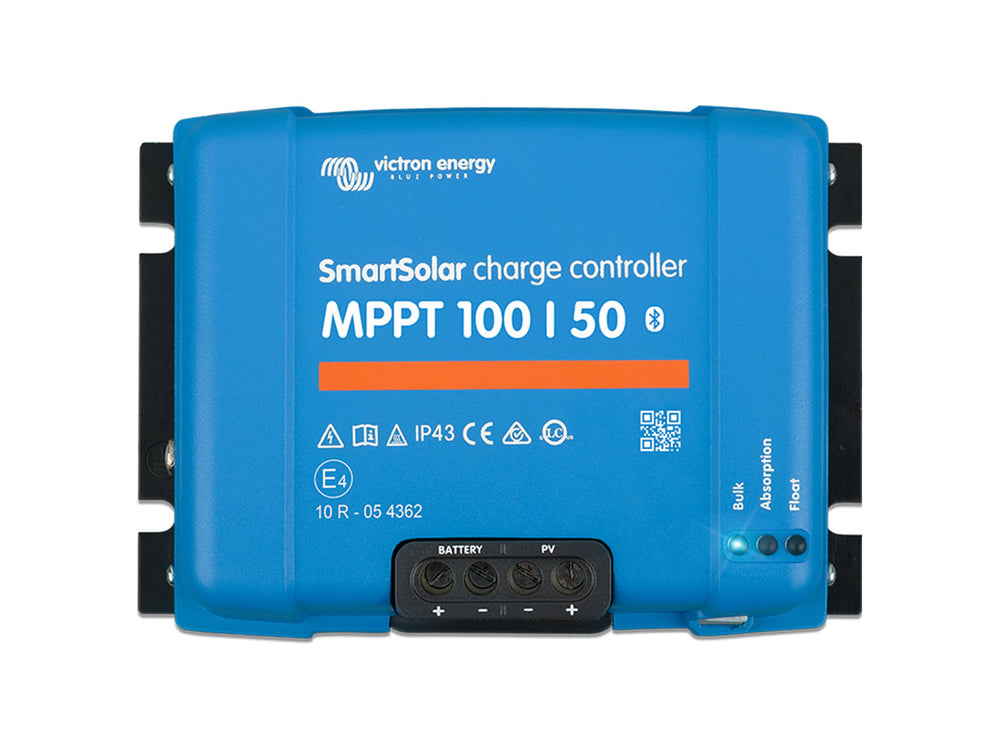

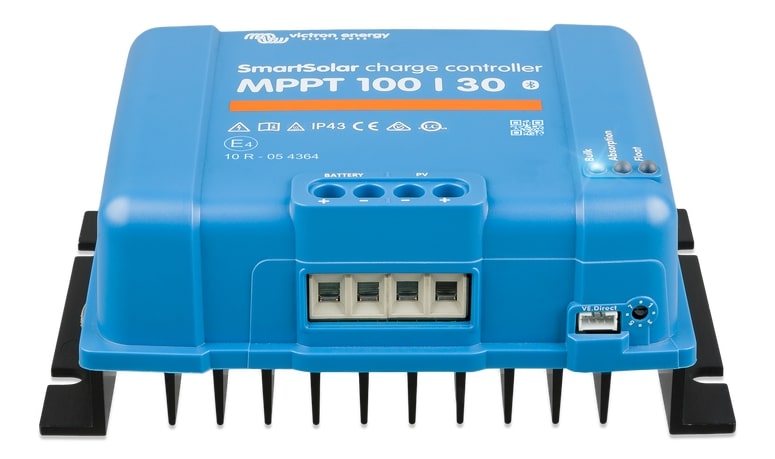

Victron SmartSolar MPPT 100/30 & 100/50 Solar Charge Controller

Sale
Regular price $219

Model

Quantity

Secure payments

100% Guarantee

Client satisfaction

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

Have a question?

Talk with a technical expert.

✆ Call Us

Solar charge controller Victron SmartSolar MPPT 100/30 & 100/50 Description:

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

MPPT: Ultra Fast Maximum Power Point Tracking

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring and Control

Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.

Specification:

SmartSolar Charge Controller	MPPT 100/30	MPPT 100/50
Battery voltage	12/24 V Auto Select	12/24 V Auto Select
Rated charge current	30 A	50 A
Nominal PV power, 12V	440 W	700 W
Nominal PV power, 24V	880 W	1400 W
Maximum PV open circuit voltage	100 V	100 V
Max. PV short circuit current	35 A	60 A
Maximum efficiency	98%	98%
Self-consumption	12 V: 30 mA 24 V: 20 mA
Charge voltage 'absorption'	Default setting: 14.4 V / 28.8 V (adustable)
Charge voltage 'float'	Default setting: 13.8 V / 27.6 V (adjustable)
Charge algorithm	multi-stage adaptive
Temperature compensation	-16 mV / °C resp. -32 mV / °C
Protection	PV reverse polarity, Output short circuit, Over temperature
Operating temperature	-30 to +60 °C (full rated output up to 40 °C)
Humidity	95%, non-condensing
Data communication port	VE.Direct (See the data communication white paper on our website)
ENCLOSURE
Colour	Blue (RAL 5012)
Power terminals	16 mm² / AWG6
Protection category	IP43 (electronic components), IP22 (connection area)
Weight	1.3 kg
Dimensions (h x w x d)	130 x 186 x 70 mm
STANDARDS
Safety	EN/IEC 62109-1, UL 1741, CSA C22.2
STORED TRENDS
Stored trends	Battery voltage, current, and temperature, as well as load output current, PV voltage and PV current
Number of days trends data is stored	46
1a) If more PV power is connected, the controller will limit input power. 1b) The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V. 2) A PV array with a higher short circuit current may damage the controller

We feature a wide range of both MPPT and PWM solar charge controllers. See the BlueSolar and SmartSolar Charge Controller MPPT - Overview. In our MPPT model names, for example MPPT 75/50, the first number is the maximum PV open circuit voltage. The second number, 50, is the maximum charge current. Use our MPPT Excel sheet or our Online MPPT Calculator for PV sizing calculations.
For more information about PWM or MPPT charge controllers, read our whitepaper: which solar charge controller: PWM or MPPT?

Bluetooth Smart built-in

The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.

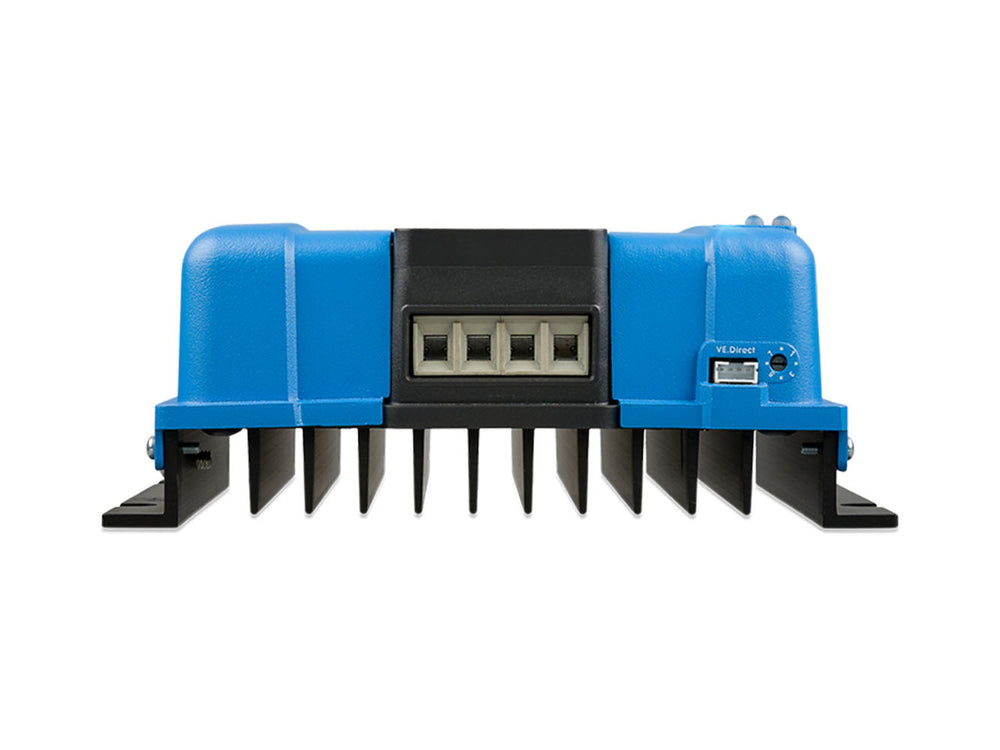

VE.Direct

For a wired data connection to a Color Control GX, other GX products, PC or other devices

Ultrafast Maximum Power Point Tracking (MPPT)

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30 % compared to PWM charge controllers and by up to 10 % compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions

If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP.
The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency

No cooling fan. Maximum efficiency exceeds 98 %. The full output current up to 40 °C (104 °F).

Flexible charge algorithm

Fully programmable charge algorithm (see the software page on our website), and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection

Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection.
PV reverse current protection.

Internal temperature sensor

Compensates absorption and float charge voltage for temperature.

Optional external battery voltage and temperature sensing via Bluetooth

A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.

Fully discharged battery recovery function

Will initiate charging even if the battery has been discharged to zero volts.
Will reconnect to a fully discharged Li-ion battery with integrated disconnect function.
