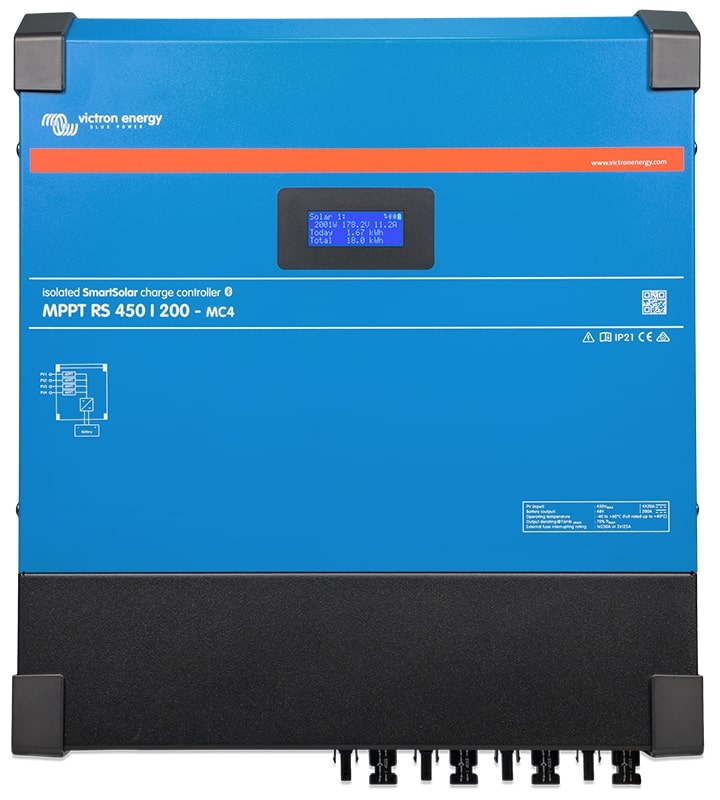

Victron SmartSolar MPPT RS 450/100 & 450/200 Charge Controller

By Victron
4.8 15 REVIEWS
Model: MPPT RS 450/100
$1,525.00 CAD
$1,525.00 CAD
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
SECURE PAYMENTS
READY TO PICK UP IN 24H
SHIPS IN 1-3 DAYS
5 YEARS WARRANTY

Short Description:

The SmartSolar MPPT RS solar charge controllers are Victron's solution for systems with large series connected PV arrays charging 48 V DC battery banks. This product is perfect for large off-grid, and grid connected battery systems.

Have a question?Talk with a technical expert.
Call Us
Victron SmartSolar MPPT RS
$1,525.00 CAD
$1,525.00 CAD

The SmartSolar MPPT RS solar charge controllers are Victron's solution for systems with large series connected PV arrays charging 48 V DC battery banks. This product is perfect for large off-grid, and grid connected battery systems.

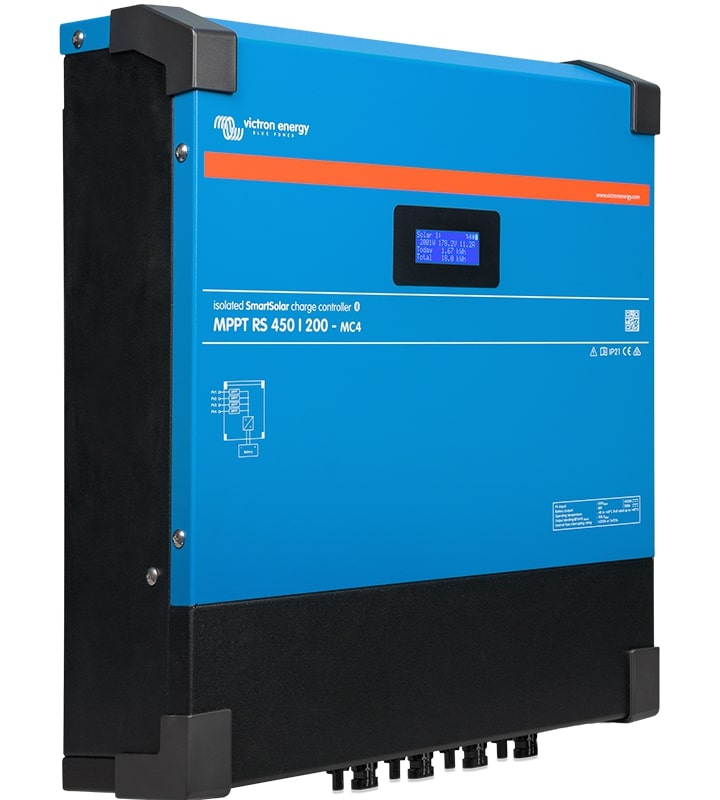

Available in a 5.76kW and 11.52kW model, features include a wide 65-450 VDC operating solar voltage input, independent tracking inputs, full connectivity, isolated PV connections, display screen, fully programmable battery charging parameters and active cooling. The new metal case design and fully covered electrical connections improve the safety and modernise the presentation in line with the latest suite of Victron products.

MPPT: Ultra Fast Maximum Power Point Tracking

The SmartSolar RS solar charge controller connects to a PV array of between 65 and 450 Volt Voc and will efficiently charge your 48V battery bank with either 100A or 200A.
The charge settings are fully programmable and can be set up for different battery chemistries, like lead-acid, lithium and more.

Setup and monitor with VictronConnect

The SmartSolar RS charge controller can be remotely controlled and configured over Bluetooth via the VictronConnect app. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, historical data and trends.

Daisy Chain Additional Units

The SmartSolar RS charge controller is equipped with VE.Can bus ports. This allows for communication with additional SmartSolar RS & VE.Can MPPT units. The additional units are simply “daisy chained” to each other with an RJ45 cable.
When connected to each other, all individual charge controllers, will synchronise their charge stages. They can also send their data, via the same cable, for monitoring to a GX device (such as the Cerbo GX).

Remote Monitoring and Control

If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your SmartSolar RS charge controllers.
If your installation is connected to a GX device and the internet, Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; for free.

For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the  GlobalLink 520.

SmartSolar Display

The SmartSolar RS charge controller is equipped with a display on the front panel. The display reads battery volts, charge current and voltages from both array’s individually including instantaneous and total figures and unit status including any possible error codes.

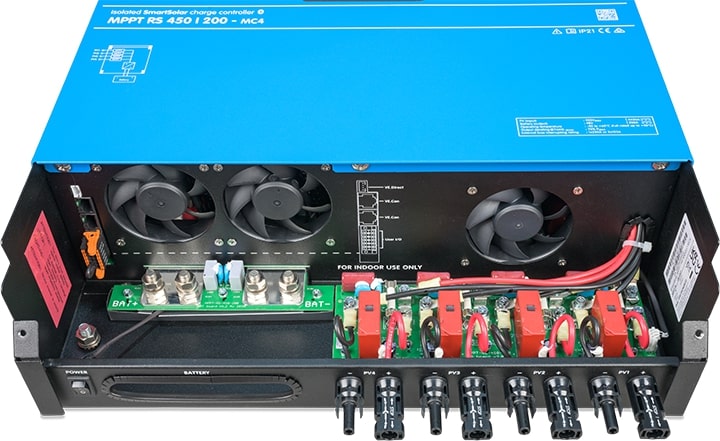

I/O Connections

The SmartSolar RS charge controller is equipped with a programmable relay and options for remote temperature and voltage sensing. The remote input can accept the Victron smallBMS and other types of BMS with allow-to-charge signals.



Feature 450|100 450|200
Battery voltage 48 V
Rated charge current 100 A 200 A
Maximum charge power 5.8 kW at 57.6 V 11.5 kW at 57.6 V
Charge voltage 'absorption' 57.6 V (adjustable)
Charge voltage 'float' 55.2 V (adjustable)
Programmable voltage range 36 V - 60 V
Charge algorithm Multi-stage adaptive (adjustable)
Battery temperature sensor Included
Maximum efficiency 96%
Self-consumption 15 mA
Maximum DC PV voltage 450 V
Start-up voltage 120 V
MPPT operating voltage range 65 – 450 V
Number of trackers 2 4
Max. PV operational input current 16 A per tracker
Max. PV short circuit current 20 A per tracker
Max. DC output charging power 4000 W per tracker, 5760 W total 4000 W per tracker, 11520 W total
Maximum PV array size per tracker 7200 Wp (450 V x 20 A)
PV Isolation fail level 100 kΩ
Synchronised Parallel Operation Yes, up to 25 units with VE.Can
Programmable relay Yes
Protection PV reverse polarity, Output short circuit, Over temperature
Data communication VE.Direct port, VE.Can port & Bluetooth
Bluetooth frequency 2402 – 2480 MHz
Bluetooth power 4 dBm
General purpose analogue/digital in port Yes, 2x
Remote on-off Yes
Operating temperature range -40 to +60 °C (fan assisted cooling)
Humidity (non-condensing) max 95%

Ultra-fast Maximum Power Point Tracking (MPPT) Solar Charge Controller
The MPPT RS SmartSolar is a 48 V Solar charge controller with up to 450 VDC PV input and either 100 A, or 200 A output. It is used in on-grid and off-grid solar applications where maximum battery charging power is required.

Multiple independent MPPT tracking inputs
With multiple MPPT trackers, you can optimize your solar panel design for maximum performance for your
specific location.

Isolated PV connections for additional safety
Full galvanic isolation between PV and battery connections provide additional overall system safety.

Display and Bluetooth
The display reads battery, and controller parameters.
The parameters can be accessed with a smartphone or other Bluetooth enabled device. In addition, Bluetooth can be used to set up the system and to change settings with VictronConnect.
