Marine Energy Management Systems

Diagram of an ePropulsion eCore energy system on a catamaran, linking solar panels, batteries and twin electric motors

Announced September 2026 · Concept

ePropulsion eCore Energy Management

ePropulsion eCore is an energy management system for 96 V electric and hybrid boats. The eCore 96VDC combines a charger, inverter, solar MPPT and 12, 24 and 48 V outputs, and the optional eCore AC module adds shore power, generator input and house loads. It's built for 10.7 to 15.2 m (35 to 50 ft) sailboats and catamarans and was shown in September 2026 as a concept.

Request a Quote
  • Largest ePropulsion Dealer in Ontario

    First in the province

  • ABYC-Certified Installation

    Factory-certified technicians

  • Authorized ePropulsion Service

    One of seven electric brands we service

  • 96 V eSSA Installed

    ePropulsion I-10 in a Catalina 30

Skip to product grid

2 products

ℹ️

Concept Product, Priced on Request

eCore isn't in production yet, and ePropulsion says its specifications may change before final production. No Canadian price or delivery date has been published. Send us your boat details and we'll reply with what's confirmed for your boat. Request a Quote →

eCore by the Numbers


Manufacturer reference figures for the concept units. ePropulsion says they may change before production.

  • 5 kW

    Charger-inverter

    Bidirectional AC to DC stage in the 96VDC, 80 to 265 VAC input.

  • 2 kW

    Solar MPPT

    Built into the 96VDC, with ports for more.

  • 3 x 1.2 kW

    DC outputs

    12, 24 and 48 V circuits from the 96 V bank.

  • 20 kW

    Motor power

    Maximum for the 96VDC; matches the 10, 12 and 20 kW eSSA motors on paper.

  • 20 kW

    Shore and generator

    Automatic transfer in the eCore AC module.

Which System for Which Boat

Victron system. A 12, 24 or 48 V house bank, any make of motor, parts in stock, installed at our Scarborough shop.

ePropulsion eCore. A 96 V ePropulsion eSSA drive up to 20 kW on a 10.7 to 15.2 m (35 to 50 ft) sailboat or catamaran; concept, priced on request.

Before You Plan a Boat Around eCore

eCore isn't in production yet. ePropulsion calls it a concept demonstration and says specifications and features may change before final production, so every figure on this page is a reference value from the manufacturer's September 2026 launch material. No Canadian price or delivery date has been published.

It also works only inside ePropulsion's 96 V system. The eCore 96VDC specification lists 20 kW as its maximum motor power, which on paper matches the 10, 12 and 20 kW models in ePropulsion's 96 V range. ePropulsion hasn't said how the 40 kW X40 and I-40 fit, and 48 V motors such as the Navy Evo series sit outside eCore altogether.

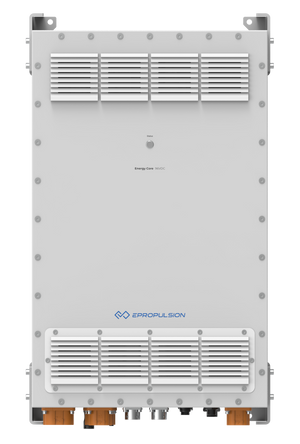

What the eCore 96VDC Does

The 96VDC is the main unit. It sits between the 96 V battery bank, the motor and everything else on board, and in one 700 x 456 x 336 mm case it does the jobs a conventional installation spreads across five or six separate boxes.

Job on board Usual separate component In eCore
Charging from shore power Shore charger or inverter charger Bidirectional AC to DC stage, 5 kW max, 80 to 265 VAC input (96VDC)
Running AC equipment from the battery Inverter or inverter charger The same 5 kW stage (96VDC); larger house loads through eCore AC
Solar charging MPPT charge controller Built in MPPT, 2 kW max (96VDC)
12, 24 and 48 V equipment DC to DC converters Three DC outputs, 1.2 kW each (96VDC)
Shore power and generator switching Automatic transfer switch 20 kW input with automatic transfer (eCore AC)
Monitoring and control Battery monitor, display, gateway 10 inch Smart Display, ePropulsion app, NMEA 2000 output (eCore AC)

The 80 to 265 VAC input takes both 120 V and 240 V shore service. A standard 30 A, 120 V marina pedestal supplies up to 3.6 kW, which is below the 5 kW rating of the AC to DC stage. Expansion ports on the unit accept extra MPPT, AC load and DC load modules if the boat outgrows the base configuration.

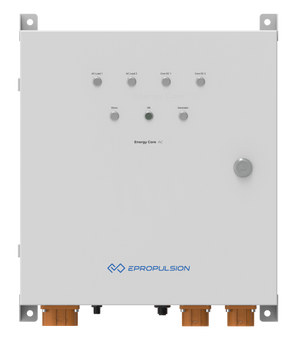

What the eCore AC Module Adds

eCore AC is optional and connects to the 96VDC; it can't run on its own. It takes shore power and generator input with automatic transfer switching, supplies the boat's AC house loads and sends system data out over NMEA 2000. ePropulsion rates it at 20 kW for shore and generator input and 20 kW of house load, as two 10 kW circuits or one 20 kW circuit, in a 450 x 377 x 430 mm case.

ePropulsion's intended order is DC first: a builder fits the 96VDC for the essential loads and adds eCore AC when the boat needs heavier AC equipment for cooking and keeping the cabin comfortable at anchor.

How eCore Fits an ePropulsion eSSA System

eSSA is ePropulsion's Smart System Architecture, the control layer behind its 96 V motors: the X Series outboards, the I-Series inboards and the Pod Drive eSSA. An ECU at the centre links the motor, the G-Series batteries such as the G102-230, the throttle, the display and the ePropulsion app. eCore carries that network past propulsion to the rest of the boat's power, so solar, shore power, a generator, the propulsion bank and the house loads answer to one controller and show on one screen.

The same design sets its main limit. eCore communicates inside eSSA, and ePropulsion hasn't published any link to Victron's GX and VE.Bus equipment, the platform our current marine battery systems are built on. For chart plotters, ePropulsion lists Raymarine, Garmin and Simrad/B&G displays.

eCore or a Separate Victron System

The marine power systems we design and install today are built from separate Victron components: charger, inverter, MPPT controller and battery monitor, usually around a 12, 24 or 48 V house bank that stays independent of the motor. That approach works with any motor and any Victron-compatible battery, and every part is on the shelf now. eCore makes sense when the boat is already built around a 96 V ePropulsion drive and the owner wants propulsion and house power managed as one system. Our marine battery systems page puts the two approaches side by side.

Which System for Which Boat

  • Victron system. A 12, 24 or 48 V house bank, any make of motor, parts in stock, installed at our Scarborough shop.
  • ePropulsion eCore. A 96 V ePropulsion eSSA drive up to 20 kW on a 10.7 to 15.2 m (35 to 50 ft) sailboat or catamaran; concept, priced on request.

Which Boats eCore Is Built For

ePropulsion names catamarans and cruising sailboats of 10.7 to 15.2 m (35 to 50 ft), running fully electric or hybrid with a generator. On Lake Ontario or Georgian Bay that's the boat that spends nights at anchor and wants to cook and keep the cabin comfortable on battery power, with the generator as a backup.

Smaller boats sit below that range. Our team installed an ePropulsion I-10 in a Catalina 30, a 9.1 m (30 ft) sailboat on the same 96 V eSSA platform, and a boat that size is better served today by a separate charger and MPPT controller sized to its bank.

How to Get eCore Pricing

ePropulsion hasn't published pricing. Send us the boat's length and type, the motor it runs now and what you want to power on board, and we'll come back with what's confirmed about eCore for that boat, plus a Victron-based system you could install this season. M-Oceans is the largest ePropulsion dealer in Ontario, with ABYC-certified installation and factory-certified technicians at our Scarborough shop.

Request a Quote →

Frequently Asked Questions

What is ePropulsion eCore?

ePropulsion eCore is an energy management system for 96 V electric and hybrid boats. The eCore 96VDC unit combines a 5 kW bidirectional charger-inverter, a 2 kW solar MPPT and three 12, 24 and 48 V outputs, and the optional eCore AC module adds 20 kW shore power and generator switching plus house-load circuits. Both work inside ePropulsion's eSSA system with its 96 V motors and G-Series batteries.

Can I buy eCore in Canada, and what does it cost?

Not yet. ePropulsion unveiled eCore at the Cannes Yachting Festival in September 2026 as a concept demonstration and says its specifications may change before production. No North American price or delivery date has been published. M-Oceans, the largest ePropulsion dealer in Ontario, lists both units for quote requests and will share pricing and lead times once ePropulsion confirms them for Canada.

Which ePropulsion motors work with eCore?

eCore is built for ePropulsion's 96 V eSSA platform: the X Series outboards, I-Series inboards and Pod Drive eSSA. The eCore 96VDC specification lists 20 kW as its maximum motor power, which matches the 10, 12 and 20 kW models on paper. ePropulsion hasn't said how the 40 kW X40 and I-40 fit, and 48 V motors such as the Navy Evo series sit outside eCore.

Does eCore work with Victron equipment?

ePropulsion hasn't published any Victron integration for eCore. The two use different control networks: eCore runs inside ePropulsion's eSSA architecture, while a Victron installation links its charger, inverter, MPPT controller and battery monitor through VE.Bus, VE.Direct and a GX device. For a 12, 24 or 48 V house bank with any make of motor, a Victron system is the option you can install today.

What size boat is eCore designed for?

ePropulsion's configurations cover sailboats from 10.7 to 15.2 m (35 to 50 ft) and catamarans, running fully electric or hybrid with a generator. The eCore 96VDC measures 700 x 456 x 336 mm and the eCore AC module 450 x 377 x 430 mm. Boats below that range, such as a 9.1 m (30 ft) Catalina, sit outside ePropulsion's stated sizing for eCore.
