Aquamot Charger HFM 48V/20A
Pickup availability unavailable
Short Description:
Aquamot Charger HFM 48V/20AA Description:

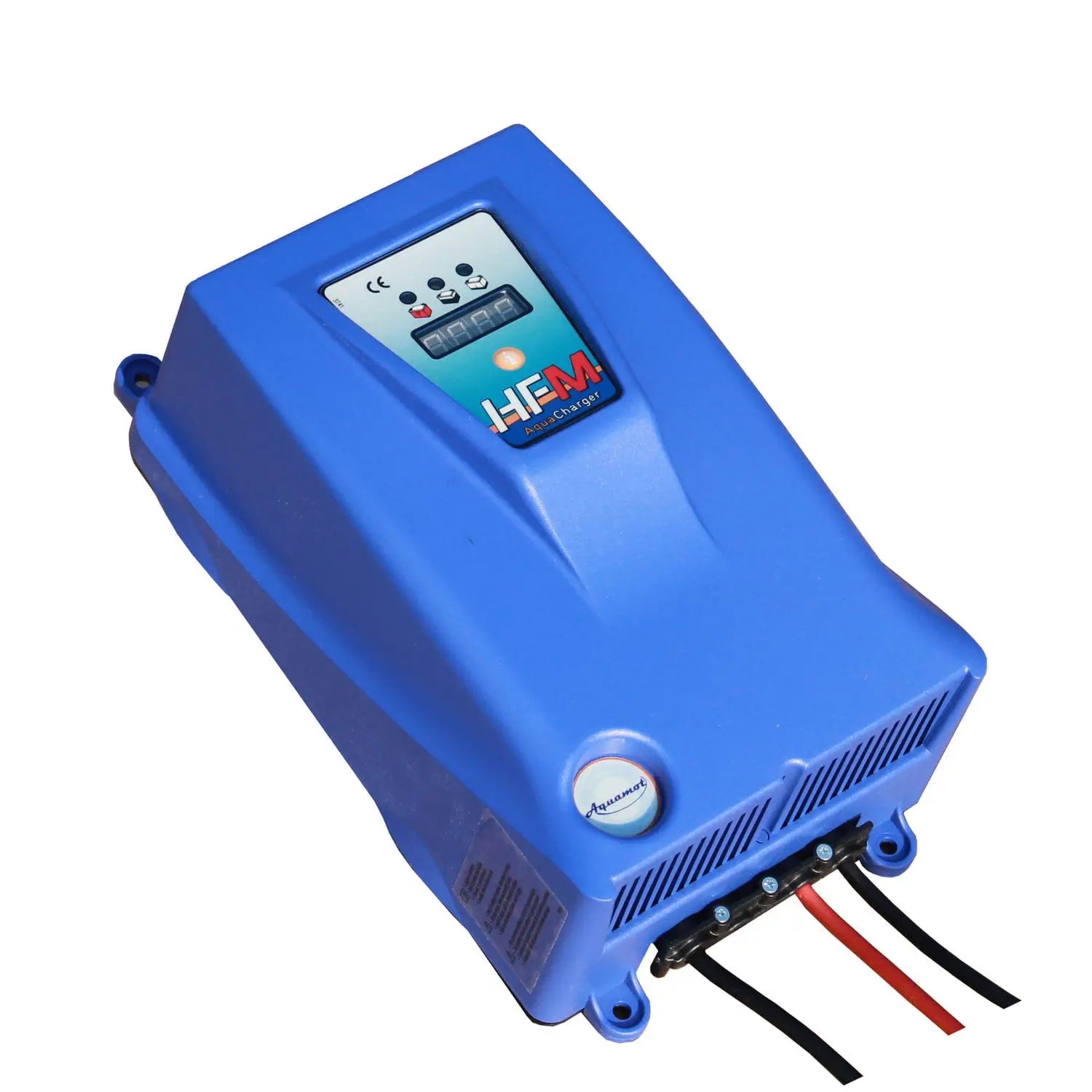

Charger from Aquamot, which is suitable for lead-acid batteries. It can charge batteries with a voltage of 48 volts with a maximum charging power of 1000 watts.
ULTIMATE HIGH-FREQUENCY TECHNOLOGY: The batteries will be charged very efficiency and sparing through the using of the latest high-frequency charging technology. Therefore, the lifetime of the batteries will increase during the energy costs will be reduced.
INTEGRATED DISPLAY FOR SHOWING THE CHARGING STATUS: The integrated LCD display provide you detailed information for the current charging status. It shows the effective voltage [V], current [A], charged capacity [Ah] and the time of charging [h]. It is also shown error code on this display. Therefore, this charger is an uncomplex partner onboard.
HEAT-RESISTANT ABS-HOUSING: Safety is the prime principle at Aquamot. Therefore, our engineers decided to produce the housing of the HFM-series chargers at the same material as the batteries. The plastic ABS is very light and extremely heat-resistant which can be very safety-relevant.
ADDITIONAL LED-SPOTS FOR THE CHARGING-STATUS: Furthermore 3 integrated LED-spots (green, yellow, red) provide you information regarding the charging status.
EXTRA INTEGRATED RELAY: This relay can be used for example at an moving off-protection. Consequently, this an extra safety feature of the Aquamot HFM charger.
IN- & OUTPUT CABLE: Both cables are included in the standard equipment and are 1.5m long. The plug of the input cable is a SCHUKO-plug.
Aquamot Charger
|
Model |
HFM 36V/25A |
|
Type |
48V |
|
Current |
20 A |
|
Dimensions (mm) |
310x190x130 |
|
Weight |
2,6 kg |
|
Suitable for |
SILICONE, AGM, Gel & lead-acid batteries; adjustable with DIP-switches |
|
Suitable up to |
260Ah |
