Battery Monitor Victron BMV-700H Description:
The BMV-700H and the BMV-710H Smart are high precision battery monitors that have been specially designed for systems with a high battery voltage ranging from 60 to 385 Volts.
These battery monitors calculate the state of charge of a battery and keep track of the ampere hours consumed from the battery by integrating the current flowing in or out of the battery.

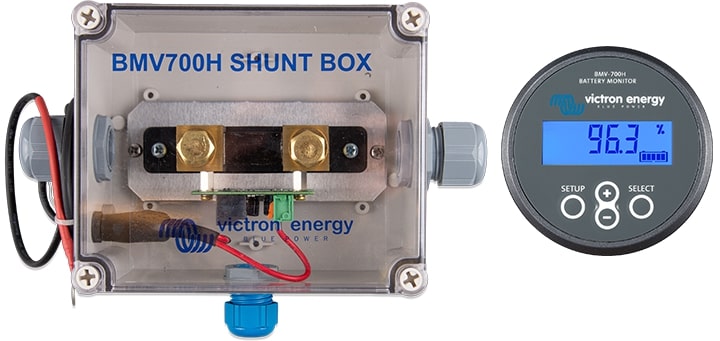

They both come with a round head unit, a square bezel overlay, a screw ring for mounting, a 10m UTP RJ12 cable, a fused power supply cable and a 500A/50mV shunt. Because of the high voltage application, the shunt is housed in a special enclosure.
The BMV-710H Smart has Bluetooth built-in and can connect wirelessly to your phone (or tablet) via the VictronConnect App to conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.
Battery ‘fuel gauge’, time-to-go indicator, and much more
The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account. Next to the basic display options, such as voltage, current and ampere-hours consumed, the BMV-700 series also displays state of charge, time to go, and power consumption in Watts. The BMV-702 features an additional input which can be programmed to measure the voltage (of a second battery), battery temperature or midpoint voltage.
Easy to install
All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ12 cable (10m) and battery cable with fuse (2m); no other components needed.
Easy to program (with your smartphone!)
A quick install menu and a detailed setup menu with scrolling texts assist the user when going through the various settings. Alternatively, choose the fast and easy solution: download the smartphone app (Bluetooth Smart dongle needed)
