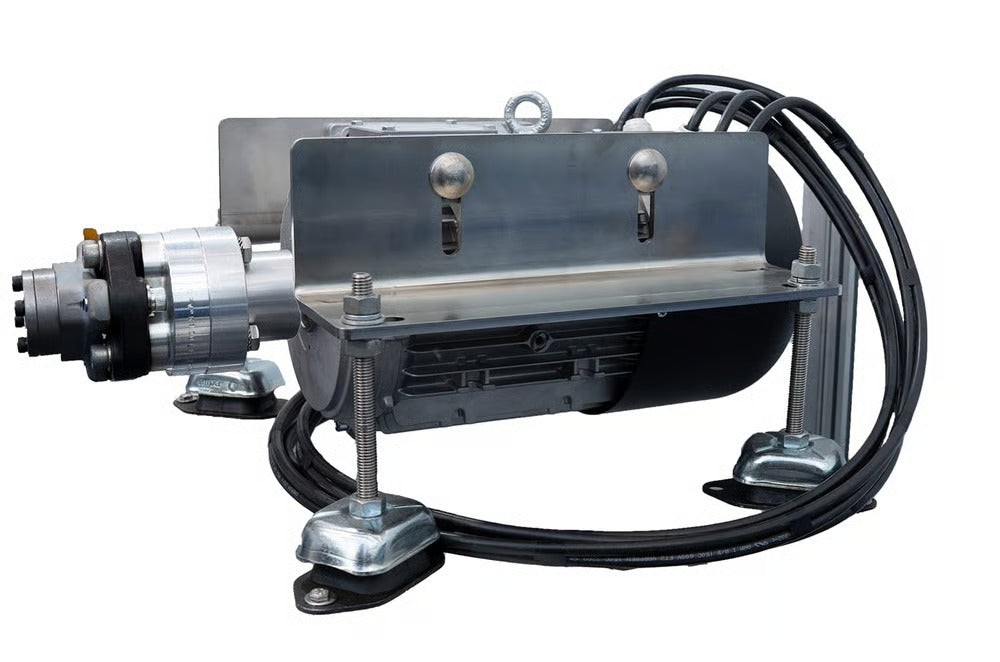

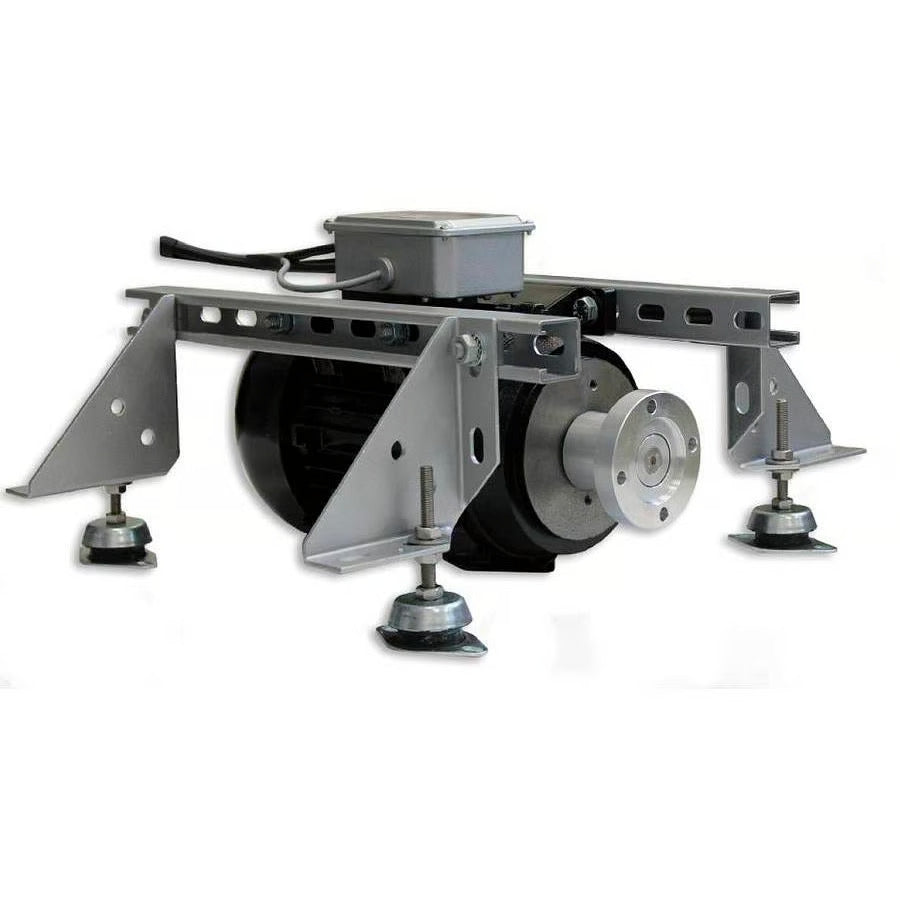

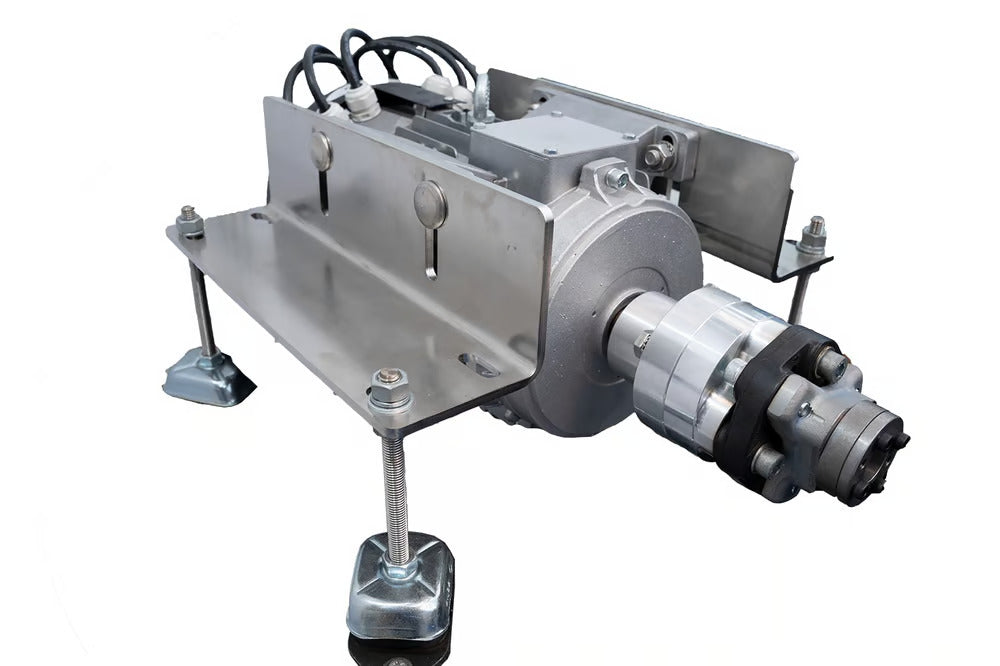

Electric Inboard Aquamot MA70 7kW (9.5hp) Description:
Electric inboard motor from Aquamot MA70 with a power of 7 kW (9.5hp) is suitable for boats up to approximately 3.5 tons displacement. The Aquamot electric motor is completely silent and 100% emission-free.
Safety thanks to electric boat motors:
- Aquamot already has many years of experience and a wide network of dealers in Germany, Austria and Switzerland.
- High robustness! The Professional Series is made of thick-walled cast aluminium with 6 layers of coating.
- Clean solution: no risk of leaking liquids such as oil.
- Durable in both salt and fresh water thanks to its seawater-resistant aluminum alloy.
- The motors have a 2-year manufacturer's warranty.
Comfort in operating your e-motor:
- The display shows the battery status and information about the motor.
- Plug & Play connectors with intelligent circuitry in a high quality aluminium housing.
- The drive lever and controller are also made of high-quality aluminium.
- Maximum smoothness thanks to slow-turning, gearless electric motors.
- A colour display for the on-board computer is available as an option.
Technical details:
- Aquamot offers many protective functions. Electronic protection against overcurrent, runaway protection, deep discharge, overvoltage, undervoltage and reverse polarity protection. Mechanical predetermined breaking point in case of grounding.
- High adaptability of the motor to any type of shaft. Optional flexible couplings for possible deviations.
- High ease of installation thanks to a 3-dimensionally adjustable suspension.
- The propeller of the Professional series is not included in the price.
- All Aquamot motors are brushless three-phase asynchronous motors. 100% maintenance free.
- Mounting feet dampen vibrations on board to a minimum.
- Unmatched overall efficiency according to the manufacturer.
- High stability thanks to a large stainless steel shaft.
Specifications:
Type |
MA70 |
Output power |
7.000W |
Input power |
7.860W |
Efficiency |
89% |
Voltage |
48VDC |
Current |
161A |
Motor type |
sensor-less AC MOTOR |
Suspension |
3-D adjustable suspension system |
Comparable Thrust |
15 PS |
Shaft Power |
7 kW |
Rotations Per Minute |
2300 rpm |
Weight |
47kg |
Shaft Type |
No shaft |
Noise Level |
Almost silent |
Display |
Battery monitor, board computer with optional color display |
Speed Control |
Stepless |
Saltwater Resistant |
Yes |
Cooling |
Air |
Propeller |
Optional |
Recuperation |
No |
Warranty |
2 years |

Electric Inboard Aquamot MA70 - 7kW (9.5hp)
