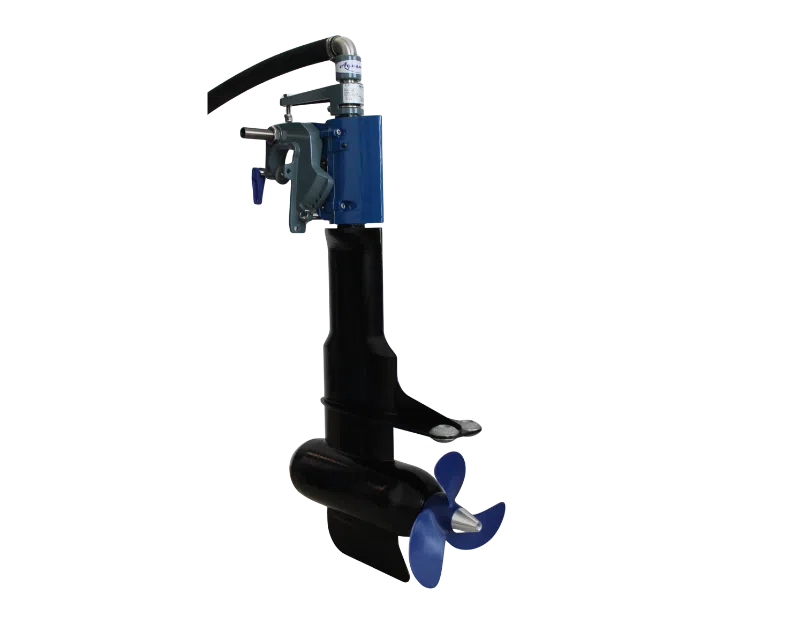

Electric Outboard Aquamot 6.0kW
Pickup availability unavailable
Short Description:
Electric Outboard Aquamot 6.0kW Description:
The entire motor range from 2.2kW (24VDC) to 6.0kW (48VDC) is made of aluminum and guarantees maximum robustness. The integrated anti-cavitation plate prevents air suction and guarantees maximum efficiency at the propeller. The standard 5″ Smart Touchscreen Display with integrated GPS shows the user all relevant lifetime data in the desired unit. The gearless and sensorless asynchronous motor ensures reliable operation. All these things give the boater a clean and state-of-the-art boating experience.
The Trend 6.0 comes with a profiled shaft design that significantly improves steering behavior. There are three shaft lengths available to suit your needs: XS, S, L. The Trend 6.0, which features remote control and an L-length shaft, has a shaft length of 75 cm.
Extremely robust construction (all necessary parts of the motor are made of water-resistant aluminum)
- The integrated anti-cavitation plate prevents the propeller from drawing air and guarantees maximum efficiency
- All underwater parts are additionally provided with a special coating, which is usually used in pipeline construction and guarantees 100% corrosion protection
- The suspension has all the necessary functions, including tilting up and down in the event of a collision with the ground
- The gearless and encoderless AC synchronous motor ensures reliable operation, even if there is water in the motor housing
- Quality - Made in Austria
Specifications:
| Input Power | 6,000W |
| Comparable Thrust | 14 HP |
| Voltage | 48 V |
| Weight (Short, Long, XL-long shaft) | 25.2 kg (L) |
The driving time naturally depends on the capacity and quality of the batteries.
Below are examples with the Aquamot Longlife Deep-Cycle batteries.
| Trend 4.3 with 4 Aquamot ALS batteries 12V/260Ah | Trend 6.0 with 4 Aquamot ALS batteries 12V/260Ah | |
|---|---|---|
| Partial load | 10 h 00 min | 6 h 00 min |
| Half load | 05 h 30 min | 02 h 35 min |
| Full load | 02 h 15 min | 01 h 20 min |
Can the battery bank be increased or decreased with the Trend 6.0?
Of course, there are many ways to increase or decrease the range. In principle, however, only traction batteries should be used, which have also been designed for higher currents over a longer period (ATTENTION: no starter batteries or semi-traction batteries). In addition, a minimum capacity of at least 110Ah is recommended. All batteries should have the same capacity in order to achieve the highest possible service life. Always ask your Aquamot dealer or Aquamot about the capacity design beforehand.
What is included?
In general, everything is included in the drive package except the batteries and charger. This means that the remote control also includes the control lever and on-board computer, while the tiller control is integrated into the motor unit. The cable lengths are standardized (3 m main cables, 30 cm battery bracket leads, and 6 m to the display and throttle/shift lever). A cable extension can of course be supplied.
How long is the warranty period?
The warranty period is 2 years.
The driving time naturally depends on the capacity and quality of the batteries.
Below are examples with the Aquamot Longlife Deep-Cycle batteries.
| Trend 4.3 with 4 Aquamot ALS batteries 12V/260Ah | Trend 6.0 with 4 Aquamot ALS batteries 12V/260Ah | |
|---|---|---|
| Partial load | 10 h 00 min | 6 h 00 min |
| Half load | 05 h 30 min | 02 h 35 min |
| Full load | 02 h 15 min | 01 h 20 min |
