Electric Outboard Motor ePropulsion Spirit 1.0 Evo 3HP 1kW (Motor only)

By ePropulsion
4.8 15 REVIEWS
Shaft Size: Short Shaft
$2,320.00 CAD
$2,320.00 CAD
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
SECURE PAYMENTS
READY TO PICK UP IN 24H
SHIPS IN 1-3 DAYS
5 YEARS WARRANTY

Short Description:

Key Features:

  • Digital Operation: Real-time monitoring of power, remaining runtime, battery level, and operating voltage.
  • Electric Start: One-button start eliminates the need for pull starts.
  • Magnetic Kill Switch: Ensures safety by stopping the motor in emergencies.
  • Stepless Throttle Control: Smooth handling in both forward and reverse.
  • Ambidextrous Operation: Throttle can be operated from either the left or right side.

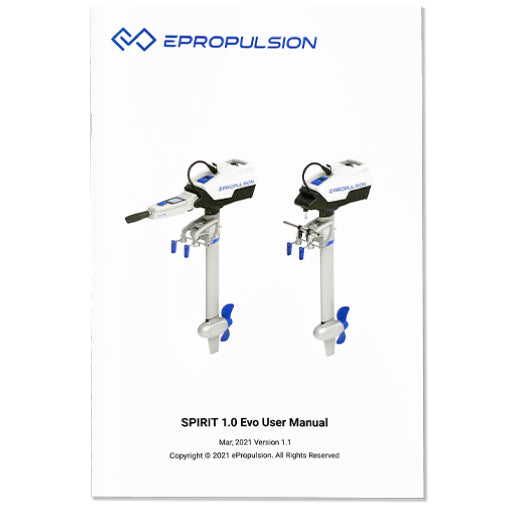

Downloads
Have a question?Talk with a technical expert.
Call Us
electro electric outboard motor for inflatable boat rib epropulsion spirit 1.0 evo
$2,320.00 CAD
$2,320.00 CAD

Electric Outboard Motor Epropulsion Spirit 1.0 Evo 3HP 1kW (Motor only)

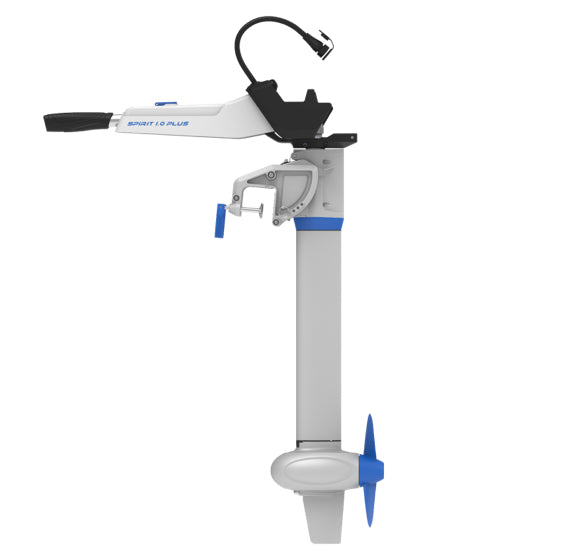

Spirit 1.0 Evo is a portable 3HP electric outboard made for dinghies, fishing boats, and sailboats. It features a 1276Wh large integrated lithium battery for long range. The hydrogeneration function is great for sustainable sailing experience. The safety wristband keeps you safe in case of MOB.

Innovative Battery Technology

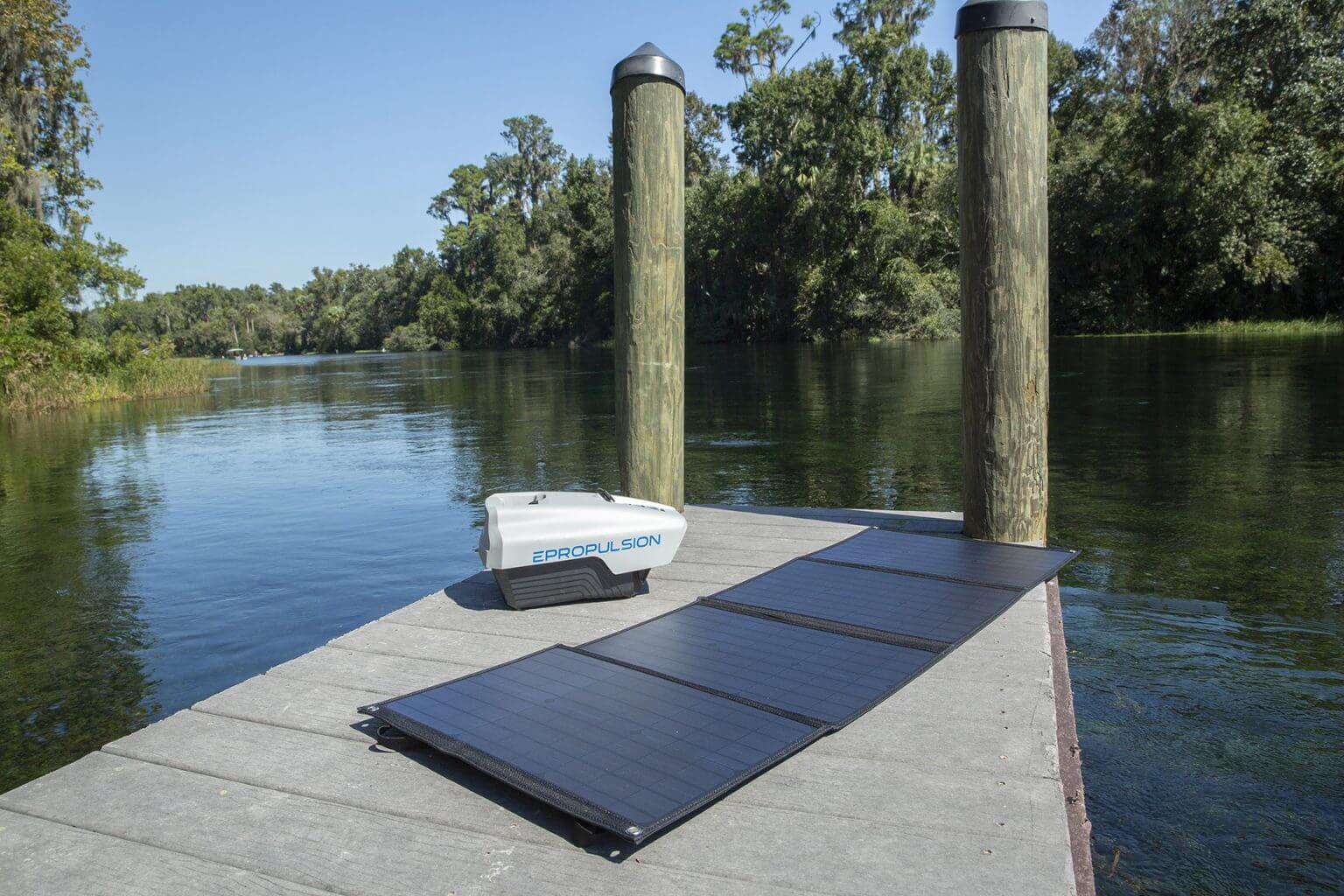

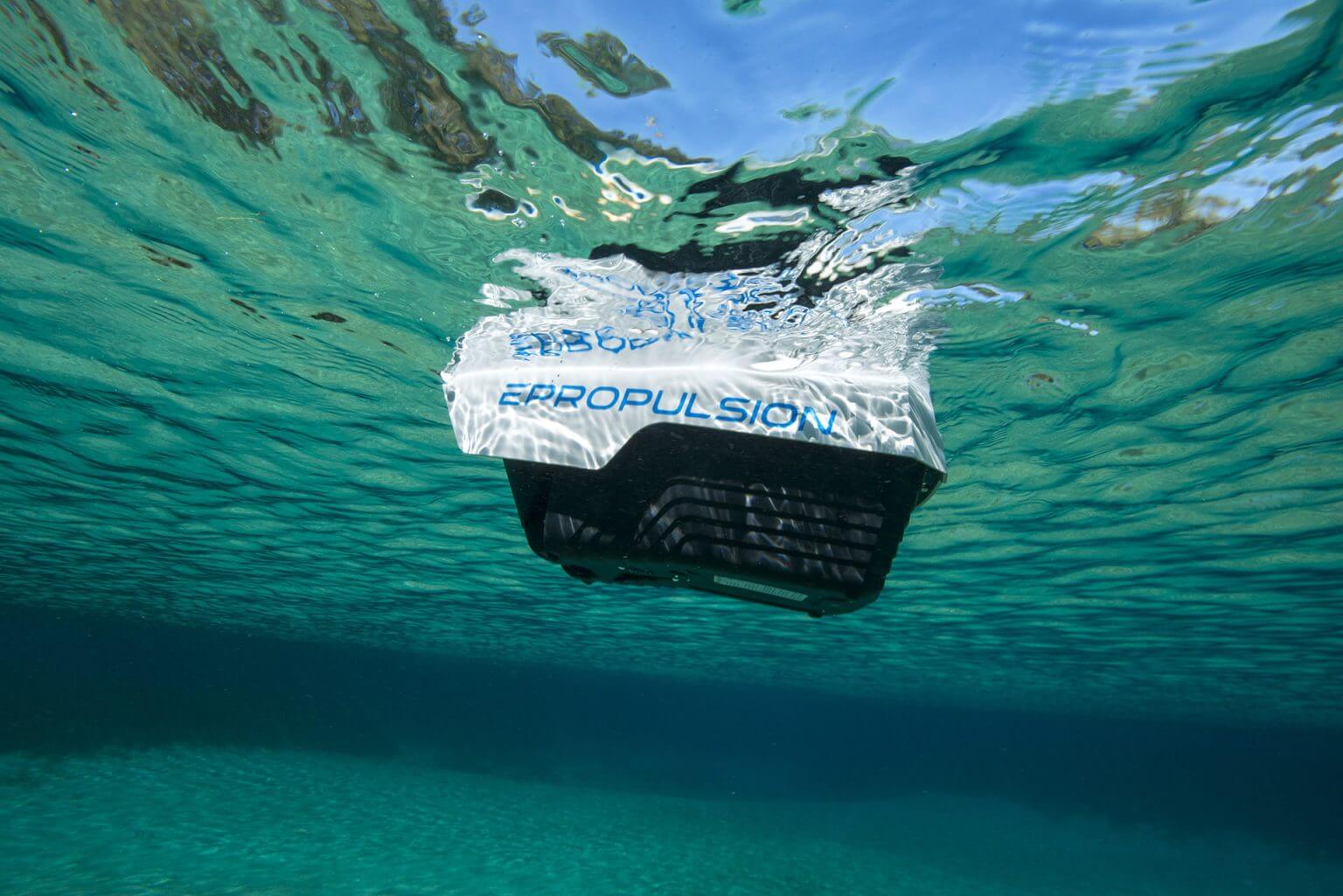

Powered by a lightweight 8.7 kg lithium-ion battery with a 1,276 Wh capacity, the Spirit 1.0 is built to perform in all conditions. Engineered for durability, the buoyant battery even floats, giving you peace of mind on the water. With enough energy for a full day’s adventure, you can easily swap the integrated battery for extended range, or recharge on the go with solar power while you cruise.

Hydrogeneration

Spirit 1.0 Evo is the first-ever electric outboard that features hydrogeneration. ePropulsion pioneers in the innovation of electric outboard motors and we dedicate ourselves to sustainable sailing.

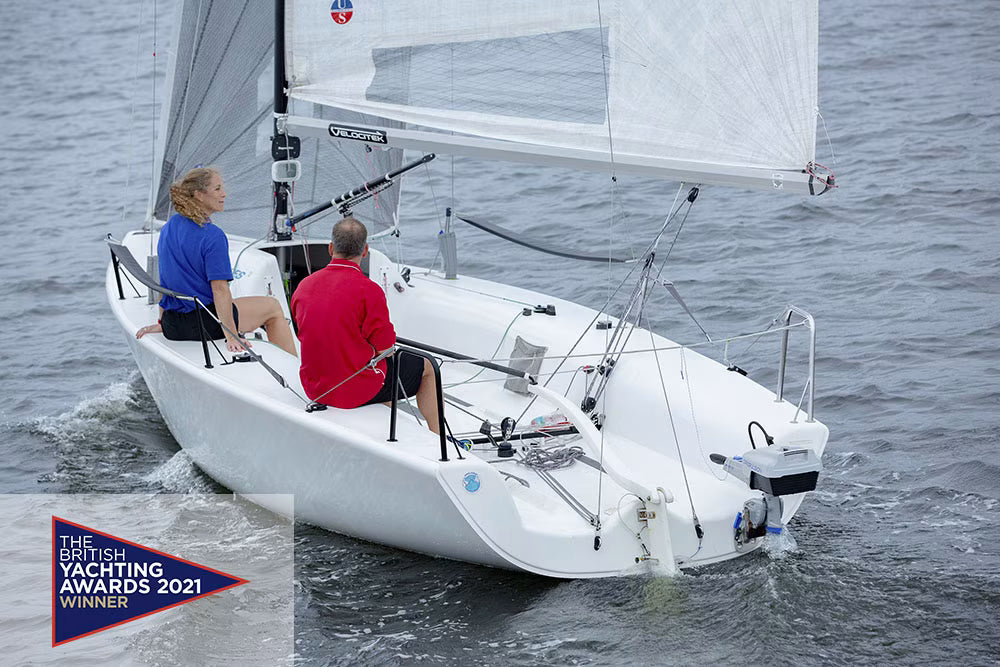

The Evo stands out with its hydrogeneration capability, enabling the battery to recharge while sailing under the right conditions. This innovative feature enhances its appeal for eco-conscious sailors. Additionally, the Spirit 1.0 Evo supports remote control operation, offering flexibility for various steering setups and an enhanced boating experience.

Lightweight, quiet, and maintenance-free, the Spirit 1.0 Evo is an ideal solution for sustainable, efficient, and convenient electric propulsion.



The hydrogeneration data is based on real tests with the anti-ventilation plate installed.

Specifications


Spirit 1.0 Evo Spirit 1.0 Evo Remote
Power 1 kW (3HP equivalent) 1 kW (3HP equivalent)
Standard Battery Spirit Battery Plus, 1276 Wh li-ion polymer Spirit Battery Plus, 1276 Wh li-ion polymer
Input Voltage 39V – 60V 39V – 60V
Motor Weight* 11.3 kg / 24.9 lbs 10.6 kg / 23.4 lbs
Battery Weight 8.7 kg / 19.2 lbs 8.7 kg / 19.2 lbs
Standard Charging 8.5 Hrs 8.5 Hrs
Fast Charging 3.5 Hrs 3.5 Hrs
External Battery Yes, and E-Series Battery recommended Yes, and E-Series Battery recommended
Propeller 11″ × 5.8″ 2-blade composite propeller 11″ × 5.8″ 2-blade composite propeller
Trim / Tilt Angle 0°, 7°, 14°, 21° / 85° 0°, 7°, 14°, 21° / 85°
Shaft Length Short, Long Short, Long
Control Evo Tiller Evo Top Mount Control / Evo Side Mount Control / Evo Dual Remote Control
Hydrogeneration Yes Yes
Motor Brushless DC motor Brushless DC motor
Direct Drive Yes Yes
Maintenance-Free Yes Yes

*The weight is measured with the short shaft version.

Performance

At the core of Spirit 1.0 Evo electric outboard motor, it’s a 1kW BLDC motor, equivalent to 3HP.


Power (W) Speed (mph / kph) Runtime (hh:mm) Range (mile / km)
35 2.2 / 3.5 36:25 80 / 129
65 2.7 / 4.3 19:35 53 / 85.3
125 3.5 / 5.6 10:00 35 / 56
250 4.4 / 7.1 5:00 22 / 35.5
500 5.3 / 8.5 2:30 13.3 / 21.3
750 5.7 / 9.2 1:40 9.5 / 15.3
1000 6.2 / 10 1:15 7.8 / 12.5

*The performance data is based on a 12-foot aluminum boat with one person and one Spirit battery Plus in calm lake water. The actual speed, range and running time may vary because of different boats, load, weather, etc.

With one charge, you can go 22 miles at 4.5 mph, or go fishing all day long at trolling speed.

Designed for Portability

Spirit 1.0 Evo outboard with battery is portable & easy to transport. It would be a pleasure to have Spirit 1.0 Evo in your gear list when preparing a trip.

Digital Operation

Electric outboard motors are easy to operate and keep you informed of operation status.

Digital Display

You have access to real-time power, remaining runtime, battery level, operating voltage, etc.

Electric Start

Press one button and you’re ready to go. No more tiring pull cord start.

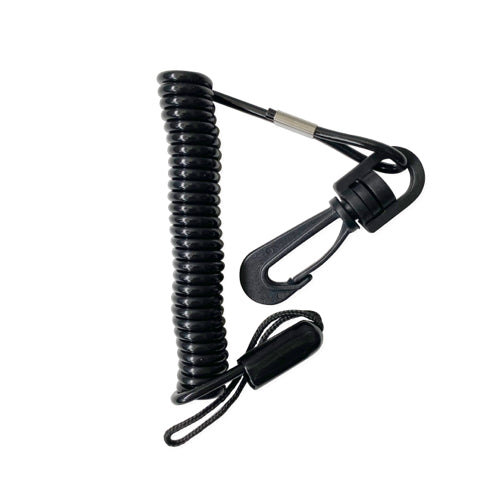

Magnetic Kill Switch

Stop the motor in an emergency and keep you safe.

Stepless throttle changing

The throttle hand feel is clear, smooth and enjoyable.

Max Power Output Adjustment

With a smaller full throttle power, it’s safer for kids and rental boat

Friendly to the Left-handed

Swap propulsion between turning throttle clockwise and anticlockwise

Both the Plus and Evo models are compatible with ePropulsion's E-Series batteries, allowing for extended runtime and flexibility. Optional solar charging accessories are available for on-the-go recharging, enhancing the sustainability of your boating adventures.

Shaft Length Recommendation

TRANSOM HEIGHT SHAFT LENGTH
30-40cm / 11.8-15.7 inches Extra Short*
40-50cm / 15.7-19.7 inches Short
Higher than 50 cm / 19.7 inches Long

* Extra Short only available on Plus model.
** This shaft length chart is for your reference only.
