RIM Drive Technology

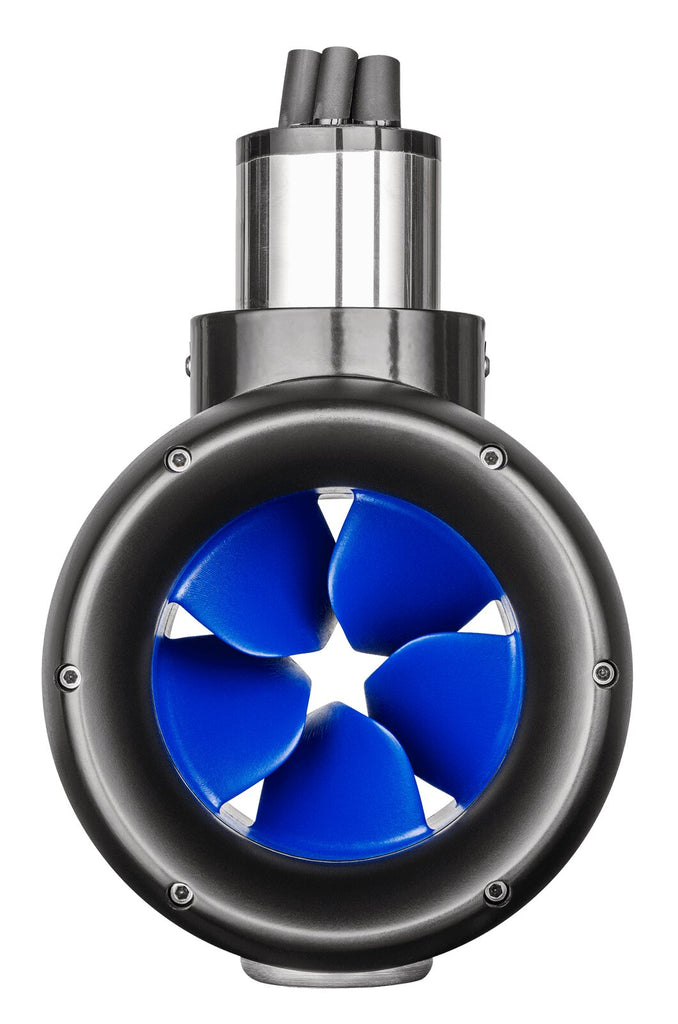

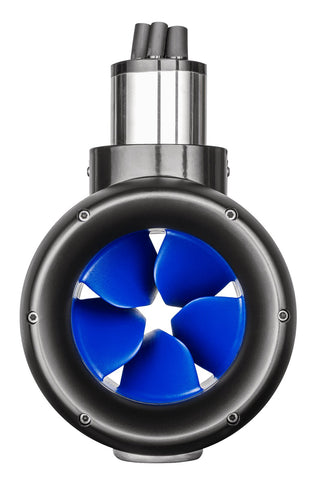

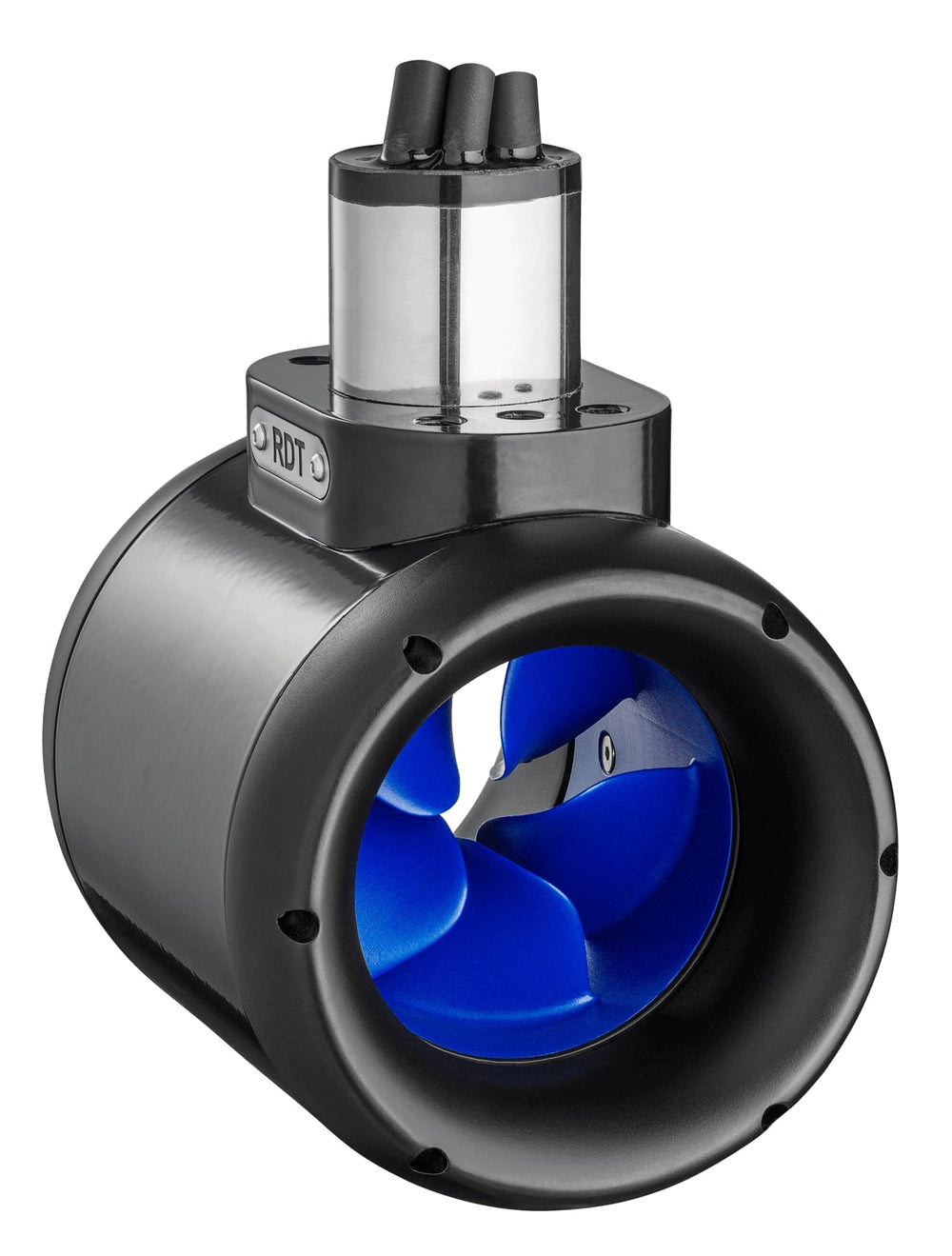

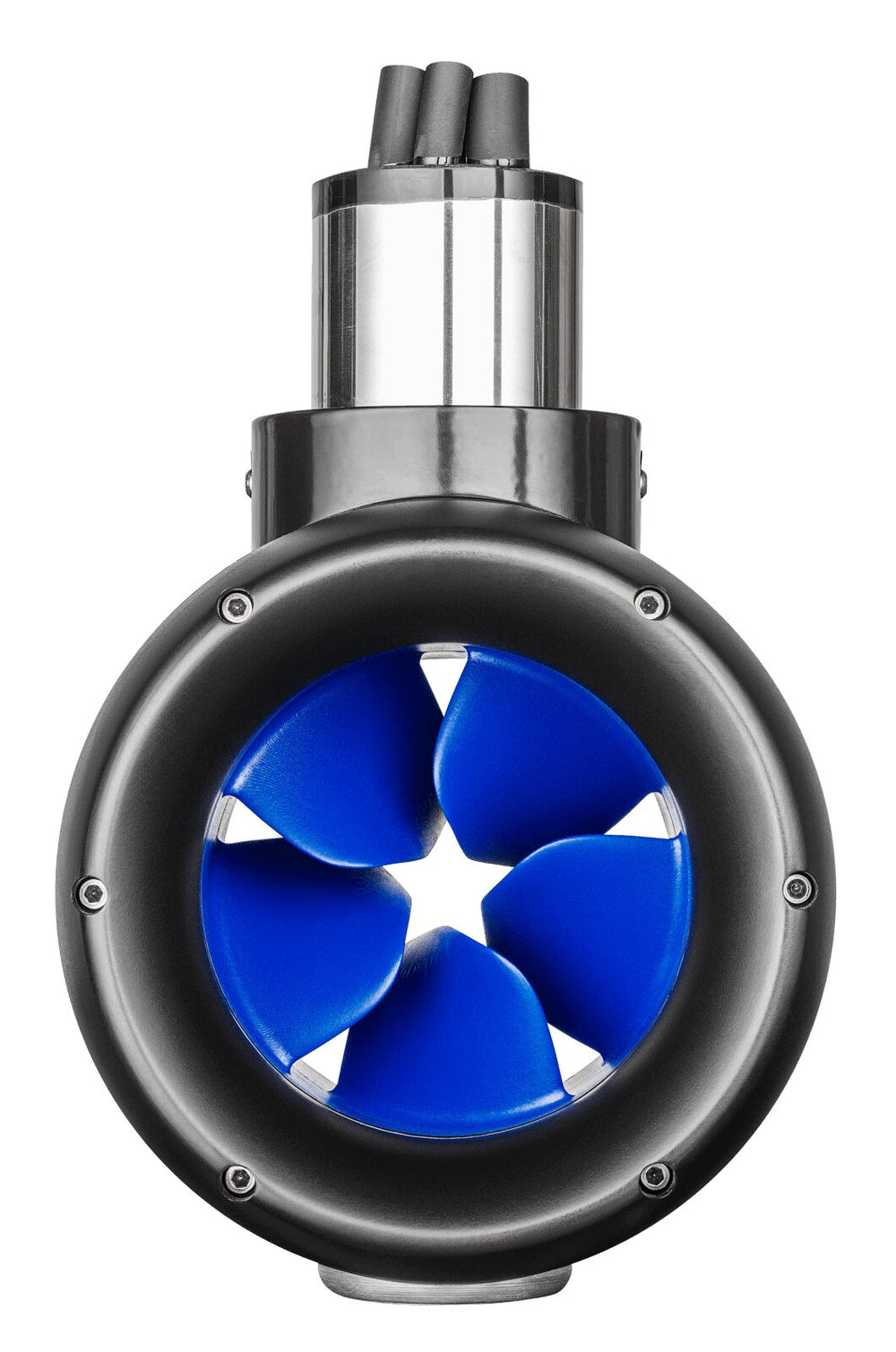

Electric Outboard RIM Drive POD 4.2

  • Sale
  • Regular price $9,703
Payment methods
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Secure payments

Secure payments

100% Guarantee

100% Guarantee

Client satisfaction

Client satisfaction

Have a question?

Talk with a technical expert.

Electric Outboard RIM Drive POD 4.2 Description:

Unleash power with a maximum input of 4.2kW and a nominal 24V voltage, achieving over 90% efficiency. Immediate acceleration sets it apart, while a compact design and low weight ensures compatibility for small installations. With only one rotating part, maintenance is minimized. Enjoy versatility with clockwise, counterclockwise, and symmetric directions for every motor. Plus, all motors are completely waterproof with an IP68 rating, achieved by completely casting the motor not by using sealings. The design also minimizes risk of damage to the propeller, perfect performance in any environment.

Specifications

  • Nominal current: 180A
  • Nominal voltage: 24V
  • Weight: 5kg
  • Propeller diameter: 133mm
  • Outside diameter: 185mm
  • Motor length: 150mm
  • IP Class: IP68
  • Static thrust: 50kg
  • Salt water resistant: Yes
  • Motor controller included: Yes

POD

Model

POD

Type

4.2

Input voltage

24

Nominal power

4.2

Maximum RPM

1.750

Maximum temp.

85°C

Temp. sensor

PT1000

Maximum depth*

5 meters

Warranty terms: two years for non-commercial use and one year for commercial use
