Rim Drive Technology

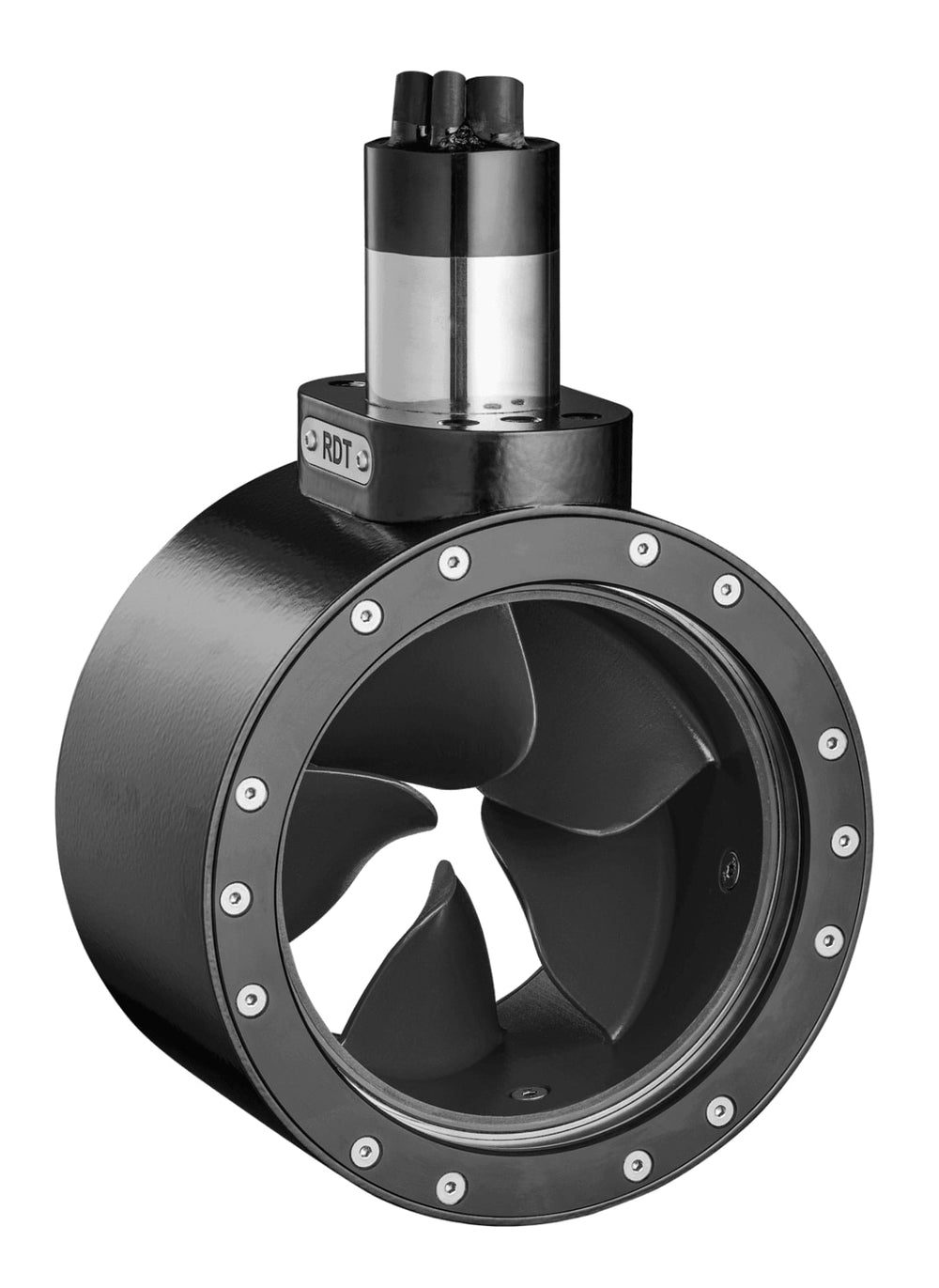

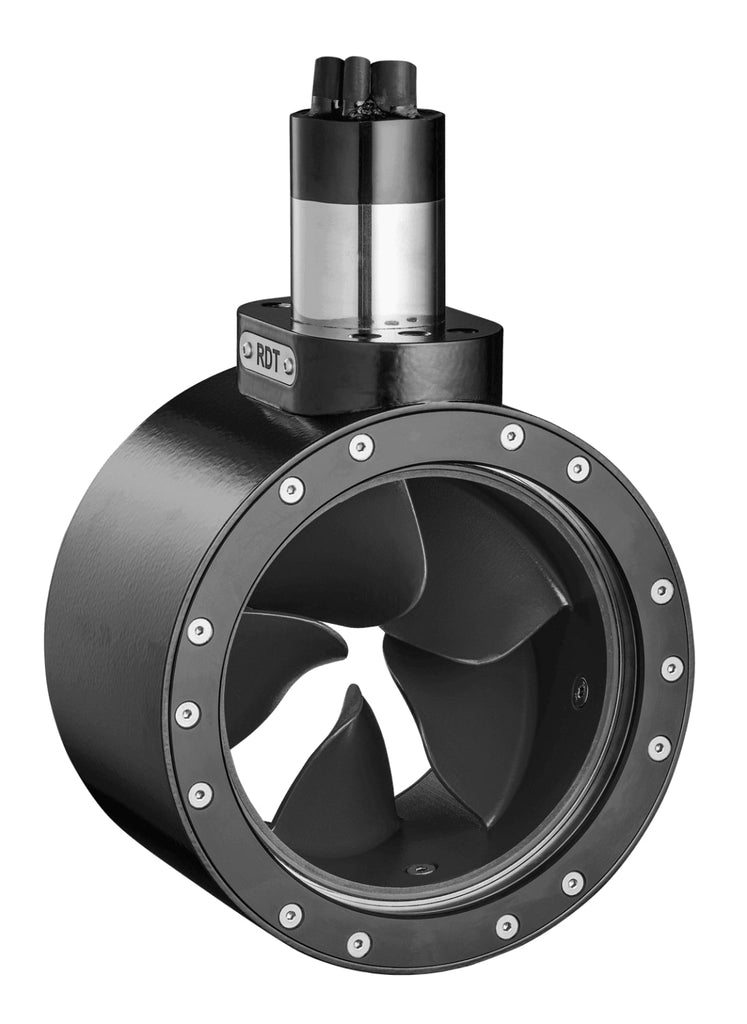

Electric Standard Bow Thruster RIM Drive 25.0

  • Sale
  • Regular price $38,743
Payment methods
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Secure payments

Secure payments

100% Guarantee

100% Guarantee

Client satisfaction

Client satisfaction

Have a question?

Talk with a technical expert.

Electric Standard Bow Thruster RIM Drive 25.0 Description:

Unleash power with a maximum input of 25.0kW and a 96V nominal voltage, achieving over 90% efficiency. Immediate acceleration sets it apart, while a compact and lightweight design makes this product truly ideal for the most space-conscious installations. With only one rotating part, maintenance is minimized. Enjoy the symmetric motors for optimal integration. Plus, all motors are completely waterproof with an IP68 rating, achieved by completely casting the motor not by using sealings. The design also minimizes risk of damage to the propeller, perfect performance in any environment

  • Nominal current: 260A
  • Nominal voltage: 96V
  • Weight: 70kg
  • Propeller diameter: 350mm
  • Outside diameter: 470mm
  • Motor length: 180mm
  • IP Class: IP68
  • Static thrust: 380kg
  • Salt water resistant: Yes
  • Motor controller included: Yes

Standard Bow Thruster

Model

Bow Thruster

Type

25.0

Input voltage

96

Nominal power

25.0

Maximum RPM

1000

Maximum temp.

85°C

Temp. sensor

PT1000

Maximum depth*

5 meters


Warranty terms: two years for non-commercial use and one year for commercial use
