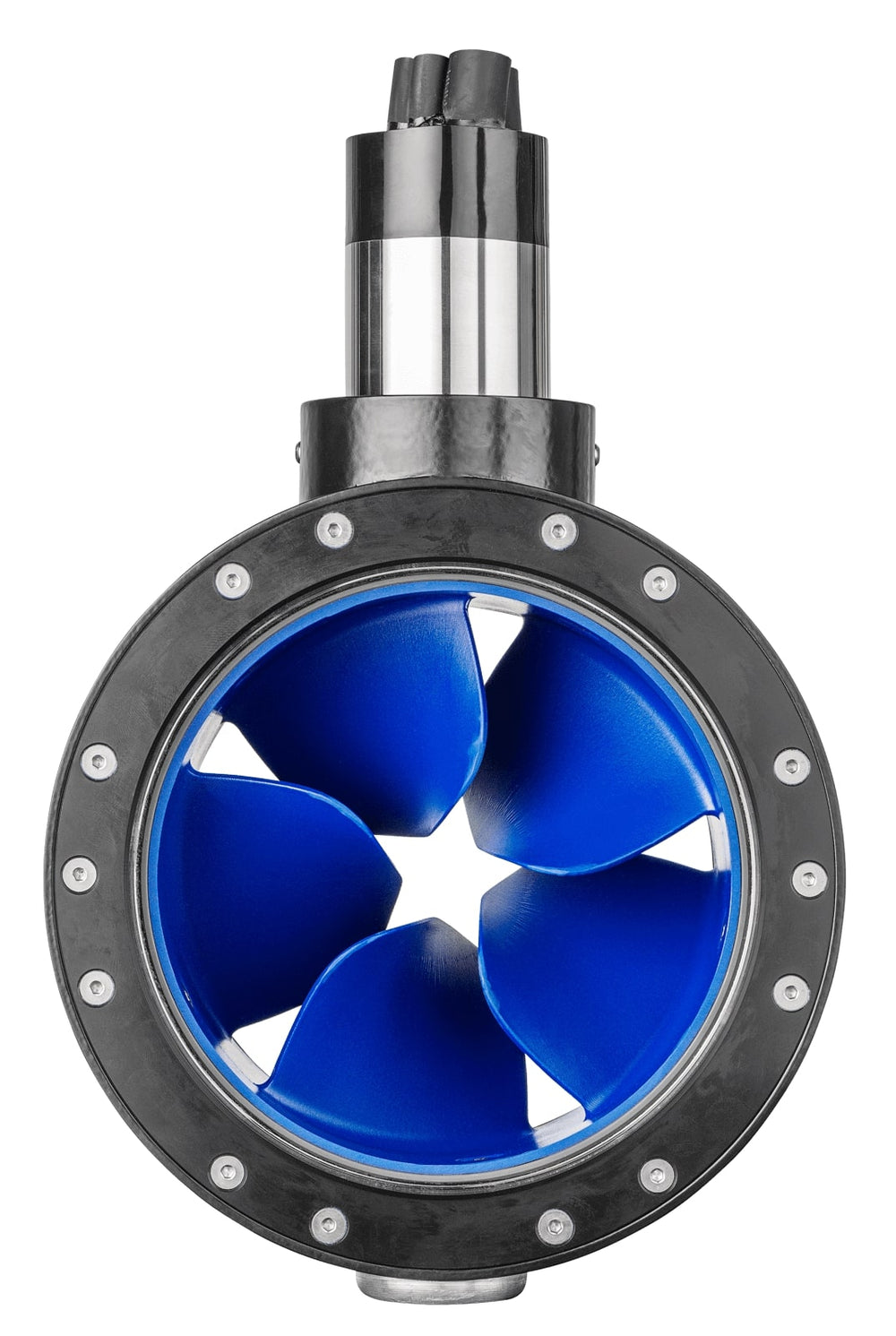

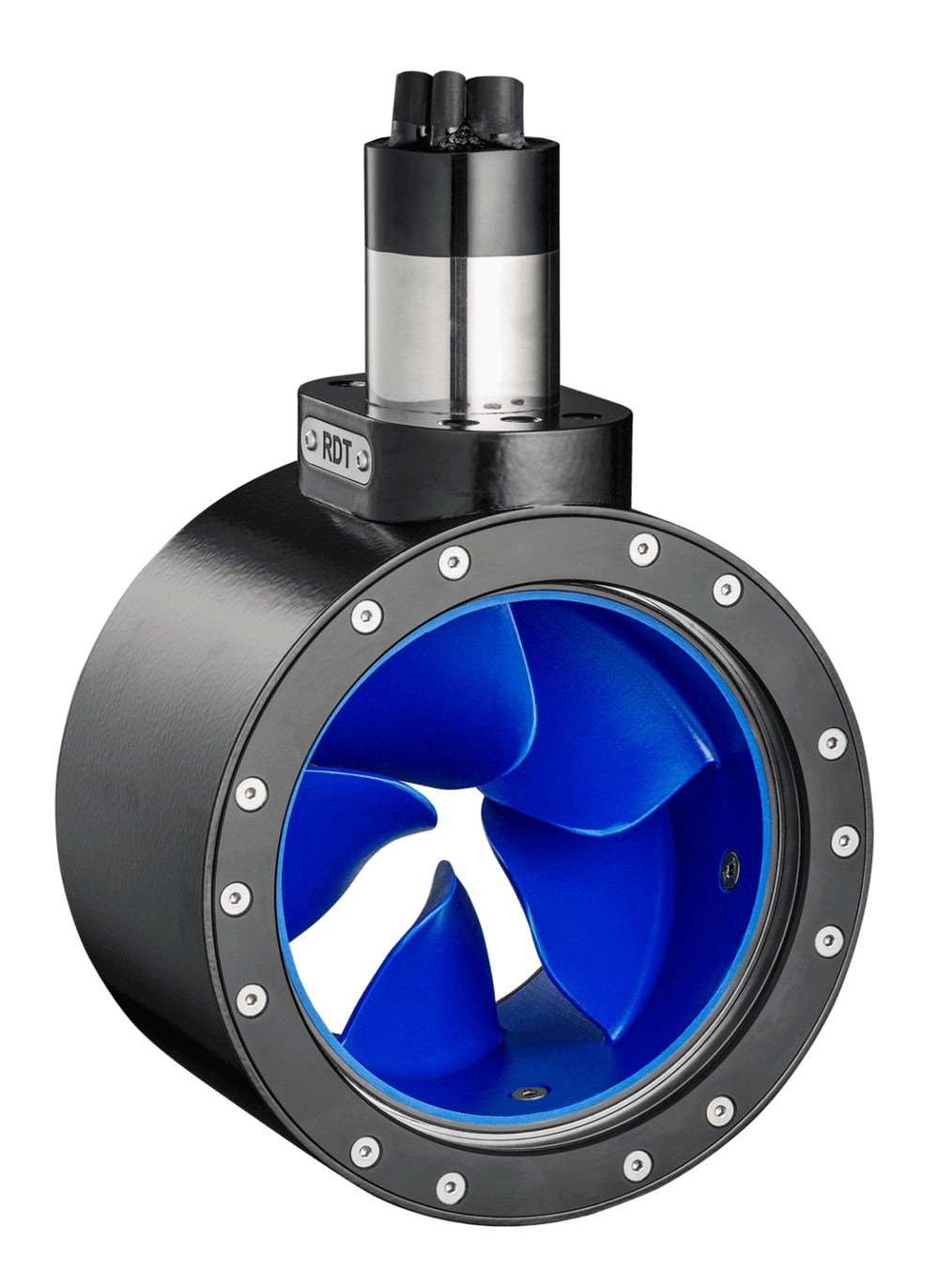

Electric Standard Bow Thruster RIM Drive 4.2 Subsea Description:

Unleash power with a maximum input of 4.2kW and a 24V nominal voltage, achieving over 90% efficiency. Immediate acceleration sets it apart, while a compact design and low weight ensures compatibility for small installations. With only one rotating part, maintenance is minimized. Enjoy the symmetric motors for optimal integration. Plus, all motors are completely waterproof with an IP68 rating, achieved by completely casting the motor not by using sealings. The design also minimizes risk of damage to the propeller, perfect performance in any Subsea environment. Standardly operable at maximum depth of 50m and with an optional upgrade to 3000 meter depth.

Specifications

  • Nominal current: 208A
  • Nominal voltage: 24V
  • Weight: 5kg
  • Proppeler : 133mm
  • Outside diameter: 185mm
  • Motor length: 110mm
  • IP Class: IP68
  • Static thrust: 50kg
  • Salt water resistant: Yes
  • Motor controller included: Yes
  • Standard depth: 50msw
  • Optional depth: 3000msw

Standard Bow Thruster Subsea

Model

Bow Thruster

Type

4.2

Input voltage

24

Nominal power

4.2

Maximum RPM

1.750

Maximum temp.

85°C

Temp. sensor

PT1000

Maximum depth*

5 meters

*For subsea motors depending on cable configurations and production methods.

Warranty terms: two years for non-commercial use and one year for commercial use
