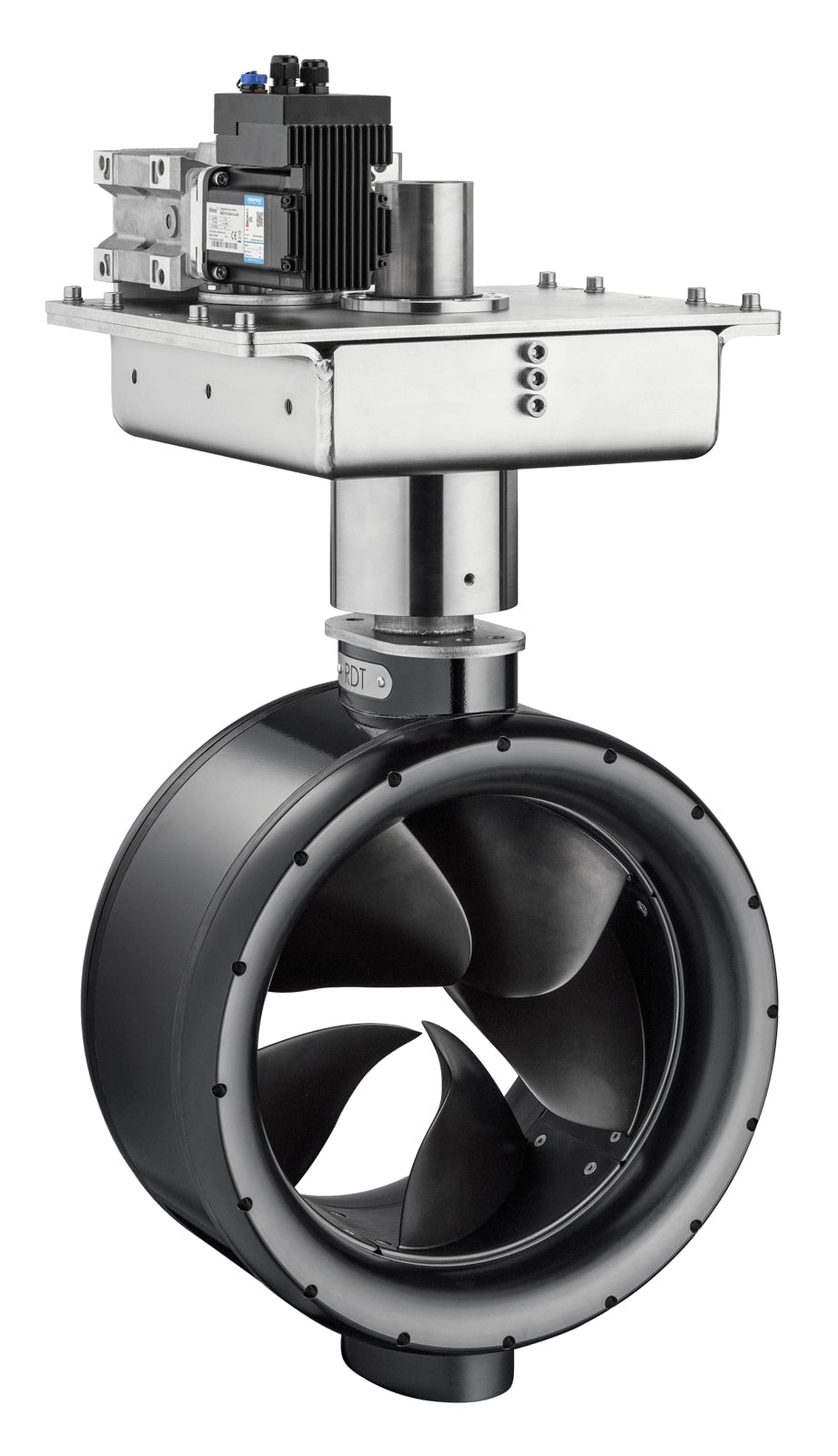

Electric Steerable POD Motor RIM Drive 50.0 Description:
The Steerable POD, a pinnacle of innovation with a maximum input power of 50.0kW and either 400- or 550V nominal voltage, ensuring optimal efficiency surpassing 90%. Experience unparalleled acceleration compared to conventional alternatives, coupled with zero-turn steering. The steerable POD is rotatable up to 320 degrees with 160 degrees both ways for ultimate manoeuvrability. All combined in a lightweight compact design.
Enjoy diverse control options with joystick, steering wheel, or CAN control. Adding to its resilience, all our POD motors are fully waterproof with an IP68 rating, achieved by completely casting the motor not by using sealings. The design also minimizes risk of damage to the propeller, perfect performance in any environment.
- Nominal current: 165A
- Nominal voltage: 400 or 550V
- Weight: 110kg
- Propeller diameter: 341mm
- Outside diameter: 470mm
- Motor length: 277mm
- IP Class: IP68
- Static thrust: 750kg
- Salt water resistant: Yes
- Motor controller included: No
Steerable POD
|
Model |
Steerable POD |
|
Type |
50.0 |
|
Input voltage |
400 |
|
Nominal power |
50.0 |
|
Maximum RPM |
1.200 |
|
Maximum temp. |
85°C |
|
Temp. sensor |
PT1000 |
|
Maximum depth* |
5 meters |
Motor controller
|
Motor controller |
EC1200 |
|
Length mc |
482 mm |
|
Width mc |
109 mm |
|
Height mc |
205 mm |
|
Weight mc |
15 kg |
Warranty terms: two years for non-commercial use and one year for commercial use
Electric Steerable POD Motor RIM Drive 50.0
