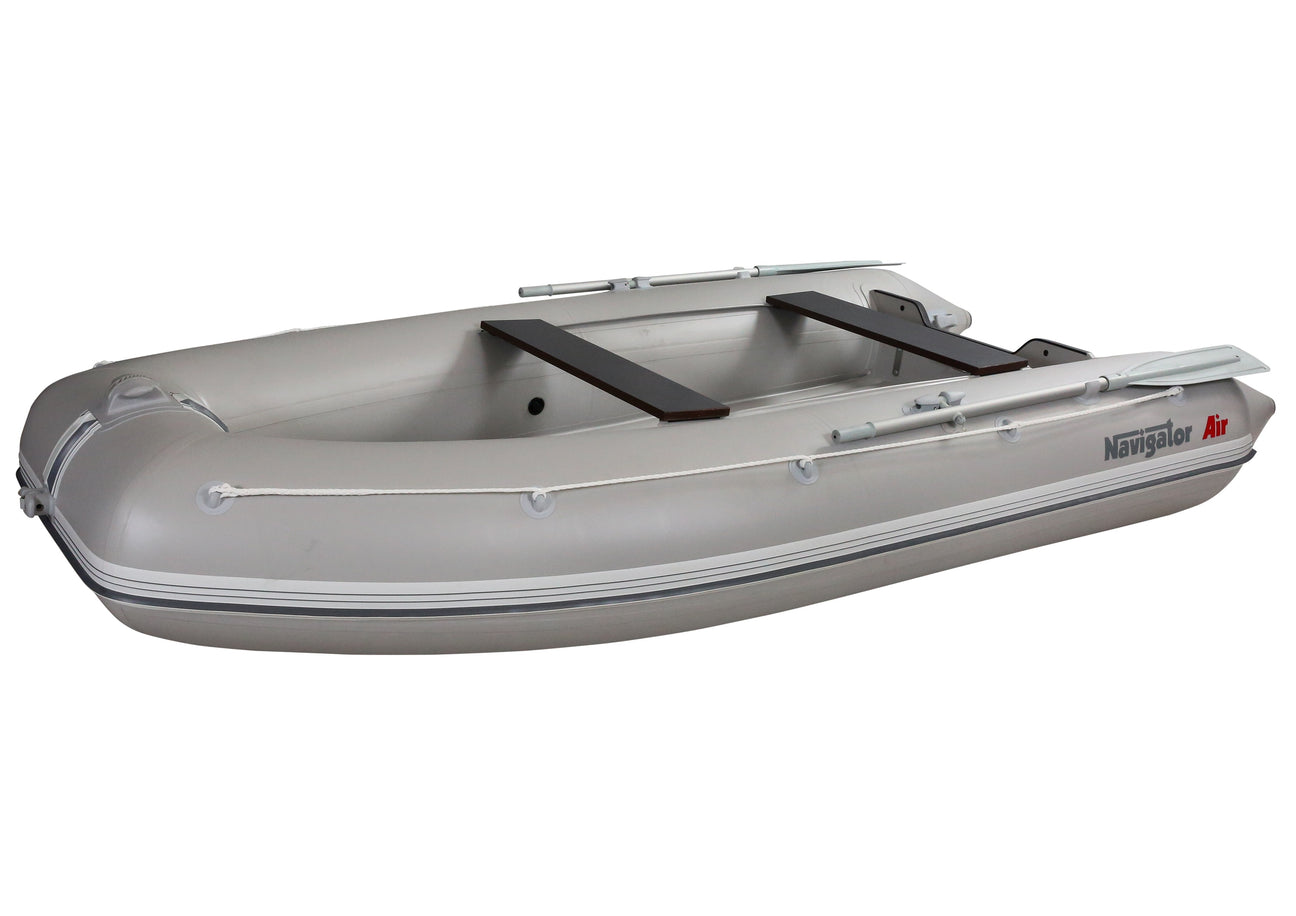

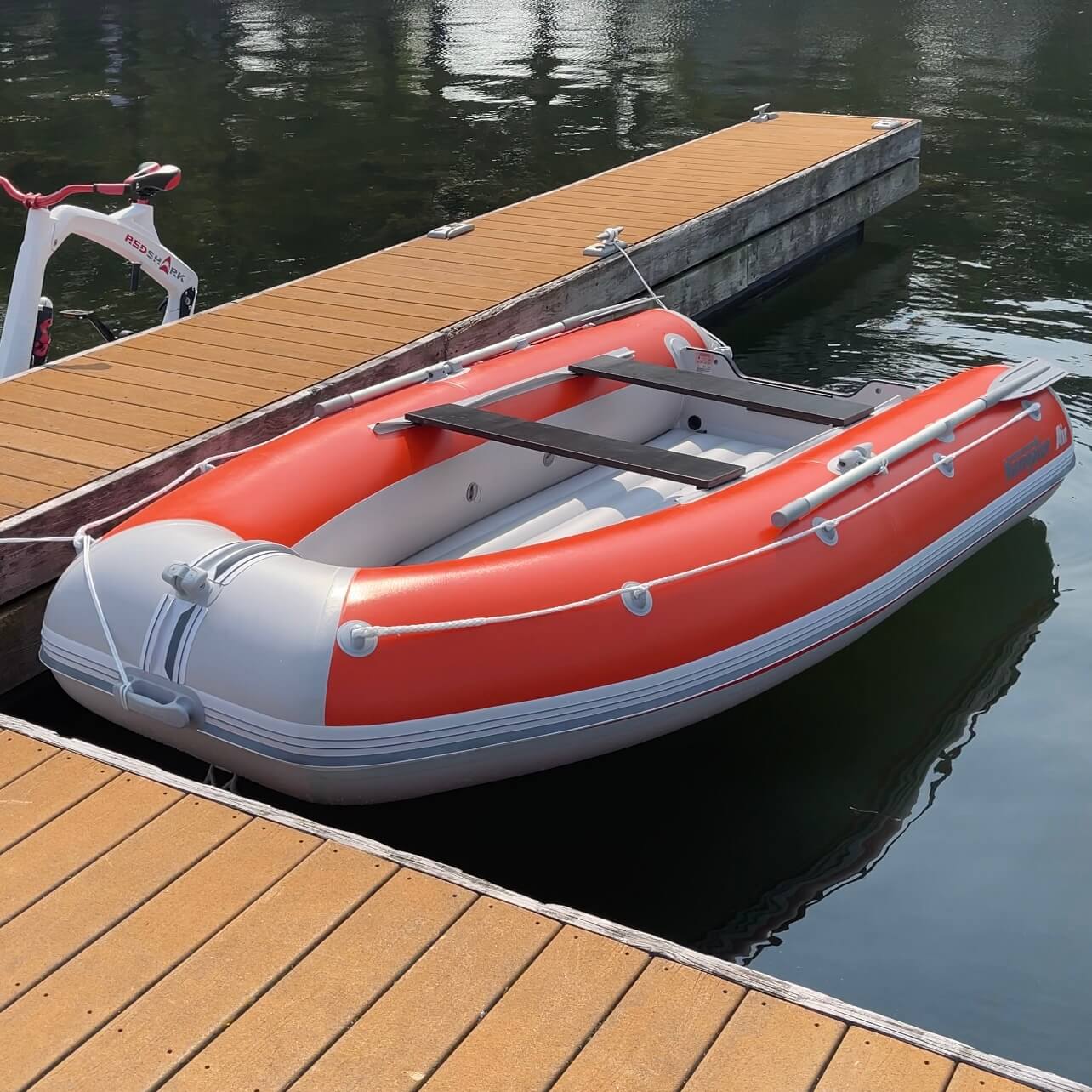

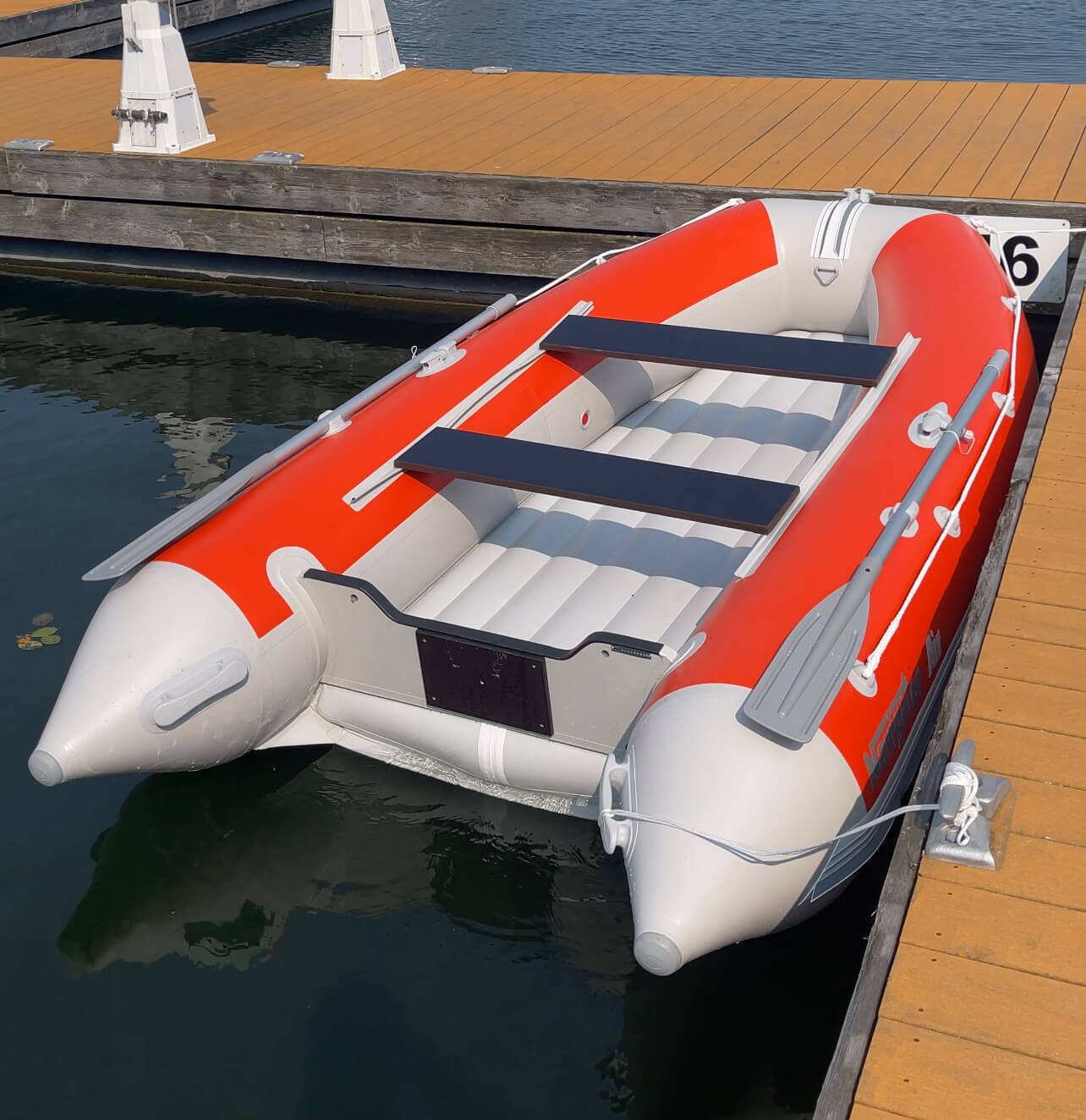

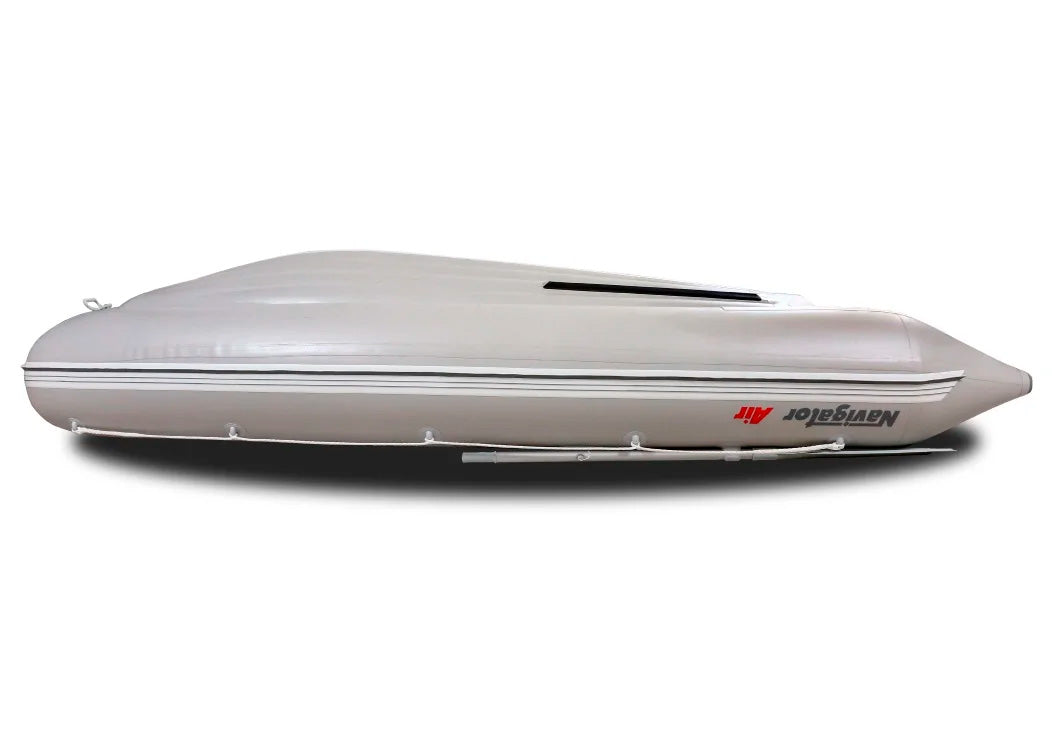

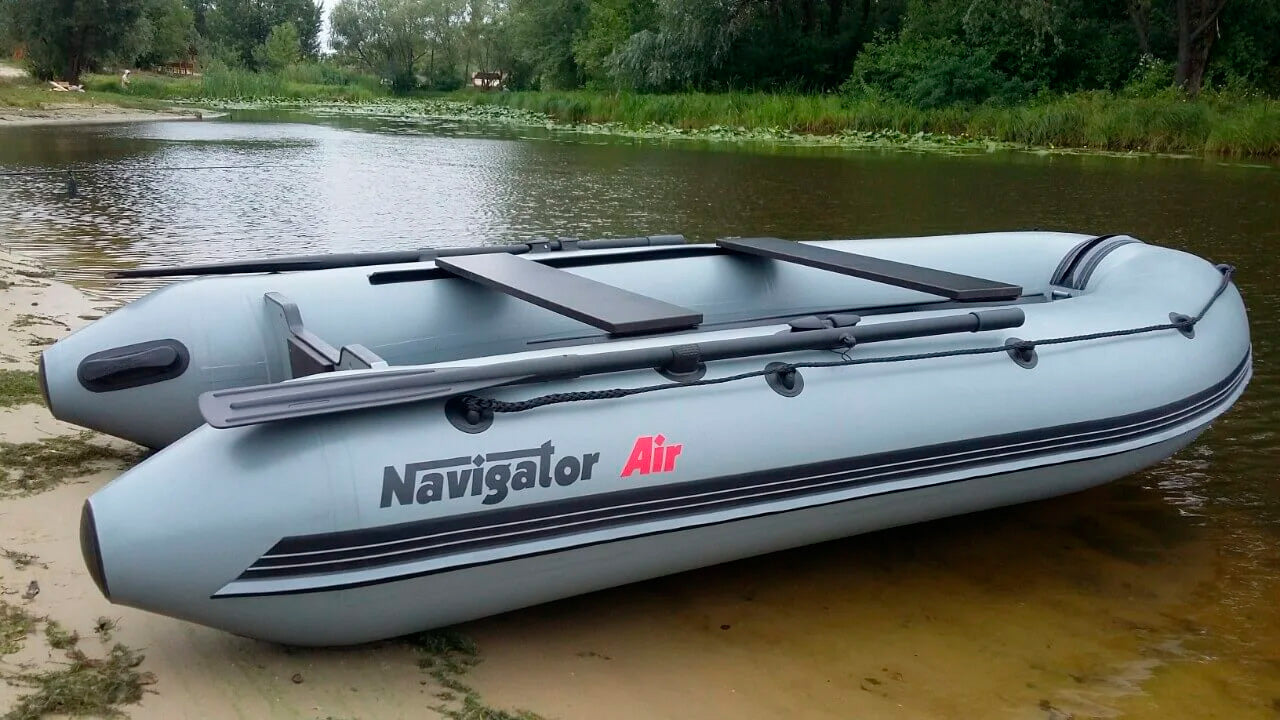

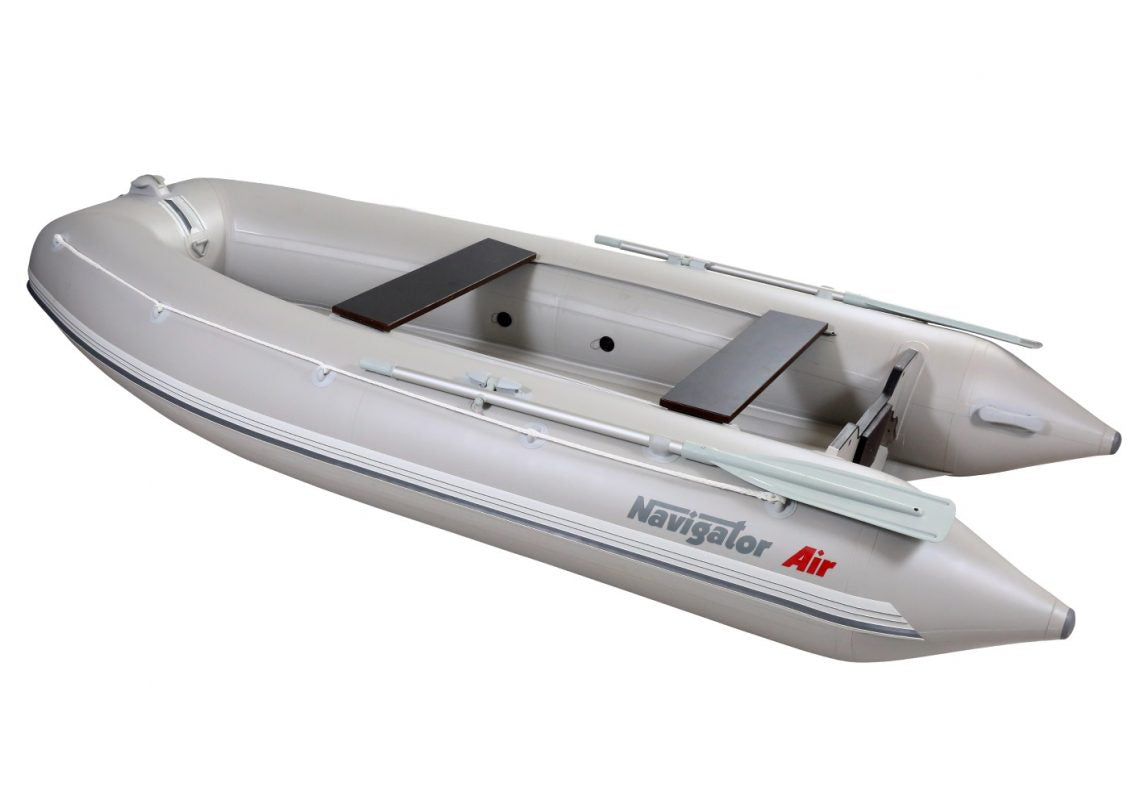

Inflatable Floor Boat Navigator Li330
Pickup availability unavailable
Inflatable Boat Navigator LK 330 Description
Built for stability, comfort, and all-around performance, the Navigator LI330 inflatable boat is designed for fishing trips, family outings, and high-speed adventures on lakes and rivers.
The Navigator LI330 features an integrated inflatable floor with a pronounced keel design that provides excellent handling, smoother rides, and improved seaworthiness. Its spacious cockpit and 48 cm tubes offer enhanced stability and comfort for up to 4 passengers. Constructed from durable 1100 g/m² five-layer PVC with heat-welded seams, the boat is built to withstand abrasion, UV exposure, and demanding water conditions. The LI330 includes three independent air chambers plus an inflatable keel, a reinforced transom for motors up to 15 HP, perimeter rubbing strakes, safety lifelines, and hydrodynamic contours that allow quick planing even with smaller engines. Compact transport dimensions and lightweight construction make it easy to carry and store while still delivering impressive on-water performance.
The inflatable boat Navigator Li 330 has the following specifications:
| Specification | Details |
|---|---|
| Bottom Type | Inflatable bottom (keel) |
| External Length | 360 cm (11.8 ft) |
| External Width | 184 cm (6.1 ft) |
| Cylinder Diameter | 48 cm (18.9 in) |
| Number of Sealed Compartments | 3 + 1 |
| Passenger Capacity | 4 people |
| Maximum Motor Power | 20 hp / 14.9 kW |
| Boat Cylinder Material Density | 1100 g/m² Valmex 7318 |
| Transom Height | 410 mm (including the bottom) |
| Transom Thickness | 24 mm |
| Transportation Handles | 2 on trailers |
| Oar Length | 180 cm |
| Type of Oarlocks | Rotary, pin type |
| Weight of Boat in Kit | Boat: 41 kg / Components: 9 kg |
| Warranty for Welds | 60 months |
| PVC Material Warranty | 36 months |
| Country / Manufacturer | Ukraine, Group Navigator |
The inflatable boat Navigator LK 330 comes with a standard equipment package that includes:
- Carrying bag
- Foot pump
- Two aluminum oars
- Repair kit
- User manual
You can also choose from various accessories such as seats, cushions, covers, anchors, navigation lights, etc.
Features:
1) A speed of 41 km/h has been reached. with a Mercury 15M engine for two passengers with their location closer to the transom !!! With one passenger, the speed was 44-45 km / h.
2) The enlarged and spacious cockpit is implemented due to the improved contours of the boat.
3) The use of five-layer boat pvc with a density of 1100 g/m2 produced in South Korea.
4) Variable cylinder diameter provides excellent ship stability and good seaworthiness.
5) Boat hull has 4 circumferential and 2 longitudinal welds. Hot air welding technology is used. This technology ensures uniform heating of the fabric to be welded. Seams are made by the butt-to-butt joint method with welding of the inner and outer sides.
6) “Welding” of the intercylinder baffle into the body of the cylinder.
7) The increased diameter of the cylinders up to 48cm is one of the main indicators of the boat’s seaworthiness on large bodies of water. To protect the cylinders of the bottom from external damage, a protective bar is installed.

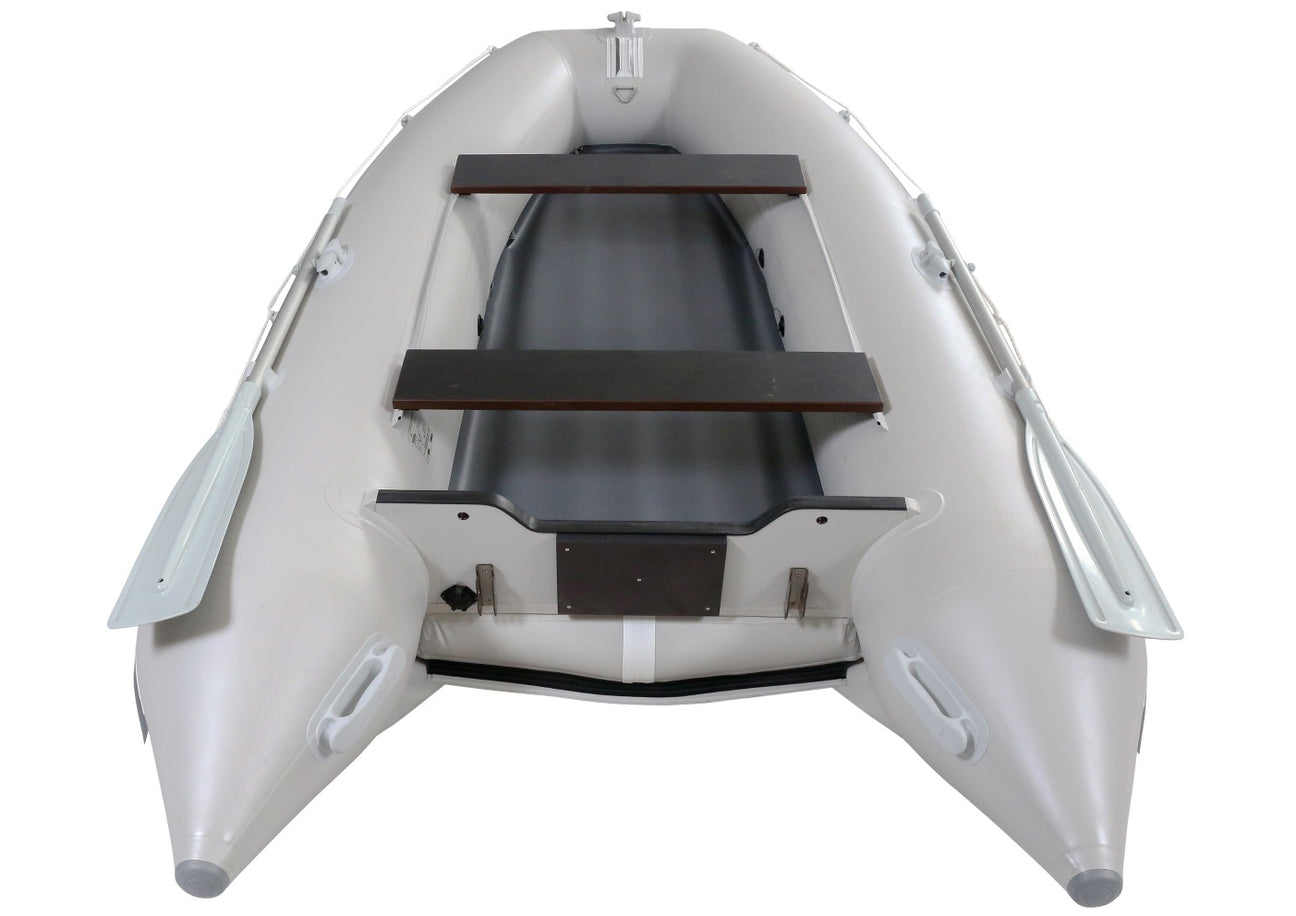

8) The low pressure inflatable bottom (0.3 atmospheres) is comparable to a hard solder floor.

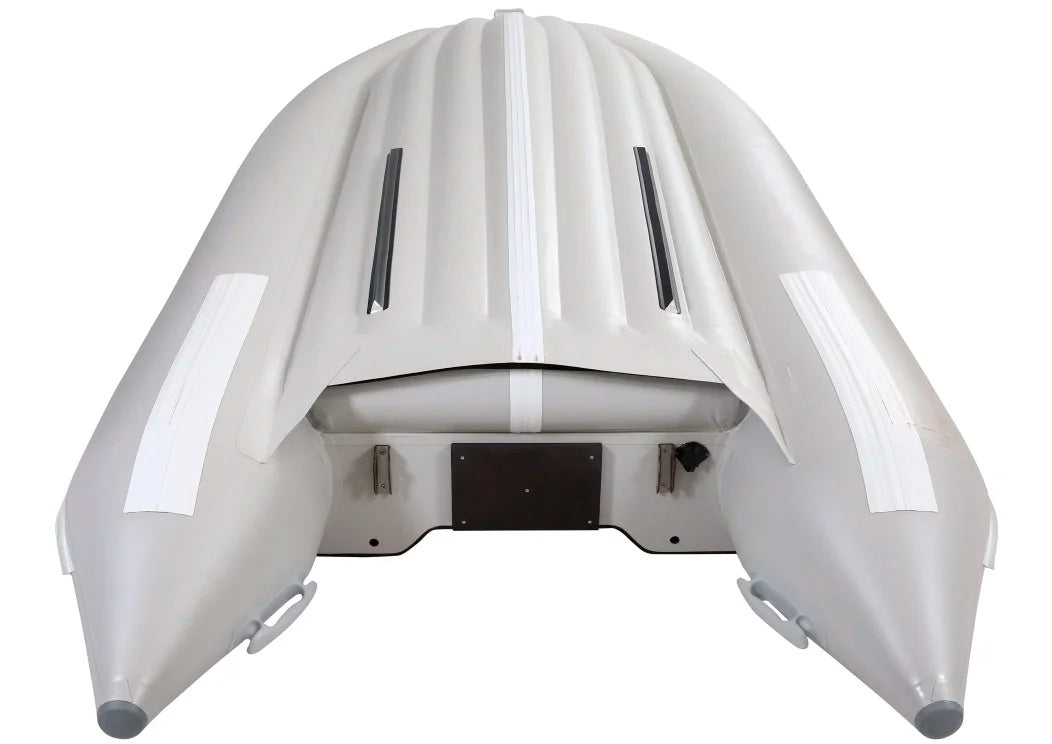

9) Longitudinal redans increase the stability of the boat, have the “effect” of cutting off the flow of water from the bottom, which leads to an increase in the speed of the boat.
10) Installation of a transom spoiler allows you to get a strong connection between the transom and the bottom and allows you to reduce the overall water resistance relative to the movement of the vessel
