Open Waters Solar 115W Flex Solar Panel
Pickup availability unavailable
Short Description:
Short Description:
Open Water Solars 115W Flex Solar Panel
Marine solar, made better. Open Waters Solar panels are thin, lightweight, flexible, and fully walkable — engineered specifically for boats, where deck space and aesthetics matter as much as power output. Unlike conventional flexible panels that require bulky support structures, these panels integrate seamlessly into your vessel's design while delivering industry-leading efficiency.
Built with advanced composite fibreglass encapsulation, every panel is impact-resistant and designed to hold up in demanding marine environments — without sacrificing flexibility, weight, or style. Designed and manufactured in Canada.
Key Features
- Durable: 3rd-party crack resistant validated
- Lightweight: 0.65 lb/ft² (3.2 kg/m²)
- Flexible: Bends 180°+
- Versatile: Adaptable to systems of any voltage
- Trusted: 5-year comprehensive warranty
- Thin: 0.05 in (1.3 mm)
- Protected: UV-resistant Alexseal clearcoat
- Sleek: Full matte black appearance
- Powerful: Industry-leading 23% cell-field efficiency
- Advanced: Inline bypass diodes for shading protection
- Smart: Waterproof and salt water resistant
- Walkable: Non-slip clear coat — safe to stand on deck
- Simple install: Peel & stick with 3M-VHB backing and sealant edges
Available Configurations

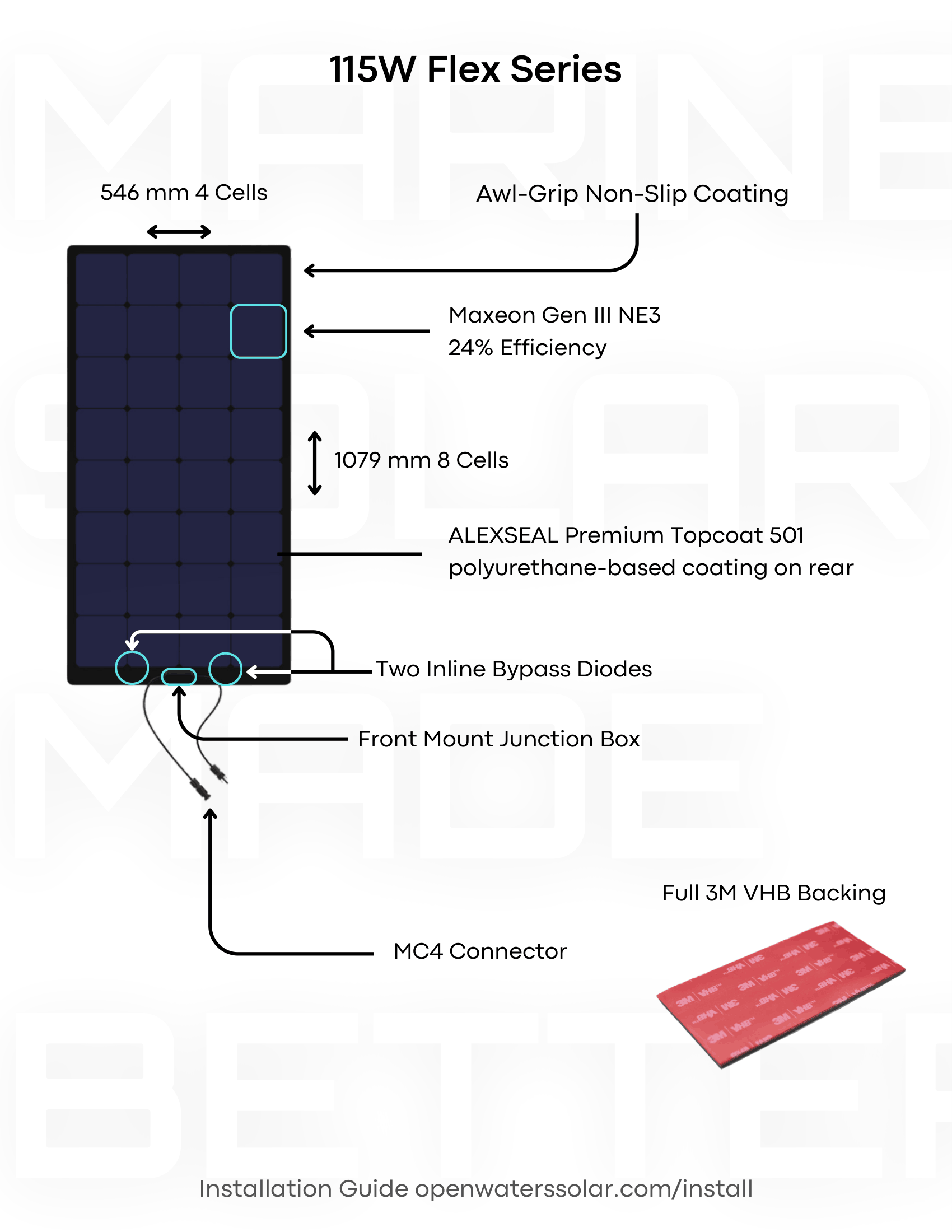

115W Flex Series — A fixed-size, ready-to-install flexible panel ideal for standard installations.
SolaDek™ — Fully custom solar decking, built to your boat's exact dimensions and power requirements, up to 400W per unit.
Technical Specifications
| Specification | 115W Flex Series | SolaDek™ (Custom Solar) |
|---|---|---|
| Max Power (± 5%) | 115W | Up to 400W | 216W/m² |
| Length | 41.5 in (105.41 cm) | Up to 60 in (152 cm) |
| Width | 21.5 in (54.61 cm) | Up to 45 in (114 cm) |
| Thickness (without 3M VHB backing) | 0.051 in (1.3 mm) | 0.051 in (1.3 mm) |
| Weight (without 3M VHB backing) | 4 lbs (1.8 kg) | 0.646 lb/ft² (3.16 kg/m²) |
| Cell Type | Maxeon Gen III ME3 — 24% efficiency | Maxeon Gen III ME3 — 24% efficiency |
| Cell-Field Efficiency* | 23% | 23% |
| Cell Arrangement | 32 cells (4 x 8) | Up to 108 cells (12 x 9) | 62 cells/m² |
| Open Circuit Voltage (Voc) | 23.36V | Up to 78.75V | 45.26 /m² |
| Short Circuit Current (Isc) | 6.37A | 6.37A |
| Max Power Voltage (Vmp) | 18.88V – 19.13V | 62.9V – 63.6V |
| Max Power Current (Imp) | 6.01A – 6.09A | 6.01A – 6.09A |
| Max Operating Temperature | 203°F (95°C) | 203°F (95°C) |
| Max System Voltage | 600V | 600V |
| 3M VHB Tape Backing (tape only) | 0.09 in (2.3 mm) | 2 lb (0.93 kg) | 0.09 in (2.3 mm) | 0.33 lb/ft² (1.62 kg/m²) |
*Cell-Field Efficiency: the electrical efficiency of a panel calculated over the contiguous area occupied by tiled solar cells, including inter-cell gaps and optical or encapsulation losses, while excluding variable borders, frames, cut-outs, hardware, and other non-active margins.
What's In The Box
- Flexible solar panel with front-mount junction box
- MC4 connectors
- Two inline bypass diodes for shading resilience
- Full 3M-VHB adhesive backing for peel & stick installation
Certifications & Compliance
- BrightSpot Automation crack resistant validation
- RoHS compliant
- CE certified
- Made and designed in Canada
Lighter, stronger, and more durable than any other solar panel on the market.
