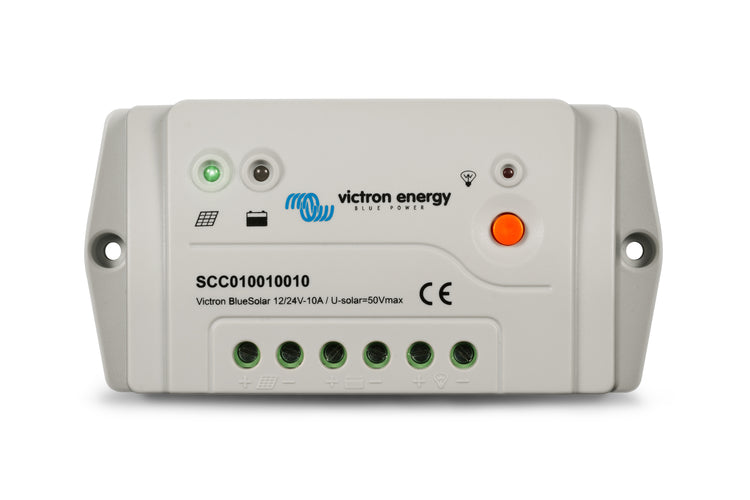

Victron BlueSolar PWM-Pro Charge Controller

Sale
Regular price $42

Model

Quantity

Secure payments

100% Guarantee

Client satisfaction

The BlueSolar PWM-Pro series is ready for use with its default settings. It also is fully programmable.

Have a question?

Talk with a technical expert.

✆ Call Us

Victron BlueSolar PWM-Pro Description:

The BlueSolar PWM-Pro series is ready for use with its default settings. It also is fully programmable.
• Lighting control function, fully programmable.
• Three stage battery charging (bulk, absorption, float), fully programmable.
• Integrated battery monitor function (Remote Panel needed to display state of charge).
• Load output with low voltage disconnect and manual control (default setting).
• Optional external temperature sensor.
• Load output protected against over load and short circuit.
• Protected against reverse polarity connection of the solar panels and/or battery.
• Day/night timing options: see manual Remote Panel for details.

Model	12/24-5	12/24-10	12/24-20	12/24-30
Battery Voltage	12/24V with automatic system voltage detection
Rated charge current	5A	10A	20A	30A
Automatic load disconnect	Yes
Maximum solar voltage	28V / 55V
Self-consumption	< 10mA
Load output	Manual control + low voltage disconnect
Protection	Battery reverse polarity (fuse), Output short circuit, Over temperature
Battery temperature sensor	Optional (article SCC940100100)
Temperature compensation	-30 mV / °C resp. -60 mV / °C (if temperature sensor installed)
Remote panel	Optional (article SCC900300000)
Grounding	Common positive
Operating temp. range	-20 to +50°C
Humidity (non-condensing)	Max 98%
Default Settings
Absorption charge	14.4V / 28.8V
Float charge	13.8V / 27.6V
Equalization charge	14.6V / 29.2V
Low voltage load disconnect	11.1V / 22.2V
Low voltage load reconnect	12.6V / 25.2V
Enclosure
Terminal size	4mm²	4mm²	10mm²	10mm²
Protection category	IP30
Weight	0.13kg	0.13kg	0.3kg	0.5kg
Dimensions (h x w x d)	138x70x37 mm	138x70x37 mm	160x82x48 mm	200x100x57 mm
