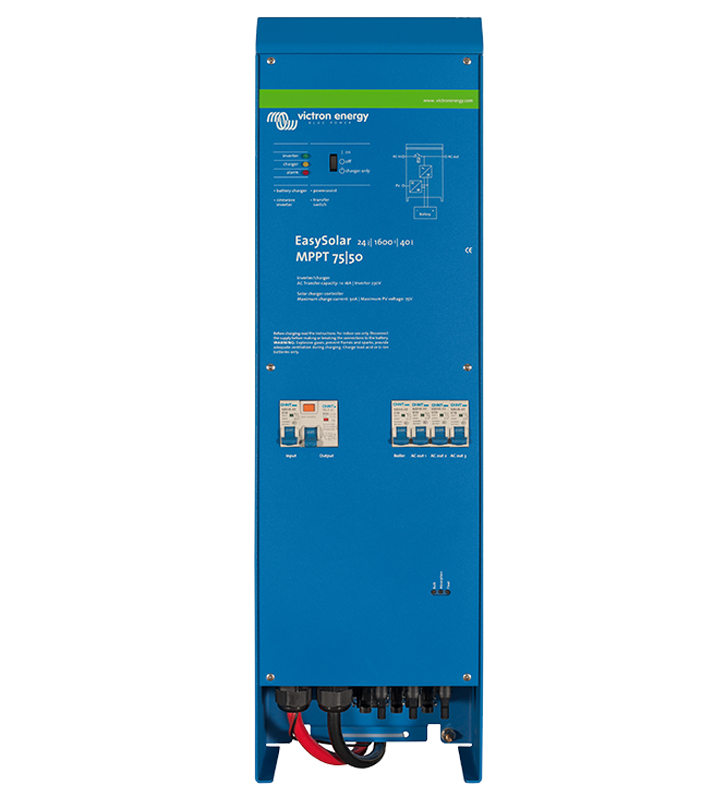

Victron EasySolar Description:
All-in-one solar power solution
The EasySolar combines a MPPT Solar Charge Controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.
Ideal for small off-grid systems with loads such as lighting, computers, chargers, electronic appliances and small power appliances.
- Easy to install with minimal wiring
- PV panels simply plg-in using MC connectors
- AC circuit protection included
| Category | EasySolar 12/1600/70 | EasySolar 24/1600/40 |
|---|---|---|
| Inverter/charger | ||
| Transfer switch | 16A | |
| INVERTER | ||
| Input voltage range | 9.5 – 17V | 19 – 33V |
| ‘Heavy duty’ output AC | 0 16A | |
| Output voltage | 230 VAC ± 2% | |
| Frequency | 50 Hz ± 0.1% | |
| Cont. output power at 25°C | 1600VA / 1300W | |
| Cont. output power at 40°C | 1200W | |
| Peak power | 3000W | |
| Maximum efficiency | 92% | 94% |
| Zero load power | 8W | 10W |
| Zero load power in search mode | 2W | 3W |
| CHARGER | ||
| AC Input voltage range | 187-265VAC | |
| Input frequency | 45 – 65Hz | |
| Power factor | 1 | |
| Charge voltage 'absorption' | 14.4V | 28.8V |
| Charge voltage 'float' | 13.8V | 27.6V |
| Storage mode | 13.2V | 26.4V |
| Charge current house battery | 70A | 40A |
| Charge current starter battery | 4A | |
| Battery temperature sensor | Yes | |
| Programmable relay | Yes | |
| Protection | a – g | |
| Solar Charge Controller | ||
| Model | MPPT 100/50 | |
| Maximum output current | 50A | |
| Maximum PV power | 700W | 1400W |
| Maximum PV open circuit voltage | 100V | |
| Maximum efficiency | 98% | |
| Self-consumption | 10 mA | |
| Charge voltage 'absorption' | 14.4V | 28.8V |
| Charge voltage 'float' | 13.8V | 27.6V |
| Charge algorithm | multi-stage adaptive | |
| Temperature compensation | -16mV/°C | -32mV/°C |
| Protection | a - g | |
| COMMON CHARACTERISTICS | ||
| Operating temp. range | -20 to +50°C (fan assisted cooling) | |
| Humidity (non-condensing) | Max 95% | |
| ENCLOSURE | ||
| Material & Colour | aluminium (blue RAL 5012) | |
| Protection category | IP 21 | |
| Battery-connection | Battery cables of 1.5 meter | |
| PV connection | Three sets of MC4 (PV-ST01) PV connectors | |
| 230 V AC-connection | G-ST18i connector | |
| Weight | 15kg | |
| Dimensions (h x w x d) | 745 x 214 x 110mm | |
