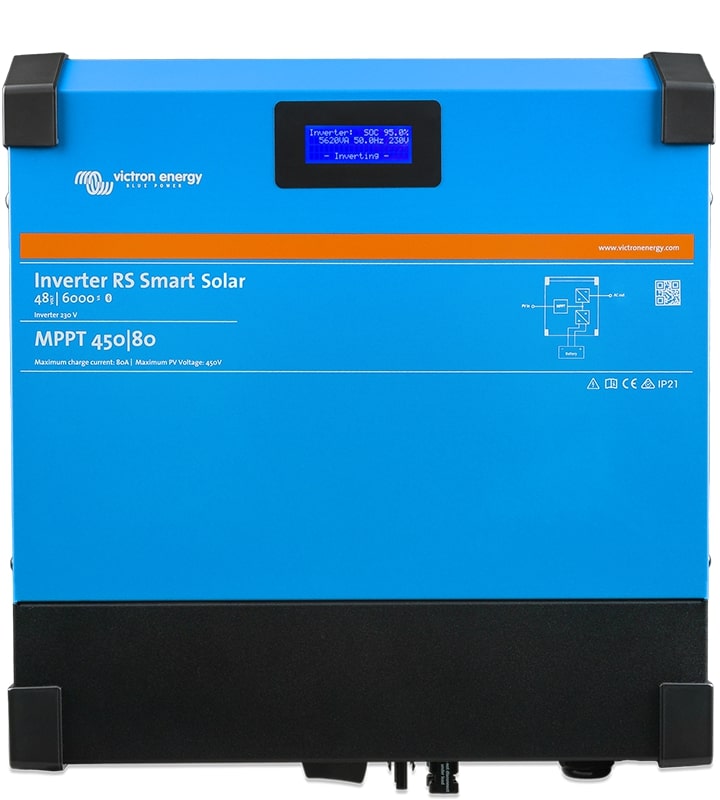

Victron Inverter RS Smart Solar Description:
The Inverter RS Smart Solar is a combination of a powerful 48VDC, 6kVA 230VAC inverter and a high voltage, 80-450VDC, 4kW MPPT solar charger. Thanks to its modern design and high frequency technology the inverter only weighs 11kg and has an excellent efficiency, low standby power, and very quiet operation.
The inverter is equipped with a display to read out battery, inverter, and solar charger details. These parameters can also be read out via Bluetooth by the VictronConnect app. In addition to this, the inverter has a VE.Can Port for connection to a GX device for system monitoring; and VE.Direct port for connection to a GlobalLink 520.
| Victron Inverter RS Smart Solar | Specifications |
|---|---|
| DC Input voltage range | 38 – 62 V (6) |
| Output - Output voltage | 230 VAC ± 2 % |
| Output - Frequency | 50 Hz ± 0.1 % (1) |
| Maximum continuous inverter current | 25 Aac |
| Continuous output power at 25 °C | Increases linearly from 4800 W at 46 VDC to 5300 W at 52 VDC |
| Continuous output power at 40 °C | 4500 W |
| Continuous output power at 65 °C | 3000 W |
| Peak power | 9 kW for 3 seconds, 7 kW for 4 minutes |
| Short-circuit output current | 45 A |
| Maximum efficiency | 96.5 % at 1 kW load, 94 % at 5 kW load |
| Zero load power | 20 W |
| Low Battery shutdown | 37.2 V (adjustable) |
| Low Battery restart | 43.6 V (adjustable) |
| SOLAR | |
| Maximum DC voltage | 450 V |
| Nominal DC voltage | 300 V |
| Start-up voltage | 120 V |
| MPPT operating voltage range | 65 – 450 V (5) |
| Max operational PV input current | 18 A (4) |
| Max PV Short circuit current reverse polarity protection | 20 A |
| Maximum DC solar charging power | 4000 W |
| Max PV short circuit current (Isc PV) | 30 A |
| Earth leakage trip level | 30 mA |
| Isolation fail level (detection before start-up) | 100 kΩ |
| CHARGER | |
| Programmable Charger voltage range (VDC) | 36 – 60 V (7) |
| Charge voltage 'absorption' (VDC) | Default setting: 57.6 V (adjustable) |
| Charge voltage 'float' (VDC) | Default setting: 55.2 V (adjustable) |
| Maximum AC coupled solar charging power (9) | 5000 W |
| Maximum combined charger current | 100 A (8) |
| Battery temperature sensor | Included |
| Battery voltage sense | Yes |
| GENERAL | |
| Parallel and 3-phase operation | 12 parallel units supported, 3 phase supports 4 units per phase |
| Programmable relay (3) | Yes |
| Protection (2) | a - g |
| Data Communications Ports | VE.Direct port and VE.Can port (**) |
| Bluetooth frequency | 2402 – 2480 MHz |
| Bluetooth power | 4dBm |
| General purpose analogue/digital in port | Yes, 2x |
| Remote on-off | Yes |
| Operating temperature range | -40 to +65 °C (fan assisted cooling) |
| Maximum altitude | 2000 m |
| Humidity (non-condensing) | max 95 % |
| ENCLOSURE | |
| Material & Colour | steel, blue RAL 5012 |
| Protection category | IP21 Protective Class: I |
| Battery-connection | M8 bolts |
| 230 VAC-connection | Screw terminals 10 mm² (6 AWG) |
| Weight | 11 kg |
| Dimensions (hxwxd) | 425 x 440 x 125 mm |
